1. הקדמה
This manual provides detailed instructions for the installation, operation, and maintenance of your Alpine KTP-600 4-Channel Compact Digital Power Amplifier. The KTP-600 is designed to enhance your vehicle's audio system with its compact size and high-performance digital circuitry, delivering clear and powerful sound. Please read this manual thoroughly before installation and use to ensure proper function and safety.
2. זיכערקייַט אינפֿאָרמאַציע
WARNING: Improper installation or use can lead to serious injury or damage to your vehicle. Always consult with a qualified professional for installation if you are unsure.
- זיכער מאַכן אַז די באַטאַרייע פֿון דעם פֿאָרמיטל איז אָפּגעטיילט איידער איר הייבט אָן קיין עלעקטרישע אַרבעט.
- Protect all wiring from sharp edges and heat sources.
- דו זאלסט נישט ינסטאַלירן די amplifier in locations where it may be exposed to direct sunlight, excessive heat, moisture, or dust.
- ענשור טויגן ווענאַליישאַן אַרום די amplifier to prevent overheating. Prolonged high-volume use may cause the unit to generate significant heat.
- Use fuses of the specified rating only.
- פרובירט נישט צו צענעמען אדער מאדיפיצירן דעם איינהייט. לאָזט איבער אלע סערוויסעס צו קוואַליפֿיצירטע פּערסאָנעל.
3. פּעקל אינהאַלט
באַשטעטיקט אַז אַלע זאכן וואָס זענען אויסגערעכנט אונטן זענען אַרייַנגערעכנט אין אייער פּעקל:
- Alpine KTP-600 4-Channel Compact Digital Power Ampליפיער אַפּאַראַט
- Speaker Cord (1.5 m) × 1
- Power Supply / Speaker Cord (1.5 m) × 1
- Power Supply Extension Cord (3.5 m) × 1
- PIN Connection Code (1.5 m) × 2
- Velcro Tape × 1
- Giboshi Terminal (Male / Female) × Each 4
- Japanese Instruction Manual (Refer to this English manual for detailed instructions)
4. סעטאַפּ און ייַנמאָנטירונג
The Alpine KTP-600 is designed for flexible installation due to its compact size. It can be installed in various locations such as under seats or within the console.
4.1 מאָנטירן די Ampליפער
Choose a mounting location that is dry, well-ventilated, and away from direct heat sources. Use the provided Velcro tape or other suitable mounting hardware to secure the amplifier firmly to prevent movement during vehicle operation.
בילד 1: אויבן view of the Alpine KTP-600 amplifier, illustrating its compact form factor and layout of connection terminals.
4.2 וויירינג קאַנעקשאַנז
The KTP-600 supports both RCA (low-level) and speaker (high-level) inputs, allowing compatibility with a wide range of head units. All necessary cables for installation are included.
- מאַכט קשר: Connect the power supply cord to the vehicle's battery (positive terminal) and a suitable ground point (negative terminal). Ensure an inline fuse is installed close to the battery.
- רעדנער קאַנעקשאַנז: פאַרבינדן דיין ספּיקערז צו די amplifier's speaker outputs using the provided speaker cords. Ensure correct polarity for each speaker.
- אַרייַנשרייַב קשר:
- RCA אַרייַנשרייַב: If your head unit has RCA pre-outs, use the PIN connection codes to connect them to the ampליפיער ס RCA ינפּוץ.
- רעדנער לעוועל אינפוט: If your head unit does not have RCA pre-outs, connect the head unit's speaker outputs directly to the amplifier's high-level inputs using the speaker cord.
- רימאָוט ווענדן: פֿאַרבינדט דעם ווײַטקאָנטראָל דראָט פֿון אײַער קאָפּ אַפּאַראַט צום amplifier's remote input. This will turn the ampליפיער אויף און אויס מיט אייער הויפט יוניט.

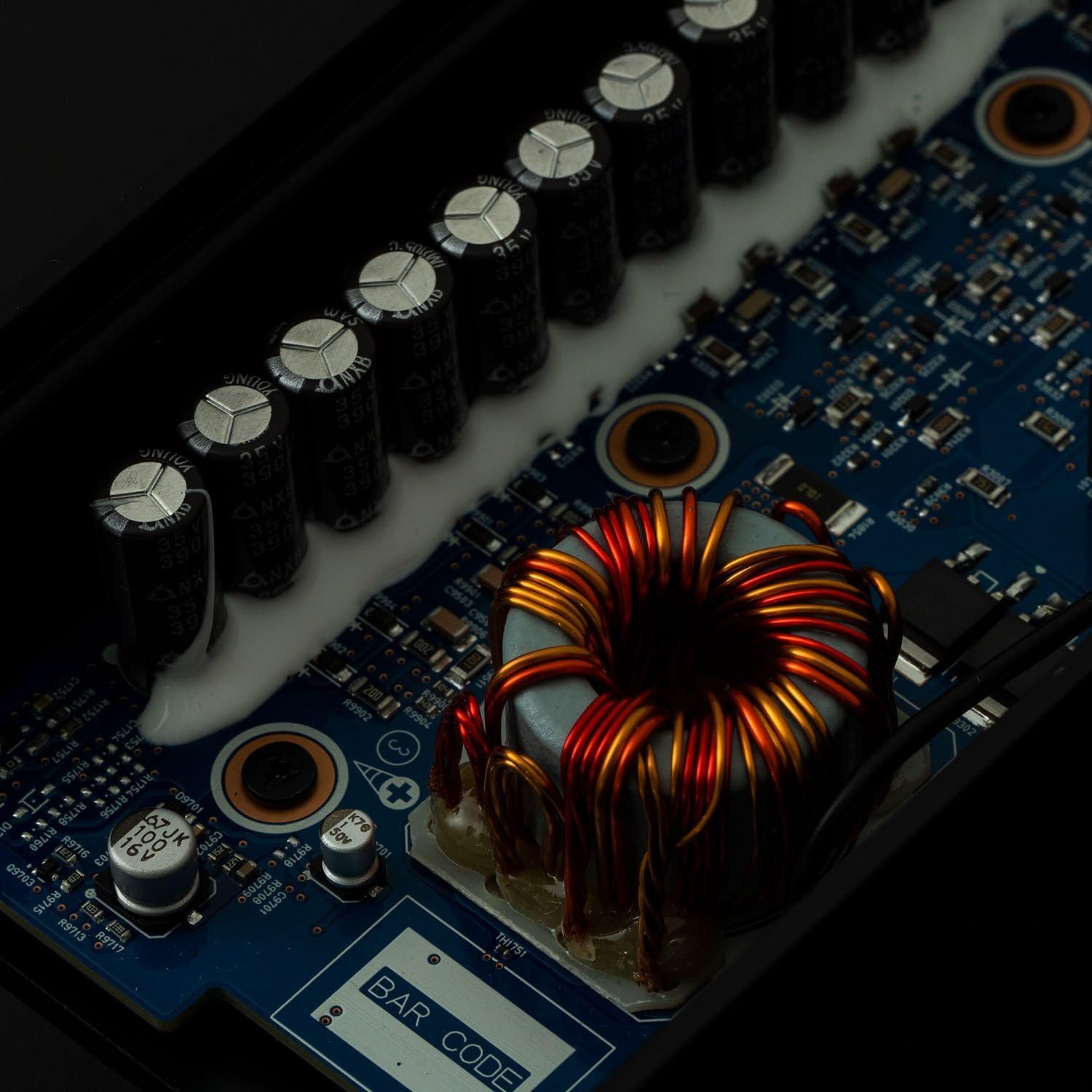

בילד 2: אינעווייניק view of the Alpine KTP-600 circuit board, highlighting the digital components responsible for sound processing and power delivery.
4.3 געווינען אַדזשאַסטמאַנט
די amplifier features gain adjustment controls to match the output level of your head unit. Proper gain setting is crucial for achieving clear sound without distortion.
- אָנהייבן מיט די amplifier's gain control set to its minimum position.
- Turn your head unit volume up to about 75-80% of its maximum level.
- סלאָולי פאַרגרעסערן די amplifier's gain control until you hear slight distortion, then back it off slightly until the sound is clear.
- Repeat for all channels if independent gain controls are present.
5. אַפּערייטינג די Ampליפער
Once properly installed and configured, the Alpine KTP-600 operates automatically with your vehicle's audio system. When the head unit is turned on, the amplifier will power on, and when the head unit is turned off, the ampליפיער וועט מאַכט אַוועק.
- באַנד קאָנטראָל: Adjust the overall volume using your head unit's volume control.
- געזונט קוואַליטעט: The digital circuit design ensures high sound quality. If you experience distortion, re-check your gain settings.
6. וישאַלט
The Alpine KTP-600 is designed for reliable operation with minimal maintenance. Follow these guidelines to ensure longevity:
- האַלטן די ampדער ליפיער איז ריין און פריי פון שטויב. ניצט א ווייכן, טרוקענעם שטאָף צום רייניגן.
- Avoid exposing the unit to moisture or liquids.
- Ensure that the ventilation areas are not blocked to allow for proper heat dissipation.
7. טראָובלעשאָאָטינג
If you encounter issues with your Alpine KTP-600 ampלייפער, אָפּשיקן צו די פאלגענדע טראָובלעשאָאָטינג סטעפּס:
7.1 קיין געזונט
- Check all power and ground connections. Ensure they are secure and free from corrosion.
- Verify the remote turn-on wire is connected and receiving power from the head unit.
- Check the inline fuse on the power cable. Replace if blown.
- Ensure input cables (RCA or speaker level) are correctly connected to both the head unit and the ampליפער.
- Confirm speaker wires are properly connected and not shorted.
- Adjust the gain control. It might be set too low.
7.2 פאַרקרימט סאָונד
- רעדוצירן די amplifier's gain setting. It may be set too high, causing clipping.
- Lower the head unit's volume.
- Check speaker impedance. Ensure it matches the ampליפיער ס ספּעסאַפאַקיישאַנז.
- Inspect speaker wires for damage or shorts.
7.3 Ampאיבערהיצונג פון ליפיער
The KTP-600 is a compact amplifier and can generate heat, especially during prolonged high-volume operation. If the amplifier frequently enters protection mode due to overheating:
- Ensure the mounting location provides adequate ventilation. Do not cover the ampליפער.
- באַשטעטיקן אַז די amplifier is not installed in an enclosed space without airflow.
- Consider adding external cooling, such as a small fan, or a heatsink if consistent overheating occurs, as noted by some users.
- Check speaker impedance. Running speakers with too low impedance can cause excessive heat.
- Reduce the gain setting to prevent the amplifier from working too hard.
8. ספּעסאַפאַקיישאַנז
| שטריך | באַשרייַבונג |
|---|---|
| מאַקסימום רעזולטאַט | 90 W × 4 (4 Ω) |
| Rated Output (14.4 V, 4 Ω Load) | 45 W × 4 (<1% THD + N) |
| Bridge Connection (14.4 V, 4 Ω Load) | 90 W × 2 (<1% THD + N) |
| S/N Ratio (IHF A Weighted 4 Ω Load) | 92 דבאַ |
| אָפטקייַט ענטפער | 10 הז ~ 45 כז |
| אַרייַנשרייַב ימפּידאַנס | 20 kΩ or More |
| Input Sensitivity (RCA Input) | 0.03 V צו 0.6 V |
| Input Sensitivity (Speaker Input) | 0.5 V צו 9 V |
| Operating Power Supply Range | 11 V ~ 16 V (DC) |
| Body Size (W × H × D, Excluding Protrusions) | 180 × 41 × 80 מם |
| גוף וואָג | 0.7 קג |
| נומער פון טשאַנאַלז | 4 |
| מאַטעריאַל | מעטאַל |
9. וואָראַנטי און שטיצן
Alpine products are manufactured to high-quality standards. For information regarding warranty coverage, please refer to the warranty card included with your product or visit the official Alpine webפּלאַץ פֿאַר דיין געגנט.
If you require technical assistance, troubleshooting beyond this manual, or service, please contact Alpine customer support. Have your product model number (KTP-600) and purchase information ready when contacting support.
You can typically find support contact information on the official Alpine webפּלאַץ: www.alpine.com
