1. פּראָדוקט איבערview
The AMASE AUDIO Android 14 Car Stereo is an advanced in-dash navigation and entertainment system designed for specific Audi A3 and S3 models. It features a 7-inch QLED touchscreen, runs on Android 14, and offers a range of connectivity options including wireless CarPlay, Android Auto, 4G WiFi, and Bluetooth 5.0. This unit integrates seamlessly into your vehicle's dashboard, providing enhanced audio capabilities with a built-in DSP and support for various car functions.
בילד 1.1: פראָנט view of the AMASE AUDIO Android 14 Car Stereo, showcasing its 7-inch touchscreen display and physical control buttons.
2. קאַמפּאַטאַבילאַטי
This head unit is compatible with the following Audi models:
- Audi A3 8P (2003-2012)
- Audi A3 8P1 3-door Hatchback (2003-2012)
- Audi S3 8P (2006-2012)
- Audi RS3 Sportback (2011-2012)
וויכטיק באַמערקונג:
If your car's dashboard has a 1 DIN structure, this head unit is not applicable. Please verify your vehicle's dashboard configuration before installation.
3. שליסל פֿעיִקייטן
- אַפּערייטינג סיסטעם: Real Android 14.0 system with Rockchip Quad-core ARM Cortex-A53@2.0GHz.
- זכּרון און סטאָרידזש: 3GB RAM and 32GB ROM.
- ווייַז: 7-inch QLED touchscreen with 1024x600 pixel resolution.
- ווירעלעסס קאַנעקטיוויטי: Built-in Wireless/Wired CarPlay and Android Auto support.
- נעץ: Dual-band 4G WiFi (5GHz/2.4GHz) and support for 4G SIM card insertion.
- בלועטאָאָטה: Bluetooth 5.0 for wireless music streaming and hands-free calling.
- אַודיאָ פּראַסעסינג: Built-in DSP (Digital Sound Processor) for enhanced audio quality.
- נאַוויגאַציע: Integrated Google Maps for GPS navigation.
- מולטימעדיאַ: Supports 1080p video playback.
- באַניצער צובינד: Split-screen functionality, multicolor LED buttons, customizable themes and wallpaper.
- יקספּאַנדאַביליטי: Support for OBDII and rear camera (rear camera not included).
בילד 3.1: איבערview of the car stereo's high-standard configuration, highlighting Android 14, CPU, RAM, ROM, Wireless CarPlay, DSP+, WiFi, 4G, Bluetooth, and pre-installed apps like Play Store and Navigation.
4. פּעקל אינהאַלט
דער פּראָדוקט פּעקל כולל די פאלגענדע קאַמפּאָונאַנץ:
- הויפּט קאָפּ אַפּאַראַט
- מאַכט קאַבלע
- RCA קאַבלעס
- Radio Antenna Connector
- 15 א פוסע
- Canbus Decoder
- פונדרויסנדיק מיקראָפאָן
- USB Adapter Cables (multiple)
- Disassembly Tools (4 keys)
- Radio Antenna Adapter Cable
- גפּס אַנטענע
Image 4.1: All accessories included with the AMASE AUDIO Android 14 Car Stereo, such as power cables, RCA cables, antennas, and installation tools.
5. ינסטאַללאַטיאָן גייד
Installation of the AMASE AUDIO Android 14 Car Stereo requires careful attention to wiring and proper fitment. It is recommended that installation be performed by a qualified professional.
5.1 פאַר-ינסטאַלירונג סטעפּס
- דיסקאַנעקט באַטערי: איידער איר הייבט אן, דארפט איר אפשטעלן דעם נעגאטיוון באטעריע-טערמינאל פונעם אויטא כדי צו פארמיידן עלעקטרישע קורצע צוזאמענברוכן.
- Remove Existing Head Unit: Use the provided disassembly tools to carefully remove the original car stereo from the dashboard.
- דורכקוקן דעם דאַשבאָרד: Ensure your car's dashboard structure is compatible (not 1 DIN).
5.2 וויירינג קאַנעקשאַנז
Refer to the wiring diagrams below for correct connections. Ensure all cables are securely connected to their corresponding ports.
- מאַכט קאַבלע: פֿאַרבינדט דעם הויפּט מאַכט כאַרנעס צו די וויירינג פון די פאָרמיטל.
- RCA קייבלס: פֿאַר פונדרויסנדיק amplifiers, subwoofers, or video input/output.
- גפּס אַנטענע: מאָנטירט די דזשי-פּי-עס אַנטענע אין אַ אָרט מיט אַ קלאָרן view פון הימל, טיפּיש אויף די דאַשבאָרד אָדער אונטער די ווינטשויב.
- פונדרויסנדיק מיקראָפאָן: Connect the external microphone for improved call quality and voice commands. Position it near the driver for optimal performance.
- USB Adapter Cables: Connect for USB devices, such as flash drives or charging.
- ראַדיאָ אַנטענע: Connect the radio antenna connector and adapter cable.
- Canbus Decoder: Connect the Canbus decoder as per the vehicle's wiring instructions to ensure steering wheel controls and other vehicle data functions correctly.
- Backup Camera (Optional): If installing a backup camera, connect its video input to the designated port on the head unit.
Image 5.1: Detailed wiring diagrams for the 18PIN power supply socket and the 60PIN multi-functional socket, including pin definitions for various connections like audio, video, USB, and antennas.
5.3 Mounting the Head Unit
Once all connections are made, carefully slide the new head unit into the dashboard opening until it clicks into place. Ensure a snug fit. The unit is designed for a direct fit in compatible Audi A3/S3 models.

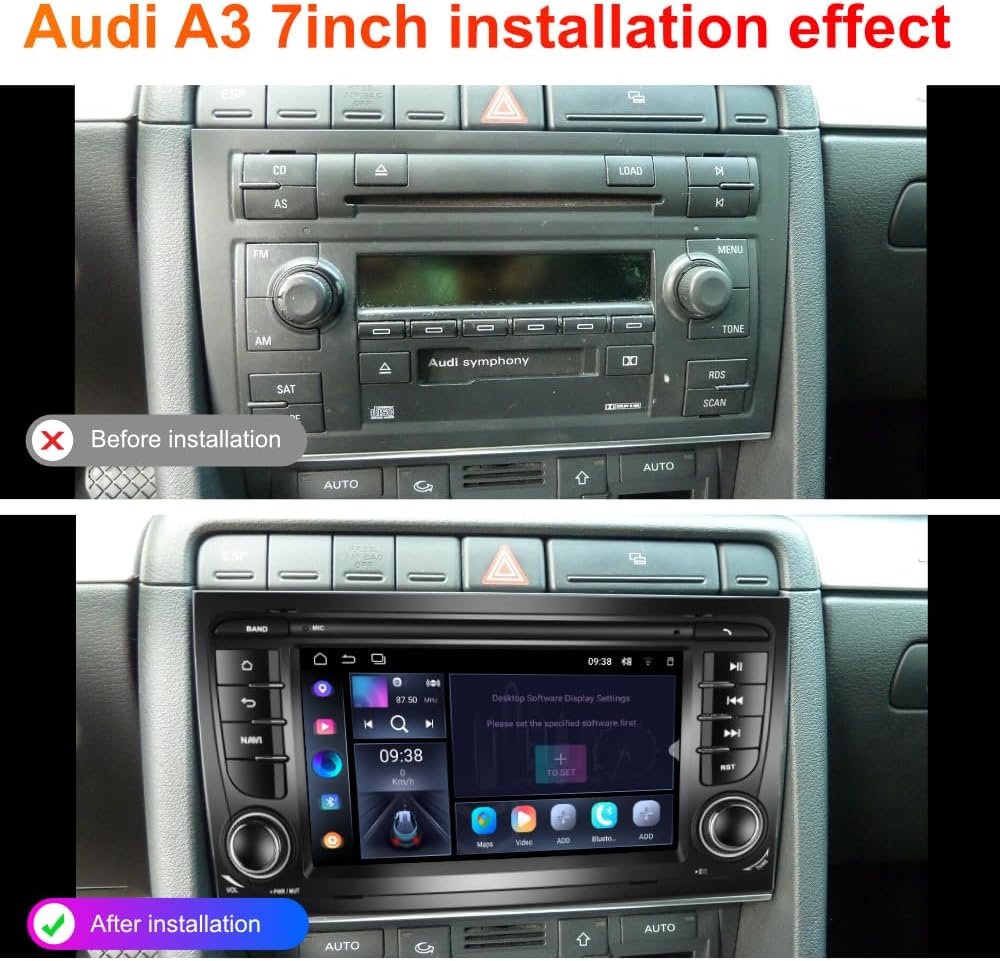

Image 5.2: Comparison showing the original Audi A3 dashboard before installation and the new AMASE AUDIO 7-inch head unit seamlessly integrated after installation.
6. ערשט סעטאַפּ און קאָנפיגוראַטיאָן
6.1 ערשטער מאַכט אויף
After installation, reconnect the vehicle's battery. The unit should power on automatically with the car's ignition. Follow any on-screen prompts for initial setup, such as language selection and time zone.
6.2 Network Connection (WiFi/4G)
- WiFi: גיין צו סעטטינגס> נעץ און אינטערנעט> ווי-פיאויסקלייבן אייער געוואונטשענע נעץ און אריינגעבן דאס פאסווארט.
- 4G: Insert a compatible 4G SIM card into the designated slot (if available on your model). The unit should automatically detect and connect to the cellular network.
6.3 בלועטאָאָטה פּערינג
- On the head unit, navigate to the Bluetooth application.
- אַקטיווירן בלועטוט אויף אייער מאָביל מיטל און מאַכן עס דיסקאַוועראַבאַל.
- On the head unit, search for available devices and select your mobile device.
- באַשטעטיקן דעם פּערינג קאָד אויף ביידע דעוויסעס.
6.4 וויירלעס קאַרפּליי און אַנדרויד אויטאָ
The unit comes with a built-in CarPlay/Android Auto application (often labeled 'Zlink' or similar). To connect:
- Ensure Bluetooth is enabled and paired between your phone and the head unit.
- Open the CarPlay/Android Auto application on the head unit.
- Follow the on-screen instructions to establish a wireless connection with your iPhone (CarPlay) or Android device (Android Auto).

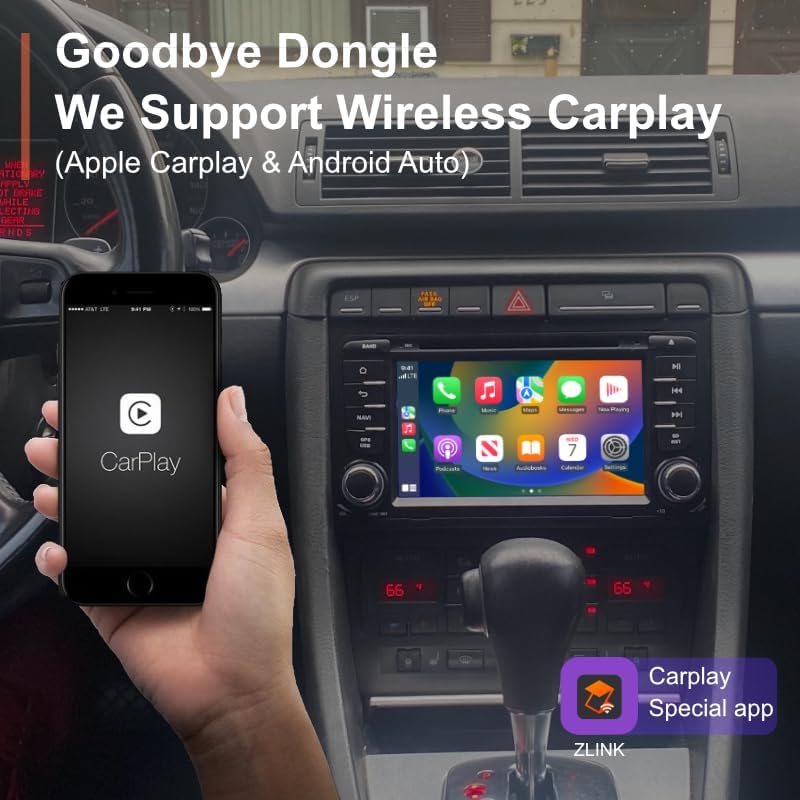

Image 6.1: A smartphone showing the CarPlay interface, indicating a wireless connection to the car stereo, eliminating the need for a physical dongle.
7. אַפּערייטינג ינסטרוקטיאָנס
7.1 באַניצער צובינד נאַוויגאַציע
The Android 14 interface provides intuitive navigation. Swipe left or right to access different home screens, and tap on app icons to launch them. The system supports various themes and customization options.
Image 7.1: A collage of different system UI screens, demonstrating various app layouts, settings menus, and theme selections available on the car stereo.
Image 7.2: Illustrates customization features such as split-screen multitasking, changing wallpaper, selecting from 6 themes, and adjusting button LED colors.
7.2 Audio Settings (DSP)
The built-in DSP allows for advanced audio customization. Access the DSP settings to adjust equalizer, sound effects, and time correction.
- EQ אַדזשאַסטמאַנט: Utilize the 15-band graphic equalizer or select from 7 preset EQ modes to tailor the sound to your preference.
- Special Effect Adjustment: Configure sound effects such as Equiloudness, Surround system enhancement, Cut Frequency, Dynamic Bass adjustment, and Subwoofer settings.
- צייט קערעקשאַן: Adjust sound delays for each speaker to optimize the sound field within your car.
Image 7.3: Screenshots of the DSP interface, detailing options for 15-band EQ adjustment, special sound effects, and time correction settings for a personalized audio experience.
7.3 גפּס נאַוויגאַציע
The unit comes with Google Maps pre-installed. Ensure a strong GPS signal and internet connection for optimal navigation performance. You can download offline maps for use without an internet connection.
7.4 ראַדיאָ (FM/AM)
Access the Radio application to tune into FM and AM stations. Use the touchscreen to scan for stations, save presets, and adjust settings.
7.5 מולטימעדיאַ ווידערשפּיל
Play 1080p videos and various audio formats from connected USB devices or internal storage. Use the built-in media player application.
7.6 Split-Screen Functionality
To use split-screen, open an application, then long-press the recent apps button or drag an app to one side of the screen (depending on the specific Android 14 UI implementation) to open another app alongside it.
7.7 סטירינג ראָד קאָנטראָלס
The unit supports existing steering wheel controls for compatible Audi models. These controls should function automatically after proper Canbus decoder installation, allowing you to manage volume, tracks, and calls without taking your hands off the wheel.
7.8 Backup Camera Input
If a backup camera is connected, the display will automatically switch to the camera feed when the vehicle is put into reverse gear. This feature includes parking assist lines for guidance.
8. סיסטעם דערהייַנטיקונגען
The AMASE AUDIO Android 14 Car Stereo supports convenient online firmware updates (OTA - Over-The-Air). Regularly checking for and installing updates can enhance system security, fix software issues, and upgrade the Android version.
8.1 טשעק פֿאַר דערהייַנטיקונגען
- Ensure the head unit is connected to a stable internet connection (WiFi or 4G).
- נאַוויגירן צו סעטטינגס> סיסטעם> סיסטעם דערהייַנטיקן.
- Tap 'Check version' or 'Check for updates'.
8.2 Performing Updates
If an update is available, follow the on-screen instructions to download and install it. Do not power off the unit during the update process to avoid system corruption.
Image 8.1: The system update interface, displaying the current software version and an option to check for new updates, indicating support for OTA updates.
9. וישאַלט
כדי צו זיכער מאַכן די לאַנגלעבעדיקייט און אָפּטימאַלע פאָרשטעלונג פון דיין מאַשין סטערעאָ, נאָכפאָלגן די וישאַלט גיידליינז:
- רייניקונג די פאַרשטעלן: ניצט אַ ווייכע, לינט-פֿרייע שטאָף צו פֿאָרזיכטיק ווישן דעם טאָוטשסקרין. פֿאַר שווערע פֿלעקן, אַ ביסל ווישןampווישט דעם שטאָף מיט וואַסער אָדער אַ פאַרשטעלן-זיכער רייניגער. פֿאַרמייַדט שטרענגע כעמיקאַלן אָדער אַברייסיוו מאַטעריאַלן.
- ווייכווארג דערהייַנטיקונגען: Regularly check for and install system updates as described in Section 8.
- ויסמיידן עקסטרעם טעמפּעראַטורעס: Do not expose the unit to extreme heat or cold for extended periods.
- זיכער קאַנעקשאַנז: Periodically check that all cables and connections are secure, especially after any vehicle maintenance.
10. טראָובלעשאָאָטינג
This section addresses common issues you might encounter with your AMASE AUDIO Android 14 Car Stereo.
| פּראָבלעם | מעגלעך סיבה | לייזונג |
|---|---|---|
| דער אַפּאַראַט טוט נישט מאַכט אויף. | לויזער מאַכט פֿאַרבינדונג, צעבראָכענע פיוז, פּראָבלעם מיט פֿאָרמיטל באַטעריע. | Check power cable connections. Inspect the 15A fuse. Verify vehicle battery charge. |
| קיין קלאַנג אדער שלעכטע קלאַנג קוואַליטעט. | Loose speaker wires, incorrect DSP settings, volume too low. | Check all speaker connections. Adjust volume and DSP settings (EQ, balance, fader). Ensure correct audio output mode. |
| Bluetooth/CarPlay/Android Auto not connecting. | Bluetooth not enabled, incorrect pairing, app issue (Zlink). | Ensure Bluetooth is on and discoverable on both devices. Re-pair the devices. Restart the Zlink app or the head unit. |
| שטייר-ראד קאנטראלס ארבעטן נישט. | Canbus decoder not connected or configured correctly. | Verify Canbus decoder connection and ensure it is properly recognized by the head unit. Consult a professional if issues persist. |
| Battery drain when car is off. | Unit remaining in standby mode instead of fully powering off. | Check system settings for a 'power off' or 'deep sleep' option. Adjust the setting to ensure the unit fully shuts down with the ignition. |
| Date and time not saving. | Loss of constant power (ACC wire issue) or system bug. | Verify the ACC (Accessory) wire connection. Ensure the unit has a constant power supply to maintain settings. Check for system updates. |
| Touchscreen unresponsive or lagging. | Software glitch, too many apps running, system overload. | Restart the head unit. Close unnecessary background applications. Perform a factory reset if the issue persists (backup data first). |
11. ספּעסאַפאַקיישאַנז
| שטריך | באַשרייַבונג |
|---|---|
| אָפּערייטינג סיסטעם | אַנדרויד 14.0 |
| פּראַסעסער | Rockchip Quad-core ARM Cortex-A53@2.0GHz |
| באַראַן | 3 גיגאבייט |
| ראַם | 32 גיגאבייט |
| ווייַז גרייס | 6.98 אינטשעס |
| האַכלאָטע | 1024 x 600 QLED |
| בלועטאָאָטה ווערסיע | 5.0 |
| WiFi | Dual-band (2.4GHz/5GHz) 4G WiFi |
| ספּעציעלע פֿעיִקייטן | Wireless CarPlay, Android Auto, Built-in DSP+, GPS Navigation, Split Screen, 1080p Video Playback |
| פּונקט וואָג | 1.87 פונט |
| פּראָדוקט דימענשאַנז | 9.45 X 6.89 X 4.92 אינטשעס |
| מאַונטינג טיפּ | דאַשבאָרד בארג |
12. וואָראַנטי און שטיצן
The AMASE AUDIO Android 14 Car Stereo comes with a איין יאָר וואָראַנטי. This warranty covers free replacement of defected parts, excluding the screen. Damage caused by human error or misuse is not covered under this warranty.
For technical support or warranty claims, please contact AMASE AUDIO customer service through the retailer where the product was purchased or visit the official AMASE AUDIO webפּלאַץ פֿאַר קאָנטאַקט אינפֿאָרמאַציע.
