הקדמה
This manual provides essential information for the safe and effective installation, operation, and maintenance of your LEONLITE 8-Pack Low Voltage LED Landscape Spotlights. These spotlights are designed for outdoor use, featuring a durable aluminum construction and an IP65 waterproof rating, ensuring reliability in various weather conditions. The 3000K warm white light with a CRI90+ rating enhances the natural appearance of your landscape. The low voltage design (AC/DC 12V-24V) ensures safety for children and pets.
1. סעטאַפּ
1.1 פּעקל אינהאַלט
- 8 x LED Landscape Spotlights
- 8 רענטגענ ערד סטייקס
- 16 x Waterproof Wire Connectors
1.2 פֿאַרזאַמלונג
- פֿאָרזיכטיק אויספּאַקן אַלע קאָמפּאָנענטן און קאָנטראָלירן אויב עס זענען פֿאַראַן שאָדנס.
- Attach each spotlight head to its corresponding ground stake by screwing it clockwise until secure.

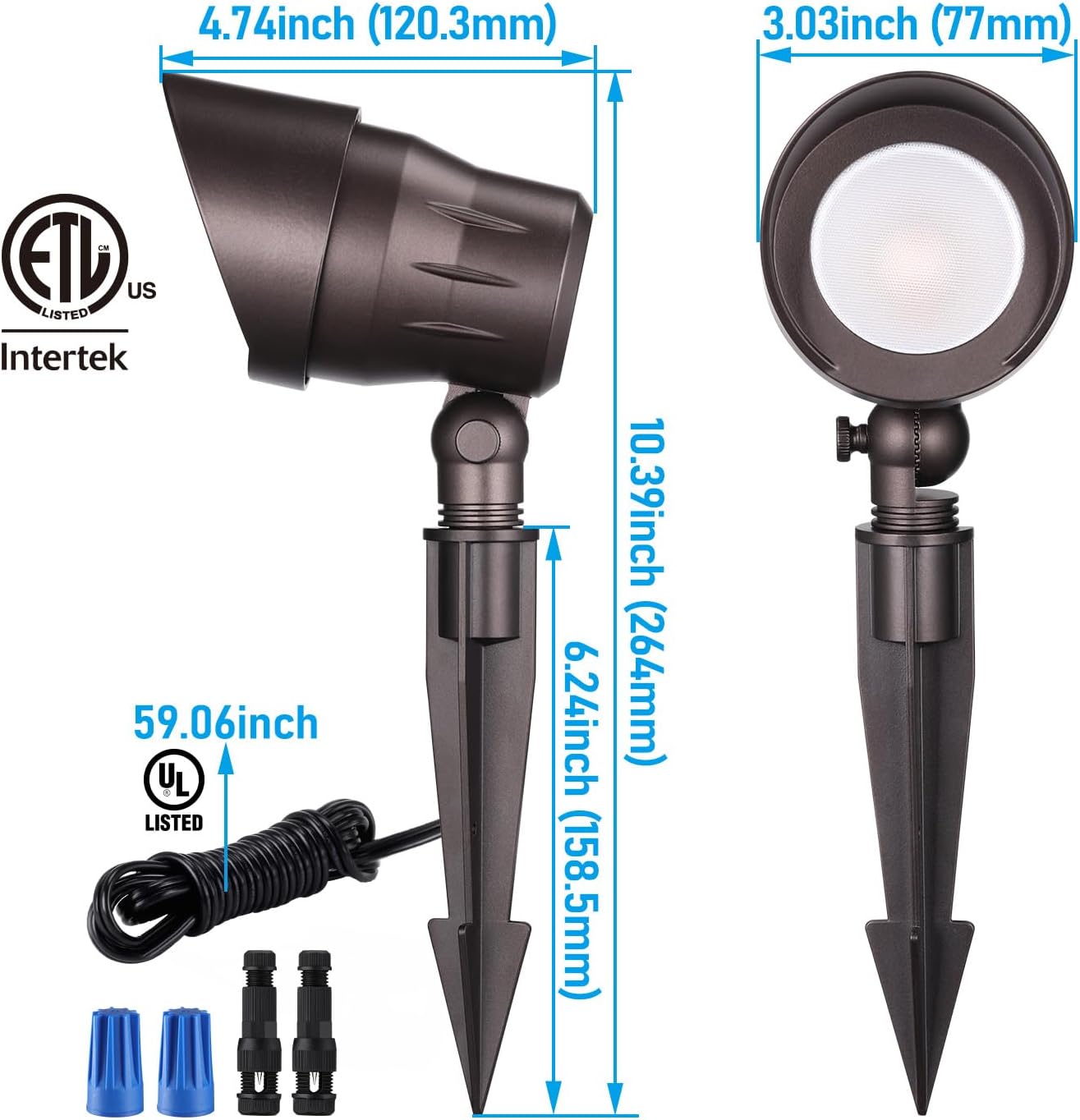

Figure 1: Spotlight dimensions and included components.
1.3 וויירינג און אינסטאַלאַציע
These low voltage spotlights require a 12V-24V AC/DC landscape lighting transformer (not included). Ensure the transformer's wattage capacity is sufficient for the total wattage of all connected lights.
- פּלאַן אויסלייג: Determine the desired placement for each spotlight to highlight specific features like trees, shrubs, or architectural elements. The 45° narrow beam angle is ideal for focused illumination.
- צוגרייטן וויירינג: Lay out your low voltage main cable (not included) from the transformer to the desired light locations.
- קאָננעקט לייץ: For each spotlight, use the provided waterproof wire connectors to securely connect the spotlight's power cable to the main low voltage cable. Ensure a tight and waterproof connection to prevent moisture ingress.
- שטעקן אין דער ערד: Once wired, firmly push the ground stake of each spotlight into the soil at your chosen location. Ensure the light is stable.
- סטרויערן ווינקל: The spotlight features 180° adjustability. Loosen the adjustment knob, position the light to your desired angle, and then tighten the knob to secure it.

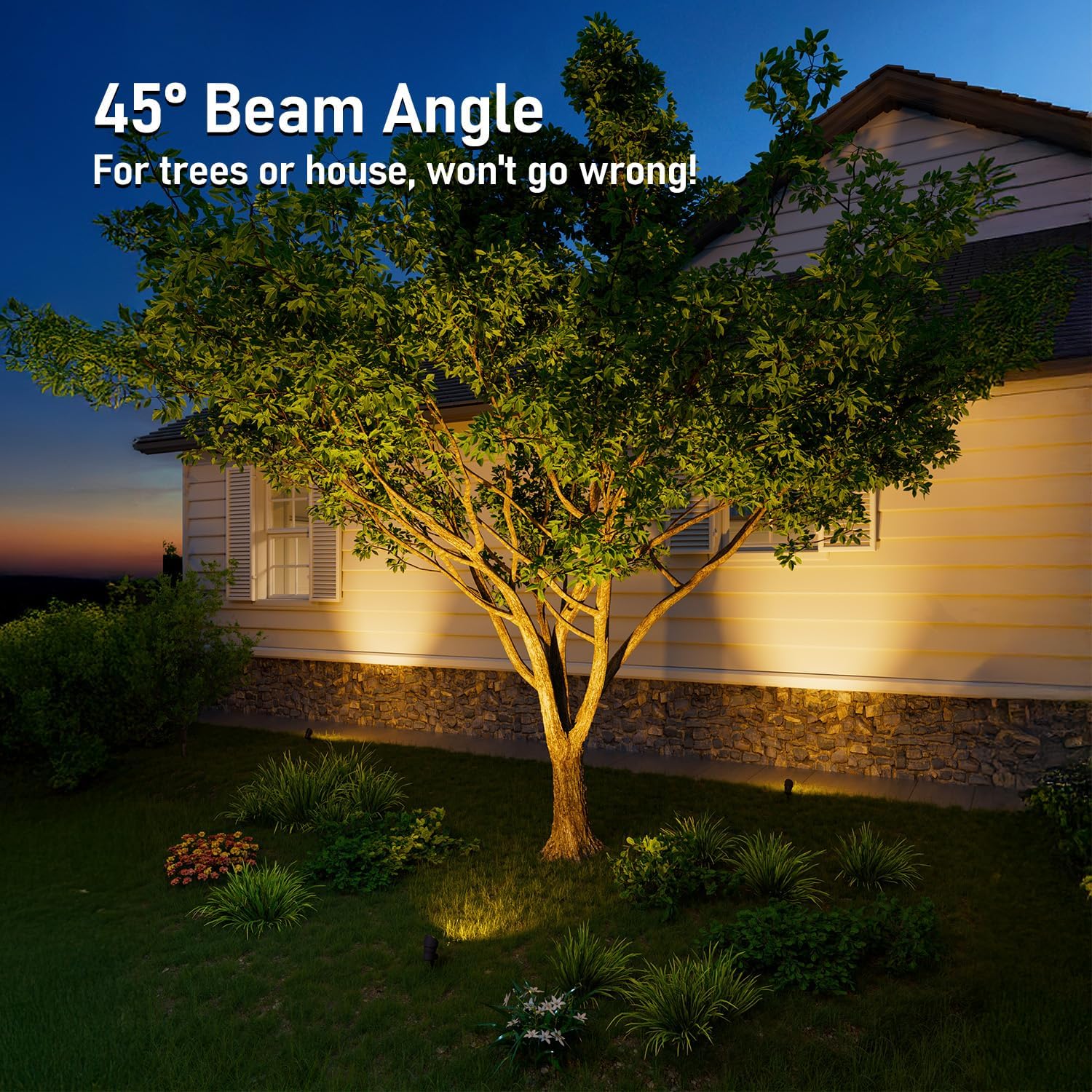

פיגורע 2: עקסample of spotlights illuminating a tree and house exterior.
Figure 3: Multiple spotlights highlighting garden features.
2. אַפּערייטינג ינסטרוקטיאָנס
2.1 פּאַוערינג אויף / אַוועק
Once properly installed and connected to a low voltage transformer, the spotlights will operate according to the transformer's settings. Most landscape lighting transformers include a timer or photocell sensor for automatic dusk-to-dawn operation or scheduled illumination.
2.2 ליכט רעזולטאַט
These spotlights provide a consistent 3000K warm white light, offering a cozy and inviting glow. The high Color Rendering Index (CRI) of 90+ ensures that colors in your landscape appear natural and vibrant under illumination.
Figure 4: Close-up of the warm white light output.
3. וישאַלט
The LEONLITE landscape spotlights are designed for minimal maintenance due to their durable construction and IP65 waterproof rating.
- רייניקונג: Periodically clean the lens and aluminum housing with a soft, damp cloth to remove dirt, dust, or debris. Avoid abrasive cleaners that could damage the finish or lens.
- דורכקוק: Annually inspect all wiring and connections for any signs of wear, damage, or corrosion. Ensure all wire connectors remain tightly sealed.
- געווער: The die-cast aluminum housing is corrosion-resistant and designed to withstand outdoor elements, contributing to a long product lifespan.
Figure 5: Spotlight demonstrating waterproof capability.
4. טראָובלעשאָאָטינג
| פּראָבלעם | מעגלעך סיבה | לייזונג |
|---|---|---|
| ליכט טוט נישט קער אויף | No power to the transformer; Loose wire connection; Faulty light. | Check transformer power supply and circuit breaker. Ensure all wire connections are secure. Test with a known working light. |
| ליכט איז טונקל | Insufficient power from transformer; Long wire run causing voltage drop; Dirty lens. | באַשטעטיקן טראַנספאָרמאַטאָר אַוטפּוט באַנדtage. Consider shorter wire runs or thicker gauge wire. Clean the light lens. |
| וואַסער ין ליכט האָוסינג | Improperly sealed wire connection; Damaged housing. | Ensure all wire connectors are properly sealed and tightened. Inspect the light housing for cracks or damage. |
5. ספּעסאַפאַקיישאַנז
| שטריך | דעטאַל |
|---|---|
| סאָרט | LEONLITE |
| מאָדעל נומער | 60816 |
| קאָליר טעמפּעראַטור | 3000K וואַרעם ווייַס |
| וואָסtage | 5 וואטס |
| Voltage | 12 וו-24 וו אַק / דק |
| ברייטנאַס | 280 לומענס |
| מאַטעריאַל | די-וואַרפן אַלומיניום |
| שטראַל ווינקל | 45° Narrow Beam |
| CRI | 90+ |
| וואַסער קעגנשטעל מדרגה | IP65 וואָטערפּרוף |
| סערטיפיקאַטיאָנס | ETL ליסטעד |
| לעבן | 30,000 שעה |
| פּראָדוקט דימענשאַנז | 14.76"L x 10.83"W x 8.27"H (Overall package dimensions) |
| פּונקט וואָג | 1.1 פונט (פּער ליכט) |
6. וואָראַנטי
This LEONLITE product is covered by a 3 יאָר וואָראַנטי from the date of purchase. This warranty covers defects in materials and workmanship under normal use. For warranty claims or further details, please refer to the official LEONLITE webפּלאַץ אָדער קאָנטאַקט קונה שטיצן.
7. קונה שטיצן
For technical assistance, troubleshooting, or any questions regarding your LEONLITE 8-Pack Low Voltage LED Landscape Spotlights, please contact LEONLITE customer service. You can typically find contact information on the product packaging, the official LEONLITE webוועבזייטל, אדער דורך אייער הענדלער.
Webפּלאַץ: www.leonlite.com (באַמערקונג: דאָס איז אַ פּלאַץ האָלדער URL, please refer to actual product documentation for official webפּלאַץ.)
