Pyle PLMRLEWB46B 4-Inch Waterproof Marine Wakeboard Tower Speakers Instruction Manual

הקדמה

The Pyle PLMRLEWB46B Marine Wakeboard Tower Speakers are designed for robust outdoor and marine environments. Featuring a waterproof, marine-grade construction, these 4-inch dual subwoofer speakers deliver 300 watts of maximum power output, enhanced with built-in blue LED lights. This manual provides essential information for the proper installation, operation, and maintenance of your speaker system to ensure optimal performance and longevity.

וואָס איז אין די קעסטל

• (2) מאַרינע ספּיקערז
• ינטעגראַטעד מאַונטינג קלamps
• Power Supply Cable, 12V
• Accessories (including additional rubber inserts for mounting)

בילד באַשרייַבונג: A pair of black Pyle marine speakers shown with their integrated mounting clamps and two coiled power supply cables, illustrating the complete package contents.

פֿעיִקייטן

• 2-Way Audio System: Features 4-inch subwoofers and 1.0-inch titanium dome tweeters for full-range sound.
• 300 Watt Max Power: Delivers 300 Watt MAX (150 Watt RMS) power output with 4 Ohms impedance.
• Waterproof Marine Grade Construction: IP-44 rated, rugged, and weather-resistant housing with anti-corrosion and UV resistant coating.
• געבויט-אין געפירט לייץ: Illuminating blue LED lights for enhanced aesthetics.
• Compact Mountable Design: Integrated universal roll bar mounting clamps for easy installation on various vehicles and boats.
• Long Excursion Subwoofers: Designed for impressive bass response.
• אָפטקייַט ענטפער: 70 הז-20 כז.
• מאַגנעט: 10 אָז.
• סענסיטיוויטי: 90 דב.
• קאַנסטראַקשאַן מאַטעריאַל: Engineered ABS Grills.
• מאַכט צושטעלן: דק 12 וו.
• רעדנער האָוסינג גרייס (L x W x H): 5.4'' x 7.6'' x 7.0'-inches (with Mounting Bracket).

בילד באַשרייַבונג: A single black Pyle marine speaker highlighting its removable mounting bracket and built-in blue LED illuminating lights. Arrows indicate the bracket's detachability.

בילד באַשרייַבונג: Two black Pyle marine speakers with water droplets on their surface, emphasizing their rugged and weather-resistant housing and waterproof marine-grade construction.

סעטאַפּ און ינסטאַלירונג

The Pyle PLMRLEWB46B speakers are designed for versatile mounting on roll cages, roll bars, and wakeboard towers. Follow these steps for secure installation:

1. צוגרייטן די מאָנטירונג אָרט: Identify a suitable location on your vehicle's roll cage or boat's wakeboard tower. Ensure the bar diameter is compatible (up to 1.96'' / 5cm).
2. Select Appropriate Rubber Inserts: Use the provided rubber inserts to achieve a snug fit between the mounting clamps and your bar. Stack multiple inserts if necessary for thinner bars.
3. צוטשעפּען מאָונטינג קלamps: Secure the integrated mounting clamps around the bar at your desired location. The clamps are designed for easy adjustment.
4. Adjust Speaker Angle: The speakers feature a 360-degree swivel mount. Adjust the speaker angle to direct sound optimally. Once the desired position is achieved, tighten the screws on the mounting bracket to lock it in place.
5. וויירינג: Connect the included 12V power supply cable to the speaker terminals. Ensure proper polarity (red for positive, black for negative). The speaker wire terminals are internally sealed with silicone to prevent water damage.
6. זיכער וויירינג: Route the power supply cable safely, away from moving parts or heat sources, and secure it with zip ties or other appropriate fasteners.

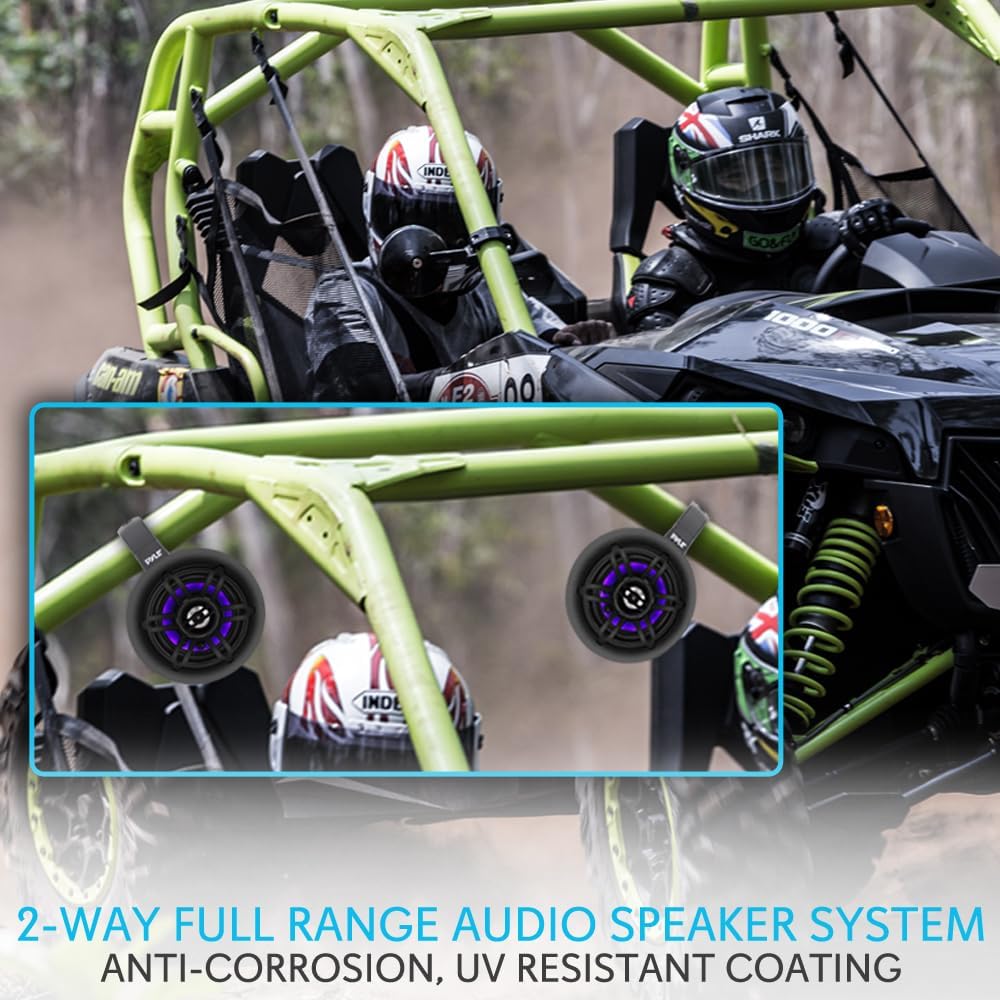

בילד באַשרייַבונג: Two black Pyle marine speakers mounted on the roll cage of a UTV, demonstrating their compact and mountable design in an off-road vehicle setting.

בילד באַשרייַבונג: Two black Pyle marine speakers mounted on the wakeboard tower of a boat, showcasing their marine application and compact design.

ייַנמאָנטירונג ווידעא גייד

אַפּערייטינג ינסטראַקשאַנז

• מאַכט אויף / אַוועק: Ensure the speakers are correctly wired to a 12V power source. The speakers will power on with the vehicle's or boat's audio system.
• LED לייץ: The built-in blue LED lights will illuminate when the speakers are powered on. No separate control is typically provided for the LEDs on this model.
• אַודיאָ פּלייבאַק: Connect your audio source (e.g., marine stereo, Bluetooth receiver) to the amplifier that powers these speakers. Adjust volume and audio settings from your audio source.

וישאַלט

• רייניקונג: Regularly clean the speakers with a soft, damp cloth. Avoid abrasive cleaners or solvents that could damage the finish or waterproof seals.
• דורכקוקן די וויירינג: Periodically check all wiring connections for corrosion or damage, especially after exposure to saltwater. Ensure terminals are tight and free from debris.
• קאָנטראָלירן די ינסטאַלירונג: Verify that the mounting clamps are securely fastened and that the speakers are stable. Tighten any loose screws as needed.
• ווינטעריזאַטיאָן: If storing your boat or vehicle for extended periods in cold weather, consider covering the speakers or removing them to prevent damage from extreme temperatures.

טראָובלעשאָאָטינג

• קיין קול:
  • Check all power connections to ensure they are secure and receiving 12V.
  • Verify speaker wire connections at both the speaker and the ampליפטער/קאפ איינהייט.
  • זיכער מאַכן אַז די אַודיאָ מקור איז אנגעצונדן און שפּילט אַודיאָ.
  • קוק די amplifier/head unit for any fault indicators or blown fuses.
• פאַרקרימט סאָונד:
  • Reduce the volume level on your audio source and ampליפער.
  • Check for loose wiring connections that might cause interference.
  • Ensure the speakers are not over-powered by the ampליפער.
• געפירט לייץ נישט ארבעטן:
  • Confirm the speakers are receiving power. The LEDs are typically integrated with the main power.
  • Inspect the wiring for any breaks or loose connections.

ספּעסאַפאַקיישאַנז

וואָראַנטי און שטיצן

Pyle products typically come with a 1-יאָר פאַבריקאַנט ס וואָראַנטי. For specific warranty details, product support, or troubleshooting assistance not covered in this manual, please refer to the official Pyle webזייטל אדער קאנטאקט זייער קאסטומער סערוויס גלייך.
