Toorx Chrono Line RWX-500 Rower Instruction Manual

1. הקדמה

Thank you for choosing the Toorx Chrono Line RWX-500 Rower. This manual provides essential information for the safe assembly, operation, maintenance, and troubleshooting of your new fitness equipment. Please read this manual thoroughly before using the rower and keep it for future reference.

The Toorx RWX-500 Rower is designed for home use, offering a comprehensive full-body workout. It features an electronic magnetic braking system with 16 motorized resistance levels, a blue backlit LCD console, and a comfortable ball-bearing seat on an aluminum rail.

2. זיכערקייַט אינפֿאָרמאַציע

Before starting any exercise program, consult with your physician. It is crucial to understand and follow all safety warnings and instructions to prevent injury and ensure the longevity of your equipment.

• Always inspect the rower for loose parts or damage before each use. Do not use if damaged.
• Ensure the rower is placed on a stable, level surface with adequate clearance around it (at least 0.6 meters).
• האַלטן קינדער און פּעץ אַוועק פון די ויסריכט בעשאַס אָפּעראַציע.
• The maximum user weight for this rower is 130 kg (286 lbs). Do not exceed this limit.
• טראָגט פּאַסיקע ספּאָרט קליידער און ספּאָרט שיך. פֿאַרמייַדט לויזע קליידער וואָס קענען זיך פֿאַרהאַנגען אין באַוועגלעכע טיילן.
• הער אויף צו טאָן געניטונגען גלייך אויב איר פילט זיך שוואַך, שווינדלדיק, אָדער דערפאַרט ווייטיק.
• Use the rower only for its intended purpose as described in this manual.

3. סעטאַפּ און אַסעמבלי

3.1 אַנפּאַקינג

Carefully remove all components from the packaging. Place them on a clear, flat surface. Verify that all parts listed in the assembly guide (not provided in this document, refer to the separate assembly manual) are present and undamaged.

3.2 פֿאַרזאַמלונג

Follow the step-by-step instructions provided in the separate assembly manual that came with your Toorx RWX-500 Rower. Ensure all bolts, nuts, and screws are securely tightened before use. Do not overtighten.

3.3 פּלייסמאַנט

Place the rower on a firm, level surface. Ensure there is sufficient space around the rower for safe operation and movement. The rower's dimensions when unfolded are 222 cm (L) x 51 cm (W) x 97.5 cm (H).

3.4 צוזאַמענפֿאַלטן און אויפֿבעוואַרן

The Toorx RWX-500 Rower can be folded for convenient storage. To fold the rower, carefully lift the rail section until it locks into the upright position. Ensure the locking mechanism is fully engaged before moving or storing the unit.

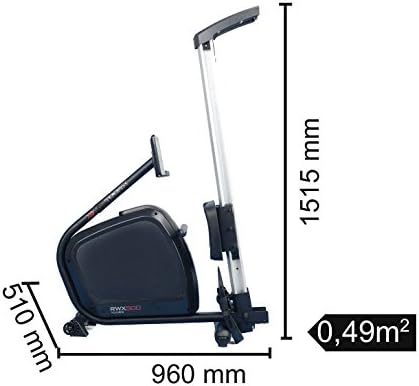

Image: Toorx RWX-500 Rower folded for storage. The folded dimensions are approximately 96 cm (L) x 51 cm (W) x 151.5 cm (H), occupying about 0.49 m² of floor space.

To unfold, release the locking mechanism and gently lower the rail until it is fully extended and secured for use.

4. אַפּערייטינג ינסטרוקטיאָנס

4.1 קאנסאל איבערview

The Toorx RWX-500 features a blue backlit LCD console that displays various workout metrics. It also includes a holder for your smartphone or tablet.

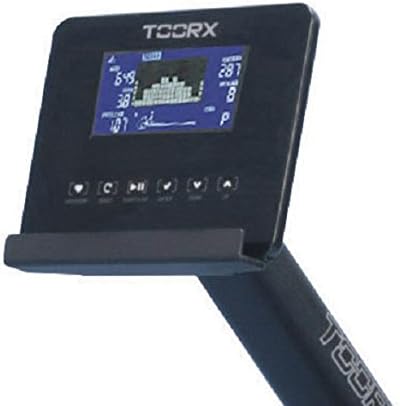

Image: The console displays information such as strokes per minute, total strokes, calorie consumption, time, distance, heart rate, 500/TM, Watts, and program details.

4.2 אַדזשאַסטינג קעגנשטעל

The rower offers 16 motorized levels of magnetic resistance. Use the console controls to increase or decrease the resistance level according to your desired intensity. Higher levels provide a more challenging workout.

4.3 טרענירונג פראגראמען

The console includes:

• מאַנואַל מאָדע: Allows you to control resistance manually.
• 12 פאָראויס דעפינירטע פּראָגראַמען: Select from a variety of pre-set workout profiles.
• 4 User Programs (U1-U4): Customize and save your own workout routines.
• Race Program: Simulate a rowing race.
• 4 Heart Rate Control (HRC) Programs: Maintain a target heart rate zone (requires a compatible wireless chest strap).
• Recovery Function: Measures your heart rate recovery after exercise.

Refer to the console's specific user guide (if separate) for detailed instructions on navigating and utilizing these programs.

4.4 האַרץ קורס מאָניטאָרינג

The rower includes a wireless receiver for a chest strap (chest strap typically sold separately or included as an accessory). When wearing a compatible chest strap, your heart rate will be displayed on the console, enabling you to use the HRC programs effectively.

4.5 פוטרעסט אַדזשאַסטמאַנט

The footrests are equipped with adjustable straps to secure your feet during exercise. Ensure your feet are comfortably and securely strapped in before beginning your workout.

Image: The footrests feature adjustable straps to accommodate different foot sizes and ensure stability during rowing.

4.6 Basic Rowing Technique

Proper rowing technique is essential for an effective and safe workout. A basic rowing stroke involves four phases:

1. די כאַפּן: Knees bent, shins vertical, arms extended forward, back straight, shoulders relaxed.
2. די דרייוו: Push off with your legs, then swing your torso back slightly, and finally pull the handle towards your abdomen.
3. דער ענדיק: Legs extended, torso leaning back slightly, handle at your abdomen, elbows past your body.
4. די אָפּזוך: Extend arms forward, then pivot torso forward, and finally bend knees to slide forward to the catch position.

Maintain a smooth, controlled motion throughout the stroke. Avoid jerking movements.

5. וישאַלט

Regular maintenance ensures the optimal performance and longevity of your Toorx RWX-500 Rower.

• רייניקונג: ווישט אָפּ דעם רודער נאָך יעדן באַנוץ מיט אַדamp שטאָף צו באַזייַטיקן שווייס און שטויב. פֿאַרמייַדן אַברייסיוו רייניגער אָדער סאָלווענטן.
• רעלס רייניקונג: Periodically clean the aluminum rail with a soft cloth to ensure smooth seat movement.
• דורכקוקן: קאָנטראָלירט רעגולער אַלע באָלץ, ניסלעך און באַוועגלעכע טיילן פֿאַר פעסטקייט און אָפּנוץ. פֿעסטשטעלט אַלע לויזע פֿעסטשטעלער.
• שמירן: The ball bearings on the seat rail are generally maintenance-free. Do not apply oil or grease unless specifically instructed by Toorx customer support.
• סטאָרידזש: When not in use, store the rower in a clean, dry environment. Utilize the folding mechanism to save space if needed.

6. טראָובלעשאָאָטינג

If you encounter issues with your Toorx RWX-500 Rower, refer to the following common troubleshooting steps:

• קאנסאל גייט נישט אן: Ensure the power cable is securely connected to both the rower and a working electrical outlet. Check if the outlet is functional.
• קיין ענדערונג אין קעגנשטאנד: Verify that the power cable is connected. If the issue persists, there might be a problem with the motorized resistance system.
• Erratic Console Readings: Check all cable connections to the console. Ensure no cables are pinched or damaged.
• Seat Not Moving Smoothly: Clean the aluminum rail thoroughly. Check for any obstructions on the rail or damage to the seat's ball bearings.
• Heart Rate Not Displaying: Ensure your wireless chest strap is correctly worn and has a fresh battery. Confirm it is compatible with the rower's receiver.

For issues not resolved by these steps, please contact Toorx customer support.

7. ספּעסאַפאַקיישאַנז

8. וואָראַנטי

The Toorx Chrono Line RWX-500 Rower comes with a 2 יאָר וואָראַנטי. This warranty covers manufacturing defects and material faults under normal use conditions. Please retain your proof of purchase for warranty claims. The warranty does not cover damage caused by improper assembly, misuse, neglect, or unauthorized modifications.

For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official Toorx webפּלאַץ.

9. שטיצן

If you require assistance with assembly, operation, maintenance, or troubleshooting that is not covered in this manual, please contact Toorx customer support. Have your model number (RWX-500) and proof of purchase ready when contacting support.

Contact information for Toorx support can typically be found on the official Toorx webוועבזייטל אדער אויף דער פּאַקאַדזשינג פון דיין פּראָדוקט.
