Muzata 20-Pack 1/8-Inch M3 Stainless Steel Wire Rope Clip Cable Clamp ינסטראַקשאַנז מאַנואַל

1. פּראָדוקט איבערview

The Muzata 20-Pack 1/8-Inch M3 Wire Rope Clip is a stainless steel U-bolt fastener designed for securing wire ropes and cables. These clips are made from high-quality stainless steel, ensuring corrosion resistance and durability for various applications.

שליסל פֿעיִקייטן:

• גרייס: Overall length: 3/4" (20mm), suitable for 1/8 Inch - 3/16 Inch diameter wire rope.
• מאַטעריאַל: Constructed from high-quality stainless steel for maximum corrosion resistance and durability.
• פּלאַן: U-shaped bolt with a special insert, designed to clamp a wire rope to itself, functioning effectively as a thimble for securing cables and ropes.
• ווערסאַטאַל אַפּלאַקיישאַן: Ideal for rigging rope, wire, and cable in numerous applications, including sun shade hardware kits, cable railing installations, and temporary guardrail systems.
• קאַמפּאַטאַבילאַטי: Perfectly fits Muzata cable railing kit sets (e.g., B01MT9Y033, B06XHZQ1DT) and Muzata 1/8" wire rope cable (MUZATA WR01).
• WoodLoft System Component: This product is part of the WoodLoft cable railing system, which includes various kits, accessories, wire ropes, and tools.

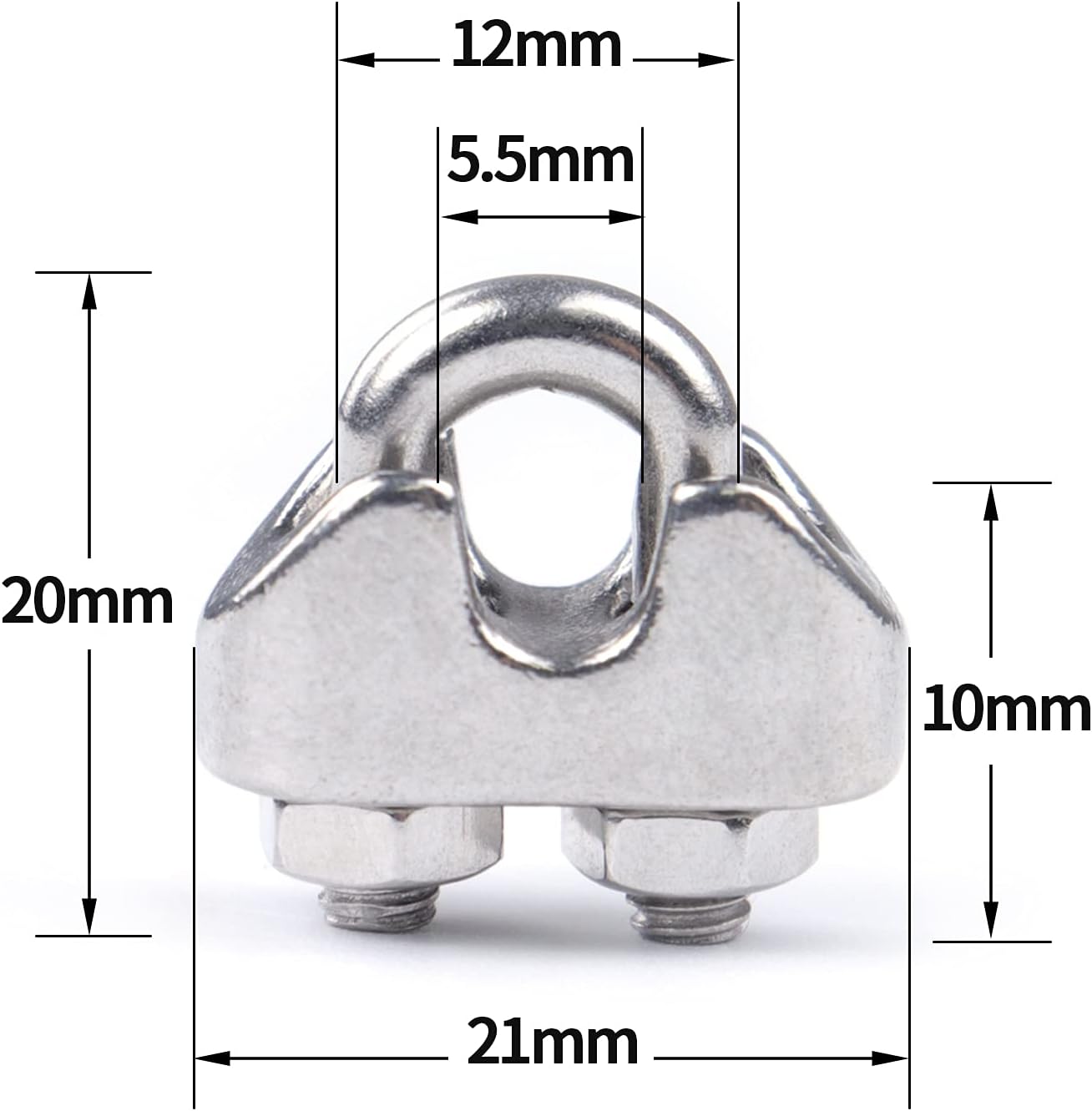

בילד 1: Detailed dimensions of the Muzata 1/8-inch M3 Wire Rope Clip. The clip measures 20mm in overall height, 21mm in overall width, with a U-bolt width of 12mm and an inner gap of 5.5mm.

2. Installation and Application

These wire rope clips are designed for straightforward installation to create secure loops or connections in wire ropes. They are commonly used in conjunction with eye lag screws and turnbuckles for tensioning and anchoring.

טיפּיש אַפּלאַקיישאַנז:

• Hanging string lights for events (weddings, Christmas parties).
• Outdoor clotheslines.
• Indoor decorative installations, such as photo walls.
• Cable railing systems.
• Temporary guardrail systems.
• Securing loads.

Installation Steps (Using Eye Lag Screw and Turnbuckle):

1. Prepare the Anchor Point: Drill a pilot hole into the wood post or tree where the eye lag screw will be installed.
2. Install Eye Lag Screw: Screw the eye lag screw (e.g., CN01, CN02, CN08) into the pilot hole until secure. Use a wrench for leverage if needed.
3. Attach Turnbuckle: Connect one end of the turnbuckle (e.g., CN09, CN10, CN11) to the eye of the lag screw.
4. Loop the Wire Rope: Thread the wire rope through the thimble (if used) and then through the wire rope clip, forming a loop.
5. Secure with Wire Rope Clip: Place the wire rope clip over the two sections of wire rope to secure the loop. Tighten the nuts on the U-bolt evenly to clamp the rope firmly. Ensure the "live" end of the wire rope is under the U-bolt and the "dead" end is under the saddle.
6. Connect to Turnbuckle: Attach the secured loop of the wire rope to the other end of the turnbuckle.
7. שפּאַנונג דעם קאַבל: Adjust the turnbuckle by rotating its body to achieve the desired tension in the wire rope.

Using Ferrules for Cable Termination:

For a more permanent and cleaner cable termination, ferrules (e.g., CR10) can be used instead of or in addition to wire rope clips. Ferrules are crimped onto the wire rope to form a secure loop.

1. Thread Wire Rope: Pass the end of the wire rope through the ferrule, then around a thimble (if used) to form a loop, and back through the ferrule.
2. קרימפט די פערול: Use a crimping tool (e.g., CR11) to securely crimp the ferrule onto the wire rope. Ensure multiple crimps are made for maximum security. If a crimping tool is unavailable, a hammer can be used to swage the ferrule, though a crimping tool provides a more consistent and secure connection.

Cable Cross Clamps (CN03, CN04):

Muzata also offers cable cross clamps for specific applications where multiple cables need to intersect and be fixed at an angle.

• CN03: Designed for binding two cable lines together and locking them in a fixed 90-degree position.
• CN04: Capable of locking cables at angles from 0 to 180 degrees, offering greater flexibility.

3. וישאַלט

To ensure the longevity and performance of your Muzata Stainless Steel Wire Rope Clips, follow these maintenance guidelines:

• רעגולער דורכקוק: Periodically inspect all clips, cables, and associated hardware for any signs of wear, corrosion, or loosening.
• רייניקונג: Clean the stainless steel components with a mild soap and water solution. Avoid abrasive cleaners or harsh chemicals that could damage the finish or material. Rinse thoroughly and dry completely.
• פעסטקייט קאָנטראָל: Re-tighten any loose nuts on the U-bolts to maintain secure connections.
• ענוויראָנמענטאַל קאַנסידעריישאַנז: While stainless steel is corrosion-resistant, prolonged exposure to harsh marine environments or chemicals may require more frequent inspection and cleaning.

4. טראָובלעשאָאָטינג

If you encounter issues with your wire rope clips, consider the following:

• Loose Cable: If the cable becomes loose, check the tightness of the nuts on the wire rope clips and the tension of any turnbuckles. Re-tighten as necessary.
• Cable Slippage: Ensure that the wire rope clips are correctly installed with the "live" end under the U-bolt and the nuts are tightened to the recommended torque. Improper installation or insufficient tightening can lead to slippage.
• Corrosion/Rust Spots: Although made of stainless steel, surface rust (tea staining) can occur in certain environments. This is typically superficial and can often be removed with a stainless steel cleaner. Ensure proper cleaning and maintenance as described above.
• דאַמידזשד קאַמפּאָונאַנץ: If any part of the clip or cable appears damaged (e.g., bent U-bolt, frayed cable), replace the affected components immediately to ensure safety and structural integrity.

5. ספּעסאַפאַקיישאַנז

6. וואָראַנטי און שטיצן

Muzata is committed to providing high-quality products and excellent customer service. For any questions, concerns, or assistance with your product, please refer to the following:

• קאָנטאַקט שטיצן: You can reach Muzata support by clicking "by Muzata" below the golden button on the product page. This will provide contact information for their expert team.
• Free Design Service: If you are planning a cable railing project and need assistance with planning, designing, or budgeting, Muzata offers a free design service.
• פּראָדוקט אינפֿאָרמאַציע: For more detailed information about Muzata products and systems, search "muzata + model number" (e.g., "Muzata CK17") on Amazon or visit the official Muzata Store.
• באַניצער פירער: Look for the "Products guides and documents" section on the product page to download PDF user guides for complete system information.
