1. הקדמה
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Blomberg BRFD2230SS French Door Refrigerator. Please read these instructions thoroughly before using your appliance and retain them for future reference.
The Blomberg BRFD2230SS is a 22.3 cu. ft. counter-depth French door refrigerator featuring an automatic ice maker, water dispenser, LED lighting, dual evaporators, and blue light technology for enhanced food preservation. It is designed for freestanding installation.
זיכערקייַט אינפֿאָרמאַציע
Always follow basic safety precautions to reduce the risk of fire, electric shock, or injury. Ensure the appliance is properly grounded. Do not store explosive substances in this appliance. Keep ventilation openings clear of obstruction. Refer to the full safety guidelines in the included owner's manual.
2. וואָס איז אין דער קעסטל
- Blomberg BRFD2230SS Refrigerator Unit
- באַזיצער ס מאַנואַל
3. סעטאַפּ און ייַנמאָנטירונג
ונפּאַקקינג
Carefully remove all packaging materials, including tape and protective films. Dispose of packaging responsibly. Inspect the refrigerator for any shipping damage.
פּלייסמאַנט
Position the refrigerator on a level, stable surface away from direct sunlight and heat sources. Ensure adequate clearance around the appliance for proper ventilation. Recommended clearances are typically 2 inches at the back and 1 inch on the sides and top.

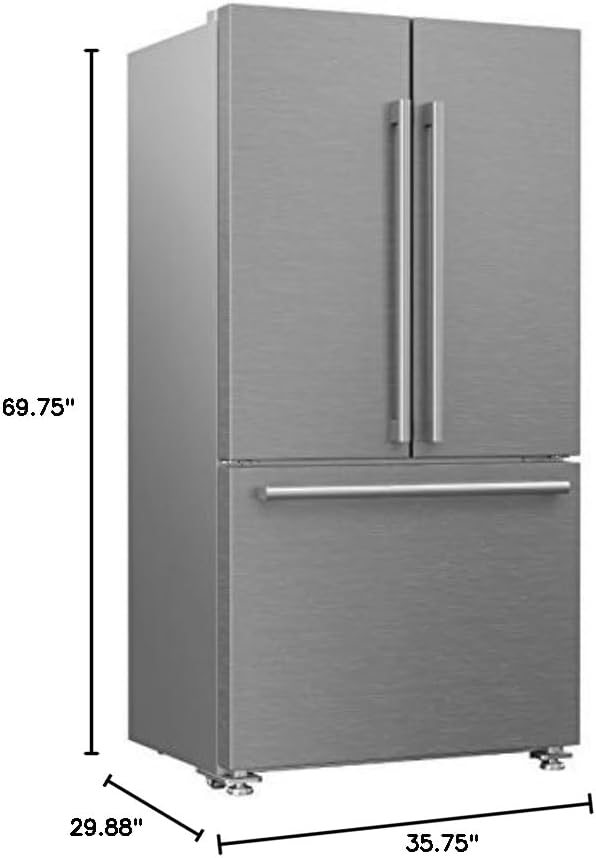

Figure 3.1: Refrigerator Dimensions. The unit measures approximately 29.88 inches deep, 35.75 inches wide, and 69.75 inches high.
לעוועלינג
Use the adjustable leveling feet at the bottom of the refrigerator to ensure it is level. A level appliance prevents door misalignment and ensures efficient operation.
וואַסער ליניע קאַנעקשאַן
The refrigerator requires a cold water supply for the ice maker and water dispenser. Connect the appliance to a potable water supply using a water line kit (not included). Ensure all connections are secure and leak-free. It is recommended to flush the water system before first use.
עלעקטריקאַל קאַנעקשאַן
פֿאַרבינדט דעם קילער צו אַ באַזונדערן, געערדטן 120 וואָלט, 60 הערץ וועקסלשטראָם. ניצט נישט קיין פֿאַרלענגערונג קאָרדס אָדער אַדאַפּטער פּלאַגז. זיכערט זיך אַז דער עלעקטרישער קרייַז איז באַשיצט דורך אַ פֿיוז אָדער קרייַז ברעאַקער.
ערשט סטאַרטאַפּ
After connecting power, allow the refrigerator to cool for several hours before loading food. The ice maker will begin producing ice within 24 hours, but it may take up to 72 hours for full ice production.
4. אַפּערייטינג ינסטרוקטיאָנס
קאָנטראָל פּאַנעל
The electronic control panel, typically located at the top of the fresh food compartment, allows you to adjust temperature settings and activate special features.
טעמפּעראַטור אַדזשאַסטמאַנט
Use the control panel to set the desired temperature for the refrigerator and freezer compartments. Recommended settings are usually 37°F (3°C) for the refrigerator and 0°F (-18°C) for the freezer.
אייז מאַקער אָפּעראַציע
The automatic ice maker will produce ice cubes once the water supply is connected and the freezer reaches the correct temperature. The ice bucket is located in the freezer drawer. Discard the first few batches of ice to ensure cleanliness.
וואַסער דיספּענסער אָפּעראַציע
To dispense water, place a glass under the dispenser nozzle and press the dispenser lever. Ensure the water supply is connected and the system has been flushed.
פיגורע 4.1: ינלענדיש view of the refrigerator, highlighting the spacious compartments and water dispenser.
בלוי ליכט טעכנאָלאָגיע
This refrigerator features blue light technology in the crisper drawers, designed to prolong the freshness of fruits and vegetables by mimicking natural light conditions.
שבת מאָדע
The Sabbath Mode feature disables certain functions, such as interior lights and audible alarms, to comply with religious observances. Refer to the owner's manual for activation and deactivation instructions.
5. וישאַלט
רייניקונג די ינלענדיש
Clean the interior regularly with a solution of mild soap and warm water. Remove shelves and drawers for thorough cleaning. Rinse and dry all parts completely before returning them to the refrigerator.
רייניקונג די יקסטיריער
Wipe the stainless steel exterior with a soft cloth and a stainless steel cleaner. Avoid abrasive cleaners or scouring pads. The fingerprint-free stainless steel finish helps reduce visible smudges.
פיגורע 5.1: פראָנט view of the Blomberg BRFD2230SS refrigerator, showcasinג זײַן ומבאַפלעקט שטאָל ענדיקן.
טיר סיל מאַינטענאַנסע
Periodically check and clean the door gaskets to ensure a tight seal. A clean and intact seal helps maintain energy efficiency.
וואַסער פילטער פאַרבייַט
If your model includes a water filter, it should be replaced every six months or as indicated by the filter indicator light. Refer to the owner's manual for specific filter replacement instructions and compatible filter models.
קאַנדענסער שפּול רייניקונג
The condenser coils, typically located at the back or bottom of the refrigerator, should be cleaned annually to ensure efficient operation. Unplug the appliance before cleaning.
6. טראָובלעשאָאָטינג
איידער איר קאנטאקטירט סערוויס, רעאגירטview די פאלגענדע געוויינטלעכע פראבלעמען און לייזונגען:
| פּראָבלעם | מעגלעך סיבה | לייזונג |
|---|---|---|
| פרידזשידער ניט קאָאָלינג | Power supply issue, temperature setting too high, door left ajar | Check power connection, adjust temperature, ensure doors are closed properly |
| אייז מאַשין פּראָדוצירט נישט אייז | Water supply off, clogged water filter, ice maker switch off | Verify water supply, replace filter, ensure ice maker is on |
| וואַסער דיספּענסער אַרבעט נישט | Water supply off, clogged water filter, frozen water line | Check water supply, replace filter, thaw frozen line if applicable |
| ומגעוויינטלעך נויזיז | Appliance not level, items vibrating inside, normal operating sounds | Level the refrigerator, rearrange items, consult manual for normal sounds |
| צו פיל פראָסט אין פריזער | Door seal issue, door left open too long, high humidity | Check door seals, avoid prolonged door openings, ensure proper ventilation |
7. ספּעסאַפאַקיישאַנז
| שטריך | באַשרייַבונג |
|---|---|
| מאָדעל | BRFD2230SS |
| קאַפּאַציטעט (טאָטאַל) | 22.3 קוביק פֿיס |
| פרידזשידער פרעש פוד קאַפּאַציטעט | 13.3 קוביק פֿיס |
| דימענשאַנז (די רענטגענ וו x ה) | 29.88 X 35.75 X 69.75 אינטשעס |
| פּונקט וואָג | 298 פונט |
| ייַנמאָנטירונג טיפּ | Freestanding |
| פאָרם פאַקטאָר | פראנצויזיש טיר |
| קאָליר | ומבאַפלעקט שטאָל |
| Voltage | 120 וואלטס |
| לאָזנ אָפּגיין סיסטעם | פראָסט פֿרייַ |
| נומער פון טירן | 2 |
| פּאָליצע טיפּ | טאָוגהענעד גלאז |
| נומער פון שעלוועס | 4 |
| ספּעציעלע פֿעיִקייטן | Water Dispenser, Ice Maker, LED Lighting, Dual Evaporators, Blue Light Technology, Sabbath Mode |
| יערלעך ענערגיע קאַנסאַמשאַן | 566 קילאָוואַט שעה פּער יאָר |
| Certification | ענערגיע שטערן |
8. וואָראַנטי אינפֿאָרמאַציע
Your Blomberg BRFD2230SS Refrigerator is covered by a manufacturer's warranty. Please refer to the warranty card included with your appliance or visit the official Blomberg website for detailed terms and conditions, including coverage duration and service procedures.
9. קונה שטיצן
For technical assistance, parts, or service inquiries, please contact Blomberg customer support. Have your model number (BRFD2230SS) and serial number ready when you call.
You can find contact information on the Blomberg website or in the owner's manual provided with your appliance.
