האַרמאר מאָביליטי AL160 פּראָfile סקוטער ליפט באַניצער מאַנואַל

1. הקדמה

The Harmar Mobility AL160 Profile Scooter Lift is designed to transport mobility scooters with ease and security. Its streamlined, open platform design offers an understated presence on your vehicle and, when folded, enhances rear window visibility. This lift is engineered to automatically secure a wide range of power scooters, accommodating wheelbases between 30 and 42 inches, and supporting weights up to 350 lbs without requiring modifications to the scooter.

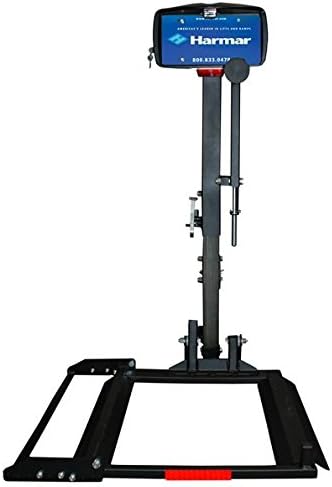

Image 1.1: The Harmar AL160 Profile Scooter Lift, showcasing its compact and open design.

2. זיכערקייַט אינפֿאָרמאַציע

Read all instructions carefully before installation and operation. Failure to follow safety guidelines may result in injury or damage to the lift or vehicle.

2.1 Important Compatibility Check

Before installing or using the AL160 lift, it is crucial to verify compatibility with your vehicle and mobility device. The manufacturer is not responsible for issues arising from compatibility discrepancies. Please ensure you have considered the following:

• פאָרמיטל אינפֿאָרמאַציע: Note the year, make, and model of your vehicle.
• Mobility Device Information: Identify the make and model of your mobility scooter or powerchair.
• Hitch Class: Confirm the class of the hitch installed on your vehicle (Standard Class III (2" X 2") or Class II (1.25" X 1.25")). The lift typically ships with a Class III (2"x2") hitch receiver.
• Hitch Height: Measure the height from the ground to the bottom of your installed hitch. Minimum requirements are 16" for a lift with a swingaway and 18" for a lift without a swingaway. If the hitch height exceeds 16", a Harmar Class III Hitch Post 5" Drop Adapter (Part# AL1235U) may be required.

ווארענונג: This product may expose you to chemicals including lead and lead components, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov/.

3. סעטאַפּ און ייַנמאָנטירונג

The AL160 Profile Scooter Lift is designed for hitch-mounted installation. Professional installation is recommended to ensure proper fit and safe operation.

3.1 ערשטע פֿאַרזאַמלונג

Refer to the detailed assembly instructions provided in the packaging for step-by-step guidance. Ensure all components are present and undamaged before beginning assembly.

3.2 Attaching to Vehicle Hitch

Insert the lift's hitch arm into your vehicle's receiver hitch. Secure it firmly with the appropriate hitch pin and clip. Verify that the lift is stable and does not wobble.

Image 3.1: The AL160 lift in its folded position, attached to the rear of a vehicle, allowing for greater visibility.

בילד 3.2: א נענטער view of the AL160 lift's frame and mechanism, highlighting its robust construction.

4. אַפּערייטינג ינסטרוקטיאָנס

The AL160 lift features an automatic hold-down foot for secure scooter transport.

4.1 Loading Your Scooter

1. Ensure the lift platform is fully lowered and clear of obstructions.
2. Carefully drive or roll your mobility scooter onto the lift platform. Position the scooter centrally and ensure its wheelbase is within the 30" to 42" range for proper securing.
3. Activate the lift mechanism (refer to your specific model's control panel instructions). As the lift raises, the automatic hold-down foot will engage, securing the scooter without manual intervention.
4. Verify that the scooter is firmly held in place before driving.

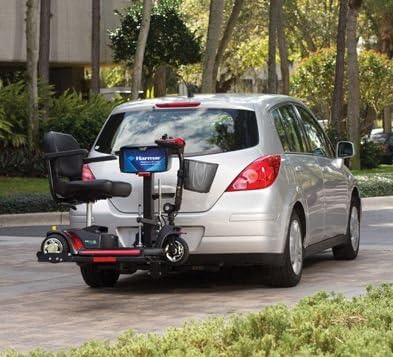

Image 4.1: The AL160 lift deployed with a mobility scooter securely loaded and ready for transport.

Image 4.2: A mobility scooter positioned on the AL160 lift's platform, demonstrating the open design.

4.2 Unloading Your Scooter

1. Ensure your vehicle is parked on a level surface and the parking brake is engaged.
2. Activate the lift mechanism to lower the platform. The automatic hold-down foot will disengage as the platform descends.
3. Once the platform is fully lowered, carefully drive or roll your scooter off the lift.

4.3 Folding the Lift

When not in use, the AL160 lift can be folded into a compact position to minimize its footprint and improve rear visibility.

1. Ensure no scooter is on the platform.
2. Follow the specific folding procedure outlined in your lift's control instructions. The lift will retract and fold upwards.
3. Ensure the lift is securely latched in its folded position before driving.

Image 4.3: The AL160 lift in its folded position, viewed from the rear, demonstrating its compact profile.

5. וישאַלט

Regular maintenance ensures the longevity and safe operation of your Harmar AL160 Profile Scooter Lift. Perform these checks periodically:

• וויסואַל דורכקוק: Regularly inspect all structural components, welds, and moving parts for signs of wear, damage, or corrosion.
• פאַסטענערס: Check all bolts, nuts, and other fasteners to ensure they are tight. Re-tighten as necessary.
• מאָווינג טיילן: Keep moving parts clean and free of debris. Lubricate pivot points and hinges according to manufacturer recommendations.
• עלעקטריקאַל קאַנעקשאַנז: If applicable, inspect electrical connections for corrosion or damage.
• רייניקונג: Clean the lift regularly with a mild soap and water solution. Avoid harsh chemicals that could damage the finish.

For detailed maintenance schedules and procedures, refer to the comprehensive manual provided by Harmar Mobility or contact customer support.

6. טראָובלעשאָאָטינג

This section provides general guidance for common issues. For complex problems, contact Harmar Mobility customer support.

• Lift Not Operating:
  • Check all power connections and ensure the vehicle's ignition is on (if required).
  • Verify that the circuit breaker or fuse for the lift is not tripped or blown.
  • Ensure the remote control or control panel is functioning correctly and has power.
• Scooter Not Securing Properly:
  • Ensure the scooter's wheelbase is within the specified range (30"-42").
  • Verify that the scooter is centered on the platform.
  • Inspect the automatic hold-down foot mechanism for obstructions or damage.
• ומגעוויינטלעך נויזיז בעשאַס אָפּעראַציע:
  • שטעלט אפ די אפעראציע גלייך.
  • Inspect for loose components, debris, or signs of mechanical wear.
  • Do not operate the lift if unusual noises persist; contact support.

7. ספּעסאַפאַקיישאַנז

8. וואָראַנטי אינפֿאָרמאַציע

Harmar Mobility products are typically covered by a manufacturer's warranty. The specific terms and duration of the warranty for your AL160 Profile Scooter Lift may vary. Please refer to the warranty card included with your product or visit the official Harmar Mobility website for detailed warranty information, including coverage, limitations, and how to make a claim.

9. קונה שטיצן

For technical assistance, parts, or service inquiries regarding your Harmar AL160 Profile Scooter Lift, please contact Harmar Mobility directly. Have your model number (AL160 CC) and serial number ready when contacting support.

Harmar Mobility Contact Information:
Please refer to the official Harmar Mobility website or your product documentation for the most current contact details, including phone numbers and support hours.

איר קענט אויך באַזוכן די יו Harmar Store on Amazon פֿאַר נאָך פּראָדוקט אינפֿאָרמאַציע און רעסורסן.
