Sun Joe iON16LM 40-Volt 16-Inch Brushless Cordless Lawn Mower Instruction Manual

הקדמה

This manual provides essential instructions for the safe assembly, operation, and maintenance of your Sun Joe iON16LM 40-Volt 16-Inch Brushless Cordless Lawn Mower. Please read this manual thoroughly before using the product to ensure proper function and to prevent injury. Keep this manual for future reference.

The Sun Joe iON16LM is designed for residential lawn care, offering a cordless solution powered by a 40V iONMAX battery system. It features a brushless motor for efficient performance and extended motor life.

Figure 1: Sun Joe iON16LM 40-Volt 16-Inch Brushless Cordless Lawn Mower

זיכערקייַט אינפֿאָרמאַציע

Always prioritize safety when operating the lawn mower. Failure to follow safety instructions can result in serious injury or property damage.

• לייענען אַלע ינסטראַקשאַנז איידער איר נוצן דעם אַפּפּליאַנסע.
• טראָגט פּאַסיקע פּערזענלעכע שוץ-עקוויפּמענט, אַרייַנגערעכנט אויג-שוץ, הערן-שוץ און שטאַרקע שיך.
• האַלט קינדער, ליבלינג חיות און פֿאַרבייגייער אַוועק פֿון דער געגנט וואו מען שניידט דעם גראָז.
• Never operate the mower in wet conditions or on steep slopes.
• Always remove the safety key and battery when cleaning, performing maintenance, or when the mower is unattended.
• דאס פּראָדוקט קען אַנטהאַלטן כעמיקאַלן באַקאַנט צום שטאַט קאַליפאָרניע צו פאַראורזאַכן ראַק און געבורט-דעפעקטן אָדער אַנדערע רעפּראָדוקטיווע שאָדן (פּראָפּאָזיציע 65 ווארענונג).

סעטאַפּ

1. ונפּאַקקינג

Carefully remove all components from the packaging. Ensure all parts listed in the product manual are present and undamaged. Dispose of packaging materials responsibly.

2. שעפּן אַסעמבלי

Attach the upper handle to the lower handle using the provided knobs and bolts. Ensure the handle is securely fastened and the cables are not pinched.

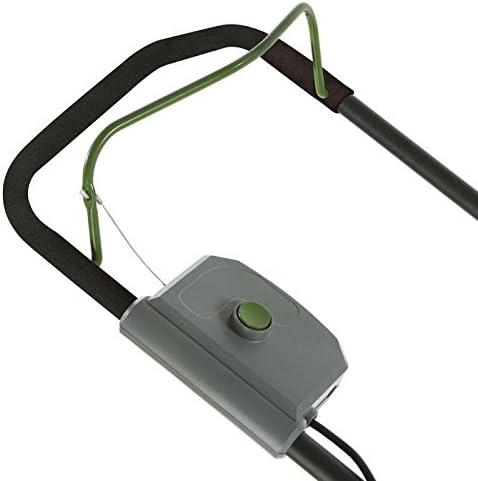

Figure 2: Handle controls and assembly points

3. באַטערי טשאַרדזשינג

Before first use, fully charge the 40V iONMAX lithium-ion battery using the quick charger. Refer to the battery and charger manual for detailed charging instructions. The charger will indicate when the battery is fully charged.

4. באַטערי ינסערשאַן

Open the battery compartment cover located on the top of the mower. Slide the fully charged battery into the compartment until it clicks into place. Insert the safety key into its slot. Close the battery compartment cover securely.

Figure 3: Open battery compartment

Figure 4: Inserting the battery

5. Grass Bag Assembly and Attachment

Assemble the grass bag according to the instructions provided with the bag. Once assembled, lift the rear discharge flap on the mower and hook the grass bag onto the mower's frame.

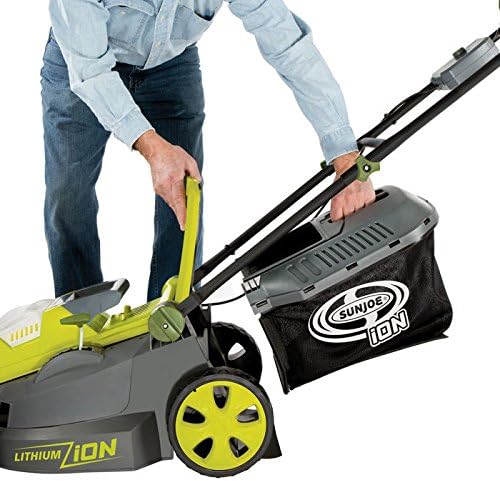

Figure 5: Attaching the grass bag

סעטאַפּ ווידעא

Video 1: Sun Joe iON16LM 40-Volt 16-Inch Brushless Cordless Lawn Mower Setup Overview

אַפּערייטינג ינסטראַקשאַנז

1. סטאַרטינג די מאָוער

To start the mower, press and hold the safety button on the handle, then pull the bar lever towards the handle. The motor will start instantly. Release the safety button once the motor is running.

2. אַדזשאַסטירן שנייד הייך

The mower features a 6-position height adjustment lever. To adjust the cutting height, pull the lever outwards and move it to the desired position. The cutting height can be set from 1.18 inches to 3.15 inches.

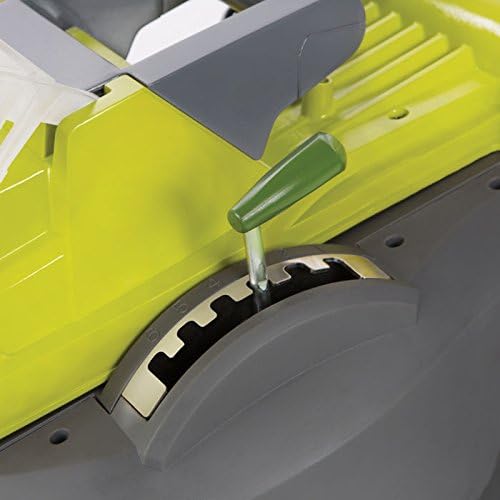

Figure 6: Cutting height adjustment lever

3. מאָוינג טעקניקס

• פֿאַר די בעסטע רעזולטאַטן, שניידט גראָז ווען עס איז טרוקן.
• איבערלאַפּ די שנייד־שוואַדן אַ ביסל צו ענשור אַ גלייכן שניט.
• Avoid cutting more than one-third of the grass blade length at a time.
• Mow in parallel lines for a neat appearance.

Figure 7: Sun Joe iON16LM in operation

4. ליידיקן דעם גראָז זאַק

The grass bag has a filling level indicator. When the indicator flap closes, the bag is full and needs to be emptied. To empty, release the bar lever to stop the mower, remove the safety key and battery, then detach the grass bag and dispose of clippings.

וישאַלט

רעגולערע אויפהאלטונג זיכערט אָפּטימאַלע פאָרשטעלונג און פאַרלענגערט די לעבן פון דיין גראָז שניידער.

• רייניקונג: After each use, remove the safety key and battery. Clean the mower deck, grass bag, and wheels with a damp cloth. Do not use water jets or harsh chemicals.
• בלייד דורכקוק: Periodically inspect the cutting blade for sharpness and damage. A dull or damaged blade can lead to poor cutting performance. Replace the blade if necessary.


פיגורע 8: אונטערסייד view showing the cutting blade

• באַטאַרייע סטאָרידזש: האַלט די באַטאַרייע אין אַ קיל, טרוקן אָרט אַוועק פון דירעקט זונשייַן און עקסטרעמע טעמפּעראַטורן. פֿאַר לאַנג-טערמין סטאָרידזש, זאָרגט אַז די באַטאַרייע איז טיילווייז אויפגעלאָדן (אַרום 50%).

טראָובלעשאָאָטינג

If you encounter issues with your Sun Joe iON16LM, refer to the following common solutions:

• Mower does not start: Ensure the battery is fully charged and properly inserted. Check that the safety key is fully engaged. Confirm the safety button is pressed before pulling the bar lever.
• שלעכטע שנייד פאָרשטעלונג: The blade may be dull or damaged. Inspect and replace if necessary. Adjust the cutting height for optimal results. Avoid mowing excessively tall or wet grass.
• קורצע לויף-צייט: Ensure the battery is fully charged. Battery performance can decrease over time or in extreme temperatures.

For persistent issues, contact Sun Joe customer support.

ספּעסאַפאַקיישאַנז

וואָראַנטי און שטיצן

The Sun Joe iON16LM is backed by a full two-year warranty. For warranty claims, technical assistance, or to purchase replacement parts, please contact Sun Joe customer support. Keep your purchase receipt as proof of purchase.
