פּראָדוקט איבערview
This document provides instructions for the installation and maintenance of the Whirlpool WPW10388418 Belt. This genuine replacement part is designed for use in compatible washing machines to ensure proper operation and longevity of your appliance.

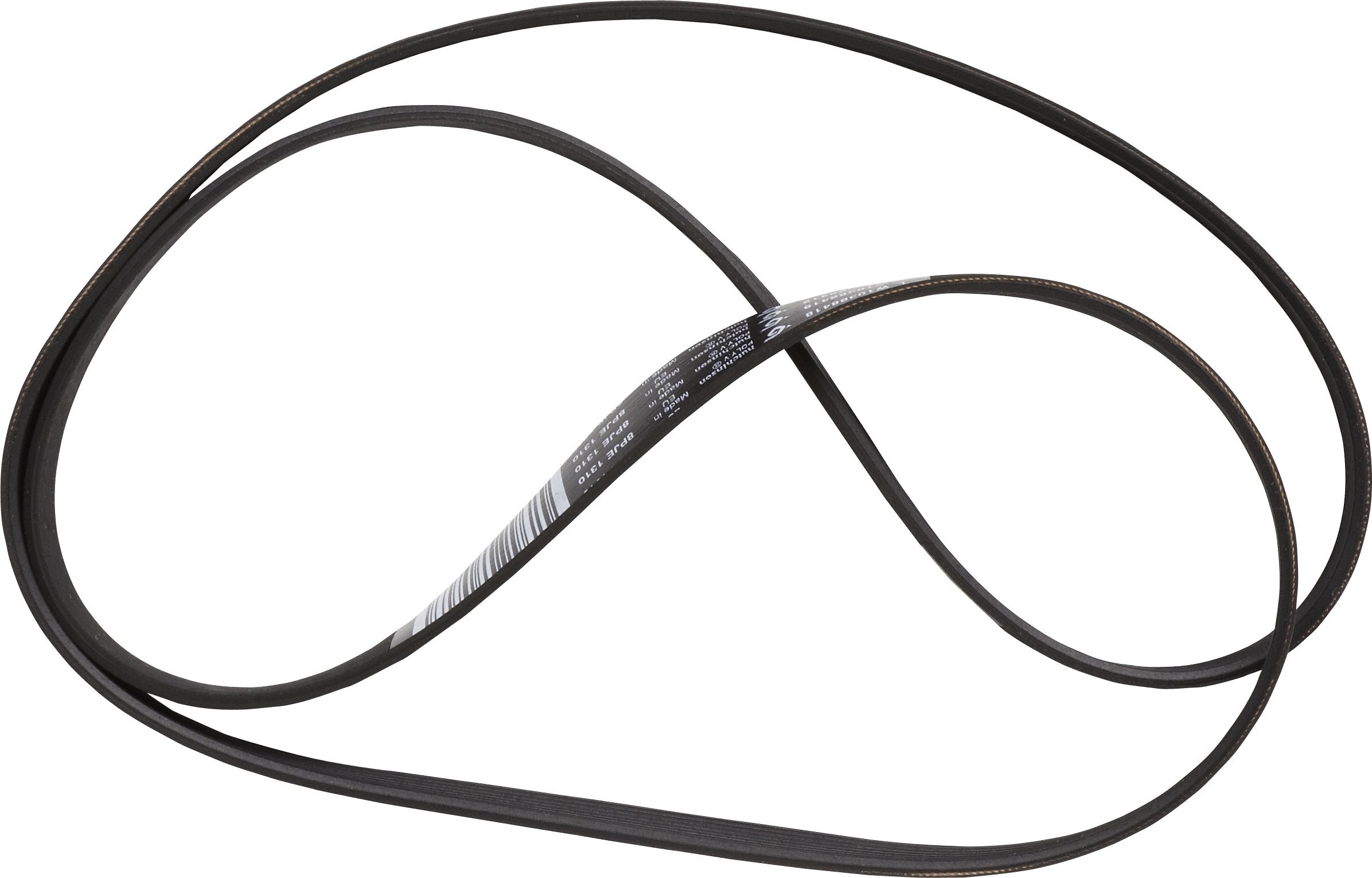

Image: The Whirlpool WPW10388418 Belt, a genuine replacement part for washing machines.
ינסטאַלירונג אינסטרוקציעס
זיכערקייַט ערשטער: Before attempting any repair or installation, ensure the appliance is unplugged from the power source and the water supply is turned off. Wear appropriate safety gear, such as gloves.
- צוטריט צום דרייוו סיסטעם: Depending on your washing machine model, you may need to remove the back panel, front panel, or tilt the machine to access the motor and drum pulley. Refer to your specific appliance's service manual for detailed access instructions.
- אַראָפּנעמען דעם אַלטן גאַרטל: Carefully inspect the old belt's routing. If the old belt is still in place, gently pry it off the motor pulley and then the drum pulley. Note its orientation.
- Clean the Pulleys: Clean any debris or residue from both the motor pulley and the drum pulley to ensure optimal grip for the new belt.
- אינסטאַלירן דעם נייעם גאַרטל:
- Place the new Whirlpool WPW10388418 belt around the larger drum pulley first.
- Then, stretch the belt over the smaller motor pulley. This may require significant force and careful manipulation. Ensure the belt is seated correctly in the grooves of both pulleys.
- Verify Tension and Alignment: Once installed, rotate the drum by hand several times to ensure the belt is properly seated, aligned, and has appropriate tension. The belt should feel snug but allow for slight deflection.
- Reassemble the Appliance: Reattach any panels removed during the installation process.
Note: If you are unsure about any step, it is recommended to consult a qualified appliance technician.
באַשטעטיקן אָפּעראַציע
After installation, perform the following checks to ensure proper operation:
- Reconnect Power and Water: Plug the appliance back into the power outlet and turn on the water supply.
- לויפן אַ טעסט ציקל: Start a short wash cycle without laundry. Observe the drum's rotation during the wash and spin phases. The drum should rotate smoothly and reach appropriate speeds.
- הערט אויס פֿאַר אומגעוויינטלעכע גערוישן: Pay attention to any new or unusual noises, such as squealing, grinding, or thumping, which could indicate improper belt installation or other issues.
If the appliance does not operate correctly, re-check the belt installation or consult the troubleshooting section.
וישאַלט
The Whirlpool WPW10388418 belt is designed for durability. However, regular inspection can help prolong its life and prevent unexpected failures.
- פּעריאָדיש דורכקוק: Approximately once a year, or if you notice any changes in appliance performance (e.g., reduced spin speed, unusual noises), inspect the belt for signs of wear.
- סיגנס פון טראָגן: Look for cracks, fraying, glazing, or excessive stretching. A belt that appears loose or damaged should be replaced.
- האַלטן שטח ריין: Ensure the area around the motor and drum pulleys is free from lint, debris, or foreign objects that could interfere with belt operation.
טראָובלעשאָאָטינג
If your washing machine exhibits issues after belt replacement, consider the following:
| סימפּטאָם | מעגלעך סיבה | לייזונג |
|---|---|---|
| טרומל דרייט זיך נישט אדער דרייט זיך שטייט | Belt not properly seated, belt too loose, or belt damaged. | Re-check belt installation, ensure it's snug. Inspect for damage and replace if necessary. |
| Squealing or grinding noise during operation | Belt misalignment, worn belt, or foreign object caught in pulleys. | Verify belt alignment. Inspect belt for wear. Check pulleys for obstructions. |
| ברענען שמעקן | Belt slipping due to improper tension or motor/pulley issue. | Immediately unplug the appliance. Inspect belt and pulleys. Contact a technician if the issue persists. |
For complex issues or if troubleshooting steps do not resolve the problem, contact a certified Whirlpool service technician.
ספּעסאַפאַקיישאַנז
- טייל נומער: WPW10388418 (also known as W10388418)
- סאָרט: ווהירלפּאָאָל
- קאַמפּאַטאַבאַל דעוויסעס: וואַשינג מאַשין
- גאַרטל סטיל: טיימינג גאַרטל
- GTIN/UPC: 749853884183
וואָראַנטי אינפֿאָרמאַציע
As a genuine Whirlpool replacement part, this belt is typically covered by Whirlpool's standard parts warranty. Specific warranty terms and conditions may vary. Please refer to the warranty documentation provided with your original appliance or visit the official Whirlpool website for detailed information regarding genuine replacement parts warranty.
שטיצן
For further assistance, technical support, or to locate a certified service technician, please visit the official Whirlpool support website or contact their customer service department. When contacting support, have your appliance's model and serial number ready, along with the part number WPW10388418.
