Legrand LEG04704 Multifunction Timer User Manual

1. הקדמה

This manual provides essential information for the safe and efficient installation, operation, and maintenance of the Legrand LEG04704 Multifunction Timer. Please read these instructions carefully before installation and retain them for future reference.

The Legrand LEG04704 is a single-module multifunction timer designed for controlling lighting circuits with adjustable timing and various load types. It operates on a 230V~ 50/60Hz power supply and provides a 16A 250V output.

2. פּראָדוקט פֿעיִקייטן

• Module Count: 1 module.
• מאַכט צושטעלן: 230 V~ 50/60 Hz.
• רעזולטאַט: 16 A - 250 V~ (cos φ = 1).
• Adjustable Timing: פון 0.5 צו 12 מינוט.
• לאָדן קאַמפּאַטאַבילאַטי:
  • ינקאַנדעסאַנט לamps: 3680 וו
  • האַלאָגען לamps (230 V~): 2000 W
  • האַלאָגען לamps with ferromagnetic transformer: 500 W
  • האַלאָגען לamps with electronic transformer: 2000 W
  • סאָליד פלורעסאַנט לamps: 1000 וואַ
  • פלורעסאַנט לamps (parallel compensated, ≤ 100 µF): 1000 VA
  • ענערגיע-שפּאָרן לamps: 1000 וו
• וויירינג: Automatic recognition for 3 or 4-wire operation.
• קאָנטראָל אינפֿאָרמאַציע: Separate inputs (8-230V) for presence detection or intercom lighting control.
• פאַנגקשאַנז: End-of-timing pre-warning, 1-hour long duration function, and manual override.
• שוץ: Self-protection mechanism in case of a blocked push-button.
• קאַמפּאַטאַבילאַטי: Accepts supply busbars.
• ענוויראָנמענטאַל: רעסיקלאַבלע מאַטעריאַלס.

3. זיכערקייַט אינפֿאָרמאַציע

ווארענונג: Electrical installation should only be performed by qualified personnel in accordance with national wiring regulations and safety standards.

• Always disconnect the main power supply before performing any installation, maintenance, or wiring work.
• זיכער מאַכן אַז עס איז נויטיק אַ געהעריקע גראַונדינג.
• Do not exceed the specified load ratings for the timer.
• באַשיצן דעם אַפּאַראַט פֿון פֿײַכטקייט, שטויב און עקסטרעמע טעמפּעראַטורן.
• באַשטעטיקן אַלע קאַנעקשאַנז זענען זיכער איידער ריסטאָרינג מאַכט.

4. ינסטאַלירונג

The Legrand LEG04704 timer is designed for DIN rail mounting within an electrical enclosure.

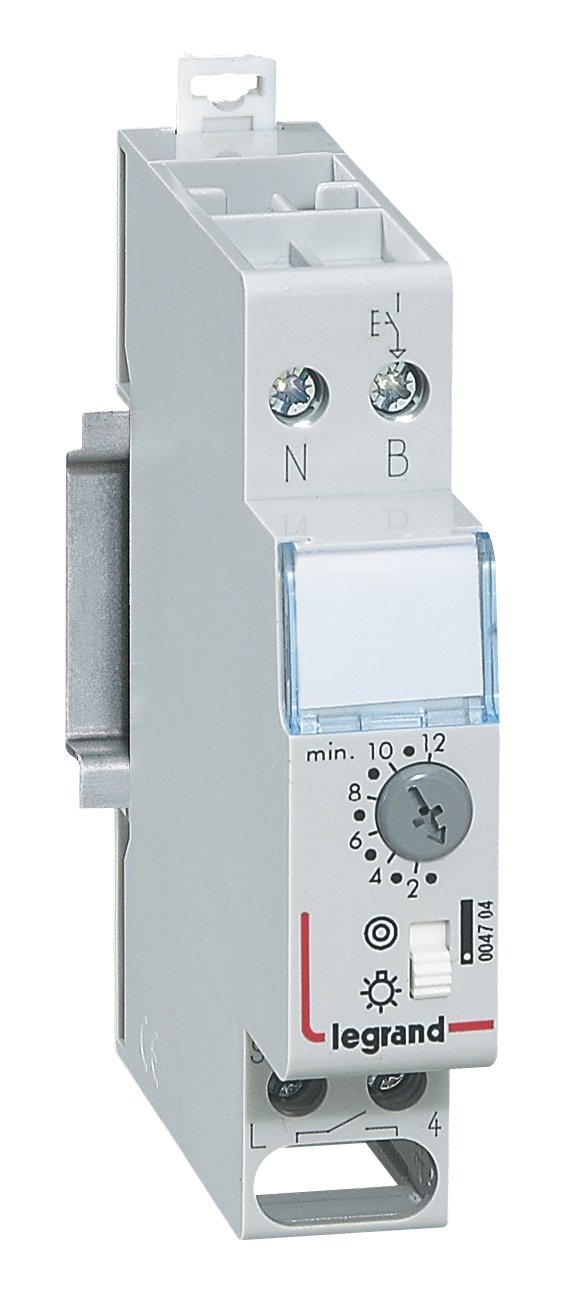

Image showing the Legrand LEG04704 multifunction timer. It is a grey, single-module device designed for DIN rail mounting. Visible features include screw terminals labeled 'N' and 'B' at the top, a timing adjustment dial marked from 0.5 to 12 minutes, and a manual override switch below it. The Legrand logo and model number '0047 04' are also visible. Lower terminals are labeled 'L' and '4'.

4.1. מאַונטינג

1. Ensure the main power supply to the installation is disconnected.
2. Clip the timer onto a standard DIN rail inside a suitable electrical enclosure.

4.2. וויירינג קאַנעקשאַנז

Refer to the wiring diagram provided with the product and the labels on the device. The timer automatically recognizes 3 or 4-wire operation.

• N: נייטראלע פֿאַרבינדונג.
• B: Input for control push-button (e.g., from a switch or presence detector).
• L: Live (Phase) input connection.
• 4: Switched Live (Phase) output to the load (e.g., lighting circuit).

Ensure all wire connections are tight and secure. Use appropriate wire gauges for the load current.

5. אַפּערייטינג ינסטרוקטיאָנס

5.1. Setting the Timer Duration

The timing duration can be adjusted using the rotary dial on the front of the device. Use a small screwdriver to turn the dial to the desired time setting, ranging from 0.5 minutes to 12 minutes.

5.2. Manual Override Switch

The timer features a manual override switch, typically located below the timing dial. This switch allows for continuous operation or manual OFF, bypassing the timed function. Refer to the symbols on the device for specific positions (e.g., timed operation, continuous ON, continuous OFF).

5.3. ספּעציעלע פאַנגקשאַנז

• Pre-warning Function: The timer may provide a visual indication (e.g., a brief flicker of the light) before the end of the timing period, allowing users to react before the light switches off.
• Long Duration Function: A specific input or sequence might activate a 1-hour timing period, useful for extended lighting needs.

6. וישאַלט

The Legrand LEG04704 timer requires minimal maintenance.

• זיכער מאַכן אַז די מאַכט צושטעל איז אָפּגעטיילט איידער רייניקונג.
• רייניקט די אויסערליכע זייט מיט א ווייכן, טרוקענעם טוך. ניצט נישט קיין שרײַבנדיקע רייניגער אדער סאָלווענטן.
• There are no user-serviceable parts inside the device. Do not attempt to open or repair the timer.

7. טראָובלעשאָאָטינג

• Timer not activating:
  • Check if the main power supply is connected and active.
  • Verify all wiring connections (L, N, B, 4) are correct and secure.
  • Ensure the control push-button is functioning correctly.
  • Check the manual override switch position.
• Incorrect timing duration:
  • Adjust the rotary dial to the desired time setting.
• Load not switching off:
  • Check the manual override switch position; it might be set to continuous ON.
  • Ensure the load does not exceed the maximum specified rating.
• If issues persist, consult a qualified electrician or contact Legrand customer support.

8. ספּעסאַפאַקיישאַנז

9. וואָראַנטי און שטיצן

Legrand products are manufactured to high-quality standards and are covered by a manufacturer's warranty. For specific warranty terms and conditions, please refer to the documentation provided with your purchase or visit the official Legrand webפּלאַץ.

For technical support, troubleshooting assistance, or inquiries regarding your Legrand LEG04704 Multifunction Timer, please contact Legrand customer service through their official channels.
