ABB MCB-10 Contact Block 1-NO Instruction Manual

1. הקדמה און איבערview

This manual provides essential instructions for the safe and effective installation, operation, and maintenance of the ABB MCB-10 Contact Block. The MCB-10 is a single normally open (NO) contact block designed for front mounting, commonly used as an auxiliary contact in industrial control circuits.

Key features of the MCB-10 include:

• Type: Contact Block, Accessories, 1 N.O.
• Volts AC Control: 208, 277, 240, 120, 24, 12, 480
• Volts DC Control: 110, 48, 24, 12, 6
• Volts AC Control Range: 1 - 600V
• Volts DC Control Range: 1 - 600V

2. זיכערקייַט אינפֿאָרמאַציע

ווארענונג: Electrical shock hazard. Improper installation or maintenance can result in serious injury or death. Always adhere to the following safety guidelines:

• Always disconnect all power sources before attempting any installation, wiring, or maintenance on the contact block or associated equipment.
• Installation and servicing must be performed by qualified and authorized electrical personnel only.
• Comply with all local, national, and international electrical codes and regulations.
• צי ניט יקסיד די ספּעסיפיעד וואָלtage and current ratings of the MCB-10 Contact Block.
• זיכער מאַכן אַז אַלע פֿאַרבינדונגען זענען זיכער און ריכטיק איזאָלירט צו פאַרמייַדן קורץ קרייזן.
• ניצט נישט דעם אפאראט אויב עס זעט אויס צעבראכן.

3. סעטאַפּ און ייַנמאָנטירונג

The ABB MCB-10 Contact Block is designed for front mounting onto compatible ABB control devices, such as contactors or pushbuttons. Follow these steps for proper installation:

1. מאַכט דיסקאַנעקשאַן: Ensure all power to the main control device is disconnected and locked out according to safety procedures.
2. מאָונטינג: Align the MCB-10 Contact Block with the designated mounting slots on the front of the main control device. Gently push the contact block until it clicks securely into place. Verify that it is firmly attached and does not wobble.
3. וויירינג: Connect the control wires to the screw terminals of the MCB-10. The terminals are typically marked '3' and '4' for a Normally Open (NO) contact. Use appropriate wire gauges for the intended current. Ensure wires are stripped to the correct length and inserted fully into the terminals before tightening the screws firmly. Avoid overtightening.
4. וועראַפאַקיישאַן: After wiring, double-check all connections for tightness and correct polarity. Ensure no bare wires are exposed.

פיגורע 1: This image displays the primary view of the ABB MCB-10 Contact Block. Visible are the product model 'MCB-10', regulatory markings (IEC, EN, UL, CE), and the screw terminals for electrical connections. The green actuator button is also visible.

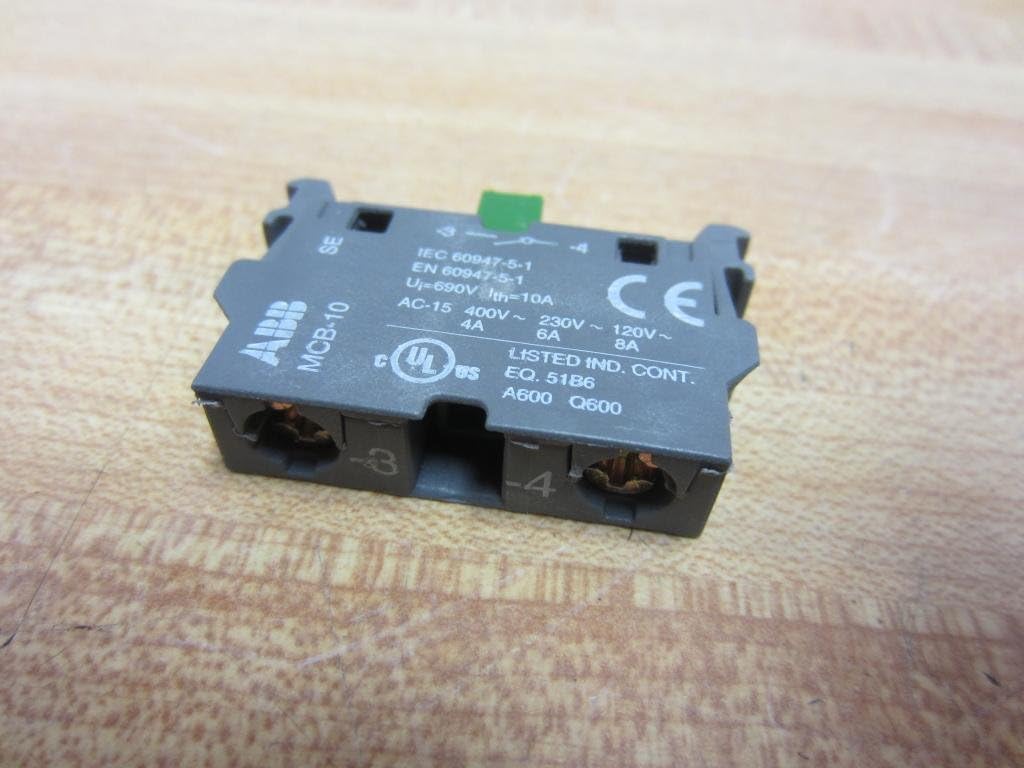

פיגורע 2: א נענטער view of the ABB MCB-10 Contact Block, highlighting the detailed electrical specifications printed on its surface, including voltage ratings (AC-15 400V~ 230V~ 120V~), current ratings (4A, 6A, 8A), and terminal numbers (3 and 4 for the NO contact).

4. אַפּערייטינג ינסטרוקטיאָנס

The MCB-10 is a passive component that functions as an auxiliary contact for a main control device. Its operation is directly linked to the state of the device it is mounted on.

• Normally Open (NO) Contact: The 1 NO contact of the MCB-10 remains open when the main control device (e.g., contactor coil) is de-energized.
• Contact Closure: When the main control device is energized (e.g., contactor coil is activated), the mechanical action of the main device causes the MCB-10's NO contact to close, completing the auxiliary circuit.
• Contact Opening: When the main control device is de-energized, the NO contact of the MCB-10 returns to its open state.

פאַרזיכערן אַז די אַפּערייטינג וואָלtage and current of the auxiliary circuit connected to the MCB-10 do not exceed the block's specified ratings.

5. וישאַלט

Regular maintenance helps ensure the longevity and reliable operation of the MCB-10 Contact Block. Always disconnect power before performing any maintenance.

• וויסואַל דורכקוק: Periodically inspect the contact block for any signs of physical damage, discoloration, or excessive wear.
• טערמינאַל קאַנעקשאַנז: Check all screw terminals for tightness. Loose connections can lead to overheating and intermittent operation.
• ריינקייַט: Ensure the contact block is free from dust, dirt, and other debris that could interfere with its mechanical operation or electrical conductivity. Use a dry, soft cloth for cleaning. Do not use solvents.
• פאַנגקשאַנאַליטי טשעק: If possible and safe to do so, verify the mechanical action of the contact block by observing its response to the main control device's operation.

Replace the contact block if any significant damage or malfunction is observed.

6. טראָובלעשאָאָטינג

If you experience issues with the MCB-10 Contact Block, consider the following troubleshooting steps:

• Contact Not Closing/Opening:
  • Verify that the main control device (e.g., contactor) is functioning correctly and actuating the contact block.
  • Check for proper mounting of the MCB-10 onto the main device. Ensure it is securely seated.
  • Inspect wiring for loose connections or breaks.
• ינטערמיטאַנט אָפּעראַציע:
  • פֿעסטצוציען אַלע טערמינאַל שרויפֿן.
  • Check for any debris obstructing the mechanical movement of the contact.
  • Inspect for signs of arcing or pitting on the contact surfaces (only if safely accessible and power is off).
• איבערהייצונג:
  • Ensure the current flowing through the contact does not exceed its rated capacity (15 Ampס).
  • קוקט איבער פאר פרייע טערמינאל פארבינדונגען, וואס קענען פאראורזאכן קעגנשטעל און היץ.
  • באַשטעטיקן אַז די אַפּערייטינג voltage איז אין די ספּעסיפיעד קייט.

If the problem persists after these checks, the contact block may be faulty and require replacement. Contact ABB support for further assistance.

7. ספּעסאַפאַקיישאַנז

8. וואָראַנטי אינפֿאָרמאַציע

No specific warranty information is provided within the product details. For warranty terms and conditions related to the ABB MCB-10 Contact Block, please refer to your purchase documentation, contact your authorized ABB distributor, or visit the official ABB webפּלאַץ.

9. שטיצן

For technical support, product inquiries, or further assistance with the ABB MCB-10 Contact Block, please utilize the following resources:

• Official ABB Webפּלאַץ: באַזוכן ABB's official webפּלאַץ פֿאַר פּראָדוקט דאָקומענטאַציע, אָפֿט געשטעלטע פֿראַגעס, און קאָנטאַקט אינפֿאָרמאַציע.
• אָטערייזד דיסטריביאַטערז: Contact your local authorized ABB distributor for sales and technical support.
