Verifone VX510 Dial-Up Credit Card Terminal User Manual

הקדמה

This manual provides comprehensive instructions for the Verifone VX510 Dial-Up Credit Card Terminal. It covers the setup, operation, maintenance, and troubleshooting of your device to ensure efficient and reliable performance for processing credit card transactions.

פּראָדוקט איבערview

The Verifone VX510 is a robust dial-up credit card terminal designed for secure and efficient transaction processing. It features a user-friendly keypad, a clear display, and essential ports for connectivity.

Figure 1: Verifone VX510 Dial-Up Credit Card Terminal, including the main unit, power adapter (SMPS094000-09), and power cord.

קאַמפּאָונאַנץ

• Terminal Unit: The main device for processing transactions.
• קיפּאַד: Numeric and function keys for data entry and navigation.
• ווייַז פאַרשטעלן: Shows transaction details, menus, and system messages.
• מאַכט אַדאַפּטער: Model SMPS094000-09, provides power to the terminal.
• מאַכט שנור: Connects the power adapter to a wall outlet.
• קאָמוניקאַציע פּאָרץ: Located at the rear/bottom for dial-up and other connections.

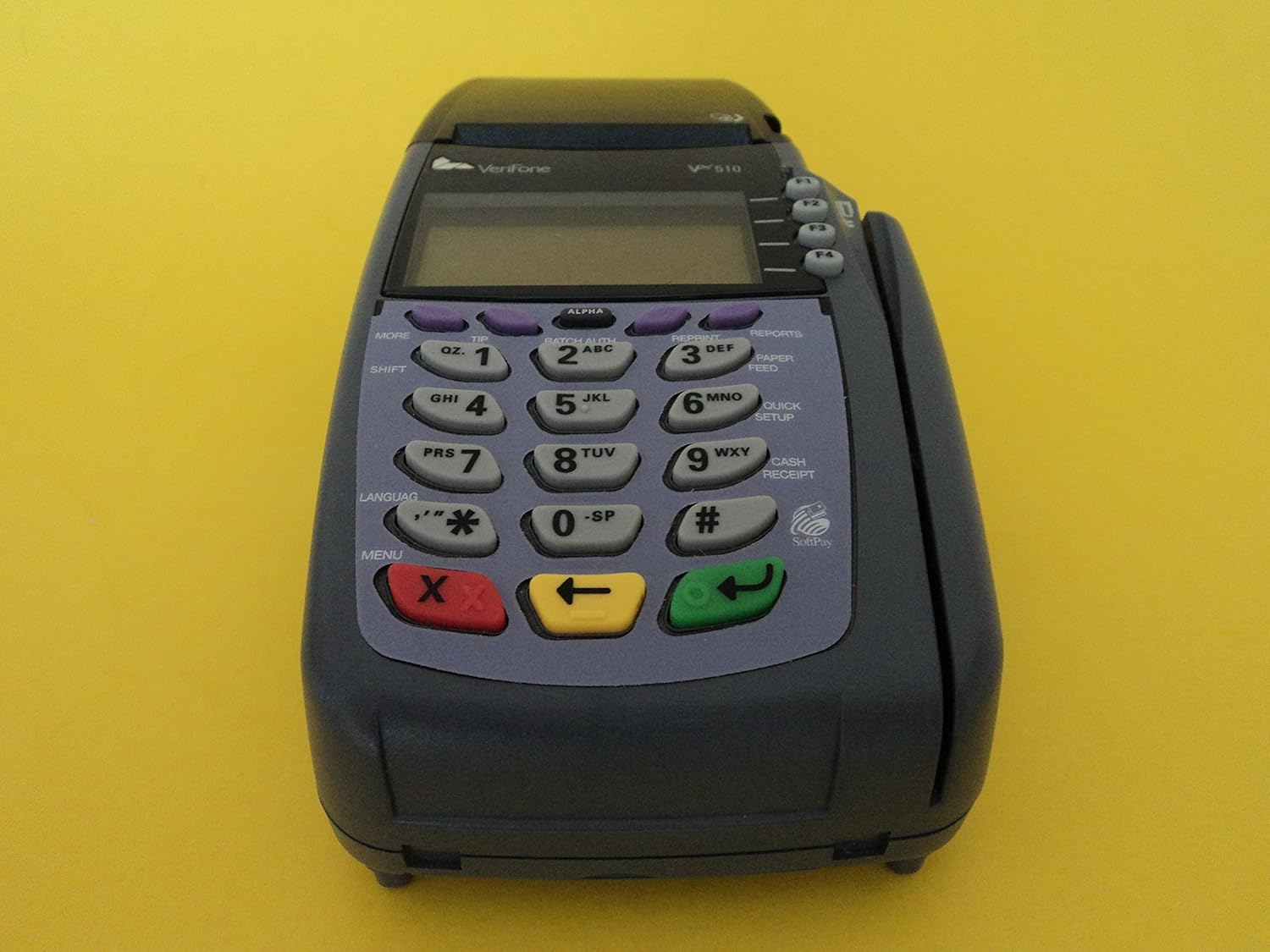

פיגורע 2: פראָנט view of the Verifone VX510 terminal, highlighting the keypad and display screen.

Figure 3: The terminal's display screen showing initial boot-up information, including "VERIFONE VX510" and copyright details.

פיגורע 4: דערציען view of the Verifone VX510, showing the communication ports, including 10BaseT (Ethernet) and RS232 connections.

סעטאַפּ

Follow these steps to set up your Verifone VX510 terminal for the first time.

1. Unpack the Terminal: Carefully remove all components from the packaging. Ensure you have the terminal unit, power adapter, and power cord.
2. פאַרבינדן מאַכט:
   • פאַרבינדן די מאַכט שנור צו די מאַכט אַדאַפּטער.
   • Plug the power adapter's barrel connector into the power input port on the back of the VX510 terminal.
   • צאַפּן די מאַכט שנור אין אַ נאָרמאַל עלעקטריקאַל ווענטיל.


   Figure 5: Verifone VX510 terminal with the power adapter connected and the unit powered on, displaying the current date and time.

3. Connect Communication Line (Dial-Up): For dial-up connectivity, connect a standard telephone line from your wall jack to the "TELCO" port on the terminal.
4. ערשטע אויפשטארט: The terminal will power on automatically once connected to power. The display will show boot-up sequences and then typically the date and time or a ready screen.
5. קאַנפיגיעריישאַן: Your terminal may require specific configuration settings (e.g., merchant ID, terminal ID, communication parameters) from your payment processor. Refer to your processor's documentation or contact their support for these details.

אַפּערייטינג ינסטראַקשאַנז

This section outlines the basic operations for processing transactions on your Verifone VX510 terminal.

Processing a Sale

1. פון די ליידיק פאַרשטעלן, דריקן די פאַרקויף key (often F1 or a dedicated button).
2. Enter the transaction amount using the numeric keypad. Press אַרייַן (green key) to confirm.
3. Swipe the customer's credit card through the magnetic stripe reader on the side of the terminal, or insert the EMV chip card into the slot at the bottom.
4. Follow any on-screen prompts, such as entering a tip amount or PIN.
5. The terminal will dial out to the payment processor. Once approved, a confirmation message will appear.
6. Print the merchant copy and customer copy of the receipt.

וויידינג אַ טראַנסאַקטיאָן

1. פון די ליידיק פאַרשטעלן, דריקן די וואָיד key (often F2 or a dedicated button).
2. Enter the transaction number or select the transaction from a list if prompted.
3. Confirm the void when prompted.
4. Print the void receipt.

Batch Settlement

At the end of each business day, you must settle your batch to receive funds for processed transactions.

1. פון די ליידיק פאַרשטעלן, דריקן די SETTLE or פּעקל key (often F3 or a dedicated button).
2. Confirm the batch settlement when prompted.
3. The terminal will dial out and transmit the batch.
4. Print the batch settlement report.

וישאַלט

Proper maintenance ensures the longevity and optimal performance of your Verifone VX510 terminal.

• רייניקונג: ניצן אַ ווייך, לינט-פֿרייַ שטאָף אַ ביסל דampened with water or a mild, non-abrasive cleaner to wipe the exterior. Do not use harsh chemicals or abrasive materials. Avoid spraying liquids directly onto the terminal.
• פּאַפּיר זעמל פאַרבייַט: When the paper roll is low or empty, open the printer cover, remove the old roll, and insert a new thermal paper roll, ensuring the paper feeds correctly. Close the cover firmly.
• קאַבלע פאַרוואַלטונג: Ensure all cables (power, phone line) are securely connected and not crimped or strained.
• ווייכווארג דערהייַנטיקונגען: Periodically check with your payment processor for any required software updates for your terminal.

טראָובלעשאָאָטינג

This section addresses common issues you might encounter with your Verifone VX510 terminal.

ספּעסאַפאַקיישאַנז

Key technical specifications for the Verifone VX510 Dial-Up Credit Card Terminal.

• מאָדעל: VX510 (M251-060-36-NAA)
• פאַבריקאַנט: VeriFone
• קאַנעקטיוויטי: Dial-Up (PSTN), RS232, 10BaseT (Ethernet - specific models/configurations)
• מאַכט אַרייַנשרייַב: 9VDC, 4A (via SMPS094000-09 power adapter)
• דימענסיעס: Approximately 12 x 8 x 10 inches (Product Dimensions from data)
• וואָג: Approximately 0.01 ounces (Item Weight from data - likely a typo, actual weight is higher)
• ווייַז: באַקלייט לקד
• קיפּאַד: 19-key ergonomic keypad
• קאָרט לייענער: Magnetic Stripe Reader, EMV Smart Card Reader
• דרוקער: ינטעגראַטעד טערמאַל פּרינטער
• סיריאַל נומער עקסampלאַ: 213-141-334 (עקסample from product image)

Figure 6: Bottom label of the Verifone VX510 terminal, showing model number M251-060-36-NAA, product rating, and serial number (S/N 213-141-334).

וואָראַנטי און שטיצן

For warranty information and technical support, please refer to the documentation provided by your reseller or payment processor. Verifone provides support through authorized distributors and service providers.

• Contact your Payment Processor: For most operational and configuration issues, your payment processor is the primary point of contact.
• אָטערייזד ריסעלערז: If you purchased the device from a reseller, they may offer direct support or facilitate warranty claims.
• וועריפאָנע Webפּלאַץ: Visit the official Verifone website for general product information and to locate authorized service centers.
