Tamiya Models USS Missouri BB-63 Circa 1991 Model Kit

1. הקדמה

This instruction manual provides detailed guidance for assembling, painting, and maintaining your Tamiya 1/350 scale USS Missouri BB-63 Circa 1991 Model Kit. This kit accurately represents the US Navy's 3rd Iowa class battleship as refitted for Gulf War service in 1991. It features updated components and intricate details for an authentic replica.

Figure 1: Tamiya USS Missouri BB-63 Model Kit Box Art

2. קיט אינהאַלט

Before beginning assembly, please verify that all components are present and undamaged. The kit includes:

• Single-piece full hull
• Detailed deck surfaces with engraved plank texture
• Fully rendered superstructure with new tool features (bridge area, Tomahawk launcher deck, aft bridge deck, funnel, aft funnel mast, radar dome, No.1 turret ventilator, Mk.37 gun director, deck ventilator, RQ-2 Pioneer)
• Updated weapons suite (Harpoon and Tomahawk missile launchers, Phalanx CIWS, SRBOC rocket launchers)
• Filigree mast lattice
• SH-60B helicopters (choice of extended or stowed rotors)
• Ship's boats
• Display stand with nameplates
• Metal propeller shafts
• Stainless steel wire (for rigging Dicone-Cage antennae)
• Photo-etched parts (including helicopter deck fences, water tight doors, SPS10 radar, SPS49 radar)
• Printed paper flag sheet, starboard color profile, and decals for hull markings, helipad, and upperworks
• Reference booklet (ship's historical background)

פיגור 2: קיט אינהאַלט איבערview

Figure 3: Included Photo-Etched Parts

Figure 4: Reference Booklet

3. מכשירים פארלאנגט

The following tools are recommended for assembly. Ensure you have a clean, well-lit workspace.

• Hobby Knife / Cutter
• Plastic Cement / Adhesive
• Tweezers (angled recommended for small parts)
• Side Cutters / Nippers
• קליינע שער
• Modeling Masking Tape
• Decal Adhesive Softener/Haftmittel
• קליין Files or Sandpaper (fine grit)
• Paint Brushes (various sizes)

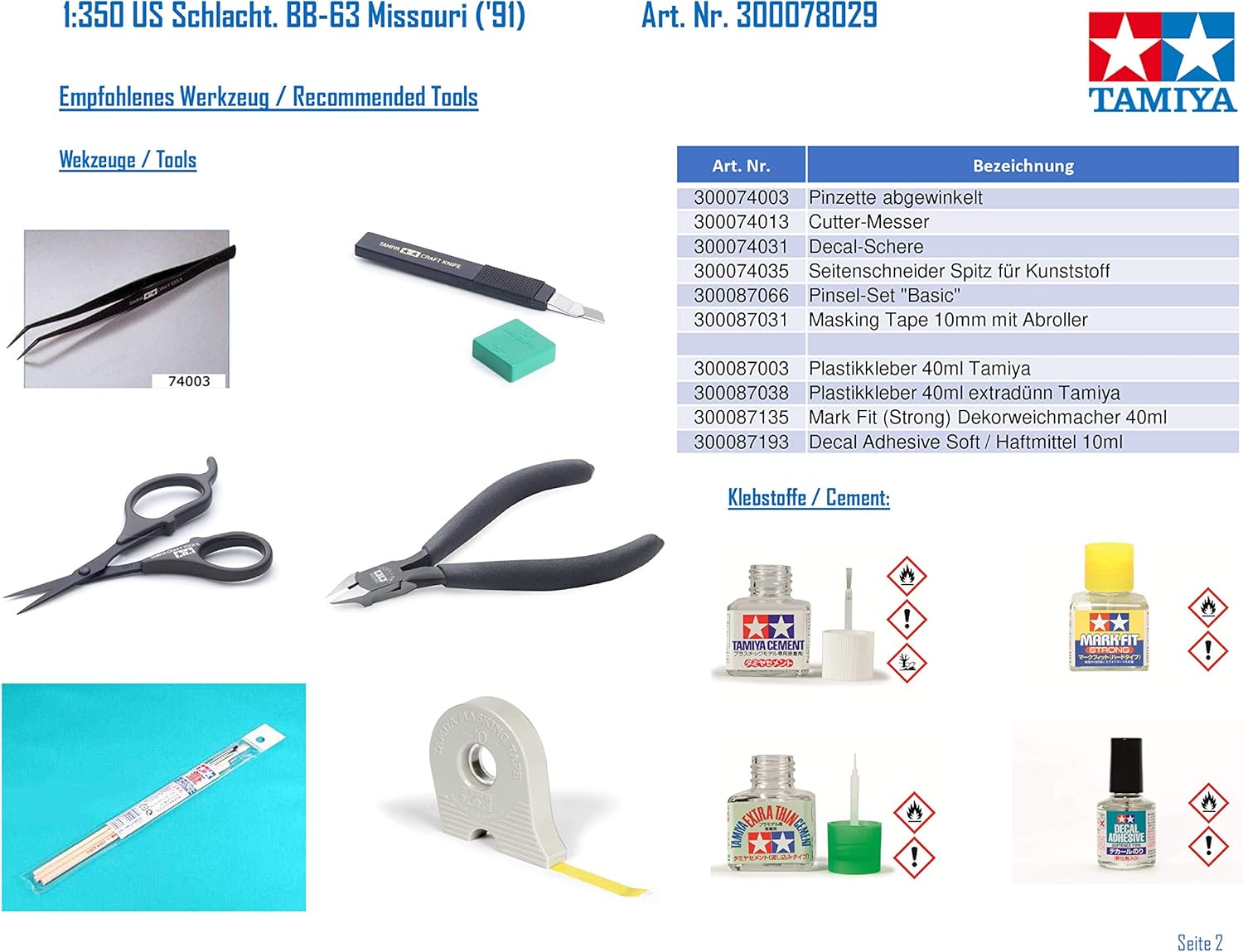

Figure 5: Essential Tools for Assembly

4. Painting Guide

Achieving a realistic finish requires careful painting. Refer to the included color profile and the following paint recommendations. Tamiya XF (flat) and X (gloss) acrylic paints, as well as TS (spray) paints, are suggested.

Recommended Paints:

Note: Always test paints on a scrap piece before applying to the model. Ensure proper ventilation when painting.

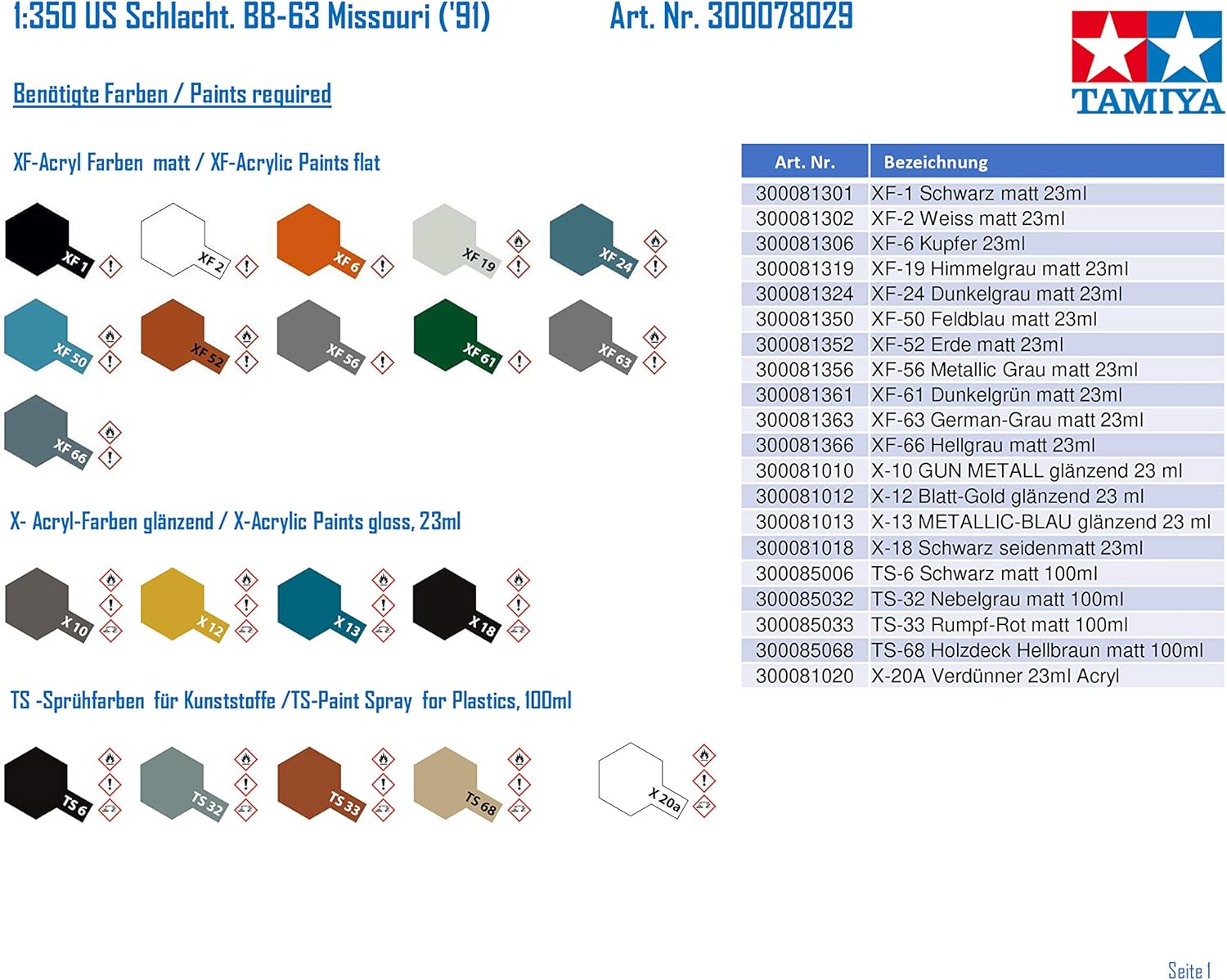

Figure 6: Tamiya Paint Color Guide

5. אַסעמבלי אינסטרוקציעס

Follow the detailed step-by-step instructions provided in the kit's manual. This section provides general guidance.

אַלגעמיינע טריט:

1. צוגרייטונג: Carefully remove parts from the sprues using side cutters. Clean any flash or mold lines with a hobby knife or fine sandpaper.
2. סאַב-אַסאַמבליז: Assemble smaller sections first, such as turrets, superstructure levels, and aircraft. This allows for easier painting of intricate details.
3. Hull Assembly: The kit features a single-piece full hull. Attach deck sections, ensuring proper alignment. Use plastic cement sparingly.
4. Superstructure: Build up the multi-level superstructure, paying close attention to the fit of each component. The kit includes new tool features for enhanced detail.
5. Weapons and Details: Attach the main gun turrets, Harpoon and Tomahawk missile launchers, Phalanx CIWS, and SRBOC rocket launchers. Integrate the filigree mast lattice and other fine deck fittings.
6. Photo-Etched Parts: Carefully bend and attach the photo-etched parts (e.g., helicopter deck fences, watertight doors, radar components) using super glue or a specialized photo-etch adhesive.
7. ערקראַפט: Assemble the SH-60B helicopters, choosing between extended or stowed rotor configurations.
8. ריגינג: Use the provided stainless steel wire to rig the Dicone-Cage antennae as per the manual.
9. Decals and Flag: Apply decals for hull markings and the helipad after painting is complete and sealed with a clear coat. Attach the printed paper flag.
10. לעצט פֿאַרזאַמלונג: Mount the completed model onto the display stand.

Refer to the kit's detailed instruction booklet for specific part numbers and assembly sequences.

Figure 7: Assembled Stern Section Detail

Figure 8: Assembled Bow Section Detail

6. Operating (Display)

This model kit is designed for static display. Once assembled, ensure it is placed on a stable, level surface, ideally using the provided display stand. Avoid direct sunlight, extreme temperatures, and high humidity to prevent damage or warping of the plastic components and paint finish.

7. וישאַלט

Proper care will preserve the appearance of your model for years to come.

• רייניקונג: Dust regularly with a soft, dry brush or a can of compressed air. Avoid using harsh chemicals or abrasive cloths, which can damage paint and plastic.
• האַנדלינג: Handle the model by its base or hull whenever possible. Avoid touching delicate parts like antennae, railings, or small weapons.
• סטאָרידזש: If storing the model, place it in a dust-free, temperature-controlled environment. Consider a display case for long-term protection.
• ריפּערז: For minor repairs, use appropriate plastic cement or super glue. For paint touch-ups, use the original paint colors.

8. טראָובלעשאָאָטינג

Here are solutions to common issues encountered during or after model assembly:

• פּאַרץ ניט פּאַסיק: Ensure parts are correctly oriented. Trim excess plastic (flash) if present. Light sanding may be required for a snug fit. Avoid forcing parts.
• Poor Adhesive Bond: Ensure surfaces are clean and free of paint or grease. Apply a thin, even layer of plastic cement. For photo-etched parts, use super glue.
• Paint Issues (e.g., uneven coat, brush marks): Ensure paint is properly thinned. Apply multiple thin coats rather than one thick coat. Allow adequate drying time between coats.
• Decal Silvering: Apply decals to a glossy surface. Use decal setting solutions to help them conform to irregular surfaces and eliminate air bubbles.
• Broken Small Parts: Use fine-tipped tweezers and a small amount of super glue for reattachment. If a part is lost or severely damaged, contact Tamiya for potential replacement parts (availability may vary).

9. ספּעסאַפאַקיישאַנז

10. וואָראַנטי און שטיצן

Tamiya products are manufactured to high standards. For any issues regarding missing or defective parts, please contact Tamiya customer support directly. Keep your proof of purchase. Specific warranty details may vary by region; refer to the packaging or Tamiya's official webפּלאַץ פֿאַר די מערסט קראַנט אינפֿאָרמאַציע.

For additional support, resources, and community forums, visit the official Tamiya website or authorized hobby retailers.
