1. הקדמה
This manual provides essential information for the safe installation, operation, and maintenance of the Siemens S1224L3125 125-Amp Indoor Main Lug Load Center. This unit is designed for 3-Phase, 4-wire, 120/240 or 120/208-Volt applications, featuring 12 spaces and 24 circuits. It includes 100-Percent neutral provisions and tin-plated aluminum bus bars. The cover supports both flush and surface mounting.
וויכטיק: Installation and servicing must be performed by qualified personnel in accordance with all national and local electrical codes. Read this entire manual before proceeding with installation or operation.
2. זיכערקייַט אינפֿאָרמאַציע
Electrical equipment can be hazardous. Failure to follow safety instructions can result in serious injury or death.
- Always disconnect power at the main service entrance before working on the load center.
- ניצט צוגעפאסטע פערזענלעכע שוץ-עקוויפּמענט (PPE), אריינגערעכנט איזאָלירטע הענטשקעס און זיכערהייט ברילן.
- Ensure all wiring connections are tight and secure to prevent overheating and fire hazards.
- דו זאלסט נישט ינסטאַלירן אין נאַס אָדער דamp locations unless specifically rated for such environments. This model is for indoor use.
- Only use approved plug-in style Siemens or Murray breakers with this load center.
- Verify proper grounding and bonding according to electrical codes.
- דאס פּראָדוקט איז UL ליסטעד, וואָס ווײַזט אָן אַז עס איז אין לויט מיט די זיכערהייט סטאַנדאַרדן.
3. סעטאַפּ און ייַנמאָנטירונג
The Siemens S1224L3125 load center is designed for indoor main lug applications.
3.1 מאָנטירן דעם לאַסט צענטער
The load center features a combination cover for both flush and surface mounting.
- Select a suitable indoor location, ensuring adequate working space and ventilation.
- Mark the mounting holes on the wall using the load center enclosure as a template.
- Securely fasten the load center enclosure to the wall using appropriate hardware.
פיגורע 1: Siemens S1224L3125 Load Center with the cover open, revealing the main lug terminals, neutral bars, and bus bars for circuit breaker installation. This image shows the internal layout for wiring.
3.2 וויירינג קאַנעקשאַנז
This 3-phase load center requires careful wiring.
- Route incoming service conductors through appropriate knockouts.
- Connect the main service conductors to the main lug terminals. Ensure proper phase rotation (A, B, C) if applicable and secure connections.
- Connect the neutral conductor to the neutral bar. The load center features 100-Percent neutral provisions.
- Connect the ground conductor to the ground bar. Note: Ground bars are not included with the unit and must be purchased separately (e.g., ECGB1, ECGB2, or ECGB3 series).
- Install branch circuit breakers into the bus bar slots. This unit accepts approved plug-in style Siemens or Murray breakers.
- Connect branch circuit conductors to their respective circuit breakers.
- Ensure all connections are torqued to the manufacturer's specifications.

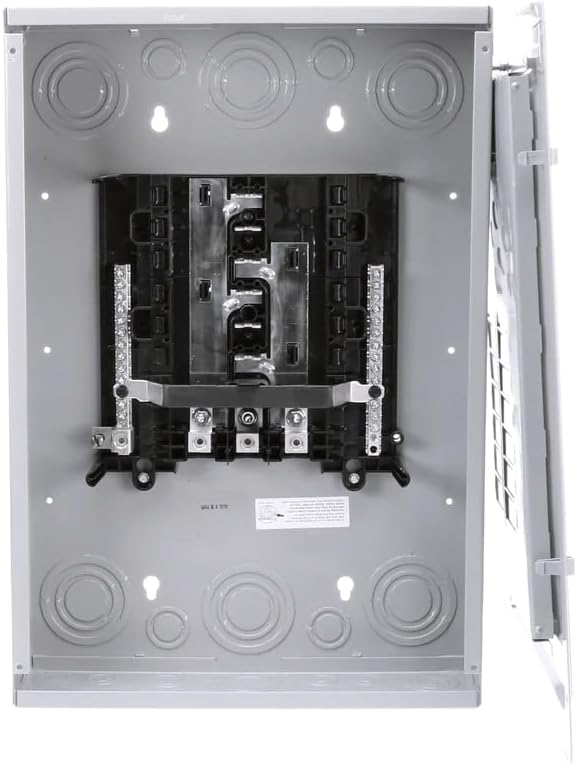

פיגורע 2: א דיטיילד view of the internal components, including the tin-plated aluminum bus bars and terminals for connecting main and branch circuit wiring. This highlights the connection points for electrical conductors.
4. אַפּערייטינג ינסטרוקטיאָנס
Once installed and wired by a qualified electrician, the load center operates by distributing electrical power to various circuits through individual circuit breakers.
- Turning Circuits ON/OFF: Each circuit breaker has a handle that can be moved to the "ON" or "OFF" position.
- אויסגעלאָשענער ברעיקער: If a circuit becomes overloaded or experiences a short circuit, the corresponding breaker will "trip" to the center position (or fully OFF, depending on the breaker type). To reset a tripped breaker, first move the handle firmly to the "OFF" position, then to the "ON" position. If it trips again immediately, there is still an issue on the circuit that needs to be addressed by a qualified electrician.
- Main Disconnect: The main lugs provide the connection point for the incoming power. A separate main disconnect switch or breaker upstream of this load center is typically used to de-energize the entire panel.
5. וישאַלט
Regular inspection and maintenance can help ensure the safe and reliable operation of your load center.
- יערלעך דורכקוק: Have a qualified electrician inspect the load center annually. This includes checking for loose connections, signs of overheating (discoloration), corrosion, and proper operation of circuit breakers.
- רייניקונג: Ensure the area around the load center is clear and free of obstructions. Keep the interior of the panel clean and free of dust and debris. Always disconnect power before cleaning the interior.
- לייבלינג: Ensure all circuits are clearly and accurately labeled for easy identification.
6. טראָובלעשאָאָטינג
For any electrical issues, it is recommended to contact a qualified electrician. Do not attempt repairs if you are not qualified.
| פּראָבלעם | מעגלעך סיבה | לייזונג |
|---|---|---|
| קרייז ברעיקער טרייסלט אָפט | איבערגעלאדענע קרייז, קורץ קרייז, גראונד שולד, דעפעקטיווע עלעקטרישע אפאראט. | Reduce load on circuit, unplug appliances, inspect wiring for damage. If problem persists, contact an electrician. |
| No power to a circuit | Tripped breaker, loose connection, faulty breaker. | Check and reset the breaker. If still no power, contact an electrician to check connections or replace the breaker. |
| Load center feels warm | Overloaded circuits, loose connections, improper wire sizing. | Immediately contact a qualified electrician to inspect and rectify the issue. This can be a fire hazard. |
7. ספּעסאַפאַקיישאַנז
- מאָדעל: S1224L3125
- סאָרט: SIEMENS
- Ampאַרויסרופן: 125 Amps (Main Lug)
- נומער פון פּלעצער: 12
- נומער פון קרייזן: 24
- פאַסע טיפּ: דריי פאַסע
- Voltage: 120/240 or 120/208-Volt
- וויירינג: 4-דראָט
- Neutral Provisions: 100-Percent
- Bus Bar Material: Tin Plated Aluminum
- מאָונטינג: Combination Flush/Surface Mount
- קאַמפּאַטאַבילאַטי: Accepts approved plug-in style Siemens or Murray breakers
- סערטיפיקאַטיאָנס: UL ליסטעד
- מאַטעריאַל: אַלומינום
- UPC: 662643925463
8. וואָראַנטי אינפֿאָרמאַציע
The Siemens S1224L3125 Load Center comes with a 10-year warranty. For specific terms and conditions, please refer to the official Siemens warranty documentation or contact Siemens customer support. This warranty typically covers defects in materials and workmanship under normal use and service.
9. קונה שטיצן
For technical assistance, product inquiries, or warranty claims, please contact Siemens customer support.
- פאַבריקאַנט: סימענס -HI
- אָנליין רעסורסן: באַזוכן די באַאַמטער סימענס קראָם אויף עמעזאָן פֿאַר נאָך פּראָדוקט אינפֿאָרמאַציע און רעסורסן.
- Refer to the Siemens official website for contact details and support channels.
