JL-Audio PWM110-WX Enclosed Subwoofer System

1. הקדמה

Thank you for choosing the JL-Audio PWM110-WX Enclosed Subwoofer System. This manual provides essential information for the proper installation, operation, and maintenance of your new car audio component. Please read this manual thoroughly before attempting installation or operation to ensure optimal performance and safety.

The PWM110-WX system features a 10-inch (25 cm) 10WX subwoofer housed in a durable, grey carpet-finished enclosed cabinet, powered by a J2-250.1 mono amplifier. It is designed to deliver powerful and accurate bass reproduction in your vehicle.

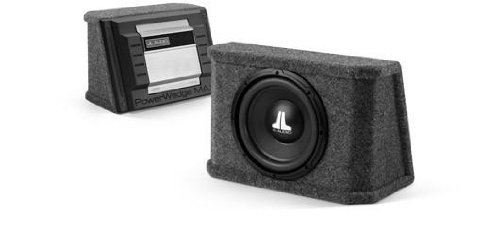

Image 1.1: JL-Audio PWM110-WX Enclosed Subwoofer System. This image shows the compact, grey carpeted enclosure with the JL Audio logo, indicating a robust and ready-to-install unit.

2. זיכערקייַט אינפֿאָרמאַציע

שטענדיק אָבסערווירן די פאלגענדע זיכערהייט מיטלען צו פאַרמייַדן שאָדן אָדער שעדיקן צו דעם פּראָדוקט:

• פאַכמאַן ינסטאַלירונג רעקאַמענדיד: Installation of car audio equipment can be complex. If you are unsure about any part of the installation process, seek assistance from a qualified professional installer.
• דיסקאַנעקט באַטערי: Before beginning any wiring, disconnect the vehicle's negative battery terminal to prevent electrical shorts and damage.
• געהעריק וויירינג: Ensure all wiring is correctly routed and secured to prevent pinching, chafing, or short circuits. Use appropriate gauge wire for power and ground connections.
• ווענטילאַטיאָן: Ensure the subwoofer enclosure and amplifier have adequate ventilation. Do not block cooling vents or place the unit in an enclosed space without airflow.
• באַנד לעוועלס: Prolonged exposure to high sound pressure levels can cause permanent hearing damage. Operate your audio system at safe listening levels.
• זיכער מאָונטינג: The enclosure must be securely mounted within the vehicle to prevent it from becoming a projectile during sudden stops or collisions.

3. סעטאַפּ און ייַנמאָנטירונג

3.1 אַנפּאַקינג

Carefully remove the subwoofer system from its packaging. Inspect the unit for any signs of damage that may have occurred during shipping. If damage is present, contact your dealer immediately.

3.2 פּלייסמאַנט און מאַונטינג

The PWM110-WX is an enclosed system designed for flexible placement within your vehicle's trunk or cargo area. Choose a location that:

• Allows for adequate ventilation around the ampליפער אָפּטיילונג.
• Does not obstruct vehicle controls or safety equipment.
• Can be securely fastened to prevent movement. Use straps, brackets, or other appropriate hardware (not included) to secure the enclosure to the vehicle's chassis or floor.

3.3 וויירינג קאַנעקשאַנז

The PWM110-WX system includes a J2-250.1 mono amplifier integrated into the enclosure. Follow these general wiring guidelines:

1. Power Wire (B+): Connect a suitable gauge power wire (e.g., 8 AWG or 4 AWG, depending on total system power and wire length) from the vehicle's positive battery terminal to the amplifier's B+ terminal. Install an appropriate fuse holder (e.g., ANL or Mini-ANL) within 18 inches (45 cm) of the battery.
2. גראַונד דראָט (GND): Connect a short (less than 3 feet / 1 meter), same-gauge ground wire from the amplifier's GND terminal to a clean, unpainted metal surface of the vehicle's chassis. Ensure a solid electrical connection.
3. ווײַט-אײַנשאַלט דראָט (REM): Connect a small gauge wire (e.g., 18 AWG) from your head unit's remote turn-on output to the amplifier's REM terminal. This wire tells the ampליפיער צו דרייען אויף און אויס מיט אייער הויפט יוניט.
4. אַודיאָ אַרייַנגאַנג (RCA): Connect RCA cables from your head unit's subwoofer pre-out (or full-range pre-out if no dedicated subwoofer output is available) to the ampליפיער'ס RCA אינפוט דזשעקס.
5. רעדנער רעזולטאַט: The subwoofer is pre-wired internally to the amplifier. Do not attempt to connect external speakers to this system.

4. אַפּערייטינג ינסטרוקטיאָנס

Once the system is installed and wired correctly, you can begin to adjust its settings for optimal performance.

4.1 ערשט מאַכט-אַרויף

נאכדעם וואס אלע פארבינדונגען זענען געמאכט און וועריפיצירט, פארבינדט צוריק דעם נעגאטיווען באטעריע טערמינאל פונעם אויטא. צינדט אן אייער הויפט יוניט. amplifier should power on, indicated by an LED on the ampליפער טאַפליע.

4.2 געווינען אַדזשאַסטמאַנט

די געווינס קאָנטראָל אויף די amplifier matches the output voltage of your head unit to the amplifier's input. It is נישט a volume control. To set the gain:

1. קער די amplifier's gain control all the way down (minimum).
2. שטעלט די קול-שטאַרקע אויפֿן קול פֿון אייער קאָפּ-אַפּאַראַט צו בערך 75% פֿון איר מאַקסימום לעוועל.
3. Play a dynamic piece of music with strong bass.
4. סלאָולי פאַרגרעסערן די amplifier's gain control until you hear distortion, then back it off slightly until the sound is clean.

4.3 Crossover and Bass Boost

The integrated J2-250.1 amplifier typically includes adjustable crossover and bass boost controls. Refer to the specific amplifier's manual for detailed instructions on these settings. Generally:

• נידעריק-פּאַס פילטער (LPF): Adjust the LPF to filter out frequencies above the desired subwoofer range (e.g., 80-120 Hz). This ensures the subwoofer only plays bass frequencies.
• באַס באָאָסט: Use bass boost sparingly, if at all. Excessive bass boost can lead to distortion and potential damage to the subwoofer.

5. וישאַלט

The JL-Audio PWM110-WX system requires minimal maintenance to ensure long-lasting performance.

• רייניקונג: Use a soft, dry cloth to clean the enclosure and amplifier. Do not use harsh chemicals or abrasive cleaners.
• דורכקוק: Periodically check all wiring connections to ensure they are secure and free from corrosion. Inspect the enclosure for any signs of damage or wear.
• ווענטילאַטיאָן: פאַרזיכערן די amplifier's heatsink remains free of dust and debris to maintain proper cooling.

6. טראָובלעשאָאָטינג

If you experience issues with your JL-Audio PWM110-WX system, consult the following table before contacting support.

7. ספּעסאַפאַקיישאַנז

8. וואָראַנטי און שטיצן

JL-Audio products are designed and manufactured to the highest quality standards. For specific warranty information regarding your PWM110-WX Enclosed Subwoofer System, please refer to the warranty card included with your purchase or visit the official JL Audio webזייטל. גאַראַנטיע טערמינען און באדינגונגען קענען זיין אַנדערש לויט געגנט און הענדלער.

For technical support, service, or further inquiries, please contact your authorized JL Audio dealer or visit the support section of the official JL Audio website. Please have your product model number (PWM110-WX) and purchase information ready when seeking support.
