הקדמה
This manual provides essential instructions for the safe and effective use of your Manfrotto 509HD Pro Video Head. Please read this manual thoroughly before operating the product and retain it for future reference. The Manfrotto 509HD features exclusive Bridging Technology for enhanced load capacity and performance, a variable Fluid Drag System (FDS) for precise control, and an Advanced Balance Recorder (ABR) for quick setup.
Image: The Manfrotto 509HD Pro Video Head, showcasing its robust design and mounting on a tripod.
זיכערקייַט אינפֿאָרמאַציע
Always ensure the video head is securely mounted on a stable tripod before attaching any camera equipment. Do not exceed the maximum load capacity of 28.6 lbs (13 kg). Regularly inspect all components for wear or damage. Avoid exposing the head to extreme temperatures or harsh chemicals.
Image: Manfrotto Safety Payload information, illustrating the importance of secure equipment usage.
סעטאַפּ
- מאָונטינג די קאָפּ: Securely attach the 509HD video head to your tripod. Ensure the connection is tight and stable.
- Attaching the Camera Plate:
Image: The Manfrotto 509HD video head with the camera plate detached, revealing the quick-release mechanism and internal structure.
Slide your camera onto the quick-release plate. Ensure the camera is centered and securely fastened to the plate. Then, slide the plate with the camera into the head's receiver until it locks into place. Verify the lock is engaged before releasing the camera.
- Balancing the Camera (Advanced Balance Recorder - ABR):
Image: The Manfrotto 509HD video head with a camera plate and pan bar, highlighting the balancing controls and the 'Bridging Technology' label.
The ABR system allows you to record and recall the perfect balance position. Adjust the camera's position on the plate until it is perfectly balanced. The LED lights, controlled by a proximity sensor, will indicate when the balance is achieved. This position can then be recalled for future setups with the same equipment.
- Attaching the Pan Bar:

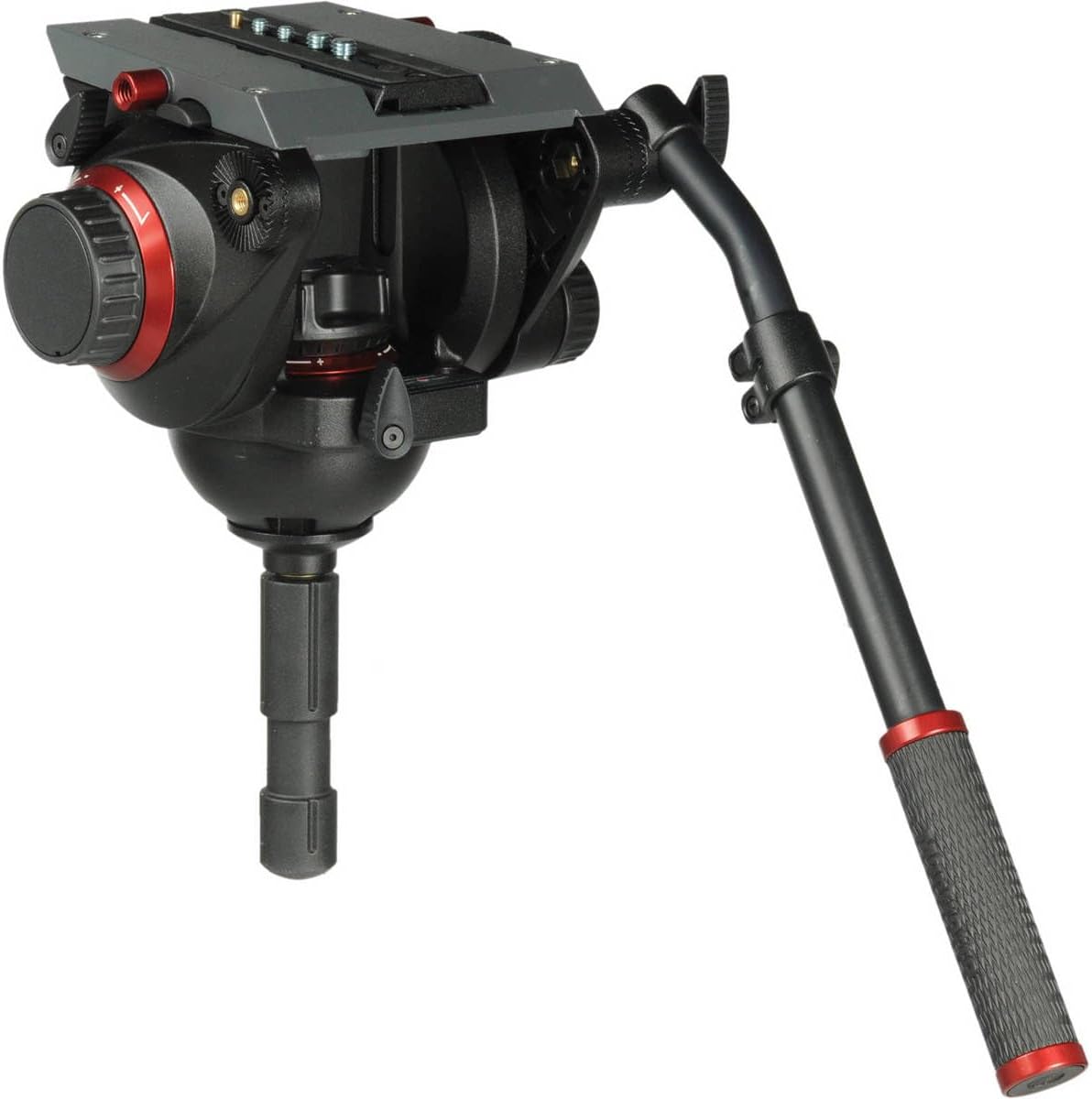

Image: The Manfrotto 509HD Pro Video Head with the pan bar attached, viewעד פון דער זייט.
Insert the pan bar into the designated socket on the video head and tighten the locking mechanism. The pan bar telescopes for length adjustment, providing comfortable operation.
אַפּערייטינג ינסטראַקשאַנז
- Fluid Drag System (FDS) Adjustment:
Image: A close-up of the Manfrotto 509HD video head, highlighting the Fluid Drag System (FDS) adjustment dial with numerical settings.
The FDS controls the action and resistance on both pan and tilt axes. Rotate the FDS dials to increase or decrease the drag according to your shooting requirements. Higher numbers indicate more drag, providing smoother, more controlled movements for heavier setups.
- Pan and Tilt Locks: Use the dedicated locking levers to secure the head in a specific pan or tilt position. Ensure these are disengaged for fluid movement.
- Quick Links for Accessories: The head features machined aluminum inserts that allow strong attachment of accessories. Utilize these for monitors, lights, or other equipment.
וישאַלט
- רייניקונג: Wipe the head with a soft, dry cloth. Do not use abrasive cleaners or solvents.
- שמירן: The fluid drag system is factory-sealed and does not require user lubrication.
- סטאָרידזש: האַלט דעם ווידעאָ קאָפּ אין אַ ריינער, טרוקענער סביבה, אַוועק פון דירעקטער זון און עקסטרעמע טעמפּעראַטורן.
- דורכקוק: Periodically check all screws and connections to ensure they are tight. Inspect for any signs of wear or damage.
טראָובלעשאָאָטינג
| פּראָבלעם | מעגלעך סיבה | לייזונג |
|---|---|---|
| קאָפּ באַוועגונג איז שטייף אָדער דזשערקי. | Fluid Drag System (FDS) set too high, or pan/tilt locks engaged. | Reduce FDS setting. Ensure pan and tilt locks are disengaged. |
| קאַמעראַ נישט זיכער באַפעסטיקט. | Quick-release plate not fully engaged or camera not tightened to plate. | Ensure quick-release plate is fully inserted and locked. Tighten camera screw on plate. |
| Head wobbles on tripod. | Head not securely mounted to tripod. | Tighten the mounting screw connecting the head to the tripod. |
ספּעסאַפאַקיישאַנז
- מאָדעל: 509HD
- מאַקסימום מאַסע קאַפּאַציטעט: 28.6 לבס (13 קג)
- נומער וואָג: 8.82 לבס (4 קג)
- פּראָדוקט דימענשאַנז (L x W x H): 10.8 X 7.3 X 15.7 אינטשעס (27.4 X 18.5 X 39.9 סענטימעטער)
- פֿעיִקייטן: Bridging Technology, Fluid Drag System (FDS), Advanced Balance Recorder (ABR), Quick Links
- UPC: 719821330721
Image: The Manfrotto 509HD video head with its key dimensions (length, width, height) clearly labeled.
וואָראַנטי אינפֿאָרמאַציע
Manfrotto products are covered by a standard limited warranty. For detailed information regarding warranty terms, conditions, and registration, please refer to the official Manfrotto webזייטל אדער קאנטאקט קאסטומער סופארט. האלט אייער באווייז פון קויפן פאר גאראנטיע טענות.
קונה שטיצן
For technical assistance, spare parts, or service, please visit the official Manfrotto support website or contact their customer service department. You can find contact details on the Manfrotto official webפּלאַץ.
