הקדמה
This manual provides comprehensive instructions for the setup, operation, maintenance, and troubleshooting of your RODE Videomic Pro on-camera microphone. Please read this manual thoroughly before using the product to ensure optimal performance and longevity.
The RODE Videomic Pro is a compact, lightweight shotgun microphone designed for use with camcorders, DSLR cameras, and portable audio recorders. Its integrated Rycote Lyre shock mounting system isolates the microphone capsule from external vibrations, providing clear audio capture.
פּעקל אינהאַלט
ביים עפענען דעם פעקל, ביטע זיכער מאכן אז אלע קאמפאנענטן זענען דא:
- RODE Videomic Pro Microphone
- פּינע ווינדשיעלד
- Integrated Rycote Lyre Shock Mount
- 3.5mm Stereo Mini-Jack Output Cable (attached)
- Furry Wind Cover (Dead Cat)
סעטאַפּ
Follow these steps to set up your RODE Videomic Pro:
- ינסטאַלירן באַטערי: The Videomic Pro requires a 9V battery (not included). Open the battery compartment located on the underside of the microphone body and insert the battery, observing the correct polarity.
- מאָונטינג:
The microphone features an integrated cold shoe mount. Slide the mount into your camera's hot shoe or a compatible cold shoe adapter. Tighten the locking wheel securely to prevent accidental detachment.

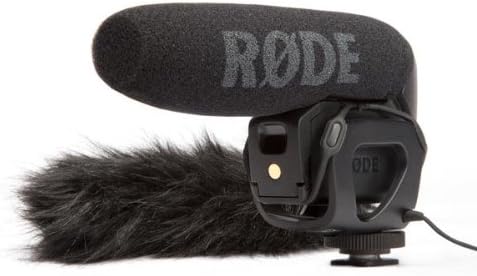

Image: The RODE Videomic Pro, a black shotgun microphone with a foam windshield, shown with an optional furry wind cover (dead cat) and its integrated shock mount. The RODE logo is visible on the foam windshield.
- פאַרבינדן צו קאַמעראַ: Plug the attached 3.5mm stereo mini-jack cable into your camera's microphone input port. Ensure the connection is firm.
- צוטשעפּען ווינטשויב: Place the foam windshield over the microphone capsule. For outdoor use or windy conditions, the included furry wind cover (dead cat) can be used over the foam windshield for superior wind noise reduction.
אַפּערייטינג ינסטראַקשאַנז
Understanding the controls and settings will help you achieve the best audio quality.
מאַכט אויף / אַוועק
Locate the power switch on the rear of the microphone. Slide it to the 'ON' position to power on the microphone. Slide it to 'OFF' when not in use to conserve battery life.
Level Control (dB)
The Videomic Pro features a three-position level control switch on the rear:
- 0 דב: Standard gain setting, suitable for most recording situations.
- +20 דב: Boosts the output level by 20dB. Useful for cameras with noisy preamps or when recording quiet sources.
- -10 דב: Attenuates the output level by 10dB. Ideal for recording loud sound sources to prevent distortion.
הויך-פּאַס פילטער (HPF)
A three-position high-pass filter switch is also located on the rear of the microphone:
- פלאַך: No filter applied. Captures the full frequency range.
- 75Hz: Engages a 75Hz high-pass filter. This helps to reduce low-frequency noise such as air conditioner hum or traffic rumble.
- 150Hz: Engages a 150Hz high-pass filter. This provides a stronger cut-off for more aggressive low-frequency noise reduction, useful in very noisy environments.
וויכטיק באַמערקונג:
Always monitor your audio using headphones connected to your camera's headphone output (if available) to ensure proper levels and prevent clipping. Adjust the microphone's level control and your camera's audio input levels accordingly.
וישאַלט
Proper care will extend the life of your RODE Videomic Pro:
- רייניקונג: ניצט אַ ווייכע, טרוקענע שטאָף צו רייניקן דעם מיקראָפאָן קערפּער. ניצט נישט פליסיקע רייניגער אָדער סאָלווענטן.
- Windshield Care: The foam windshield can be gently hand-washed with mild soap and water if it becomes dirty. Allow it to air dry completely before reattaching.
- באַטערי פאַרבייַט: Replace the 9V battery when the low battery indicator light (if present) illuminates, or if you notice a decrease in audio quality. Always remove the battery if the microphone will not be used for an extended period to prevent leakage.
- סטאָרידזש: סטאָר די מיקראָפאָן אין אַ קיל, טרוקן אָרט, אַוועק פון דירעקט זונשייַן און עקסטרעם טעמפּעראַטורעס.
- Shock Mount: The Rycote Lyre shock mount is durable, but avoid excessive force or bending to prevent damage.
טראָובלעשאָאָטינג
If you encounter issues with your Videomic Pro, refer to the following common problems and solutions:
| פּראָבלעם | מעגלעך סיבה | לייזונג |
|---|---|---|
| No audio or very low audio level. |
|
|
| Distorted or clipped audio. |
|
|
| Excessive wind noise or low-frequency rumble. |
|
|
| Vibrations or handling noise in audio. |
|
|
ספּעסאַפאַקיישאַנז
| שטריך | דעטאַל |
|---|---|
| מיקראָפאָן פאָרם פאַקטאָר | שאַטגאַן |
| פּאָליאַר מוסטער | יבער קאַרדיאָיד |
| אָפטקייַט ראַנגע | 20Hz - 20kHz (selected HPF @75Hz/150Hz) |
| סיגנאַל-צו-נויז ראַטיאָ | 70 דב |
| ראַש מדרגה | 14 דב |
| אַודיאָ סענסיטיוויטי | 12 דב |
| ימפּידאַנס | 200 Ohm |
| קאַנעקטער טיפּ | 3.5 מם דזשאַק |
| מאַכט מקור | Battery Powered (9V battery) |
| קאַמפּאַטאַבאַל דעוויסעס | אַפּאַראַט |
| פּונקט וואָג | 4.3 אונסעס (122 גראַם) |
| פּראָדוקט דימענשאַנז (L x W x H) | 1.69 X 5.91 X 3.74 אינטשעס |
| אַרייַנגערעכנט קאַמפּאָונאַנץ | Microphone, Foam Windshield, Integrated Rycote Lyre Shock Mount, 3.5mm Cable, Furry Wind Cover |
באַמערקונג: די ספּעסאַפאַקיישאַנז קענען זיין געביטן אָן באַמערקן.
וואָראַנטי און שטיצן
RODE Microphones offers a comprehensive warranty for its products. For detailed warranty information, product registration, and technical support, please visit the official RODE webזייטל אדער קאנטאקט זייער קאסטומער סערוויס גלייך.
אָנליין רעסורסן:
- Official RODE Webפּלאַץ: www.rode.com
- Product Support: Refer to the support section on the RODE website for FAQs, firmware updates, and service requests.
ביטע האַלטן דיין דערווייַז פון קויפן פֿאַר וואָראַנטי קליימז.
