1. הקדמה
This manual provides instructions for the proper installation, operation, and maintenance of the Mars 33490 Heat Pump Defrost Thermostat. This device is designed to manage the defrost cycle of heat pump systems, ensuring efficient operation by sensing the temperature of the outdoor coil.
2. פּראָדוקט פֿעיִקייטן
- Designed specifically for heat pump defrost applications.
- Features a 3/8 inch tube mounting mechanism for secure attachment.
- Equipped with 54 inch leads for flexible and convenient wiring.
- Activates (opens) at approximately 80°F (26.7°C) to terminate defrost.
- Deactivates (closes) at approximately 30°F (-1.1°C) to initiate defrost.
3. זיכערקייַט אינפֿאָרמאַציע
וויכטיק סאַפעטי אינסטרוקציעס
Read all instructions carefully before installation or operation. Failure to follow these instructions could result in property damage, personal injury, or death.
- Always disconnect power to the heat pump system at the circuit breaker before installing or servicing the thermostat.
- Installation should be performed by a qualified HVAC technician or licensed electrician to ensure safety and proper function.
- זיכער מאַכן אַז אַלע וויירינג איז אין לויט מיט די לאָקאַלע עלעקטרישע קאָודן און רעגולאַציעס.
- Do not operate the heat pump system if the thermostat or any associated components are visibly damaged.
- This product may be subject to California Proposition 65. For more information, visit www.P65Warnings.ca.gov. וואַשן הענט נאָך האַנדלינג.
4. סעטאַפּ און ייַנמאָנטירונג
ינסטאַללאַטיאָן גייד
The Mars 33490 defrost thermostat is designed for secure mounting on a 3/8 inch diameter tube within the heat pump system.
- מאַכט דיסקאַנעקשאַן: Before commencing any work, ensure the main power supply to the heat pump unit is completely disconnected at the circuit breaker to prevent electrical shock.
- מאַונטינג אָרט: Identify a suitable 3/8 inch diameter tube on the heat pump's outdoor coil. This location should accurately reflect the coil's temperature for effective defrost control.

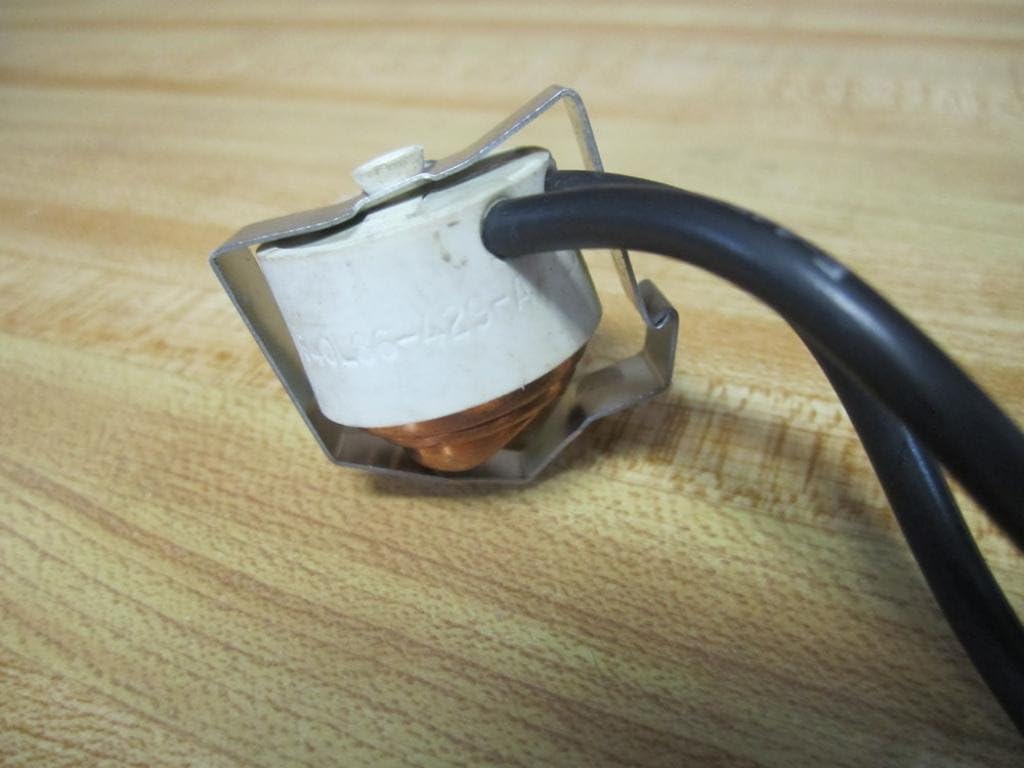

- מאַונטינג די טערמאַסטאַט: Securely attach the thermostat to the selected 3/8 inch tube using its integrated mounting clip. Ensure there is good thermal contact between the thermostat's sensor and the tube for accurate temperature readings.
- וויירינג: Connect the 54 inch leads of the thermostat into the heat pump's control circuit. Refer to the heat pump manufacturer's specific wiring diagram for correct connections. Typically, this thermostat is wired in series with the defrost control board's sensor input.
- באַשטעטיקן קאַנעקשאַנז: Double-check all wiring connections to ensure they are secure and correctly terminated according to the wiring diagram.
- ומקערן מאַכט: Once installation is complete and all connections have been verified, safely restore power to the heat pump system.
5. אָפּעראַציע
פאַנגקשאַנאַל אָפּעראַציע
The Mars 33490 is an automatic defrost thermostat that operates by sensing the temperature of the outdoor coil. It functions as follows:
- When the coil temperature rises to approximately 80°F (26.7°C), the thermostat's internal switch will open. This signal typically indicates that the coil is clear of ice and signals the defrost cycle to terminate.
- When the coil temperature drops to approximately 30°F (-1.1°C), the thermostat's internal switch will close. This action initiates or allows the defrost cycle to begin, provided other defrost conditions (e.g., time, pressure differential) are met by the heat pump's main control board.
This thermostat works in conjunction with the heat pump's main control board to ensure efficient defrosting, preventing excessive ice buildup on the outdoor coil and maintaining optimal heating efficiency.
6. וישאַלט
וישאַלט גיידליינז
The Mars 33490 Defrost Thermostat is designed for reliable, long-term operation and is generally maintenance-free. However, periodic inspection is recommended to ensure continued optimal performance.
- יערלעך דורכקוק: During routine heat pump maintenance, visually inspect the thermostat for any signs of physical damage, corrosion, or loose wiring connections.
- ריינקייַט: Ensure the area around the thermostat is kept free from debris, dirt, leaves, or ice buildup that could interfere with accurate temperature sensing.
- זיכער מאָונטינג: Verify that the thermostat remains securely mounted to the refrigerant tube to maintain proper thermal contact and accurate temperature readings.
If any damage is observed, or if the heat pump exhibits unusual defrost behavior (e.g., no defrost, continuous defrost), consult a qualified HVAC technician for diagnosis and repair.
7. טראָובלעשאָאָטינג
טראָובלעשאָאָטינג פּראָסט ישוז
This section provides general guidance for common issues related to defrost thermostat operation. Always consult a qualified technician for complex diagnostics and repairs, especially when dealing with electrical components.
| פּראָבלעם | מעגלעך סיבה | לייזונג |
|---|---|---|
| Heat pump not defrosting | Defrost thermostat failure (stuck open circuit) | A qualified technician should test thermostat continuity. Replace if faulty. |
| Heat pump defrosts too frequently or infrequently | Improper thermostat mounting, poor thermal contact, or faulty thermostat | Verify secure mounting and good thermal contact with the refrigerant tube. A technician can test thermostat operation and replace if necessary. |
| Thermostat appears physically damaged | Physical impact, environmental exposure, or wear | Disconnect power and replace the thermostat immediately to prevent further system issues. |
8. ספּעסאַפאַקיישאַנז
טעכניש ספּעסאַפאַקיישאַנז
- מאָדעל: מאַרס 33490
- פאַבריקאַנט: מאַרס
- טייל נומער: 33490
- Open Temperature: 80°F (26.7°C)
- Close Temperature: 30°F (-1.1°C)
- מאַונטינג טיפּ: 3/8 inch Tube Mount
- ליד לענג: 54 אינטשעס
- פּראָדוקט דימענשאַנז: 5 X 3 X 2 אינטשעס (12.7 X 7.6 X 5.1 סענטימעטער)
- נומער וואָג: בעערעך 4 אונסעס (113 גראַמז)
- באַטעריז פארלאנגט: ניין
- ערשטער דאַטע בנימצא: 20 מאי 2010
9. וואָראַנטי און שטיצן
וואָראַנטי אינפֿאָרמאַציע און קונה שטיצע
For specific warranty details regarding your Mars 33490 Heat Pump Defrost Thermostat, please refer to the documentation provided with your original purchase or contact Mars customer support directly.
For technical assistance, troubleshooting beyond this manual, or to inquire about replacement parts, please contact your authorized Mars dealer or visit the official Mars webפּלאַץ פֿאַר שטיצן רעסורסן.
פאַבריקאַנט: מאַרס
טייל נומער: 33490
ASIN: B003N6AB98
