Silverline 262212 350W Bench Pillar Drill Press User Manual

הקדמה

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Silverline 262212 350W Bench Pillar Drill Press. Please read these instructions carefully before assembly, operation, or maintenance. Keep this manual for future reference.

The Silverline 262212 is a 350W bench pillar drill press designed for precision drilling tasks. It features a 5-speed belt drive system, a 50mm spindle travel with depth gauge, a stable cast iron base, and a 13mm keyed chuck.

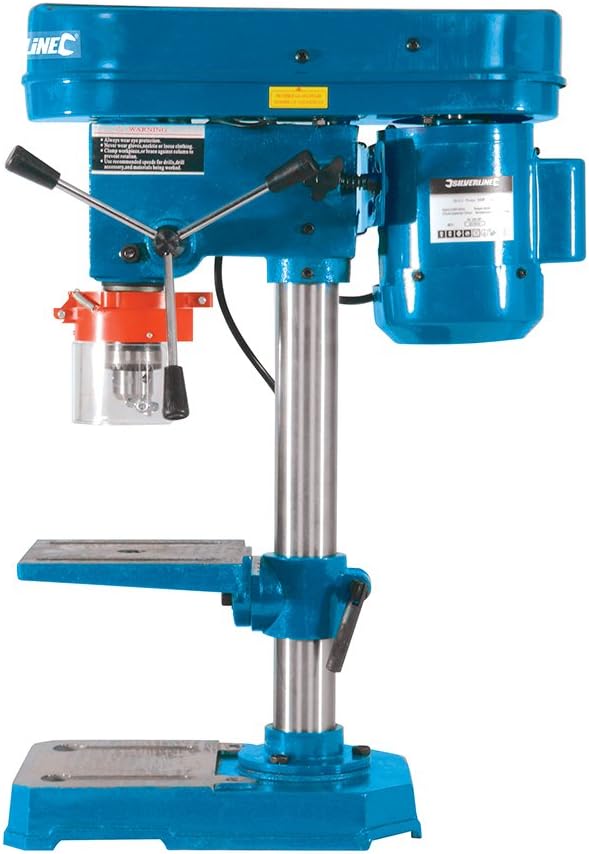

Image 1: Silverline 262212 350W Bench Pillar Drill Press. This image shows the complete drill press unit, highlighting its blue color, motor, column, table, and base.

זיכערקייַט אינסטרוקציעס

ווארענונג: שטענדיק נאָכגיין יקערדיק זיכערקייַט פּריקאָשאַנז צו רעדוצירן די ריזיקירן פון פייַער, עלעקטריש קלאַפּ און פּערזענלעך שאָדן.

• אַרבעט שטח זיכערקייַט: האַלט אייער אַרבעטס־געגנט ריין און גוט באַלויכטן. פֿאַרפּאַקטע אָדער טונקעלע געביטן לאַדן איין צו אומגליקן. ניצט נישט עלעקטרישע מכשירים אין עקספּלאָזיווע אַטמאָספֿערעס, ווי למשל אין דער אנוועזנהייט פֿון ברענענדיקע פֿליסיקייטן, גאַזן אָדער שטויב.
• עלעקטריקאַל זיכערקייַט: עלעקטרישע געצייג פּלאַגז מוזן פּאַסן צו דער אַוטלעט. קיינמאָל נישט מאָדיפיצירן דעם פּלאַג אין קיין וועג. ויסמיידן גוף קאָנטאַקט מיט געערדטע אָדער יראַונדעד סערפאַסיז אַזאַ ווי רערן, ראַדיאַטאָרס, ריינדזשאַז און פרידזשידערס.
• פערזענליכע זיכערקייט: Always wear eye protection. Use hearing protection when operating noisy tools. Dress properly; avoid loose clothing or jewelry that can get caught in moving parts. Secure long hair.
• מכשירים נוצן און זאָרגן: צווינגט נישט דעם עלעקטרישן געצייג. ניצט דעם ריכטיקן עלעקטרישן געצייג פאר אייער אנווענדונג. ציט ארויס דעם שטעקער פון דער שטראָם-מקור איידער איר מאכט קיין אַדזשאַסטמאַנץ, טוישט אַקסעסאָריעס, אדער לייגט אַוועק עלעקטרישע געצייג.
• וישאַלט: טייַנען מאַכט מכשירים. טשעק פֿאַר מיסאַליגניישאַן אָדער ביינדינג פון מאָווינג טיילן, ברייקידזש פון פּאַרץ און קיין אנדערע צושטאַנד וואָס קען ווירקן די אָפּעראַציע פון ​​די מאַכט געצייַג.
• Specific Drill Press Safety:
  • שטענדיק קלamp your workpiece securely to the drill press table.
  • Never hold the workpiece by hand.
  • Ensure the chuck key is removed from the chuck before starting the drill.
  • Adjust the table height and angle before drilling.
  • Do not wear gloves while operating the drill press.
  • Keep hands clear of the rotating drill bit.

פּעקל אינהאַלט

Upon unpacking, ensure all components listed below are present and undamaged. If any parts are missing or damaged, contact your retailer immediately.

• 1x 350W Pillar Drill Press
• 1x באַזע פּלאַטע
• 1x Adjustable Work Surface (Table)
• 1x Steel Central Column
• 1x 13mm Chuck
• 1x Chuck Key
• 1x פּראַטעקטיוו דעקל
• 3x Handles (133 mm)
• 2x Hex Keys (M6, M8)
• 3x Slotted Washers M8
• 3x M8 ניסלעך

Image 2: Packaging of the Silverline 262212 Drill Press. The box displays the product name "350W Drill Press" and key features in multiple languages.

סעטאַפּ און אַסעמבלי

Follow these steps to assemble your drill press. It is recommended to have assistance for certain steps due to the weight of the components.

1. Attach the Column to the Base: Secure the central steel column to the cast iron base plate using the provided fasteners (M8 nuts and slotted washers). Ensure it is firmly tightened.
2. Mount the Drill Head: Carefully slide the drill head assembly onto the top of the central column. Ensure it is oriented correctly.
3. Install the Work Table: Slide the adjustable work table onto the central column below the drill head. The table should be able to move freely up and down and pivot around the column. Secure it at a comfortable working height using its locking mechanism.
4. צוטשעפּען הענטלעך: Screw the three 133mm handles into the drill feed mechanism on the side of the drill head.
5. Install the Chuck: Insert the 13mm keyed chuck onto the spindle. Ensure it is seated firmly. Use the chuck key to firmly tighten the jaws.
6. זיכער צו וואָרקבענטש: For stability and safety, it is highly recommended to bolt the drill press base to a sturdy workbench using appropriate hardware (not included).

אַפּערייטינג ינסטראַקשאַנז

1. Adjusting Drilling Speed

The Silverline 262212 features a 5-speed belt drive system, allowing you to select the appropriate speed for different materials and drill bit sizes.

1. צוטריט צום גאַרטל אָפּטייל: Open the protective cover on top of the drill head to access the motor and spindle pulleys.
2. Loosen Belt Tension: Loosen the motor mounting bolts to allow the motor to slide, releasing tension on the belt.
3. Change Belt Position: Move the drive belt to the desired pulley combination on both the motor and spindle to achieve the required speed. Refer to the speed chart (usually located inside the belt cover) for recommended settings.
4. Re-tension Belt: Slide the motor back to tension the belt. The belt should be taut but not overly tight.
5. Secure Motor and Cover: Tighten the motor mounting bolts and close the protective cover.

2. אינסטאַלירן אַ דריל ביט

1. זיכער מאַכן אַז די דריל פּרעס איז אַרויסגעצויגן פֿון דער מאַכט מקור.
2. Insert the drill bit into the chuck jaws. Ensure the bit is centered and fully seated.
3. Use the chuck key to firmly tighten the chuck jaws around the drill bit. Remove the chuck key immediately after tightening.

3. Adjusting the Work Table

• הייך אַדזשאַסטמאַנט: Loosen the table locking handle, adjust the table to the desired height, and then firmly tighten the handle.
• ווינקל אַדזשאַסטמאַנט: The table can be tilted for angled drilling. Loosen the table tilt locking bolts, adjust to the desired angle, and re-tighten.

4. Drilling Operation

1. זיכערער ארבעטסשטיק: שטענדיק קלamp your workpiece securely to the drill press table. Never hold it by hand.
2. שטעלן טיפקייט סטאָפּ: Adjust the depth stop to control the drilling depth. This prevents drilling too deep.
3. מאַכט אויף: Plug in the drill press and turn on the power switch.
4. אָנהייב דרילינג: Slowly lower the drill bit into the workpiece using the feed handles. Apply steady, even pressure. Do not force the drill.
5. קלאָרע טשיפּס: Periodically retract the drill bit to clear chips, especially when drilling deep holes.
6. מאַכט אַוועק: Once drilling is complete, raise the drill bit, turn off the power switch, and unplug the machine.

Image 3: Silverline 262212 Drill Press in operation, drilling into a wooden workpiece. The image demonstrates the drill press being used on a workbench, with wood shavings visible.

וישאַלט

Regular maintenance ensures the longevity and safe operation of your drill press. Always unplug the tool before performing any maintenance.

• רייניקונג: After each use, clean the drill press to remove dust, chips, and debris. Use a brush or compressed air. Do not use solvents that may damage plastic parts.
• שמירן: Periodically apply a light coat of machine oil to the column and other moving parts to ensure smooth operation and prevent rust.
• גאַרטל דורכקוק: Regularly check the drive belt for wear, cracks, or stretching. Replace if necessary. Ensure proper belt tension.
• טשאַק וישאַלט: Keep the chuck jaws clean and free of debris. Apply a small amount of lubricant to the chuck threads if it becomes stiff.
• פאַסטער טשעקס: Periodically check all nuts, bolts, and screws for tightness. Re-tighten as needed.

טראָובלעשאָאָטינג

ספּעסאַפאַקיישאַנז

Image 4: Size comparison of the Silverline 262212 Drill Press next to a human figure, indicating a height of approximately 57 cm (23 inches).

וואָראַנטי און שטיצן

The Silverline 262212 350W Bench Pillar Drill Press comes with a manufacturer's warranty of 3 years. Please retain your proof of purchase for warranty claims.

For technical support, spare parts, or warranty inquiries, please contact Silverline customer service or your local retailer.

פאַבריקאַנט: סילווערליין
ספּער פּאַרץ אַוויילאַביליטי: 1 יאָר
