1. הקדמה
א דאנק פארן קויפןasing the RadioShack 18V Racing Car AA Battery Charger, Model RS-23-349. This charger is designed to safely and efficiently charge Ni-Cd (Nickel-Cadmium) and Ni-MH (Nickel-Metal Hydride) AA rechargeable batteries. Please read this manual thoroughly before using the charger to ensure proper operation and to prevent damage to the unit or batteries.
2. זיכערקייַט אינפֿאָרמאַציע
- לייענען אַלע ינסטראַקשאַנז: Before operating the charger, carefully read and understand all safety and operating instructions.
- בלויז דרינענדיק נוצן: This charger is designed for indoor use in dry conditions. Do not expose it to rain, moisture, or extreme temperatures.
- Correct battery types: Only charge Ni-Cd and Ni-MH AA rechargeable batteries. Attempting to charge other battery types (e.g., alkaline, lithium) may cause explosion, rupture, or leakage, leading to personal injury and property damage.
- געהעריק ווענטאַליישאַן: זיכערט זיך אז עס איז דא גענוג ווענטילאציע ארום דעם טשאַרדזשער בעתן באנוץ. דעקט נישט צו דעם טשאַרדזשער.
- השגחה: לאָזט נישט דעם טשאַרדזשער אָן השגחה בשעת ער ווערט גענוצט.
- Damaged batteries: Do not charge leaking, corroded, or damaged batteries.
- קינדער: האַלט דעם טשאַרדזשער און באַטעריעס אַוועק פון קינדער.
- מאַכט מקור: Use only the specified power source for this charger.
- דיסאַססעמבלי: Do not attempt to disassemble or modify the charger. Refer all servicing to qualified personnel.
3. פּעקל אינהאַלט
באַשטעטיקן אַז אַלע זאכן זענען פאַראַן אין פּעקל:
- RadioShack 18V Racing Car AA Battery Charger (Model RS-23-349)
- באַניצער מאַנואַל
4. סעטאַפּ
פֿאָלגט די סטעפּס צו סעטאַפּן אייער באַטאַרייע טשאַרדזשער:
- אַנפּאַק: נעמט פֿאָרזיכטיק אַרויס דעם טשאַרדזשער פֿון זײַן פּאַקעט.
- אָרט: Place the charger on a flat, stable, non-flammable surface, away from direct sunlight, heat sources, and moisture. Ensure there is sufficient space for ventilation.
- מאַכט קשר: Plug the charger's power adapter into a standard electrical outlet. The charger is now ready for use.

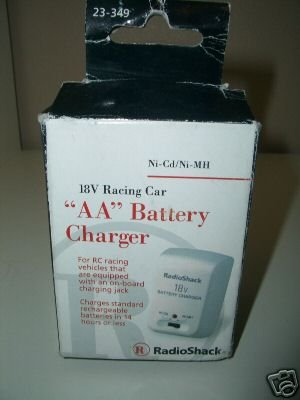

Figure 1: RadioShack 18V Racing Car AA Battery Charger unit. This image shows the compact design of the charger, suitable for AA Ni-Cd/Ni-MH batteries.
5. אַפּערייטינג ינסטרוקטיאָנס
To charge your AA Ni-Cd or Ni-MH batteries:
- אַרייַנלייגן באַטעריז: Carefully insert one or more AA Ni-Cd or Ni-MH batteries into the charging slots. Ensure the positive (+) and negative (-) terminals of the batteries align correctly with the markings on the charger. Incorrect insertion can damage the batteries and the charger.
- טשאַרדזשינג ינדיקאַטאָר: Once batteries are correctly inserted and the charger is plugged into a power outlet, an indicator light (if present) will illuminate to show that charging has begun. Refer to the charger's specific indicator behavior for details (e.g., solid light for charging, blinking for error, off for fully charged).
- טשאַרדזשינג צייט: Charging times vary depending on the battery capacity (mAh) and the battery's current charge level. Do not overcharge batteries.
- אַראָפּנעמען באַטעריז: Once charging is complete (as indicated by the charger or after the estimated charging time), unplug the charger from the power outlet and carefully remove the batteries.
Estimated Charging Times (for reference):
These are approximate times and can vary. Always monitor the charging process.
- For 1000 mAh AA Ni-MH batteries: Approximately 5-7 hours.
- For 2000 mAh AA Ni-MH batteries: Approximately 10-14 hours.
- For 700 mAh AA Ni-Cd batteries: Approximately 3-5 hours.
6. וישאַלט
- רייניקונג: Disconnect the charger from the power outlet before cleaning. Use a soft, dry cloth to wipe the exterior of the charger. Do not use liquid cleaners or solvents.
- סטאָרידזש: ווען נישט אין באַנוץ, האַלט דעם טשאַרדזשער אין אַ קיל, טרוקן אָרט, אַוועק פון דירעקט זונשייַן און עקסטרעמע טעמפּעראַטורן.
- דורכקוק: Periodically inspect the charger and its power cord for any signs of damage. If damage is found, discontinue use and contact support.
7. טראָובלעשאָאָטינג
If you encounter issues with your charger, refer to the table below for common problems and solutions:
| פּראָבלעם | מעגלעך סיבה | לייזונג |
|---|---|---|
| Charger indicator light does not turn on. | קיין מאַכט צו די טשאַרדזשער. | Check if the charger is properly plugged into a working electrical outlet. |
| די באַטעריעס ליידן זיך נישט אויף. | Incorrect battery type or insertion. | Ensure only Ni-Cd/Ni-MH AA batteries are used and inserted with correct polarity (+/-). |
| Batteries get excessively hot during charging. | Damaged batteries or improper ventilation. | Remove batteries immediately. Do not charge damaged batteries. Ensure charger is in a well-ventilated area. |
| Charger appears damaged. | פיזישע שאדן. | Discontinue use immediately. Do not attempt to repair. Contact customer support. |
8. ספּעסאַפאַקיישאַנז
- מאָדעל: רס -23-349
- אַרייַנשרייַב וואָלtage: 240 וואלטס
- רעזולטאַט חלקtage: 18 Volts (Charging)
- קאַמפּאַטאַבאַל באַטעריז טייפּס: AA Ni-Cd, AA Ni-MH
- נומער וואָג: 8 אונסעס
- פּעקל דימענשאַנז: 4 X 2.2 X 2.1 אינטשעס
- פאַבריקאַנט: Radioshack
- UPC: 040293141066
9. וואָראַנטי און שטיצן
RadioShack products are manufactured to high-quality standards. For information regarding warranty coverage, technical support, or service inquiries, please refer to the warranty card included with your purchase or visit the official RadioShack webזייטל. האַלט אייער קויף קוויטל ווי אַ באַווייַז פון קויפן.
