הקדמה
This manual provides essential information for the proper installation, operation, and maintenance of your Denso 234-9052 Air Fuel Ratio Sensor. This sensor is designed to meet strict OE standards, ensuring optimal engine performance and fuel efficiency.

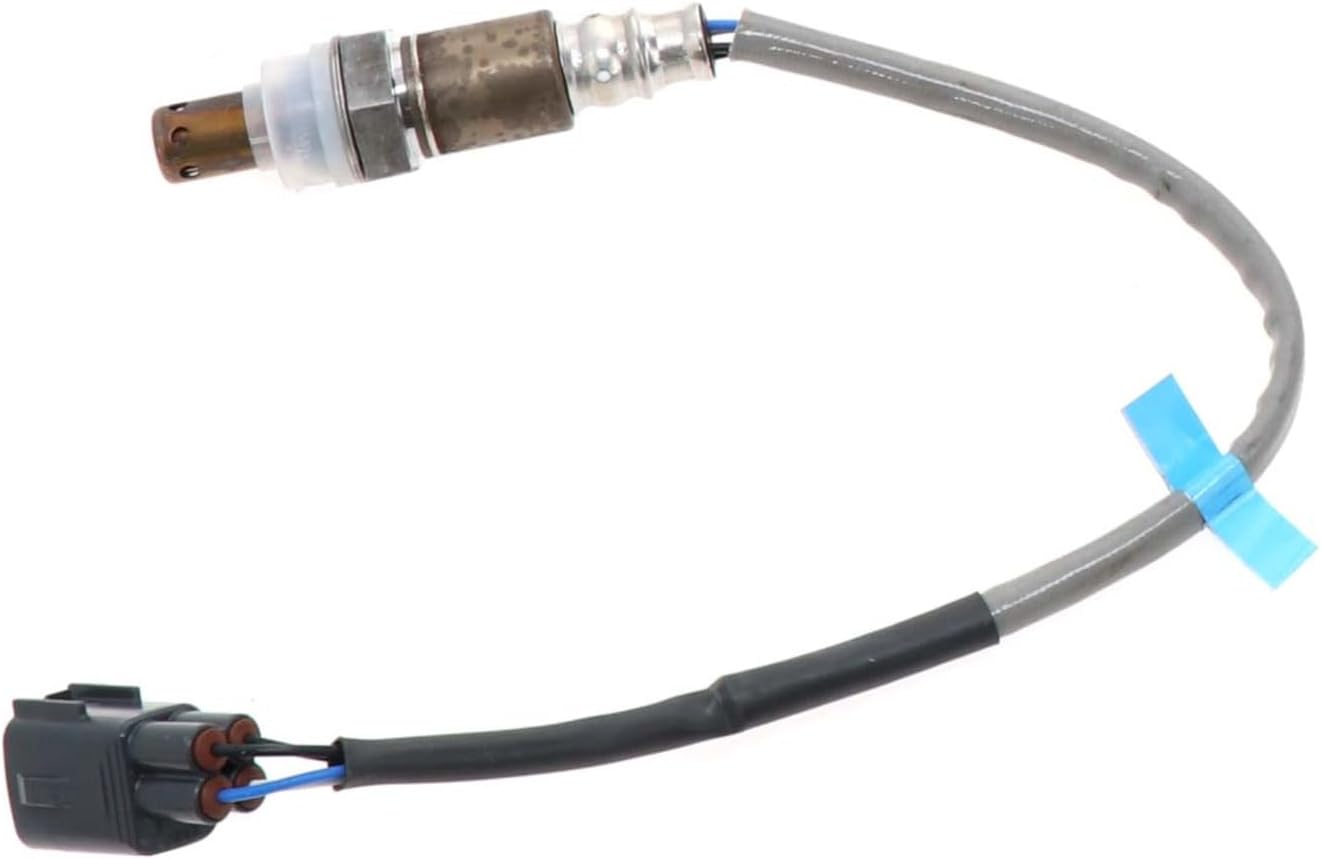

Figure 1: Denso 234-9052 Air Fuel Ratio Sensor. This image shows the complete sensor unit, including the sensor tip, wiring, and electrical connector.
זיכערקייַט אינפֿאָרמאַציע
Always observe the following safety precautions when handling or installing automotive components:
- זיכער מאַכן אַז דער מאָטאָר פֿונעם פֿאָרמיטל איז אויסגעלאָשן און קיל איידער איר הייבט אָן קיין אַרבעט.
- אָפּשטעקן די באַטאַרייע פֿון פֿאָרמיטל צו פֿאַרמייַדן עלעקטרישע געפֿאַרן.
- טראָגט פּאַסיקע פּערזענלעכע שוץ-עקוויפּמענט, אַרייַנגערעכנט זיכערהייט ברילן און הענטשקעס.
- זעט אייער פאָרמיטל'ס ספּעציפֿישן סערוויס מאַנואַל פֿאַר דעטאַלירטע אינסטרוקציעס און טאָרק ספּעציפֿיקאַציעס.
- אויב איר זענט נישט זיכער וועגן קיין שריט, קאָנסולטירט אַ קוואַליפֿיצירטן אויטאָמאָביל טעכניקער.
וואָס איז אין די קעסטל
The Denso 234-9052 Air Fuel Ratio Sensor package typically includes:
- One (1) Denso 234-9052 Air/Fuel Ratio Sensor
Figure 2: Denso Air Fuel Ratio Sensor packaging. The box indicates "AIR/FUEL SENSOR" and "first time fit".
סעטאַפּ און ינסטאַלירונג
The Denso 234-9052 Air Fuel Ratio Sensor is designed for direct replacement and easy installation. However, due to the complexity of automotive systems, professional installation is highly recommended.
אַלגעמיינע ינסטאַללאַטיאָן סטעפּס:
- צוגרייטונג: פארקירט דאס אויטאָ אויף א גלייכער ייבערפלאַך און אַקטיווירט די פּאַרקינג ברעיק. לאָזט דעם מאָטאָר גאָר אָפּקילן. טרענט אָפּ דעם נעגאַטיוון וואָקזאַל פון דער באַטאַרייע.
- געפֿינען די סענסער: Identify the old air/fuel ratio sensor on your vehicle. Its location varies by vehicle model (e.g., exhaust manifold, exhaust pipe). Refer to your vehicle's service manual for the exact location.
- אָפּשטעקן עלעקטרישן קאַנעקטאָר: פֿאָרזיכטיק אָפּשטעקן דעם עלעקטרישן קאַנעקטאָר פֿון דעם אַלטן סענסאָר.
- אַראָפּנעמען אַלטן סענסאָר: Use an appropriate oxygen sensor wrench or socket to loosen and remove the old sensor from the exhaust system. Be aware that the sensor may be seized due to heat and corrosion.
- Inspect New Sensor: Ensure the new Denso sensor (Model 234-9052) matches the old sensor in terms of connector type and thread size. The new sensor typically comes with anti-seize compound pre-applied to the threads.
- אינסטאַלירן נייַ סענסאָר: Carefully thread the new sensor into the exhaust bung by hand to prevent cross-threading. Once hand-tight, use the oxygen sensor wrench to tighten it to the vehicle manufacturer's specified torque. דו זאלסט נישט אָוווערטייטאַן.
- פאַרבינדן עלעקטרישע קאַנעקטאָר: פֿאַרבינדט ווידער דעם עלעקטרישן קאַנעקטאָר צום נײַעם סענסאָר, און מאַכט זיכער אַז עס קליקט זיכער אַרײַן אין פּלאַץ.
- לעצטע סטעפּס: Reconnect the vehicle's battery. Start the engine and check for any warning lights or abnormal operation. It may be necessary to clear any stored diagnostic trouble codes (DTCs) using an OBD-II scanner.
פיגורע 3: דערציען view of the Denso Air Fuel Ratio Sensor, showing the electrical connector and the sensor body.
Figure 4: Close-up of the sensor tip, which is inserted into the exhaust stream to measure oxygen levels.
פיגורע 5: דעטאַילעד view of the electrical connector, ensuring proper fitment with the vehicle's wiring harness.
אַפּערייטינג פּרינסאַפּאַלז
The Denso 234-9052 Air Fuel Ratio Sensor is a critical component of your vehicle's engine management system. It continuously monitors the oxygen content in the exhaust gases.
שליסל פונקציעס אַרייַננעמען:
- Air/Fuel Ratio Monitoring: The sensor provides precise feedback to the Engine Control Unit (ECU) regarding the air-to-fuel mixture entering the engine.
- אָפּטימיזינג פאָרשטעלונג: By accurately mapping air/fuel ratios throughout the RPM range, the sensor helps the ECU adjust fuel delivery for maximum engine performance.
- ברענוואַרג עפעקטיווקייַט: Maintaining an optimum air/fuel ratio reduces fuel consumption.
- רעדוקציע פון עמישאַנז: An optimal air/fuel mixture is crucial for the efficient operation of the catalytic converter, thereby reducing harmful emissions.
וישאַלט
Air Fuel Ratio Sensors are wear items and their performance can degrade over time due to exposure to exhaust gases, contaminants, and extreme temperatures. While no routine maintenance is typically required for the sensor itself, regular vehicle maintenance is important for its longevity.
- Regular Vehicle Servicing: Adhere to your vehicle manufacturer's recommended service intervals, including oil changes and tune-ups, to ensure the engine runs cleanly and minimizes sensor contamination.
- דורכקוק: During routine vehicle inspections, a qualified technician may visually inspect the sensor and its wiring for any signs of damage or corrosion.
- פאַרבייַט: Sensors typically have a lifespan, and replacement is recommended when performance degrades or a diagnostic trouble code indicates a fault. Consult your vehicle's service manual for recommended replacement intervals.
טראָובלעשאָאָטינג
If you experience issues that you suspect are related to your air fuel ratio sensor, consider the following common symptoms and potential solutions:
| סימפּטאָם | מעגלעך סיבה | לייזונג |
|---|---|---|
| טשעק ענדזשין ליכט (CEL) צינדט זיך אָן | Faulty A/F sensor, wiring issue, or related component failure. | Scan for Diagnostic Trouble Codes (DTCs) using an OBD-II scanner. If codes related to the A/F sensor are present (e.g., P0171, P0172, P0174, P0175, P0420, P0430), inspect the sensor and wiring. Replace if faulty. |
| פֿאַרמינדערטע ברענשטאָף עקאנאמיע | Inaccurate sensor readings leading to incorrect fuel mixture. | Verify sensor operation with a diagnostic tool. Consider replacement if readings are erratic or out of specification. |
| Rough Idling or Engine Misfires | Poor air/fuel mixture due to sensor malfunction. | Check for other engine-related issues first. If the sensor is suspected, diagnose and replace as needed. |
| דורכגעפאלענע עמיסיע טעסט | Sensor not effectively regulating emissions. | A faulty A/F sensor can directly impact emissions. Replacement may be necessary to pass emissions tests. |
באַמערקונג: Many symptoms can be caused by various vehicle components. Always perform proper diagnostics or consult a certified mechanic to accurately identify the root cause of any issue.
ספּעסאַפאַקיישאַנז
| אַטריביוט | ווערט |
|---|---|
| סאָרט | דענסאָ |
| מאָדעל נומער | 234-9052 |
| מאַטעריאַל | Stainless Steel, Zirconium |
| פּונקט וואָג | 0.27 פונט (אומגעפער 4.3 אונסעס) |
| סטייל | פאַרבייַט טייל |
| מעאַסורעמענט אַקיעראַסי | הויך |
| מעאַסורינג קייט | 1 - 20 (air:fuel) |
| מאַונטינג טיפּ | פאָדעם-אין |
| רעזולטאַט טיפּ | שטופּן-ציען |
| ספּעציפיש ניצט | Replacement Air/Fuel Ratio Sensor |
| אויבערשטער טעמפּעראַטור רייטינג | 1800 דיגריז פאַהרענהעיט |
| UPC | 042511112896 |
| פּראָדוקט דימענשאַנז (L x W x H) | 5.75" x 1.88" x 2.19" |
וואָראַנטי אינפֿאָרמאַציע
Denso products are manufactured to high-quality standards and are typically backed by a manufacturer's warranty against defects in materials and workmanship. The specific terms and duration of the warranty may vary. Please retain your proof of purchase.
For detailed warranty information, please refer to the documentation included with your product or visit the official Denso webפּלאַץ.
שטיצן
For technical assistance, installation questions, or troubleshooting beyond the scope of this manual, please contact Denso customer support or consult a certified automotive technician.
Denso Official Webפּלאַץ: www.denso.com (ביטע טשעק פֿאַר רעגיאָנאַלע websites for specific contact information).
