Wera Hexagon 887/4 R Ringmagnet Rapidaptor Universal Bit Holder 1/4"

הקדמה

This manual provides essential instructions for the safe and effective use of your Wera Hexagon 887/4 R Ringmagnet Rapidaptor Universal Bit Holder 1/4". Please read this manual thoroughly before initial use and retain it for future reference. This bit holder is designed for use with 1/4" hexagon drive bits and features a ring magnet for secure screw retention and a Rapidaptor function for quick bit changes.

Figure 1: Internal mechanism of the Wera 887/4 R Ringmagnet Rapidaptor.

סעטאַפּ

Inserting a Bit

1. Ensure the bit holder is clean and free from debris.
2. Insert the 1/4" hexagon drive bit into the front opening of the bit holder.
3. Push the bit firmly until it clicks into place. The Rapidaptor mechanism automatically locks the bit securely.

Figure 2: Inserting a bit into the holder.

Figure 3: Visual representation of bit insertion.

רימוווינג אַ ביסל

1. To release the bit, push the collar of the bit holder forward.
2. The bit will be ejected slightly, allowing for easy removal.

Figure 4: Releasing a bit from the holder.

Attaching to a Power Tool

Insert the hexagonal shank of the bit holder into the chuck of your power drill or impact driver. Ensure it is securely tightened according to your tool's instructions.

Figure 5: Bit holder attached to a power tool.

אַפּערייטינג ינסטראַקשאַנז

Using the Ring Magnet

The Wera 887/4 R features a strong ring magnet that holds screws firmly to the bit, preventing them from falling off during positioning and driving. This allows for one-handed operation and improved precision.

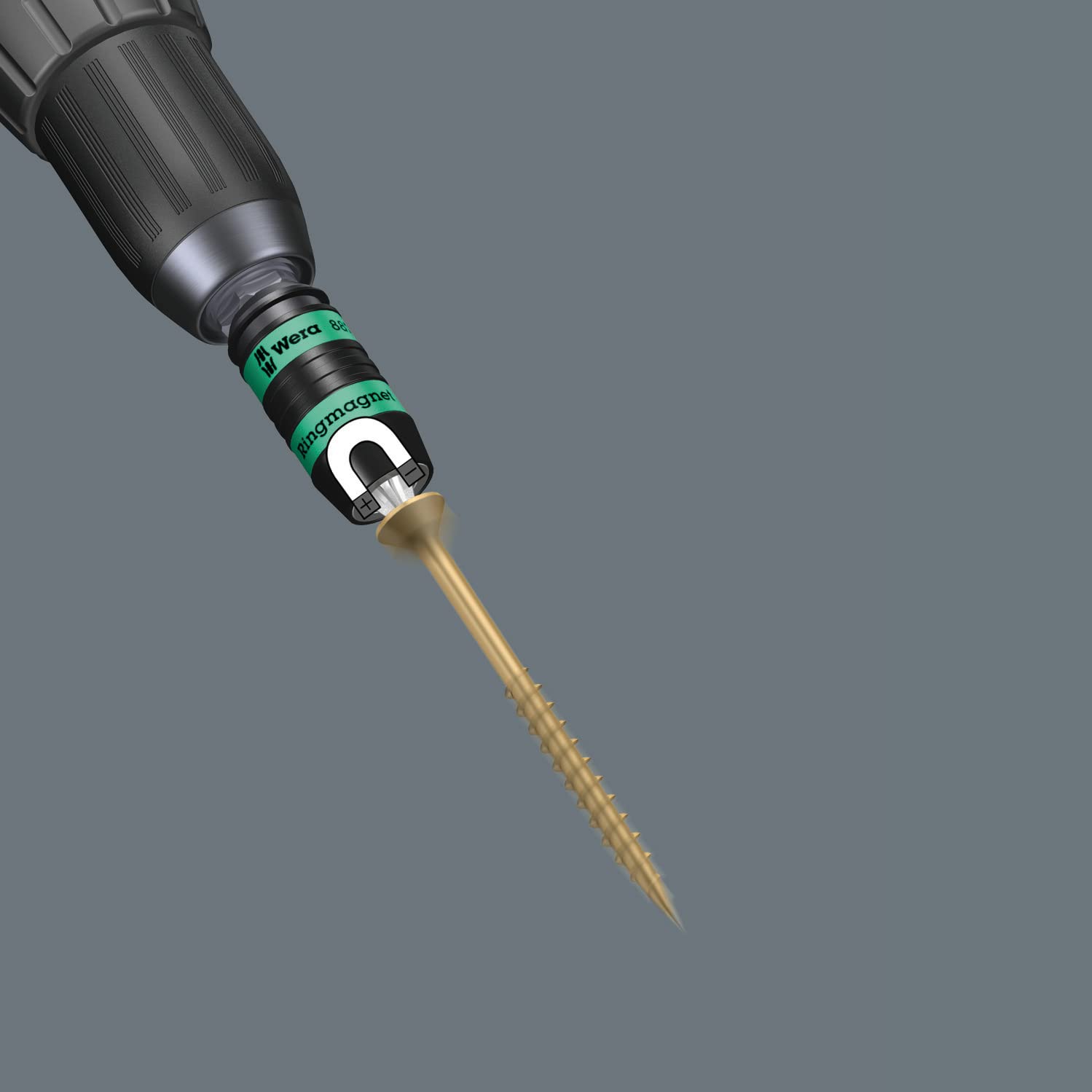

Figure 6: Screw held securely by the ring magnet.

דרייווינג סקרוז

1. Attach the desired screw to the bit, utilizing the ring magnet for retention.
2. Position the screw and bit holder assembly onto the workpiece.
3. Activate your power tool to drive the screw. The free-spinning sleeve allows for stable guidance during the driving process.

Figure 7: Driving a screw into a workpiece.

וישאַלט

• רייניקונג: Regularly wipe the bit holder with a clean, dry cloth to remove dust, dirt, and metal shavings. Avoid using harsh chemicals or abrasive materials.
• שמירן: The internal mechanism is designed for maintenance-free operation. Do not attempt to lubricate or disassemble the unit, as this may affect its performance and void any warranty.
• סטאָרידזש: Store the bit holder in a dry environment, away from excessive moisture and extreme temperatures, to prevent corrosion and maintain magnetic strength.

טראָובלעשאָאָטינג

• Bit not locking securely: Ensure the bit is fully inserted until it clicks. Check for any debris obstructing the locking mechanism.
• Difficulty removing bit: Ensure the collar is pushed fully forward. If the bit is stuck, gently twist it while pushing the collar.
• Screws not holding to magnet: Verify that the screws are made of a ferromagnetic material. Clean any metal shavings or dirt from the ring magnet.
• Excessive wobble: Ensure the bit holder is securely fastened in the power tool's chuck and that the bit itself is not worn or damaged.

ספּעסאַפאַקיישאַנז

וואָראַנטי אינפֿאָרמאַציע

This Wera product is covered by the manufacturer's standard warranty against defects in materials and workmanship. For specific warranty terms and conditions, please refer to the documentation included with your purchase or visit the official Wera webפּלאַץ.

קונה שטיצן

For technical assistance, product inquiries, or to report any issues, please contact Wera customer support. Contact details can typically be found on the official Wera webוועבזייטל אדער אויף אייער פּראָדוקט פּאַקאַדזשינג.
