Fagor 4CC-130EX Cooker Hood User Manual

1. וויכטיק סאַפעטי אינסטרוקציעס

Please read these instructions carefully before installing or using your Fagor 4CC-130EX cooker hood. Keep this manual for future reference.

• עלעקטריקאַל זיכערקייַט: Ensure the electrical installation complies with local regulations. Disconnect power before any maintenance or cleaning.
• ייַנמאָנטירונג: The cooker hood must be installed by a qualified technician. Ensure adequate ventilation in the room when the hood is used simultaneously with other gas or fuel-burning appliances.
• Fire Hazard: Do not flambé under the cooker hood. Never leave frying pans unattended during use, as overheated oil can ignite. Clean grease filters regularly to prevent grease accumulation, which can be a fire hazard.
• רייניקונג: Use non-abrasive cleaning agents. Do not use steam cleaners.
• קינדער: דער אַפּפּליאַנסע איז נישט בדעה פֿאַר נוצן דורך מענטשן (אַרייַנגערעכנט קינדער) מיט רידוסט גשמיות, סענסערי אָדער גייַסטיק קייפּאַבילאַטיז, אָדער פעלן פון דערפאַרונג און וויסן, סייַדן זיי האָבן באקומען השגחה אָדער לימעד וועגן די נוצן פון דעם אַפּפּליאַנסע דורך אַ מענטש פאַראַנטוואָרטלעך פֿאַר זייער זיכערקייַט.

2. פּעקל אינהאַלט

באַשטעטיקן אַז אַלע קאָמפּאָנענטן זענען פאַראַן און נישט געשעדיגט איידער איר גייט ווייטער מיט דער אינסטאַלאַציע.

• Fagor 4CC-130EX Cooker Hood unit
• Grease filters (pre-installed)
• מאָנטירונג האַרדווער (שרויף, וואַנט פּלאַגז)
• ינסטראַקשאַנז מאַנואַל
• דאַקטינג אַדאַפּטער (אויב אָנווענדלעך)
• Charcoal filters (for recirculation mode, may be sold separately)

3. אינסטאַלאַציע (סעטאַפּ)

The Fagor 4CC-130EX is an integrated cooker hood designed for installation within a kitchen cabinet. Installation should be performed by a qualified professional.

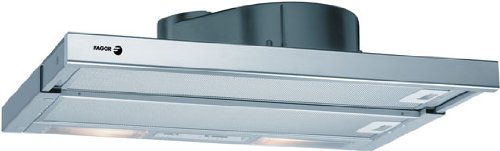

Image 1: Fagor 4CC-130EX integrated cooker hood. This image shows the stainless steel body of the hood with its two integrated lights and the metallic grease filters visible from below. The Fagor logo is visible on the front panel.

3.1. מאָונטינג רעקווירעמענץ

• Ensure the cabinet opening dimensions are compatible with the hood's dimensions (approximately 59.8 cm width x 17.3 cm height x 29.5 cm depth).
• Maintain the minimum safety distance between the cooking surface and the lower part of the hood as specified in local regulations (typically 65 cm for electric hobs and 75 cm for gas hobs).
• A dedicated electrical outlet should be available within reach of the hood's power cable.

3.2. Ventilation Modes

The Fagor 4CC-130EX supports two ventilation modes:

1. Ducted (Extraction) Mode: Air is extracted from the kitchen and expelled outside through a ducting system. This mode requires a connection to an external vent.
2. Recirculation (Filter) Mode: Air is filtered through charcoal filters to remove odors and then recirculated back into the kitchen. This mode does not require external ducting but necessitates the installation of charcoal filters (often sold separately).

3.3. אינסטאַלאַציע טריט (אַלגעמיין)

1. צוגרייטן דעם קאַבינעט: Ensure the cabinet opening is correctly sized and reinforced if necessary.
2. מאָנטירן די קאַפּאָטע: Secure the hood to the cabinet using the provided mounting hardware.
3. Connect Ducting (Ducted Mode): Attach the ducting pipe to the hood's outlet and route it to the external vent. Ensure airtight connections.
4. Install Charcoal Filters (Recirculation Mode): If using recirculation, install the charcoal filters according to their specific instructions.
5. עלעקטריקאַל קשר: Connect the hood to the power supply.
6. טעסט פאַנגקשאַנאַליטי: Turn on the hood and test all fan speeds and lighting.

4. אָפּעראַציע

The Fagor 4CC-130EX cooker hood features intuitive controls for fan speed and lighting.

4.1. פאַן ספּיד קאָנטראָל

The hood typically features a slider or push-button controls to adjust the extraction power. Select the appropriate speed based on the intensity of cooking fumes and odors.

• נידעריק ספּיד: Suitable for simmering or light cooking.
• מיטל גיכקייַט: For general cooking and moderate fumes.
• הויך ספּיד: For intense frying, grilling, or when producing significant steam and odors.

4.2. ליכט קאָנטראָל

A separate switch or button controls the integrated lighting, providing illumination for your cooking surface. The hood is equipped with 2 bulbs.

5. וישאַלט

Regular maintenance ensures optimal performance and extends the lifespan of your Fagor 4CC-130EX cooker hood. Always disconnect the power supply before performing any maintenance.

5.1. Cleaning Grease Filters

The metallic grease filters capture airborne grease particles. They should be cleaned regularly (approximately every 2-4 weeks, depending on usage) to maintain extraction efficiency and prevent fire hazards.

1. אַראָפּנעמען פילטערס: Locate the release latches or clips on the filters and carefully remove them.
2. ריין פילטערס: Wash the filters by hand in hot soapy water or in a dishwasher on a low-temperature cycle. Avoid using abrasive brushes or detergents.
3. טריקענען און ווידער אינסטאלירן: Ensure filters are completely dry before reinstalling them.

5.2. Replacing Charcoal Filters (Recirculation Mode)

If your hood is operating in recirculation mode, the charcoal filters absorb cooking odors. These filters cannot be washed and must be replaced every 3-6 months, depending on usage.

1. Remove Grease Filters: Access to charcoal filters is usually behind the grease filters.
2. אַראָפּנעמען אַלטע פֿילטערס: Detach the old charcoal filters (they typically twist or clip into place).
3. אינסטאַלירן נייע פילטערס: Fit new charcoal filters, ensuring they are securely in place.
4. Reinstall Grease Filters: Replace the metallic grease filters.

5.3. רייניקונג די יקסטיריער

Clean the stainless steel exterior with a soft cloth dampened with warm soapy water or a specialized stainless steel cleaner. Avoid abrasive cleaners, scouring pads, or corrosive detergents.

5.4. Replacing Light Bulbs

The hood uses 2 light bulbs. Always ensure the hood is disconnected from the power supply before replacing bulbs.

1. צוטריט באַלבז: Depending on the design, you may need to remove the grease filters or a light cover to access the bulbs.
2. פאַרבייַטן באַלבז: Carefully unscrew or unclip the old bulb and replace it with a new bulb of the same type and wattage.
3. ריאַסעמבאַל: Secure any covers or filters removed.

6. טראָובלעשאָאָטינג

איידער קאָנטאַקט קונה דינסט, שייַעךview די פאלגענדע געוויינטלעכע פראבלעמען און זייערע מעגלעכע לייזונגען.

7. ספּעסאַפאַקיישאַנז

8. וואָראַנטי און שטיצן

Your Fagor 4CC-130EX cooker hood is covered by a manufacturer's warranty. Please refer to the warranty card included with your product for specific terms and conditions.

For technical assistance, spare parts, or warranty claims, please contact Fagor customer support through their official webזייטל אדער די קאָנטאַקט אינפֿאָרמאַציע וואָס איז צוגעשטעלט אין אייער וואָראַנטי דאָקומענטאַציע.

Note: Always have your model number (4CC-130EX) and purchase date ready when contacting support.
