TopMate ES11 3-Wheel Mobility Tricycle User Manual

1. זיכערקייַט אינפֿאָרמאַציע

Please read this manual carefully before operating your TopMate ES11 mobility tricycle. Failure to follow instructions and safety warnings may result in injury or damage to the product.

• Always wear appropriate safety gear, including a helmet, when operating the tricycle.
• זיכער מאַכן אַז אַלע קאָמפּאָנענטן זענען זיכער באַפעסטיקט איידער יעדן נוצן.
• Do not operate the tricycle under the influence of alcohol or drugs.
• אָבסערווירן אַלע היגע פאַרקער געזעצן און רעגיאַליישאַנז.
• פֿאַרמײַדט צו פֿאָרן אין שווערן רעגן, שניי, אָדער אײַזיקע באַדינגונגען.
• דו זאלסט נישט יקסיד די מאַקסימום מאַסע קאַפּאַציטעט פון 136 קג.
• האַלטן הענט און פֿיס אַוועק פון מאָווינג טיילן.

2. פּראָדוקט איבערview

The TopMate ES11 is a versatile 3-wheel electric mobility tricycle designed for adults and seniors, offering convenience, comfort, and portability. It features a lightweight, foldable design, powerful dual motors, and a removable battery for extended range.

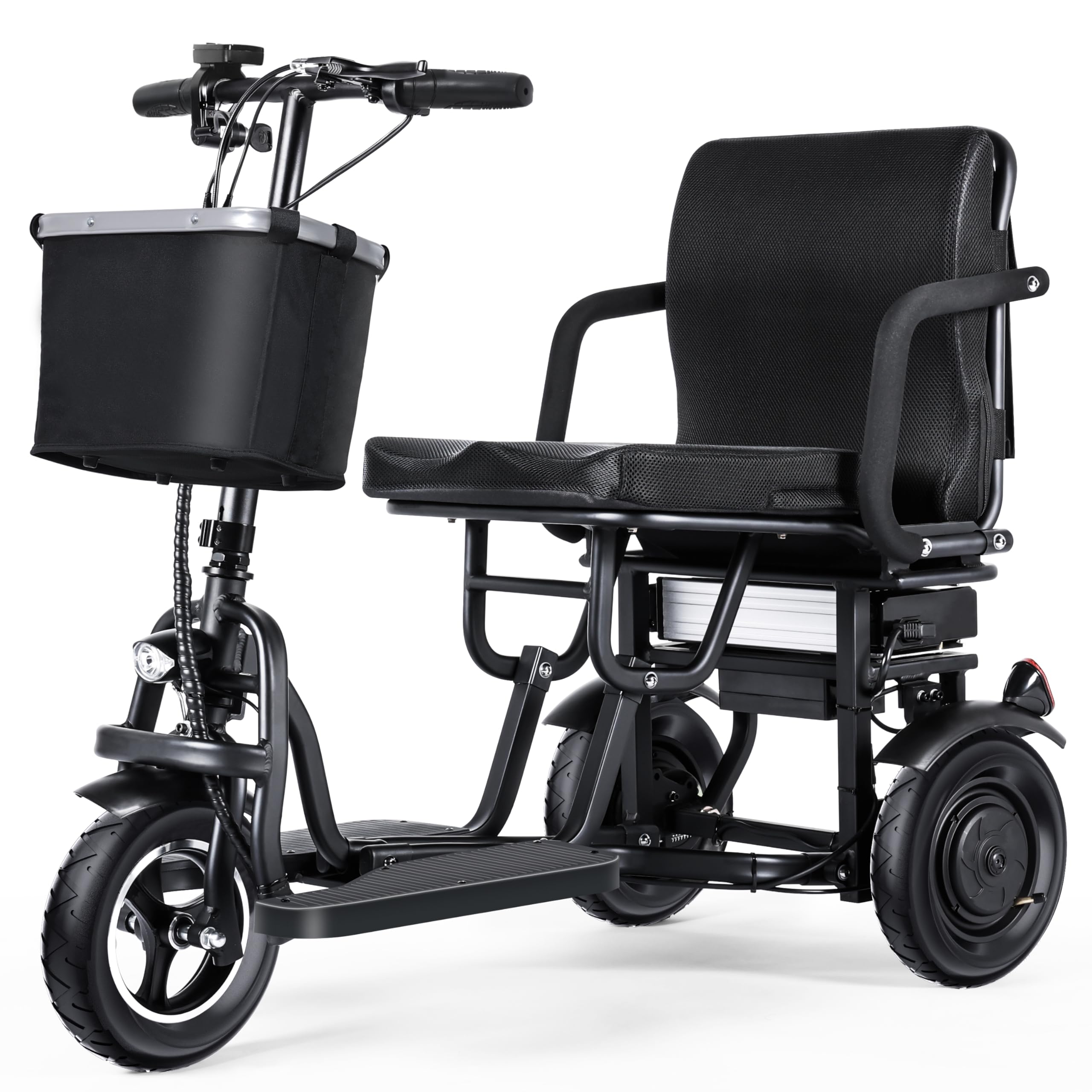

Figure 2.1: TopMate ES11 Mobility Tricycle in its operational state.

שליסל פֿעיִקייטן:

• One-Click Folding System: פֿאַר גרינג סטאָרידזש און אַריבערפירן.
• צוויי שטאַרק מאָטאָרס: Provides strong acceleration and climbing ability.
• Removable Lithium-Ion Battery: Offers convenient charging and a range of 26-32 km.
• Multiple Speed Modes: Including a dedicated 1.6 km/h Shopping Mode and 3 adjustable speeds (5/11/24 km/h).
• ערגאָנאָמיש זיץ: Designed for comfort during long rides.
• אַרויסנעמבאַרע קאָרב: For carrying personal items or groceries.

3. סעטאַפּ און אַסעמבלי

3.1 אַנפּאַקינג

Carefully remove all components from the packaging. Ensure all parts listed in the packing list are present. Retain packaging for future storage or transport.

3.2 Unfolding the Tricycle

The ES11 features a quick one-step folding mechanism. To unfold, release the locking mechanism and extend the frame until it clicks into place. Ensure all locking pins are engaged for safe operation.

Figure 3.1: The ES11 tricycle can be easily unfolded and stored in a car trunk.

פיגורע 3.2: דעטאַילעד view of the tricycle's folding mechanism.

3.3 באַטאַרייע ייַנמאָנטירונג

The ES11 comes with a removable 48V 10.4Ah lithium-ion battery. To install, slide the battery into its designated compartment located under the seat until it locks securely. Ensure the battery is fully charged before first use.

Figure 3.3: The removable battery offers flexible charging options.

3.4 Basket Attachment

The removable basket can be attached to the front of the tricycle for carrying personal items. Align the basket's hooks with the mounting points on the handlebars and secure it firmly.

Figure 3.4: The large capacity removable basket is convenient for shopping.

4. אַפּערייטינג ינסטרוקטיאָנס

4.1 פּאַוערינג אויף / אַוועק

Insert the key into the ignition and turn it to the 'ON' position to power on the tricycle. The display will illuminate. To power off, turn the key to the 'OFF' position and remove it.

4.2 ספּיד מאָדעס

The ES11 offers multiple speed settings to suit various riding conditions:

• Shopping Mode: A gentle speed of 1.6 km/h, ideal for crowded areas like stores or sidewalks.
• אַדזשאַסטאַבאַל ספּידז: Three additional speeds are available: 5 km/h, 11 km/h, and 24 km/h. Use the control panel to switch between these modes.

Figure 4.1: The intuitive control panel allows for easy speed adjustment.

4.3 Throttle and Brakes

Use the throttle on the right handlebar to accelerate. Apply the brake levers on both handlebars to slow down or stop. The ES11 is equipped with a dual drum brake system for reliable stopping power.

4.4 פאַרקערטע פֿונקציע

A dedicated reverse button (3 km/h) is located on the control panel for easy maneuvering in tight spaces.

4.5 ריידינג עצות

• Start in a low-speed mode until you are comfortable with the tricycle's operation.
• האַלט אַ זיכערע דיסטאַנץ פון אַנדערע וועהיקלעס און פוסגייער.
• זייט באוואוסטזיניק וועגן אייער סביבה און מעגלעכע געפארן.
• The dual motors provide excellent power for inclines up to 15 degrees.

Figure 4.2: The ES11 is powered by two 48V 350W motors, providing a maximum speed of 24 km/h and 24 Nm torque.

5. באַטערי אינפֿאָרמאַציע

5.1 טשאַרדזשינג די באַטאַרייע

The 48V 10.4Ah lithium-ion battery can be charged while installed on the tricycle or removed. Connect the charger to the battery's charging port and then plug it into a standard wall outlet. The charging indicator on the charger will show the charging status. A full charge typically takes 5-6 hours.

5.2 באַטערי קער

• פֿאַרמײַדט גאָר אויסצוליידיקן די באַטעריע איידער איר לאָזט עס איבער.
• סטאָר די באַטאַרייע אין אַ קיל, טרוקן אָרט ווען ניט אין נוצן.
• If storing for an extended period, charge the battery to approximately 50-70% every 2-3 months.
• Use only the official TopMate charger provided with your tricycle.

Figure 5.1: The 48V 10.4Ah removable battery provides a range of 26-32 km.

6. וישאַלט

6.1 רייניקונג

Wipe down the tricycle with a damp טוך נאך באַניץ. פֿאַרמייַדן נוצן הויך-דרוק וואַסער דזשעץ אָדער שטרענגע כעמיקאַלן, וואָס קענען שעדיקן עלעקטראָנישע קאָמפּאָנענטן.

6.2 רייפֿן זאָרג

Regularly check the tire pressure and inflate to the recommended PSI (refer to the tire sidewall for details). Inspect tires for wear and tear, and replace them if necessary. The 10-inch tires are designed for various road conditions.

Figure 6.1: The 10-inch tires provide excellent grip on diverse surfaces.

6.3 סטאָרידזש

When not in use, store the folded tricycle in a dry, sheltered location to protect it from elements and extreme temperatures.

7. טראָובלעשאָאָטינג

If you encounter any issues with your TopMate ES11, please refer to the following common troubleshooting steps:

If the issue persists after attempting these solutions, please contact TopMate customer support.

8. ספּעסאַפאַקיישאַנז

9. וואָראַנטי און שטיצן

9.1 וואָראַנטי אינפֿאָרמאַציע

The TopMate ES11 Mobility Tricycle comes with a 2-יאָר פאַבריקאַנט ס וואָראַנטידי וואָראַנטי דעקט חסרונות אין מאַטעריאַלן און אַרבעט אונטער נאָרמאַל נוצן. ביטע האַלטן דיין קויפן באַווייַז פֿאַר וואָראַנטי קליימז.

9.2 קונה שטיצן

For technical assistance, warranty claims, or any other inquiries, please contact TopMate customer support through the retailer where you purchased the product or visit the official TopMate webפּלאַץ פֿאַר קאָנטאַקט דעטאַילס.

Please have your model number (ES11) and purchase date ready when contacting support.
