DWEII GA12-N20 6V 100RPM Micro DC Gear Motor Instruction Manual

1. פּראָדוקט איבערview

The DWEII GA12-N20 Micro DC Gear Motor is a compact and high-performance motor designed for various applications requiring precise and reliable rotational movement. Its small size and robust metal gearbox make it suitable for miniature mechanical projects, including robot models, electronic door locks, small robots, and DIY electronic toy cars.

This motor features a full metal gearbox for enhanced durability and a D-type output shaft for secure coupling. It operates at a nominal voltage of DC 6V and provides a no-load speed of 100 RPM.

Figure 1: DWEII GA12-N20 Micro DC Gear Motor. This image shows the compact design of the motor with its metal gearbox and output shaft.

2. פּעקל אינהאַלט

ביטע באַשטעטיקן אַז אַלע קאָמפּאָנענטן זענען פאַראַן אין אייער פּעקל:

• 3 x DWEII GA12-N20 6V 100RPM Micro DC Gear Motors

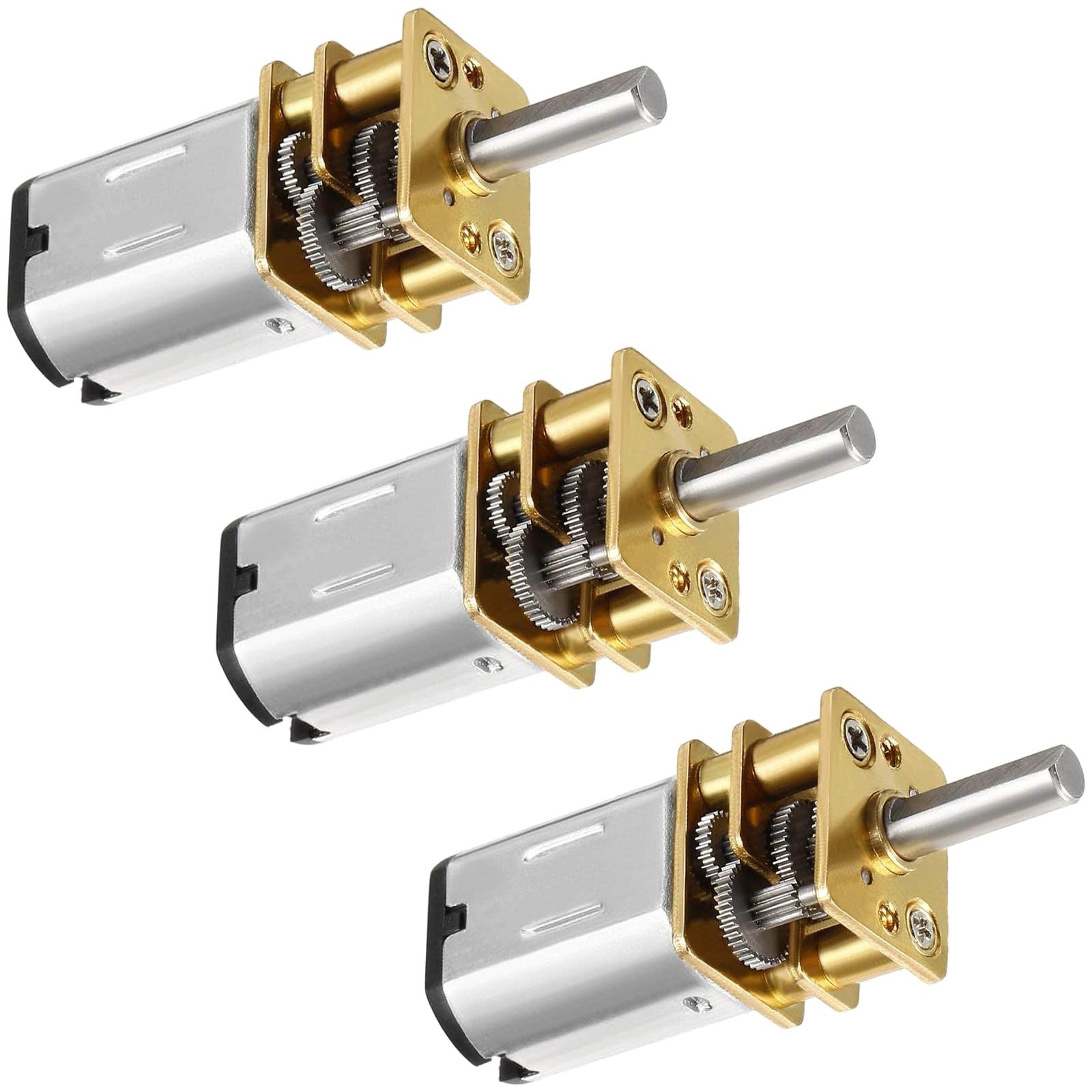

Figure 2: Package contents showing three DWEII GA12-N20 Micro DC Gear Motors.

3. סעטאַפּ אינסטרוקציעס

Follow these steps to set up your DWEII GA12-N20 Micro DC Gear Motor:

1. ידענטיפיצירן קאַמפּאָונאַנץ: Each motor has a D-type shaft with a 3mm diameter and two electrical terminals at the rear.
2. מאַכט קשר: Connect a stable DC 6V power supply to the two terminals of the motor. Polarity determines the direction of rotation. Reversing the polarity will reverse the motor's rotation.
3. מאָונטינג: Securely mount the motor using appropriate fasteners through the mounting holes on the gearbox. Ensure the motor is firmly attached to prevent vibration and misalignment during operation.
4. שאַפט קאַפּלינג: Attach your desired component (e.g., wheel, gear, robotic arm) to the 3mm D-type output shaft. Ensure a tight and secure fit to transmit torque effectively.

Figure 3: Motor dimensions for proper integration into your project. The shaft diameter is 3mm.

4. אַפּערייטינג ינסטרוקטיאָנס

Once the motor is set up, follow these guidelines for operation:

• מאַכט אויף: Apply DC 6V power to the motor. The motor will begin to rotate.
• ריכטונג קאָנטראָל: To change the direction of rotation, reverse the polarity of the DC 6V power supply connected to the motor terminals.
• מאַסע פאַרוואַלטונג: Ensure that the load applied to the motor does not exceed its rated torque capacity. Excessive load can lead to reduced speed, increased current draw, and potential damage to the motor or gearbox.
• קעסיידערדיק אָפּעראַציע: The motor is designed for continuous operation within its specified voltage and temperature ranges. Monitor for any signs of overheating or unusual noise during extended use.

5. וישאַלט

Proper maintenance ensures the longevity and optimal performance of your motor:

• רייניקונג: Keep the motor clean and free from dust, dirt, and debris. Use a soft, dry cloth to wipe the exterior. Avoid using liquids or solvents directly on the motor.
• סטאָרידזש טנאָים: Store the motor in a dry environment with a temperature range of 0°C to 40°C (32°F to 104°F) and a humidity range of 15% to 90% RH.
• ענוויראָנמענטאַל שוץ: Avoid placing the motor in areas with high temperatures, high humidity, or corrosive gases, as these conditions can degrade performance and shorten lifespan.
• אַפּערייטינג טעמפּעראַטור: Ensure the motor operates within its recommended temperature range of 0°C to 70°C (32°F to 158°F).

6. טראָובלעשאָאָטינג

If you encounter issues with your motor, refer to the following troubleshooting guide:

• מאָטאָר אַרבעט נישט:
  • Check the power supply: Ensure it is providing a stable DC 6V.
  • Verify connections: Confirm that the wires are securely connected to the motor terminals and the power source.
  • Inspect for obstructions: Make sure there are no physical obstructions preventing the shaft from rotating.
• Reduced Speed or Weak Torque:
  • Check the load: The motor may be overloaded. Reduce the load or ensure it is within the motor's torque capabilities.
  • באַשטעטיקן וואָלtage: Ensure the power supply voltage is consistently at DC 6V. Lower voltage will result in reduced speed and torque.
• ומגעוויינטלעך ראַש אָדער ווייבריישאַן:
  • Inspect mounting: Ensure the motor is securely mounted and not vibrating against other components.
  • Check for foreign objects: Small debris inside the gearbox can cause noise. Discontinue use and inspect carefully.
  • Internal damage: If noise persists, the motor or gearbox may have internal damage.

7. ספּעסאַפאַקיישאַנז

8. וואָראַנטי און שטיצן

For warranty information, technical assistance, or any product-related inquiries, please contact your retailer or the manufacturer, DWEII, directly. Please retain your proof of purchase for warranty claims.
