Instruction Manual: Ygpmoiki LCD Touch Screen Digitizer Assembly

1. הקדמה

This manual provides essential information for the proper handling, installation, and testing of your Ygpmoiki LCD Touch Screen Digitizer Assembly. This replacement part is designed for the Samsung Galaxy A07 4G, specifically compatible with models SM-A075F, SM-A075F/DS, SM-A075M, and SM-A075M/DS.

וויכטיק זיכערקייַט פּריקאָשאַנז: The screen panel contact is highly fragile. Installation of this component should only be performed by professional personnel. Prior to any permanent installation, the display must be thoroughly tested.

2. פּראָדוקט איבערview

The Ygpmoiki LCD Touch Screen Digitizer Assembly is a complete replacement unit for your device's display. It includes the LCD panel, touch screen digitizer, and associated flex cables, designed to resolve issues such as poor touch response, abnormal display, or a broken screen.

2.1 פּעקל אינהאַלט

• 1x Ygpmoiki LCD Touch Screen Digitizer Assembly for Samsung Galaxy A07 4G (6.7 inches)
• 1x Set of Installation Tools

2.2 קאַמפּאַטאַבילאַטי

This display assembly is compatible with the following Samsung Galaxy A07 4G models:

• SM-A075F
• SM-A075F/DS
• סם-אַ 075 ם
• SM-A075M/DS

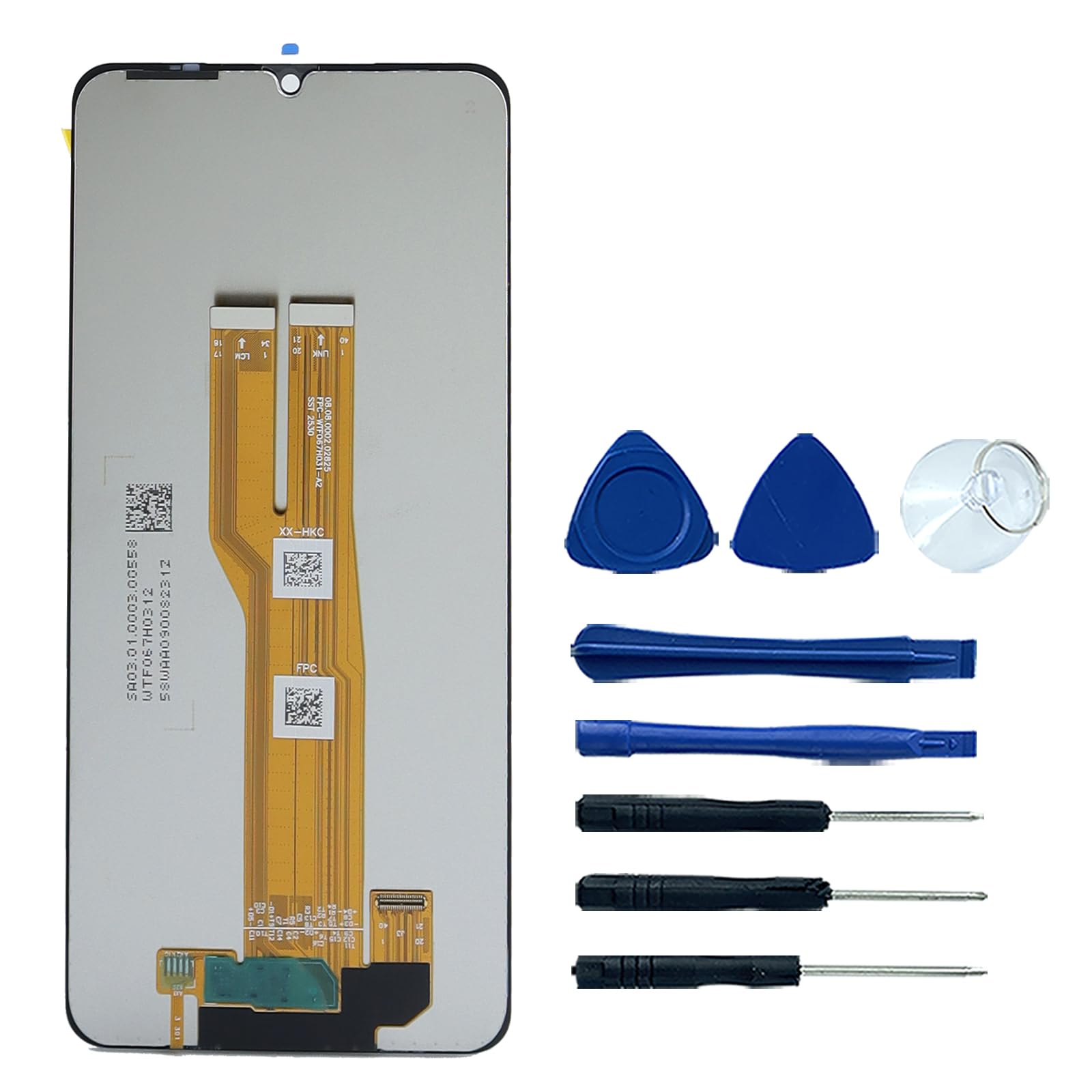

בילד 2.1: פראָנט view of the Ygpmoiki LCD Touch Screen Digitizer Assembly, showing the full display and notch.

3. סעטאַפּ און ייַנמאָנטירונג

The display assembly is provided without a front frame. Professional installation is strongly recommended due to the delicate nature of the components.

3.1 Pre-Installation Testing

Before proceeding with full installation, it is crucial to test the new display assembly. This step ensures the component is fully functional and prevents potential issues after assembly.

1. דיסקאַנעקט מאַכט: Ensure the device is completely powered off and the battery is disconnected before handling any internal components.
2. Connect Flex Cables: Carefully connect the display's flex cables to the corresponding connectors on the device's motherboard. Do not apply excessive force.
3. Temporary Power On: Reconnect the battery and temporarily power on the device.
4. טעסט פאַנגקשאַנאַליטי: Check the display for any abnormalities such as dead pixels, lines, color distortions, or flickering. Test the touch screen responsiveness across the entire surface.
5. מאַכט אַוועק: If the display functions correctly, power off the device and disconnect the battery before proceeding with the full installation. If issues are observed, do not proceed with installation and contact support.

Image 3.1: Close-up of the display's flex cables, which connect to the motherboard for testing and installation.

בילד 3.2: דערציען view of the display assembly, highlighting the delicate flex cable connections.

4. אפערירן (נאך-אינסטאַלאַציע)

Once the display assembly is fully installed, the device should operate as normal. The LCD provides visual output, and the digitizer enables touch input.

4.1 ערשט מאַכט-אויף

After completing the installation, power on your device. The screen should display the boot-up sequence clearly. Verify that all touch functions are working correctly by navigating through menus and typing.

4.2 טאָוטש סקרין פאַנגקשאַנאַליטי

Test the touch screen by opening an application that allows drawing or precise touch input. Ensure there are no 'dead spots' or areas where touch input is unresponsive or inaccurate.

5. וישאַלט

To ensure the longevity and optimal performance of your new display, follow these general maintenance guidelines:

• רייניקונג: ניצט אַ ווייכן, לינט-פֿרייע שטאָף, אַ ביסל ווייכערampגעוואשן מיט וואַסער אָדער אַ ספּעציעלן רייניגער פֿאַרן עקראַן, צו ווישן דעם עקראַן פֿאָרזיכטיק. פֿאַרמייַדן שאַרפֿע כעמיקאַלן אָדער אַברייסיוו מאַטעריאַלן.
• שוץ: Consider using a screen protector and a protective case to guard against scratches and impacts.
• ויסמיידן דרוק: Do not apply excessive pressure to the screen, as this can damage the LCD panel or digitizer.
• טעמפּעראַטור: Avoid exposing the device to extreme temperatures, which can affect screen performance and lifespan.

6. טראָובלעשאָאָטינג

If you encounter issues after installation, consider the following troubleshooting steps:

• No Display or Abnormal Display:
  • Ensure all flex cables are securely connected to the motherboard.
  • קוקט איבער פֿאַר קיין קענטיקע שאָדן צו די פֿלעקס קייבלס אָדער קאַנעקטאָרס.
  • Re-perform the pre-installation test if possible.
• ניט ריספּאַנדאַבאַל ריר פאַרשטעלן:
  • Verify the touch screen flex cable is properly seated.
  • ריסטאַרט די מיטל.
  • Ensure there is no debris or liquid between the screen and your finger/stylus.
• Flickering or Discolored Screen:
  • קוק פֿאַר פרייַ קאַנעקשאַנז.
  • Ensure the display is not under physical stress from the device's frame.

If these steps do not resolve the issue, it is recommended to seek assistance from a qualified technician.

7. ספּעסאַפאַקיישאַנז

Image 7.1: The display assembly, illustrating its 6.7-inch diagonal screen size.

8. וואָראַנטי און שטיצן

Specific warranty terms for this product are provided by the seller or manufacturer at the time of purchase. Please refer to your purchase documentation or contact the seller directly for detailed warranty information.

For technical support or assistance with installation, please contact the retailer or manufacturer from whom you purchased this product. Ensure you have your purchase details and product model number readily available.
