LKAHYUIBC YM519 OBD2 Scanner Instruction Manual

מאָדעל: YM519

1. הקדמה

The LKAHYUIBC YM519 OBD2 Scanner is a professional automotive diagnostic tool designed to help users quickly identify and resolve engine-related issues in OBD2-compliant vehicles. This device supports all OBD2 protocols, allowing for comprehensive diagnostics, including reading and clearing Diagnostic Trouble Codes (DTCs), viewing live data, and performing I/M readiness tests. Its user-friendly interface and portable design make it suitable for both professional technicians and DIY enthusiasts.

2. זיכערקייַט אינפֿאָרמאַציע

3. פּראָדוקט איבערview

The YM519 OBD2 Scanner features a robust design with an intuitive button layout and a clear color display for easy operation and data interpretation.

LKAHYUIBC YM519 OBD2 Scanner device with screen showing menu options like Diagnosis, Battery, Readiness, DTC Lib, Setting, About.

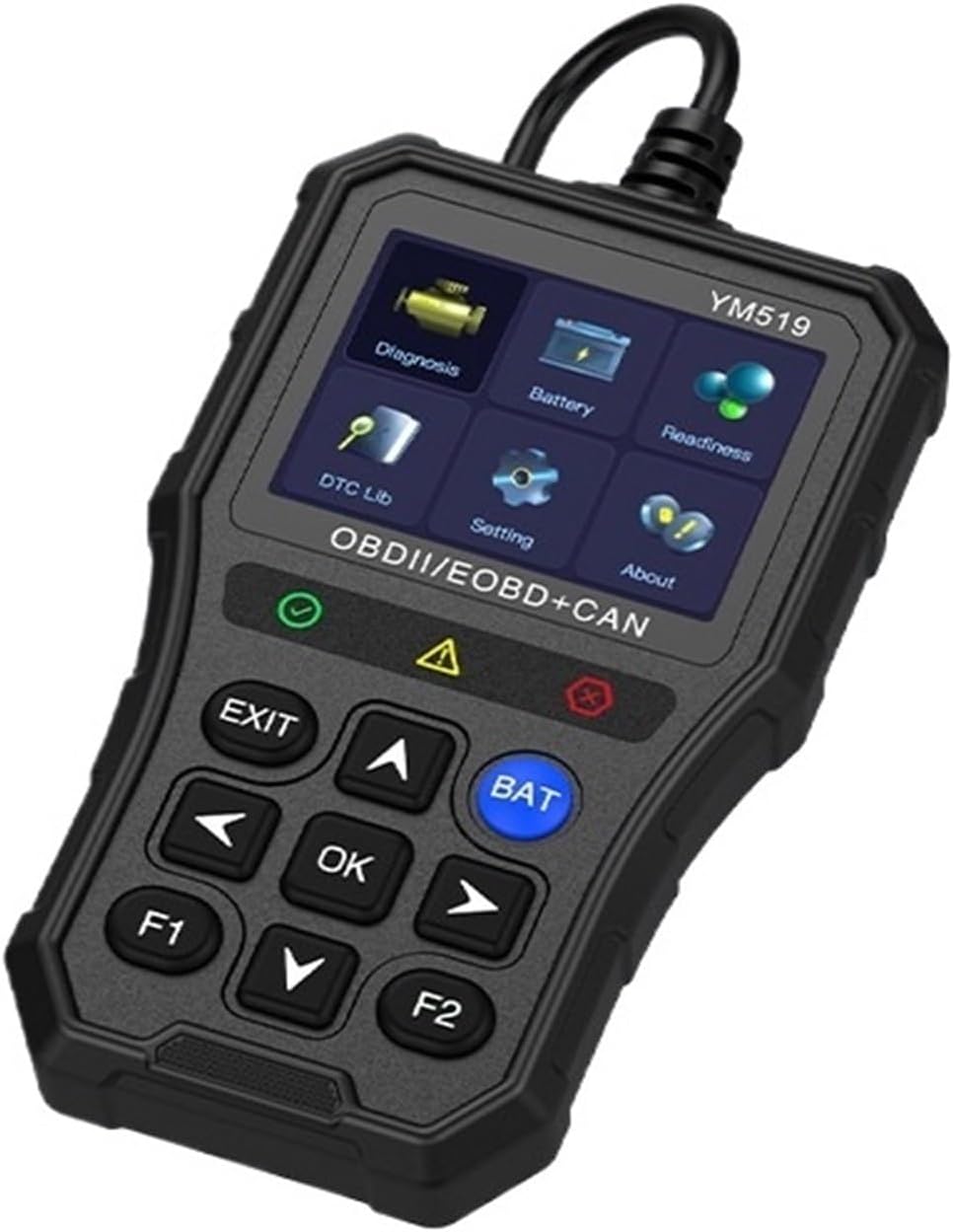

פיגורע 3.1: LKAHYUIBC YM519 OBD2 Scanner. This image displays the front view of the YM519 diagnostic tool, highlighting its color screen with various menu options and the control buttons below, including navigation arrows, OK, EXIT, BAT, F1, and F2.

3.1. שליסל פֿעיִקייטן

3.2. ווייַז

The YM519 is equipped with a 2.8-inch HD color screen, providing clear and vibrant display of diagnostic information.

Diagram illustrating the layers of a 2.8-inch HD color screen.

פיגורע 3.2: 2.8-Inch HD Color Screen. This image visually represents the high-definition color display technology used in the YM519 scanner, emphasizing its clarity and visual quality.

4. סעטאַפּ

To begin using your YM519 OBD2 Scanner, follow these simple steps:

  1. געפינען דעם OBD2 פּאָרט: The OBD2 port is typically located under the dashboard on the driver's side of the vehicle. Refer to your vehicle's service manual if you cannot locate it.
  2. Turn Off Ignition: Ensure the vehicle's ignition is in the OFF position before connecting the scanner.
  3. פֿאַרבינדן דעם סקאַנער: Plug the YM519 scanner's cable into the vehicle's OBD2 port. Ensure a secure connection.
  4. צינד אן די איגנישאַן: Turn the vehicle's ignition to the ON position (do not start the engine unless instructed by a specific diagnostic procedure). The scanner will power on automatically.
  5. סיסטעם יניטיאַליזאַטיאָן: The scanner will perform a system initialization. Wait for the main menu to appear on the screen.

5. אַפּערייטינג ינסטרוקטיאָנס

This section outlines the basic operations of the YM519 OBD2 Scanner.

5.1. מעניו נאַוויגאַציע

ניצן די UP און אַראָפּ פײַל קנעפּלעך צו סקראָלן דורך מעניו אָפּציעס. דריק די OK button to confirm a selection. The אַרויסגאַנג button returns to the previous menu or exits a function.

5.2. לייענען דיאַגנאָסטישע פּראָבלעם קאָודז (DTCs)

  1. פון די הויפּט מעניו, אויסקלייַבן "Diagnosis" און דריקן OK.
  2. The scanner will establish communication with the vehicle's ECU.
  3. אויסקלייַבן "לייענען קאָודז" צו view איצטיקע, ווארטנדיקע, אדער שטענדיגע DTC'ס.
  4. The screen will display the DTCs and their descriptions.

5.3. אויסמעקן דיאַגנאָסטישע פּראָבלעם קאָודז (DTCs)

Clearing DTCs will turn off the Check Engine Light (MIL) and erase all diagnostic data. Ensure you have addressed the underlying issue before clearing codes.

  1. After reading codes, navigate back to the "Diagnosis" מעניו.
  2. אויסקלייַבן "אויסמעקן קאָדן" און דריקן OK.
  3. Confirm the action when prompted. The MIL should turn off.

5.4. I/M גרייטקייט סטאַטוס

The I/M Readiness function checks the status of the emission-related monitoring systems on the vehicle. This is useful for emissions testing.

  1. פון די הויפּט מעניו, אויסקלייַבן "Readiness" און דריקן OK.
  2. The scanner will display the status of various monitors (e.g., O2 Sensor, EVAP System).
  3. A "PASS" or "OK" status indicates the monitor has completed its self-test. "INC" or "N/A" indicates incomplete or not applicable.

5.5. באַטעריע סטאַטוס מאָניטאָרינג

The YM519 can monitor your vehicle's battery status, providing voltage measurements and estimated battery life.

Screenshots showing the YM519 scanner's battery test functions: Measure battery voltage, Monitor battery, and Estimated battery life.

פיגורע 5.1: Battery Status Monitoring. This image illustrates the three main battery monitoring functions of the YM519: measuring current voltage, monitoring voltage over time, and estimating battery life. A reminder to turn off the engine before testing is also shown.

  1. פון די הויפּט מעניו, אויסקלייַבן "Battery" און דריקן OK.
  2. You can choose from options like "Battery Measurement" to see the current voltage, "Battery Monitoring" for a real-time graph, or "Battery Life" for an estimated assessment.
  3. Follow on-screen prompts. For accurate battery life assessment, ensure the engine is off.

5.6. Supported Protocols

The YM519 scanner supports a wide range of OBD2 protocols, ensuring compatibility with various vehicle makes and models.

List of nine major OBD2 protocols supported by the YM519 scanner, with examples of compatible vehicles.

פיגורע 5.2: Supported OBD2 Protocols. This image lists the nine major OBD2 protocols supported by the YM519, including SAE J1850 PWM, SAE J1850 VPW, ISO9141-2, ISO14230-4 KWP, and ISO15765-4 CAN, along with their baud rates and typical vehicle compatibility (e.g., American cars after 1996, European cars after 2003, Asian cars after 2000).

The device supports the following major protocols:

6. וישאַלט

7. טראָובלעשאָאָטינג

פּראָבלעםמעגלעך סיבהלייזונג
דער סקאַנער גייט נישט אָן.
  • Loose connection to OBD2 port.
  • Vehicle ignition not in ON position.
  • Vehicle battery low or dead.
  • מאַכן זיכער אַז די קאַבלע איז סיקיורלי פארבונדן.
  • קער די יגנישאַן צו די ON שטעלע.
  • קוק פאָרמיטל באַטאַרייע וואָלtage.
קאָמוניקאַציע טעות מיטן אויטאָ.
  • אומרעכטער פּראָטאָקאָל דעטעקטירט.
  • Faulty OBD2 port on vehicle.
  • Scanner software issue.
  • Verify vehicle is OBD2 compliant (1996 or newer for US).
  • Try the scanner on another vehicle if possible.
  • Check for software updates for the scanner.
קען נישט אויסמעקן די DTCs.
  • אונטערליגענדיקער שולד איז נאך פאראן.
  • Ignition not in ON position.
  • Repair the fault before attempting to clear codes.
  • Ensure ignition is ON (engine off).

8. ספּעסאַפאַקיישאַנז

9. וואָראַנטי און שטיצן

For warranty information and technical support, please refer to the documentation included with your purchase or contact LKAHYUIBC customer service through their official webפּלאַץ. האַלטן דיין קויפן קאַבאָלע פֿאַר וואָראַנטי קליימז.
