VOUNOT Vertical Awning Instruction Manual

1. פּראָדוקט איבערview

The VOUNOT Vertical Awning is designed to provide sun protection, UV resistance, and privacy for your outdoor spaces such as balconies, terraces, and gardens. Its innovative no-drill telescopic clamping system allows for easy and quick installation without permanent modifications. The awning features a height-adjustable pole and a smooth crank mechanism for effortless operation.

Image 1.1: VOUNOT Vertical Awning in use on a balcony, offering shade and privacy.

שליסל פֿעיִקייטן:

• קיין-בויער אינסטאַלאַציע: Simple telescopic clamping system requires no drilling or special tools, ideal for rental properties or temporary setups.
• אַדזשאַסטאַבאַל הייך: Pole height can be adjusted from 220 cm to 310 cm to fit various ceiling heights.
• Sun and UV Protection: Made from 180 g/m² polyester fabric with PU coating, providing effective protection against UV rays and weather, and resisting discoloration.
• Privacy Screen: Reduces visibility from outside while allowing natural light to pass through, creating a comfortable and intimate outdoor space.
• Smooth Crank Operation: An ergonomic crank mechanism ensures easy and fluid adjustment of the awning.
• אַדזשאַסטאַבאַל באַזע: The base can be adjusted up to 3 cm to accommodate slightly uneven surfaces, ensuring stability.

Image 1.2: Visual representation of the awning's main features.

2. זיכערקייַט אינפֿאָרמאַציע

ביטע ליינט אלע אינסטרוקציעס קערפול איידער איר שטעלט עס צונויף און ניצט עס. האלט דעם מאנואל פאר שפעטערדיגע רעפערענץ.

• פאַרזיכערן אַלע קאַמפּאָונאַנץ זענען סיקיורלי פאַסאַנד איידער נוצן.
• Do not use the awning in strong winds or severe weather conditions. Retract the awning to prevent damage.
• האַלט קינדער און חיות אַוועק פון דער מאַרקיזע בעת דער אינסטאַלאַציע און אָפּעראַציע.
• Do not hang heavy objects on the awning structure.
• Regularly check for wear and tear on the fabric and structural components. Replace damaged parts immediately.
• Avoid using abrasive cleaners or harsh chemicals on the fabric or frame.

3. פּעקל אינהאַלט

Verify that all parts are present and undamaged before beginning assembly. If any parts are missing or damaged, contact customer support.

• Awning Fabric (Beige, 120x310cm)
• Telescopic Aluminum Poles (Upper and Lower sections)
• קראַנק מעקאַניזם
• Top Pressure Plate
• Adjustable Base Feet
• Guide Eyelet
• Fasteners and Small Parts
• ינסטראַקשאַנז מאַנואַל

בילד 3.1: עקספּלאָדירט view of awning components.

4. סעטאַפּ און ייַנמאָנטירונג

The VOUNOT Vertical Awning is designed for no-drill installation using a telescopic clamping system. It is recommended to have two people for assembly.

4.1. צוגרייטן דעם אינסטאַלאַציע געגנט

• Choose a suitable location on your balcony or terrace with a stable floor and ceiling/overhead structure.
• Ensure the installation area is clean and free from obstructions.
• Measure the height between the floor and the overhead structure to confirm it is within the awning's adjustable range (220-310 cm).

4.2. Assemble the Poles

1. Connect the upper and lower sections of the aluminum poles. Ensure they are securely joined.
2. Attach the top pressure plate to the top of the upper pole section.
3. Attach the adjustable base feet to the bottom of the lower pole section.

Image 4.1: Details of the top pressure plate and pole connections.

4.3. Attach the Awning Fabric and Crank

1. Slide the awning fabric onto the roller tube, ensuring it is correctly oriented.
2. Attach the crank mechanism to the designated connection point on the pole.
3. Insert the guide eyelet onto the pole to ensure the fabric rolls smoothly.

4.4. Position and Secure the Awning

1. Place the assembled awning in the desired position.
2. Extend the telescopic poles by rotating them until the top pressure plate firmly presses against the overhead structure and the base feet are firmly on the ground.
3. Adjust the base feet up to 3 cm if the floor surface is slightly uneven to ensure maximum stability.
4. Ensure the awning is vertical and stable. The clamping system should hold it securely without drilling.

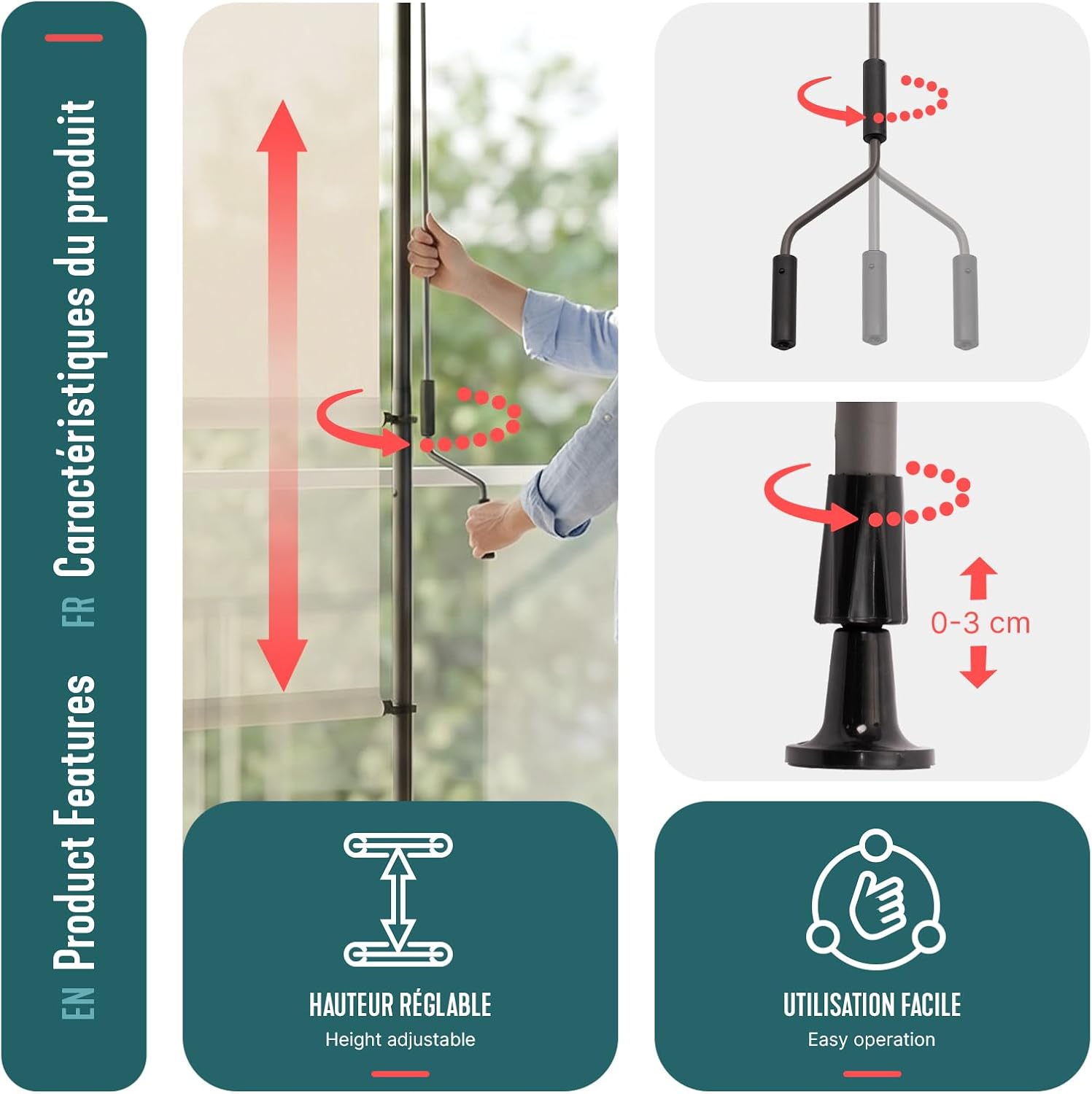

Image 4.2: Height adjustment and base adjustment details.

5. אַפּערייטינג ינסטרוקטיאָנס

The VOUNOT Vertical Awning is operated manually using a crank mechanism.

5.1. פארלענגערן די מאַרקיזע

• Turn the crank handle clockwise to lower and extend the awning fabric.
• Extend the awning to your desired height for optimal sun protection and privacy.
• Ensure the fabric unrolls smoothly through the guide eyelet.

5.2. צוריקציען די מאַרקיזע

• Turn the crank handle counter-clockwise to raise and retract the awning fabric.
• Retract the awning fully when not in use or during strong winds to prevent damage.

6. וישאַלט

Proper maintenance will extend the life of your VOUNOT Vertical Awning.

• רייניקונג פון שטאָף: Clean the awning fabric with mild soap and water. Use a soft brush or cloth. Rinse thoroughly with clean water and allow it to air dry completely before retracting. Do not use harsh detergents or bleach.
• ראַם זאָרגן: Wipe the aluminum poles with a damp שטאָף צו באַזייַטיקן שמוץ און שטויב.
• שמירן: Periodically check the crank mechanism and lubricate moving parts with a silicone-based spray if operation becomes stiff.
• סיזאַנאַל סטאָרידזש: If storing the awning for an extended period, ensure it is clean and dry. Store in a cool, dry place away from direct sunlight.

7. טראָובלעשאָאָטינג

אויב איר טרעפט פּראָבלעמען מיט אייער מאַרקיזע, זעט די פאלגענדע געוויינטלעכע פּראָבלעמען און לייזונגען:

8. ספּעסאַפאַקיישאַנז

Detailed specifications for the VOUNOT Vertical Awning (Model: 15661609386333).

Image 8.1: Awning dimensions diagram.

9. וואָראַנטי און שטיצן

For warranty information or technical support, please refer to the product packaging or contact VOUNOT customer service directly. Keep your purchase receipt as proof of purchase.

• קונה סערוויס: Refer to the contact information provided with your product or on the official VOUNOT webפּלאַץ.
• צוריקקער און וועקסל: Follow the retailer's policy for returns or exchanges if the product is defective or not as described.
