LKAHYUIBC FY8862 Handheld Digital Decibel Meter User Manual

1. הקדמה

The LKAHYUIBC FY8862 is a handheld digital decibel meter designed for accurate measurement of sound levels in various environments. It features A-weighted decibel filtering, a 0.1 dB resolution, and a measurement range of 30 to 130 dB. This device is suitable for environmental noise monitoring, industrial applications, and general sound testing in homes or factories. This manual provides essential information for the proper setup, operation, and maintenance of your decibel meter.

Figure 1: The FY8862 Decibel Meter and its retail packaging, illustrating the compact design and included instruction sheet.

2. פּראָדוקט פֿעיִקייטן

• פּינטלעך מעזשערמאַנט: A-weighted decibel filtering with 0.1 dB resolution, ranging from 30 to 130 dB.
• פּאָרטאַטיוו פּלאַן: Lightweight and handheld for easy one-hand operation, ideal for various settings.
• קלאָר לקד ווייַז: Provides real-time noise readings for easy identification of sound levels.
• ווערסאַטאַל אַפּלאַקיישאַנז: Suitable for factories, schools, offices, construction sites, and HVAC testing.
• Quick Response Microphone: Built-in electret condenser microphone ensures reliable sound level detection.
• דאַטאַ האַלטן פֿונקציע: Allows freezing of the current measurement on the display.
• Peak Display: Shows the maximum sound level detected.
• אָווערלאָאַד ווייַז: Indicates when the measurement exceeds the device's range.
• הויך און נידעריק סענסיטיוויטי מאָדעס: Adaptable for different measurement requirements.
• FAST/SLOW Response Toggle: Adjusts the measurement response time.
• נידעריק באַטערי אַלערט: Notifies the user when battery power is low.

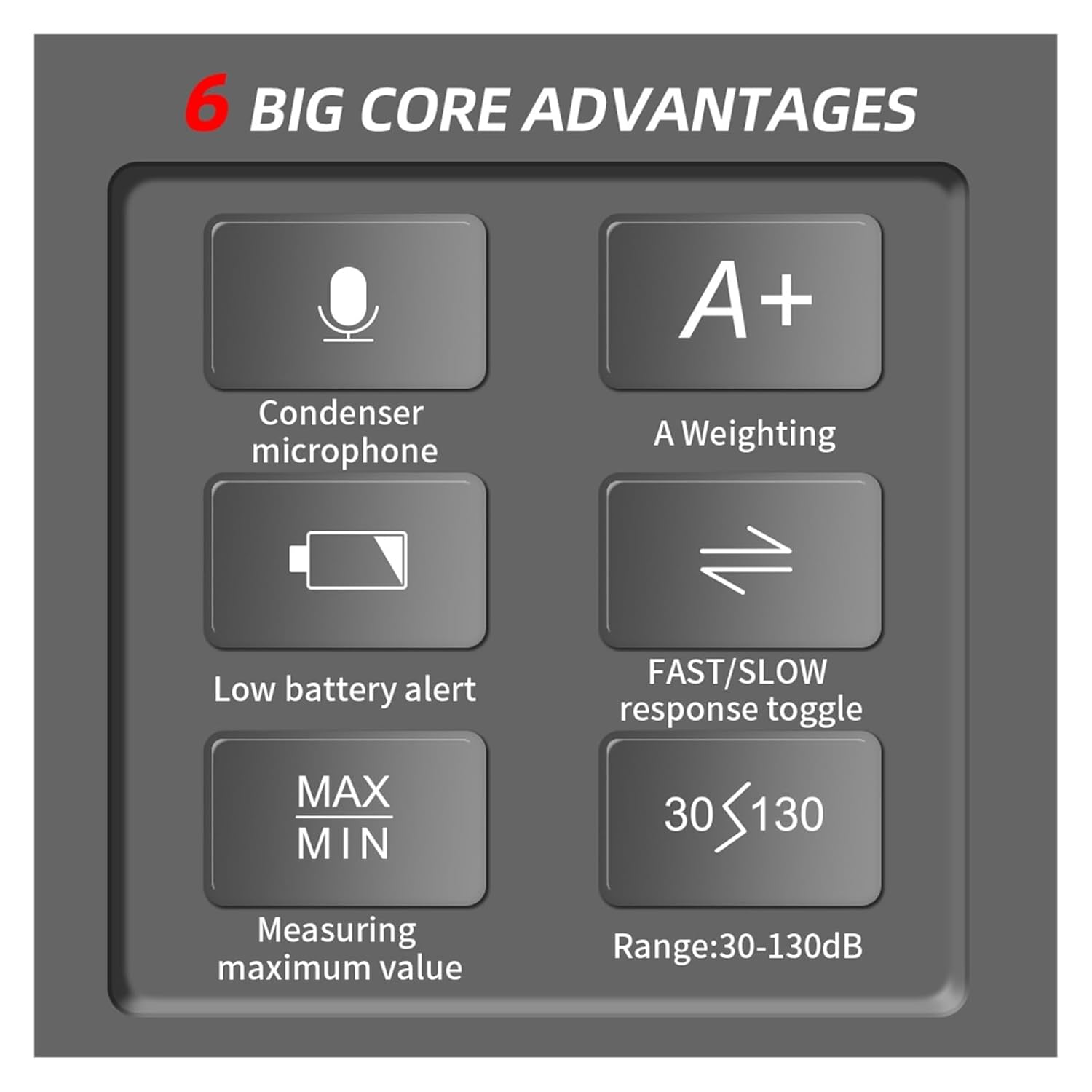

Figure 2: Key features of the FY8862 Decibel Meter, including condenser microphone, A-weighting, low battery alert, FAST/SLOW response, MAX/MIN value, and 30-130dB range.

Figure 3: Design details highlighting the windshield for accurate measurement, clear LCD display, and comfortable silicone buttons.

3. סעטאַפּ

1. ייַנמאָנטירונג פון באַטאַרייע: Open the battery compartment (usually located at the back or bottom of the device). Insert the required batteries, ensuring correct polarity. Close the compartment securely.
2. מאַכט אויף: דריקן און האַלטן די מאַכט קנעפּל (⏻) for a few seconds until the LCD display illuminates.
3. ערשט טשעק: The device will perform a self-test. Ensure the display shows a reading and no error messages.

4. אַפּערייטינג ינסטרוקטיאָנס

4.1 גרונטלעכע מעסטונג

1. מאַכט אויף: דרוק דעם מאַכט קנעפּל (⏻) צו אנצינדן דעם אפאראט.
2. פּאַזישאַנינג: Hold the decibel meter with the microphone pointed towards the sound source. Ensure no obstructions are blocking the microphone.
3. לייענען ווייַז: The current sound level in dB will be displayed on the LCD screen.

Figure 4: The FY8862 Decibel Meter in use, showing its ergonomic design and clear digital display.

4.2 פונקציאָנירן קנעפּלעך

• מאַכט קנעפּל (⏻): דרוק צו קער אויף / אַוועק די מיטל.
• מאַקס קנעפּל: Press to display the maximum sound level recorded since the device was powered on or the MAX function was reset. Press again to exit MAX mode.
• שנעל/לאנגזאם קנעפּל: Toggles between Fast (125ms) and Slow (1s) response times for measurement. Fast response is suitable for capturing sudden noise peaks, while Slow response provides a more averaged reading.

פיגורע 5: דעטאַילעד view of the decibel meter's display showing current reading, MAX indicator, and FAST/SLOW response mode.

Figure 6: Illustration of the electret condenser microphone and how the display shows maximum, real-time, and average sound values.

4.3 Alarm Lights

The device features red/green alarm lights to visually indicate sound levels:

• גרין ליכט: Illuminates when the sound level is below a certain threshold (e.g., <60dB).
• רויט ליכט: Illuminates when the sound level exceeds a certain threshold (e.g., >60dB), indicating potentially noisy conditions.

Figure 7: Visual representation of the red and green alarm lights indicating sound levels below and above 60dB.

4.4 Understanding Noise Levels

Refer to the following general guide for common noise ranges in daily life:

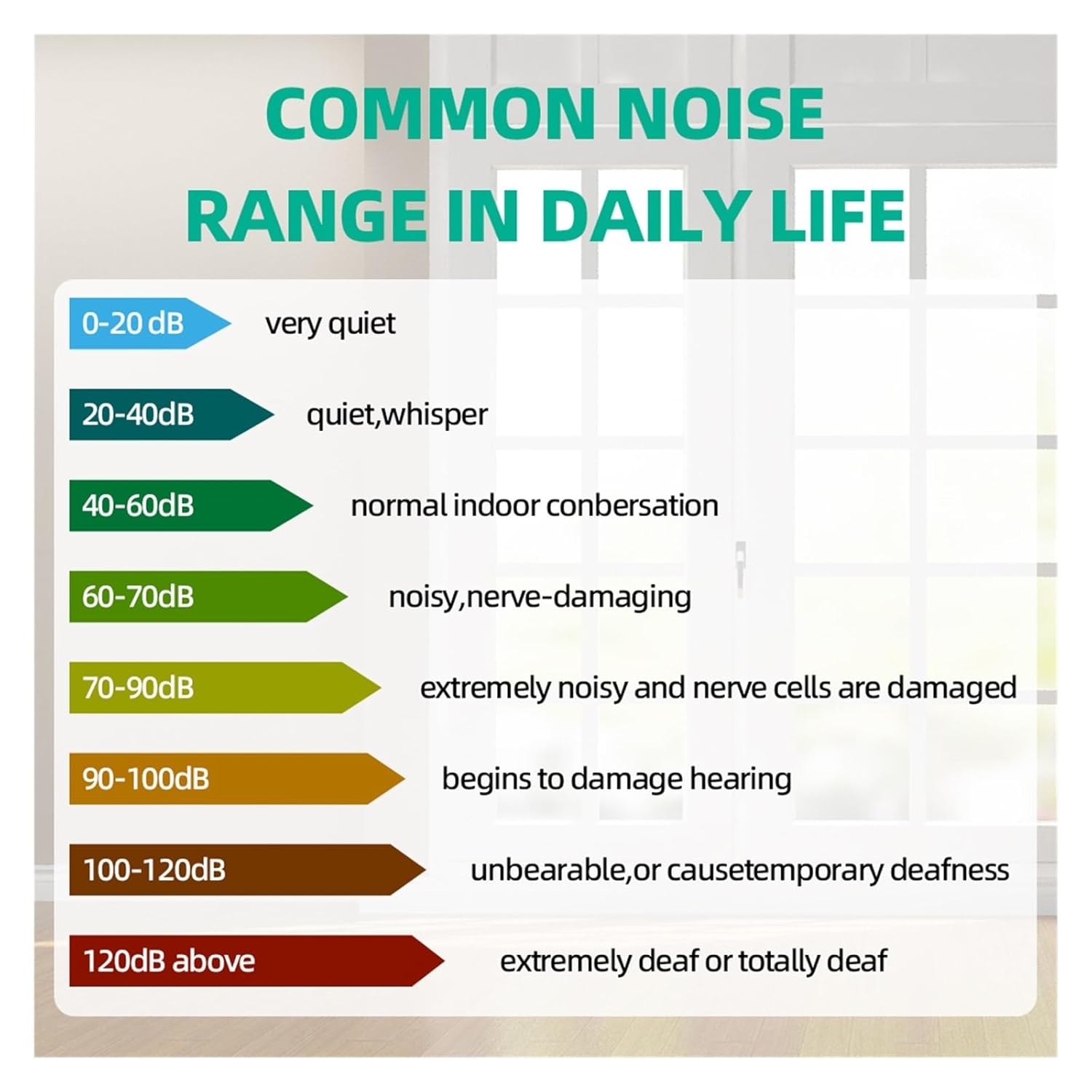

Figure 8: Chart detailing typical decibel ranges and their corresponding perceived loudness and potential impact.

5. וישאַלט

• רייניקונג: ווישט אָפּ דאָס אַפּאַראַט מיט אַ ווייכן, טרוקענעם שטאָף. ניצט נישט קיין שרײַבנדיקע רייניגערס אָדער סאָלווענטן.
• סטאָרידזש: Store the decibel meter in a cool, dry place away from direct sunlight and extreme temperatures. Remove batteries if the device will not be used for an extended period.
• מיקראָפאָן באַהאַנדלונג: Keep the microphone clean and free from dust or debris to ensure accurate readings. Avoid touching the microphone directly.

6. טראָובלעשאָאָטינג

7. ספּעסאַפאַקיישאַנז

• מאָדעל: FY8862
• מעזשערמאַנט קייט: 30 ~ 130 דב
• רעזאלוציע: 0.1 דב
• וואָג: א-ווייטיד
• ענטפער צייט: FAST (125ms), SLOW (1s)
• מיקראָפאָן: עלעקטראָט קאַנדענסער מיקראָפאָן
• דאַטן האַלטן: יא
• Peak Display: יא
• אָווערלאָאַד ווייַז: יא
• הויך און נידעריק סענסיטיוויטי מאָדעס: יא
• מאַכט מקור: (Battery type not specified, typically AAA or 9V)
• דימענסיעס: Approximately 0.39 x 0.39 x 0.39 inches (Product dimensions are likely incorrect from source, refer to actual product for accurate size)
• וואָג: Approximately 1.1 Pounds (Product weight is likely incorrect from source, refer to actual product for accurate weight)
• פאַבריקאַנט: LKAHYUIBC

8. וואָראַנטי און שטיצן

For warranty information, technical support, or service inquiries, please refer to the warranty card included with your product or contact LKAHYUIBC customer service through their official website or the retailer where the product was purchased. Please have your model number (FY8862) and purchase date available when contacting support.
