הקדמה
This manual provides essential information for the safe and efficient use of your WEIZE Hardtail Mountain Bike, Model KBB-6012. Please read this manual thoroughly before assembly, operation, or maintenance to ensure proper function and safety. Keep this manual for future reference.
Image: The WEIZE Hardtail Mountain Bike KBB-6012, featuring a white frame with blue accents, 29-inch wheels, and front suspension.
זיכערקייַט אינפֿאָרמאַציע
Always prioritize safety when riding your bicycle. Failure to follow safety guidelines can result in serious injury or death.
- טראָגט שטענדיק אַ העלם וואָס טרעפֿט זיכערהייט סטאַנדאַרדן.
- Ensure brakes are functioning correctly before each ride.
- קאָנטראָלירן רייַף דרוק און צושטאַנד קעסיידער.
- Be aware of your surroundings and traffic laws.
- Use appropriate lighting when riding in low-light conditions.
- דו זאלסט נישט פאָר אונטער דער השפּעה פון אַלקאָהאָל אָדער דרוגס.
- Perform regular maintenance checks as outlined in this manual.
סעטאַפּ
Your WEIZE Hardtail Mountain Bike is designed for minimal assembly. While the product is largely pre-assembled, some final steps and adjustments are required before your first ride. A basic tool kit is included to assist with these steps.
ערשטע פֿאַרזאַמלונג טריט
- ייַנמאָנטירונג פון האַנדלעבאַר: Securely attach the handlebar to the stem. Ensure it is centered and tightened to prevent rotation.
- פראָנט ראָד ינסטאַלירונג: Install the front wheel, ensuring it is properly aligned and secured with the quick-release or axle nuts.
- פּעדאַל ינסטאַלירונג: Attach the pedals. Note that pedals are typically marked 'L' for left and 'R' for right. The left pedal tightens counter-clockwise, and the right pedal tightens clockwise.
- זיץ פּאָסטן און זאָטל אַדזשאַסטמאַנט: Insert the seat post into the frame and adjust the saddle height for comfortable pedaling. Ensure the quick-release lever or bolt is securely tightened.
Pre-Ride Adjustments
- ברייק אַדזשאַסטמאַנט: Verify that both front and rear linear pull (V-brakes) are properly aligned and engage smoothly. Adjust cable tension as needed to ensure effective stopping power without rubbing.
- דעראַילער אַדזשאַסטמענט: Check the 21-speed trigger shifters and derailleurs for smooth and precise gear changes. Fine-tune cable tension if gears are skipping or not shifting correctly.
- טייער דרוק: בלאָזט אויף די רעדער ביזן רעקאָמענדירטן דרוק וואָס איז אָנגעוויזן אויף דער זייט פון די רעדער.
בילד: א זייט view of the WEIZE Hardtail Mountain Bike with key dimensions: 69 inches in length, 42 inches in overall height, and 39 inches to the top of the saddle.
אַפּערייטינג
Your WEIZE Hardtail Mountain Bike is equipped with features designed for trail riding and various road conditions. Understanding its components will enhance your riding experience.
Gear Shifting (21-Speed Trigger Shifter)
The bicycle features a 21-speed Shimano trigger shifter system, allowing for precise control over your speed and effort across different terrains.
- רעכטער שיפטער: Controls the rear derailleur (7 speeds). Use this for smaller adjustments in speed.
- לינקער שיפטער: Controls the front derailleur (3 speeds). Use this for larger changes in gearing, especially when encountering significant inclines or declines.
- Shift gears smoothly by pedaling lightly while actuating the shifter. Avoid shifting under heavy load.

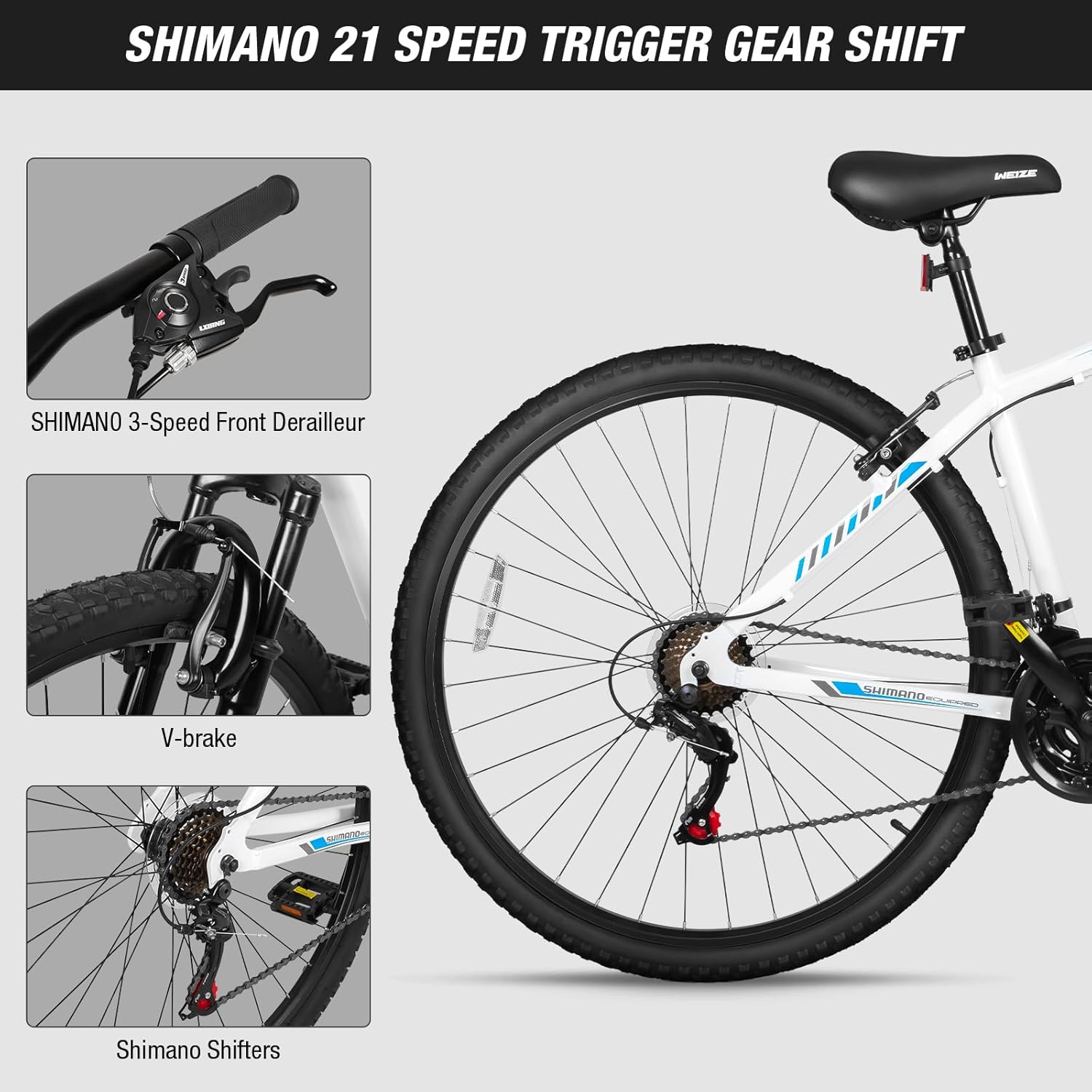

בילד: דעטאַלירט views of the Shimano 21-speed trigger gear shift system, showing the 3-speed front derailleur, the V-brake mechanism, and the handlebar-mounted Shimano shifters.
Braking System (Linear Pull V-Brakes)
The bike is equipped with reliable linear pull (V-brakes) on both the front and rear wheels for effective stopping power.
- פראָנט בראַק: Typically controlled by the left lever. Provides strong stopping power.
- דערציען ברעאַק: Typically controlled by the right lever. Helps control speed and stability.
- Apply both brakes simultaneously for controlled and efficient stopping. Avoid sudden, hard braking with only the front brake, especially on loose surfaces.
בילד: נאָענט-אַרויף views highlighting the front and rear V-brakes for reliable stopping, and the trigger shifter for flexible gear changes.
Riding on Various Terrains
This hardtail mountain bike is suitable for a variety of road conditions, including trails, gravel, snowy paths, slopes, and ceramic tile surfaces.
Image: The WEIZE mountain bike is depicted alongside various terrains it is suitable for, including snowy paths, gravel roads, sloped trails, and urban ceramic tile surfaces.
Image: A rider on the WEIZE mountain bike navigating a set of outdoor stairs, illustrating the bike's capability for varied terrain and trail exploration.
וישאַלט
רעגולערע אויפהאלטונג גאראנטירט די לאנגעוויטי און זיכערע אפעראציע פון אייער וועלאָסיפּעד.
- רייניקונג: Regularly clean your bike, especially after riding in wet or muddy conditions. Use mild soap and water, then rinse thoroughly and dry.
- שמירן: Keep the chain, derailleurs, and brake pivots lubricated with appropriate bicycle lubricant. Avoid over-lubrication.
- טייער דרוק: Check tire pressure before each ride and maintain it within the recommended range.
- טאָרמאָז פּאַדס: Inspect brake pads for wear. Replace them when they show signs of significant wear or hardening.
- באָלט טייטנאַס: Periodically check all bolts and quick-release levers for proper tightness.
בילד: דעטאַלירט viewס ווייַזןasing the bike's front suspension for shock absorption, the spacious and comfortable saddle, and the durable aluminum frame construction.
טראָובלעשאָאָטינג
This section addresses common issues you might encounter with your bicycle.
| פּראָבלעם | מעגלעך סיבה | לייזונג |
|---|---|---|
| Gears are skipping or not shifting smoothly | Derailleur cable tension incorrect, bent derailleur hanger, dirty chain | Adjust derailleur cable tension, inspect and straighten/replace hanger, clean and lubricate chain. |
| ברעיקס פילן זיך שוואָמי אָדער נישט עפעקטיוו | Brake cable loose, worn brake pads, misaligned calipers | Tighten brake cable, replace worn brake pads, adjust caliper alignment. |
| Tires lose air quickly | Puncture in inner tube, loose valve stem, faulty valve core | Inspect tire and tube for punctures and repair/replace, tighten valve stem, replace valve core. |
| Creaking noises while pedaling | Loose crank arms, bottom bracket needs service, loose pedals | Check and tighten crank arm bolts, service bottom bracket, ensure pedals are securely tightened. |
ספּעסאַפאַקיישאַנז
Key technical specifications for the WEIZE Hardtail Mountain Bike KBB-6012:
- מאָדעל נומער: KBB-6012
- בייק טיפּ: Mountain בייק
- ראָד גרייס: 29 אינטשעס
- נומער פון ספּידז: 21
- ראַם מאַטעריאַל: אַלומינום
- סאַספּענשאַן טיפּ: פראָנט
- ברעיק סטיל: Linear Pull (V-Brake)
- Gear Shifter Type: צינגל
- Intended Riding Terrain: Mountain Terrain, Trail
- Minimum User Height: 64 אינטשעס (162.5 סענטימעטער)
- עלטער קייט: דערוואַקסן
- קאָליר: ווייַס
וואָראַנטי אינפֿאָרמאַציע
For detailed warranty information regarding your WEIZE Hardtail Mountain Bike, please refer to the documentation included with your purchase or visit the official WEIZE webזייטל. גאַראַנטיע טערמינען און באדינגונגען קענען זיין אַנדערש.
שטיצן
If you require further assistance, have questions not covered in this manual, or need to report an issue, please contact WEIZE customer support through their official channels. Refer to your purchase documentation for specific contact details.
