Generic KFL 10mm Flange Bearing with Pillow Block Instruction Manual

1. הקדמה

This manual provides essential information for the proper installation, operation, and maintenance of the Generic KFL 10mm Flange Bearing with Pillow Block. Adhering to these instructions will help ensure optimal performance and extend the service life of the bearing. This bearing is designed for various industrial machinery applications.

2. פּראָדוקט איבערview

The KFL series flange bearing with pillow block is a type of mounted bearing unit. It consists of a bearing insert housed within a zinc alloy pillow block. This design allows for easy mounting and alignment, making it suitable for applications where the shaft axis is parallel to the mounting surface. The inner ring is typically fixed directly onto the shaft, while the outer ring is secured within the housing or machine base.

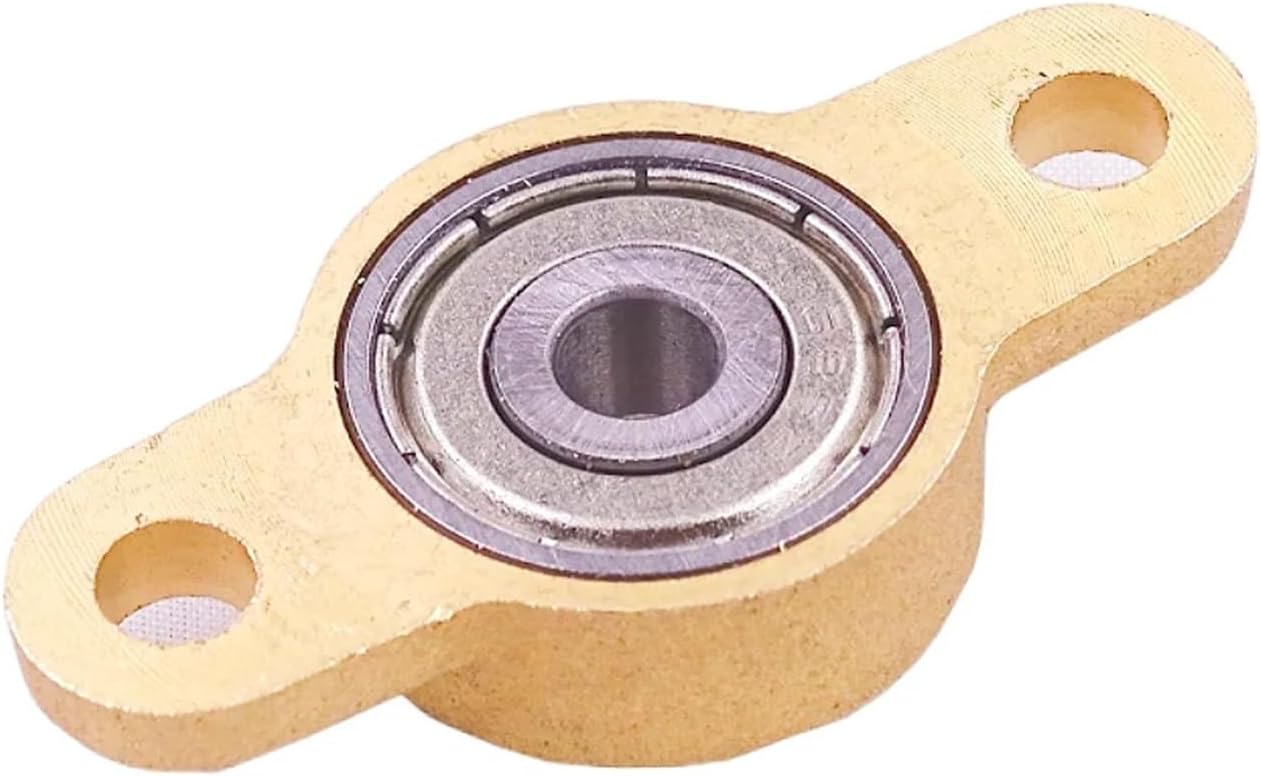

Figure 2.1: Close-up of the KFL 10mm Flange Bearing.

3. ספּעסאַפאַקיישאַנז

פיגור 3.1: דימענסיאָנעל view of the KFL Flange Bearing.

4. ייַנמאָנטירונג און סעטאַפּ

Proper installation is crucial for the longevity and performance of the bearing unit.

1. צוגרייטונג: Ensure the shaft and mounting surface are clean, free from burrs, and properly aligned.
2. Shaft Mounting: Carefully slide the inner ring of the bearing onto the shaft. The inner ring is designed to be fixed directly onto the shaft. Avoid excessive force that could damage the bearing.
3. Housing Mounting: Position the pillow block housing onto the machine base or mounting surface. Secure it using appropriate fasteners through the mounting holes. Ensure the bearing is properly seated and aligned to prevent undue stress.
4. אַליינמאַנט: Verify that the shaft rotates freely without binding or excessive friction after installation. Misalignment can lead to premature wear and failure.

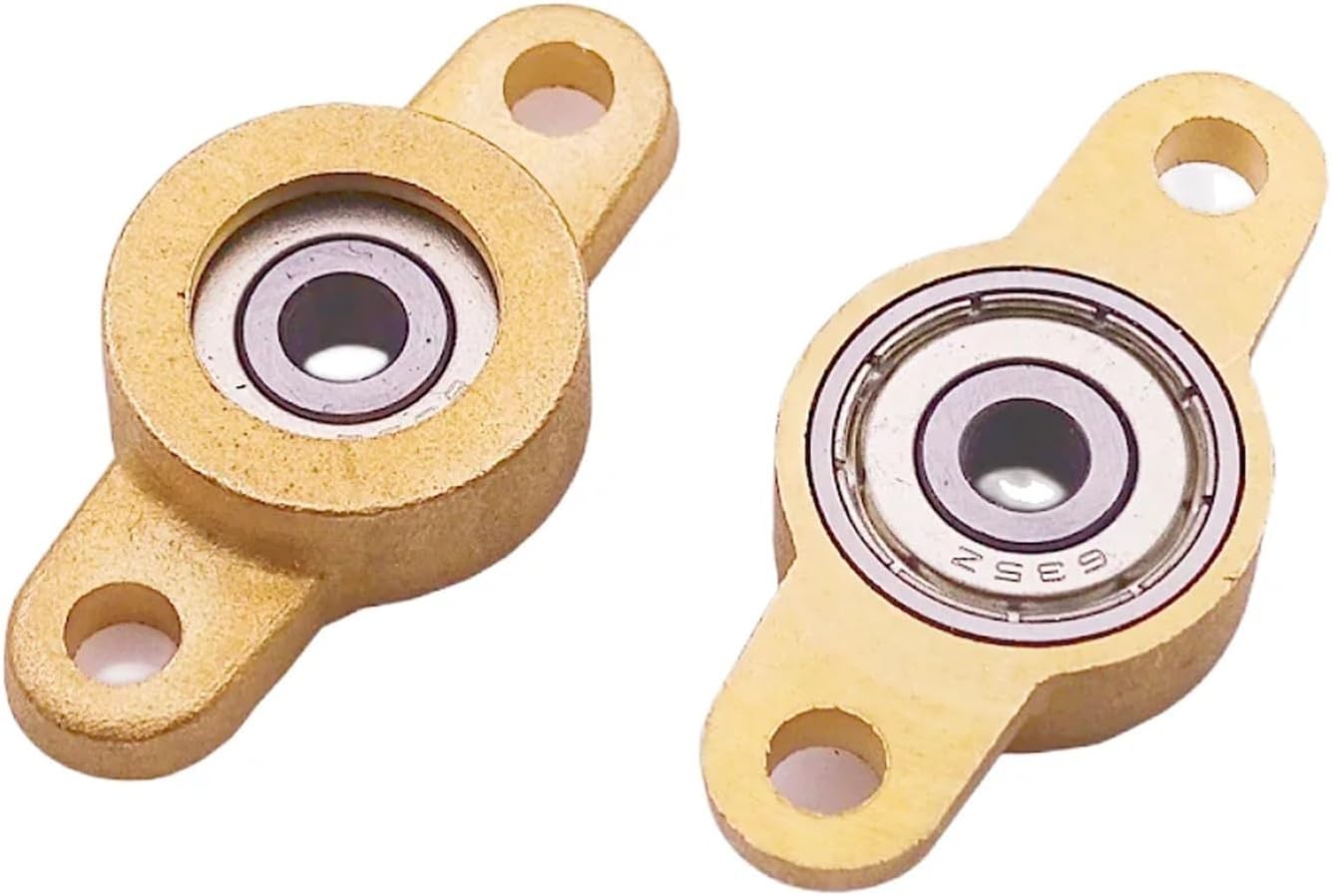

Figure 4.1: KFL Flange Bearings ready for installation.

5. אָפּעראַציע

Once installed, the KFL 10mm flange bearing operates by supporting radial and axial loads while allowing rotational movement of the shaft. The choice of rolling elements within the bearing allows it to meet various load and speed requirements. Ensure the operating environment is within the bearing's design parameters.

6. וישאַלט

Regular maintenance is essential for extending the service life of the bearing.

• שמירן: Good lubrication is critical. Periodically check and replenish lubricant as required by the application's operating conditions and manufacturer recommendations for the specific bearing type.
• ינווייראַנמענאַל טנאָים: Maintain an appropriate working environment. Protect the bearing from excessive dust, moisture, and corrosive substances, which can degrade performance and lead to premature failure.
• דורכקוק: Regularly inspect the bearing for signs of wear, damage, or unusual noise during operation. Address any issues promptly.

7. טראָובלעשאָאָטינג

If you encounter issues with your KFL 10mm flange bearing, consider the following common problems and solutions:

• יבעריק ראַש אָדער ווייבריישאַן:
  • מעגלעך סיבה: Insufficient lubrication, misalignment, worn bearing components, or contamination.
  • לייזונג: Check lubrication, verify alignment, inspect for damage, and clean the bearing area.
• איבערהייצונג:
  • מעגלעך סיבה: איבער-שמירונג, אונטער-שמירונג, איבערגעטריבענע לאסט, אדער מיסאליינמענט.
  • לייזונג: Adjust lubrication levels, reduce load if possible, and check alignment.
• פריצייטיגע טראָגן:
  • מעגלעך סיבה: Contamination, improper installation, excessive load, or inadequate lubrication.
  • לייזונג: Ensure a clean environment, re-check installation procedures, verify load capacity, and maintain proper lubrication.

If problems persist, consult a qualified technician or the equipment manufacturer.

8. זיכערקייַט אינפֿאָרמאַציע

Always observe general safety precautions when working with machinery and mechanical components.

• טראָגט פּאַסיקע פּערזענלעכע שוץ-עקוויפּמענט (PPE), ווי זיכערהייטס-ברילן און הענטשקעס.
• Ensure machinery is powered off and locked out before performing any installation or maintenance.
• Handle bearings carefully to avoid injury or damage to the component.
• Dispose of old lubricants and components responsibly according to local regulations.

9. וואָראַנטי און שטיצן

Specific warranty information for this Generic product is not provided in the available documentation. For support or warranty inquiries, please refer to the retailer or point of purchase.
