Generic Carburetor Kit Instruction Manual

1. הקדמה

This manual provides essential information for the proper installation, maintenance, and troubleshooting of your new Generic Carburetor Kit. This kit is designed as a replacement part for specific Briggs & Stratton lawn mower models. Please read these instructions thoroughly before attempting any installation or maintenance.

2. פּראָדוקט איבערview און קאַמפּאַטאַבילאַטי

This carburetor kit is a replacement component for Briggs & Stratton engines found in various lawn mower models. It is engineered to meet the specifications of the original parts, ensuring reliable performance.

Compatible Briggs & Stratton Models:

• 12D802, 12F702, 12F802, 12F812, 12H702, 12H712, 12H802, 12H807, 12H812, 12M802, 12M807, 12M882, 12M887, 12Q802, 12X802, 12X812, 12X882
• 121K02, 122K02, 122K05, 122K07, 122K09, 122K82, 123K02, 123K05, 123K07, 123K09, 124T02, 124T12, 125K02, 125K05, 125K07, 125K09
• 127712, 127802, 128702, 128712, 128802, 128812

ריפּלייסיז טייל נומערן: קסנומקס, קסנומקס, קסנומקס, קסנומקס, קסנומקס, קסנומקס, קסנומקס, קסנומקס, קסנומקס.

פיגורע 2.1: פראָנט view of the Generic Carburetor Kit. This image shows the main body and fuel inlet.

3. זיכערקייַט אינפֿאָרמאַציע

ווארענונג:

• Always disconnect the spark plug wire before performing any maintenance or installation to prevent accidental engine startup.
• Work in a well-ventilated area. Fuel and fuel vapors are highly flammable and can be dangerous.
• טראָגט פּאַסיקע פּערזענלעכע שוץ-עקוויפּמענט, אַרייַנגערעכנט הענטשקעס און אויג-שוץ.
• Allow the engine to cool completely before working on it to avoid burns.
• אויב איר זענט נישט זיכער וועגן קיין שריט, קאָנסולטירט אַ קוואַליפֿיצירטן סערוויס טעכניקער.

4. פּעקל אינהאַלט

Your Generic Carburetor Kit package includes the following items:

• 1 x Carburetor
• (Note: Gaskets, fuel lines, or other accessories may or may not be included depending on the specific kit. Please verify contents upon receipt.)

5. ינסטאַלירונג אינסטרוקציעס

Replacing a carburetor requires mechanical aptitude. If you are not comfortable performing this procedure, it is recommended to seek professional assistance.

5.1. צוגרייטונג

1. Ensure the engine is cool and the spark plug wire is disconnected.
2. Turn off the fuel supply valve (if equipped) or clamp the fuel line.
3. Place a suitable container under the carburetor to catch any spilled fuel.
4. Take photos of the existing carburetor and hose connections for reference during reassembly.

5.2. אַראָפּנעמען דעם אַלטן קאַרבוראַטאָר

1. פֿאָרזיכטיק אָפּשטעקן די ברענשטאָף רער פֿון די קאַרבוראַטאָר.
2. Disconnect any linkage rods or springs connected to the throttle and choke plates. Note their positions.
3. Remove the mounting bolts or nuts that secure the carburetor to the engine.
4. Gently remove the old carburetor and any old gaskets. Inspect the intake manifold for debris.

5.3. אינסטאַלאַציע פון ​​​​​​נייַעם קאַרבוראַטאָר

1. Ensure mating surfaces are clean and free of old gasket material.
2. Install new gaskets (if provided) on both sides of the carburetor.
3. Position the new carburetor onto the mounting studs/bolts.
4. Secure the carburetor with the mounting bolts/nuts, tightening them evenly to prevent warping. Do not overtighten.
5. Reconnect the throttle and choke linkage rods/springs, referring to your earlier photos.
6. Reconnect the fuel line securely. Ensure there are no kinks or leaks.

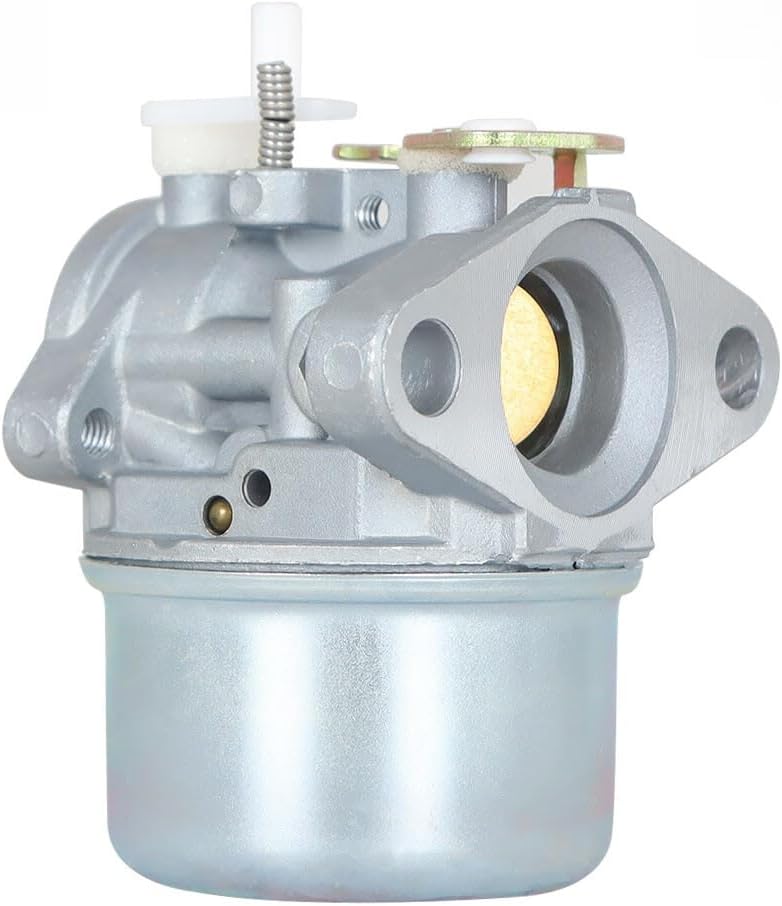

פיגורע 5.1: זייַט view of the carburetor showing mounting holes and fuel inlet.

6. Post-Installation Checks and Initial Start-up

1. Double-check all connections: fuel line, linkages, and mounting bolts.
2. Ensure no tools or debris are left near moving engine parts.
3. ריקאַנעקט די אָנצינדן צאַפּן דראָט.
4. Open the fuel supply valve. Allow a few moments for the carburetor bowl to fill. Check for any fuel leaks.
5. Start the engine according to your lawn mower's manufacturer instructions.
6. Allow the engine to warm up. If the engine runs rough or stalls, refer to the Troubleshooting section.

7. וישאַלט

Proper maintenance extends the life of your carburetor and ensures optimal engine performance.

• ברענוואַרג קוואַליטעט: Always use fresh, clean fuel. Stale or contaminated fuel is a primary cause of carburetor issues. Consider using a fuel stabilizer if the equipment will be stored for extended periods.
• ברענוואַרג פילטער: Regularly inspect and replace the fuel filter (if equipped) to prevent debris from reaching the carburetor.
• לופט פילטער: A dirty air filter can cause the engine to run rich, affecting carburetor performance. Clean or replace the air filter as recommended by your engine manufacturer.
• רייניקונג: If the carburetor becomes clogged, it may require cleaning. This typically involves disassembling the carburetor and cleaning jets and passages with carburetor cleaner. This is an advanced procedure and should only be attempted by experienced individuals.

8. טראָובלעשאָאָטינג

This section addresses common issues that may arise after carburetor installation or during operation.

For persistent issues, it is recommended to consult a qualified small engine mechanic.

9. ספּעסאַפאַקיישאַנז

This carburetor kit is manufactured from high-strength components for extended service life.

• סאָרט: גענעריק
• נומער וואָג: 1 פונט
• פּראָדוקט דימענשאַנז: 1 x 1 x 1 inches (Approximate, refer to image for detailed measurements)
• Manufacturer Part Number: 1 (Internal reference)
• ASIN: B0F9DLP6PS

Figure 9.1: Carburetor kit with key dimensions indicated.

10. וואָראַנטי און שטיצן

For specific warranty information regarding this Generic Carburetor Kit, please refer to the product listing where you purchased the item or contact the seller directly. Support for installation or troubleshooting beyond this manual's scope should be directed to a professional small engine technician.
