Generic GX22 Carburetor Kit Instruction Manual

הקדמה

This manual provides essential information for the installation, operation, and maintenance of your new Generic GX22 Carburetor Kit. This kit is designed as a direct replacement for specific Honda 4-stroke engines, ensuring efficient fuel delivery and optimal engine performance. Please read these instructions thoroughly before proceeding with installation or use.

זיכערקייַט אינפֿאָרמאַציע

Always prioritize safety when working with engine components. Failure to follow these safety guidelines may result in injury or damage to equipment.

• Ensure the engine is completely off and cooled down before beginning any work.
• דיסקאַנעקט די אָנצינדן צאַפּן דראָט צו פאַרמייַדן אַקסאַדענטאַל סטאַרטינג.
• ארבעט אין א גוט-ווענטילירטע געגנט צו פארמיידן אריינאטעמען ברענשטאָף פארע.
• טראָגט פּאַסיקע פּערזענלעכע שוץ-עקוויפּמענט, אַרייַנגערעכנט זיכערהייט ברילן און הענטשקעס.
• Handle fuel with extreme care. Avoid spills and ensure no open flames or sparks are present.
• האַלט אַלע טיילן און מכשירים אַוועק פון קינדער און חיות.
• אויב איר זענט נישט זיכער וועגן קיין שריט, קאָנסולטירט אַ קוואַליפֿיצירטן טעכניקער.

פּעקל אינהאַלט

Verify that all components listed below are present in your kit before beginning installation. If any parts are missing, please contact the seller.

• 1x קאַרבוראַטאָר
• 1x Fuel Line Kit
• 2x Primer Bulbs
• 1x Grommet
• 1x Gasket

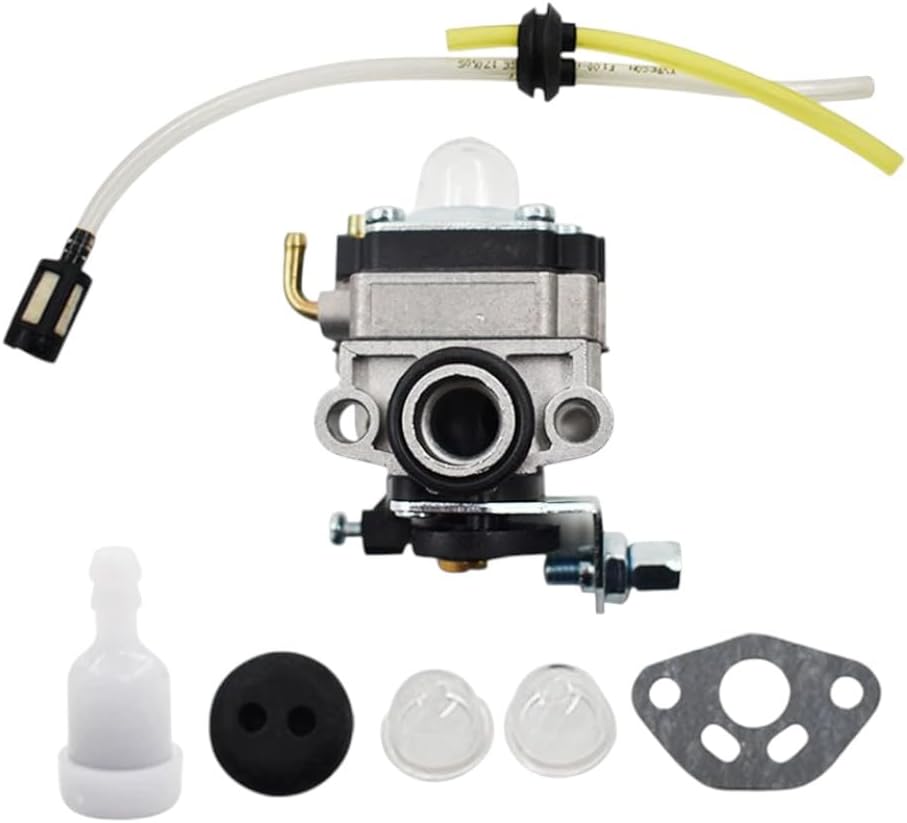

Image: All components of the carburetor kit, including the carburetor, fuel lines, primer bulbs, grommet, and gasket, are displayed on a white background.

קאַמפּאַטאַבילאַטי

This carburetor kit is compatible with the following Honda 4-stroke engine models:

• האָנדאַ גקס 22
• האָנדאַ גקס 25
• האָנדאַ גקס 31
• האָנדאַ גקס 35
• Honda FG100 Little Wonder Mantis Tiller
• Honda HHE31C Edger
• Honda HHT31S Trimmer series
• Honda UMK431 Trimmer series

The Manufacturer Part Number (MPN) for this carburetor is 16100-ZM5-803.

ינסטאַללאַטיאָן גייד

This section provides general steps for replacing a carburetor. Specific procedures may vary slightly depending on your engine model. Refer to your engine's service manual for detailed instructions if needed.

1. צוגרייטונג: Ensure the engine is cool and the fuel tank is empty or the fuel line is clamped. Disconnect the spark plug wire.
2. אַראָפּנעמען לופט פילטער אַסעמבלי: Carefully remove the air filter housing and air filter element to gain access to the carburetor.
3. Disconnect Fuel Lines: Identify and disconnect the fuel lines connected to the old carburetor. Be prepared for minor fuel spills.
4. Disconnect Throttle Linkage: Detach the throttle cable and any other linkages connected to the carburetor. Note their positions for reassembly.

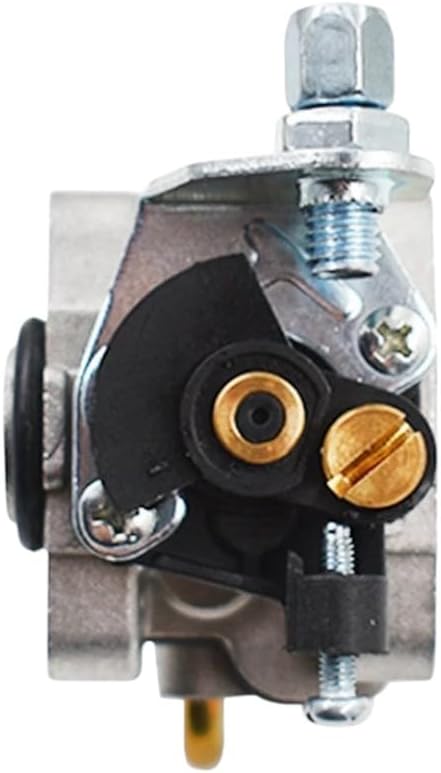

   בילד: אויבן view of the carburetor, highlighting the throttle linkage mechanism and adjustment screws.

5. אַראָפּנעמען אַלטן קאַרבוראַטאָר: Unbolt the old carburetor from the engine manifold. Remove any old gaskets.
6. אינסטאַלירן אַ נייע גאַסקעט: Place the new gasket provided in the kit onto the engine manifold, ensuring proper alignment.
7. Mount New Carburetor: Position the new carburetor onto the gasket and secure it with the mounting bolts. Do not overtighten.

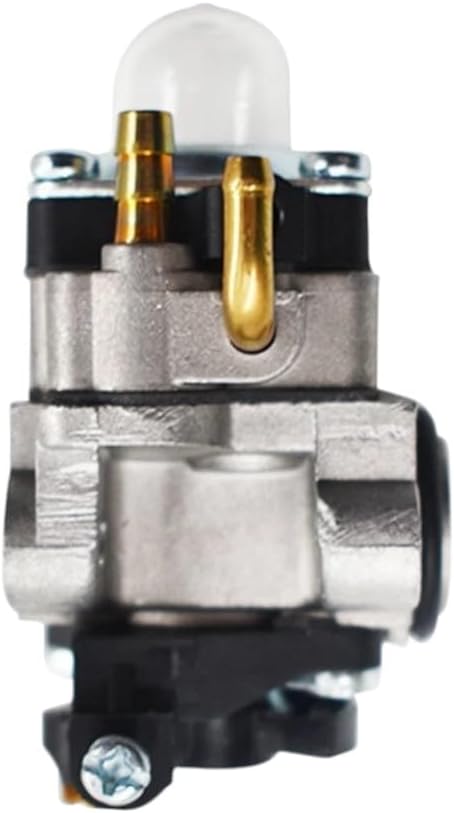

   בילד: זייט view of the carburetor, showing the fuel inlet and outlet ports.
8. Connect Throttle Linkage: Reattach the throttle cable and other linkages to the new carburetor. Ensure smooth operation.
9. פֿאַרבינדן ברענשטאָף ליניעס: Attach the new fuel lines from the kit to the carburetor and fuel tank. Ensure all connections are secure and leak-free. Replace the primer bulb and grommet if necessary.


   בילד: אונטן view of the carburetor, featuring the clear primer bulb and fuel connections.

10. Reinstall Air Filter Assembly: Reattach the air filter element and housing.
11. לעצט טשעקס: Double-check all connections, ensure no tools or debris are left in the engine area. Reconnect the spark plug wire.

אָפּעראַציע

After successful installation, follow these steps to start and operate your engine:

1. Fill the fuel tank with the appropriate fuel type for your engine.
2. פּריימט דעם קאַרבוראַטאָר דורך דריקן די פּריימער באַלבע עטלעכע מאָל ביז ברענשטאָף איז קענטיק.
3. Set the choke lever to the "Choke" or "Start" position (if applicable).
4. ציט פעסט דעם סטאַרטער-שנור ביז דער מאָטאָר הייבט זיך אָן.
5. Once the engine starts, gradually move the choke lever to the "Run" position.
6. Allow the engine to warm up for a few minutes before operating under load.

The carburetor is pre-adjusted for optimal performance. No further adjustments should be necessary under normal operating conditions.

וישאַלט

Regular maintenance helps ensure the longevity and reliable performance of your carburetor and engine.

• ברענוואַרג קוואַליטעט: Always use fresh, clean fuel. Stale or contaminated fuel is a common cause of carburetor issues.
• ברענוואַרג פילטער: Inspect and replace the fuel filter regularly to prevent debris from entering the carburetor.
• לופט פילטער: Keep the air filter clean to ensure proper air-fuel mixture. A dirty air filter can cause the engine to run rich.
• סטאָרידזש: Before long-term storage, drain the fuel tank and run the engine until it stops to clear fuel from the carburetor, or use a fuel stabilizer.
• דורכקוק: Periodically inspect fuel lines, primer bulb, and gaskets for cracks, leaks, or signs of wear. Replace as needed.

טראָובלעשאָאָטינג

זעט די טאבעלע אונטן פאר אלגעמיינע פראבלעמען און מעגליכע לייזונגען.

If troubleshooting steps do not resolve the issue, it is recommended to consult a professional engine technician.

ספּעסאַפאַקיישאַנז

וואָראַנטי און שטיצן

Specific warranty information for this Generic product is not provided in the product details. For any questions regarding product defects, missing parts, or technical support, please contact the seller directly through your purchase platform. Customer satisfaction is important, and the seller aims to respond to inquiries within 6 hours.
