Generic PCI Express USB 3.2 Gen1 Expansion Card User Manual

1. הקדמה

This manual provides detailed instructions for the installation, operation, and maintenance of your Generic PCI Express USB 3.2 Gen1 Expansion Card. This card is designed to expand your computer's connectivity with high-speed USB 3.2 Gen1 ports, featuring a Renesas UPD720201 chipset for reliable 5Gbps data transfer. It includes USB-A, Type-C, and Type-E interfaces, offering versatile connectivity for various devices.

Please read this manual thoroughly before installation and use to ensure proper functionality and to prevent damage to your system or the expansion card.

2. פּראָדוקט איבערview

The Generic PCI Express USB 3.2 Gen1 Expansion Card enhances your system with additional high-speed USB ports. Key features include:

• הויך-גיכקייַט דאַטן אַריבערפירן: Equipped with a Renesas UPD720201 chipset, providing data transfer rates up to 5Gbps.
• ווערסאַטאַל צובינד אָפּציעס: Features USB-A, Type-C, and Type-E ports for broad device compatibility.
• ברייט קאַמפּאַטאַבילאַטי: Compatible with PCI Express 1X, 4X, 8X, and 16X slots. Complies with PCI Express 2.0 specification and is backward compatible with USB 2.0, USB 1.1, and USB 1.0.
• Wide System Support: Supports Windows 7, 8, 10, 11, and 2003 operating systems.
• USB Hot Swappable Functionality: Allows for convenient connection and disconnection of USB devices without system restart.

פיגורע 2.1: פראָנט view of the Generic PCI Express USB 3.2 Gen1 Expansion Card, showing the USB-A and USB-C ports, and the PCIe connector.

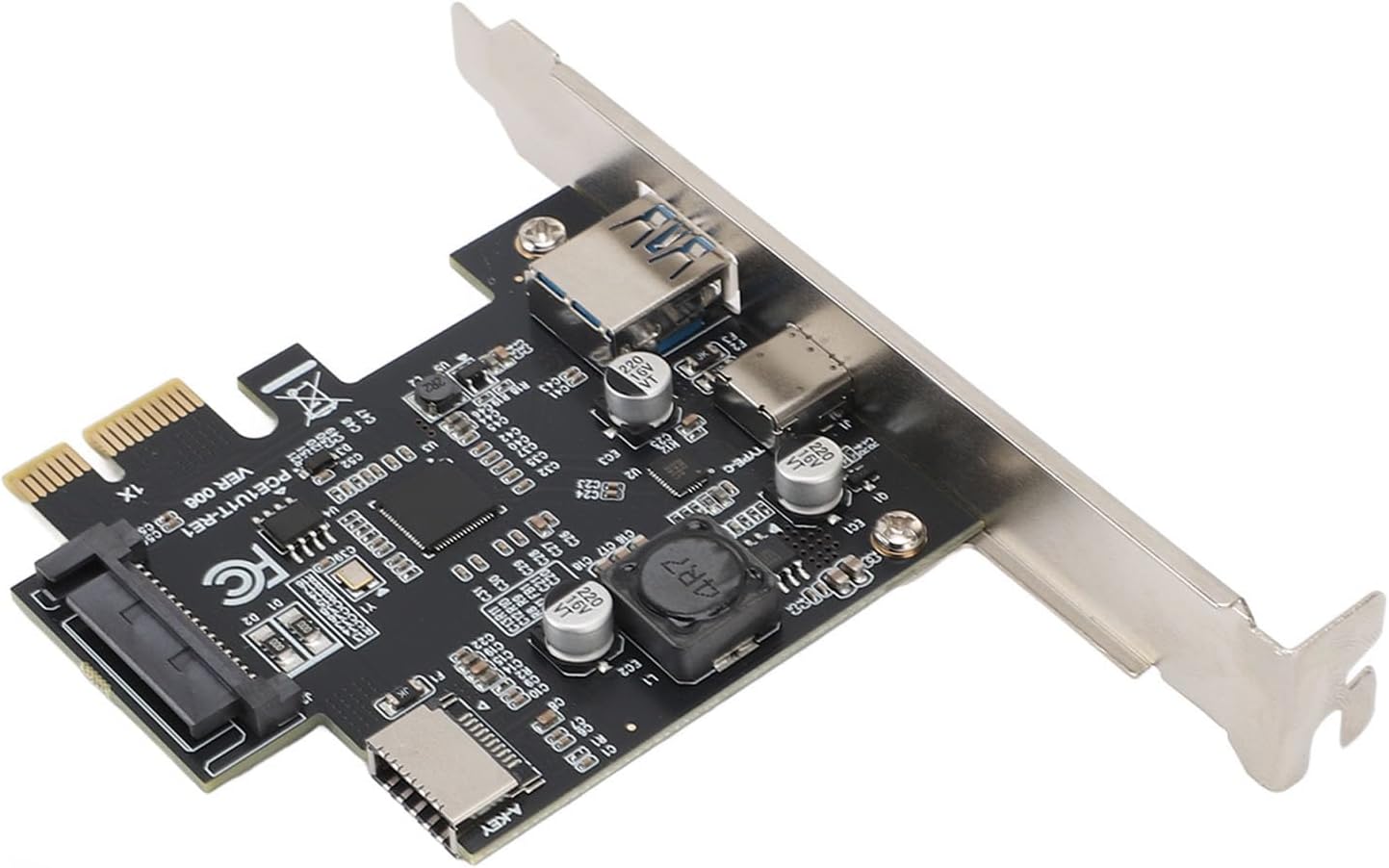

פיגורע 2.2: נאָענט-אַרויף view of the USB-A and USB-C ports on the expansion card, highlighting the available connectivity options.

3. אויפשטעלן און אינסטאַלירן

Follow these steps to properly install the PCI Express USB 3.2 Gen1 Expansion Card into your computer system.

3.1. פאַר-ינסטאַלירונג טשעקליסט

• זייט זיכער אז אייער קאמפיוטער איז אויסגעלאשן און נישט אריינגעשטעקט פון דער וואנט-אויסגאבע.
• עפענען דיין קאָמפּיוטער קאַסטן.
• Locate an available PCI Express slot (1X, 4X, 8X, or 16X).
• זאַמלען די נויטיקע מכשירים: אַ פיליפּס קאָפּ שרויפנציער.

3.2. Changing the Low-Profile Bracket (If Applicable)

אויב אייער קאָמפּיוטער קעסטל דאַרף אַ נידעריק-פּראָfile bracket, you may need to replace the standard bracket on the expansion card. The video below demonstrates this process.

1. Carefully remove the two screws securing the standard bracket to the expansion card.
2. Gently slide off the standard bracket.
3. ייַנרייען די נידעריק-פּראָfile bracket with the screw holes on the card.
4. זיכער די נידעריק-פּראָfile קלאַמער מיט די צוויי שרויפן.

3.3. Installing the Expansion Card

1. Locate an empty PCI Express slot on your motherboard.
2. Remove the corresponding metal slot cover from your computer case.
3. Carefully insert the expansion card into the PCI Express slot, ensuring it is fully seated. Apply even pressure to both ends of the card.
4. Secure the expansion card to the computer case with a screw.
5. Connect the SATA power connector from your power supply to the SATA power port on the expansion card (if present and required for stable operation).
6. פאַרמאַכן דיין קאָמפּיוטער קאַסטן און ריקאַנעקט אַלע קייבאַלז.
7. מאַכט אויף דיין קאָמפּיוטער.

Figure 3.1: The expansion card shown in context with a computer case, illustrating where it would be installed.

4. אַפּערייטינג ינסטרוקטיאָנס

Upon successful installation, your operating system (Windows 7, 8, 10, 11, 2003) should automatically detect and install the necessary drivers for the USB 3.2 Gen1 Expansion Card. No manual driver installation is typically required due to the plug-and-play nature of the Renesas UPD720201 chipset.

4.1. פֿאַרבינדן USB דעוויסעס

• Connect your USB 3.2 Gen1 (or older generation) devices to the available USB-A, Type-C, or Type-E ports on the expansion card.
• The card supports hot-swapping, allowing you to connect and disconnect devices while the computer is running.
• For optimal performance, ensure you are using USB 3.2 Gen1 compatible cables and devices.

4.2. Verifying Installation

To verify that the card is correctly installed and recognized by your system:

1. Open Device Manager in Windows.
2. Look under "Universal Serial Bus controllers" or "Other devices."
3. You should see entries related to "Renesas USB 3.0 eXtensible Host Controller" or similar. If there are any yellow exclamation marks, it indicates a driver issue, though this is rare for this chipset.

5. וישאַלט

The Generic PCI Express USB 3.2 Gen1 Expansion Card requires minimal maintenance. To ensure longevity and optimal performance:

• Keep your computer's interior clean and free of dust to prevent overheating of components, including the expansion card.
• זיכער מאַכן אַז לופטפלוס איז גענוג אין אייער קאָמפּיוטער קעסטל.
• Avoid physical impact or excessive force on the card or its connected cables.

6. טראָובלעשאָאָטינג

If you encounter issues with your expansion card, refer to the following troubleshooting steps:

6.1. Card Not Detected

• קאָנטראָלירן פיזיש קשר: Ensure the card is fully seated in the PCI Express slot.
• קוק די מאַכט קאַנעקשאַן: Verify that the SATA power connector (if used) is securely attached to the card and the power supply.
• Try Another Slot: If available, try installing the card in a different PCI Express slot.
• בייאָס/UEFI סעטטינגס: Ensure that the PCI Express slot is enabled in your system's BIOS/UEFI settings.

6.2. Devices Not Recognized or Slow Speeds

• טשעק דיווייס מענעדזשער: Look for any yellow exclamation marks next to the USB controller entries. If present, try updating or reinstalling the drivers (though usually automatic).
• Use USB 3.2 Gen1 Cables: Ensure you are using high-quality USB 3.2 Gen1 compatible cables for optimal speeds.
• פּרובירן מיט פאַרשידענע דעוויסעס: Try connecting different USB devices to isolate if the issue is with the card or a specific device.
• מאַכט צושטעלן: Ensure your power supply provides sufficient power to all components, especially if connecting multiple power-hungry USB devices.

7. ספּעסאַפאַקיישאַנז

8. וואָראַנטי & שטיצן

This product is covered by a standard manufacturer's warranty. For specific warranty details, please refer to the documentation included with your purchase or contact the seller directly.

For technical support or inquiries, please contact the manufacturer or your point of purchase. Ensure you have your product model number (Genericwkmibeagx2) and purchase information ready when seeking support.
