Biling 8W Solar Fountain Pump with 3600mAh Battery - User Manual

1. פּראָדוקט איבערview

The Biling 8W Solar Fountain Pump is designed to create an attractive water feature for your garden, pond, or bird bath. This solar-powered pump includes a 3600mAh battery, allowing it to operate even under cloudy conditions or for a limited time after sunset. It features a durable solar panel, a brushless pump for efficiency, and multiple nozzles to customize spray patterns.

Image 1.1: The Biling 8W Solar Fountain Pump system, showing the solar panel, pump, and various nozzles.

2. פּעקל אינהאַלט

ביטע טשעקט דעם פּעקל צו זיכער מאַכן אַז אַלע קאָמפּאָנענטן זענען פאַראַן און נישט געשעדיגט:

• 1 x זונ פּאַנעל
• 1 x Water Pump with Battery
• 1 x Mounting Bracket for Solar Panel
• 1 x Cable (approx. 3m)
• 1 x PVC Hose (approx. 1.5m)
• 1 x Floating Board
• 2 x Filter Sponges
• 10 x Nozzles & Rods (various spray patterns)
• 1 x באַניצער מאַנואַל

Image 2.1: Visual representation of all included components.

3. סעטאַפּ אינסטרוקציעס

1. קלייַבן אָרט: Select a location for your fountain that receives direct sunlight for most of the day. The solar panel requires ample sunlight to charge the battery and power the pump effectively.
2. Assemble Solar Panel: Attach the mounting bracket to the solar panel. Position the solar panel to face the sun directly.
3. Connect Pump and Nozzle:
   • Attach the desired nozzle or nozzle combination to the pump outlet. The kit includes 10 different nozzles for various spray patterns.
   • If creating a DIY water feature, connect the PVC hose to the pump outlet.
4. Place Pump in Water: Submerge the pump completely in water. Ensure the water level is sufficient to cover the pump and prevent dry running. The pump has a dry-run protection feature that will automatically stop it if water levels are too low.
5. Connect Solar Panel to Pump: Connect the cable from the solar panel to the pump. Ensure the connection is secure.
6. ערשט אָפּעראַציע: Once connected and placed in direct sunlight, the fountain should begin operating. Allow the battery to charge fully for optimal performance, especially for operation during cloudy periods or after dark (though it does not operate at night).

בילד 3.1: עקס.ample of a solar fountain setup, demonstrating pump placement and solar panel positioning.

Image 3.2: Various spray patterns available with the included nozzles.

4. אַפּערייטינג ינסטרוקטיאָנס

• אָטאַמאַטיק אָפּעראַציע: The fountain operates automatically when the solar panel receives sufficient sunlight. The height of the water jet depends on the intensity of the sunlight.
• באַטאַרייע באַקאַפּ: The integrated 3600mAh battery stores solar energy. This allows the fountain to continue operating for up to 2.5 hours at full power during periods of weak sunlight or after the sun sets. Note: The fountain is not designed to operate at night.
• סעלעקציע פון ​​נעזל: Experiment with the different nozzles to achieve your desired water spray effect. To change nozzles, simply detach the current one and attach another.
• וואַסער מדרגה: Always ensure the pump is fully submerged in water. Low water levels can trigger the dry-run protection, stopping the pump and potentially shortening its lifespan.

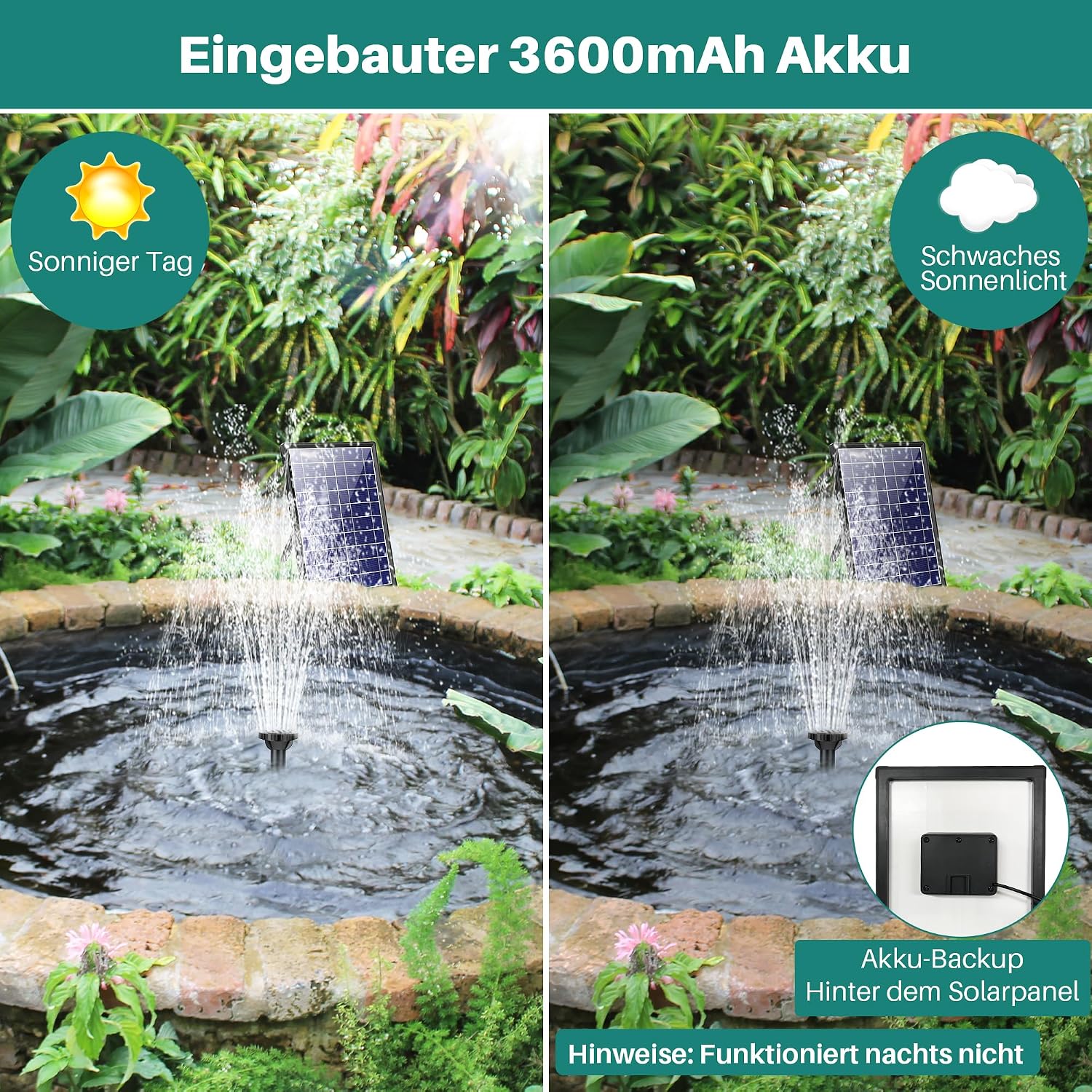

Image 4.1: Fountain operation under sunny and weak sunlight conditions, demonstrating battery backup.

Image 4.2: The fountain continues to operate even on cloudy days.

5. וישאַלט

Regular maintenance ensures the longevity and optimal performance of your solar fountain pump.

• ריין די פּאָמפּע: Regularly clean the pump and its filter sponges to prevent blockages from debris, leaves, or dirt. Blockages can reduce water flow and damage the pump.
• ריין די זונ פּאַנעל: Wipe the solar panel surface periodically to remove dust, dirt, or water spots. A clean panel ensures maximum sunlight absorption and efficient charging.
• טשעק וואַסער מדרגה: Ensure the water level in your pond or bird bath is always adequate to keep the pump fully submerged.
• דורכקוקן פֿאַר שעדיקן: Periodically check the cable, pump, and solar panel for any signs of wear or damage.

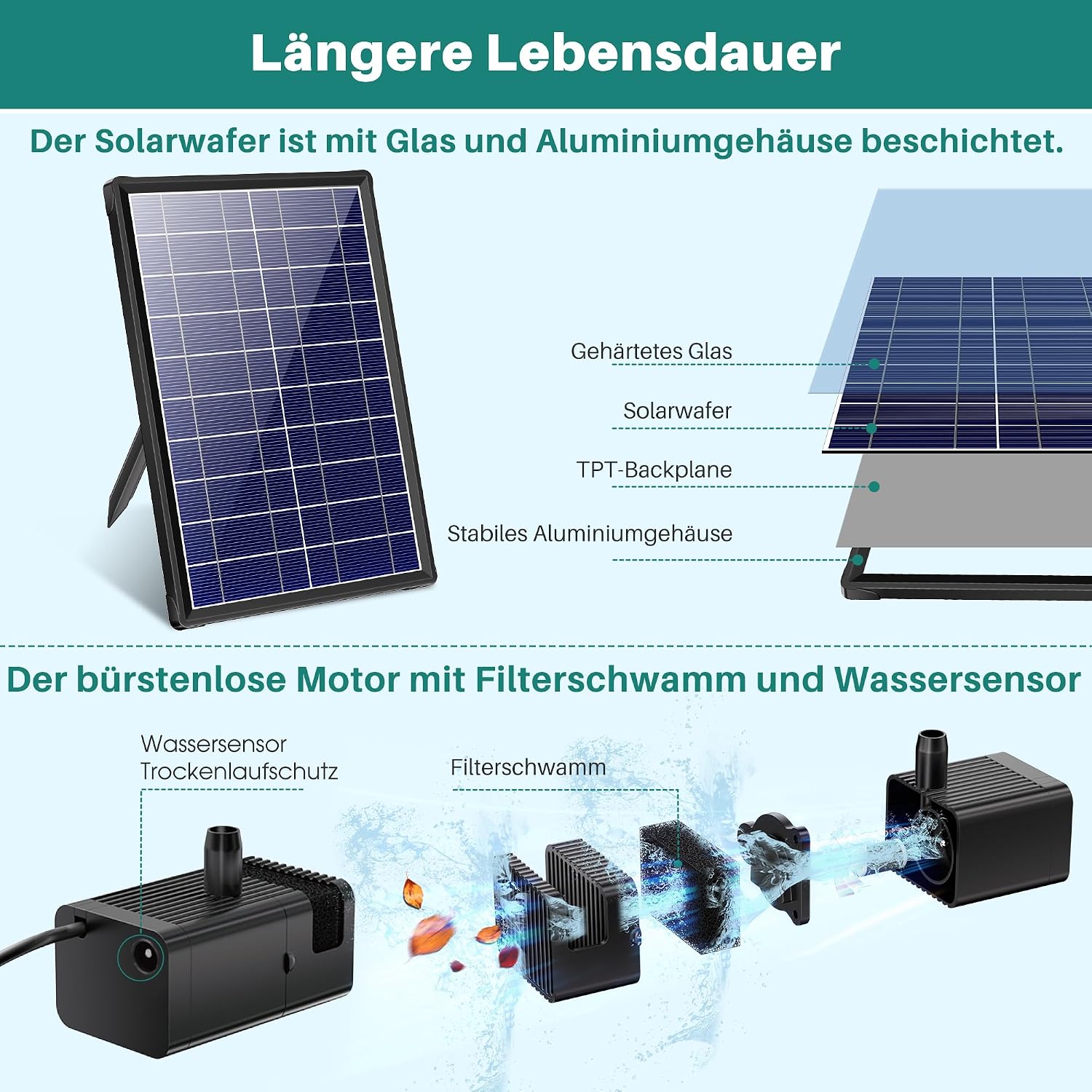

Image 5.1: Internal structure of the solar panel and pump, highlighting components that benefit from regular cleaning.

6. טראָובלעשאָאָטינג

7. פּראָדוקט ספּעסאַפאַקיישאַנז

8. וואָראַנטי און שטיצן

This Biling Solar Fountain Pump comes with a 1 יאָר וואָראַנטי פון די דאַטע פון ​​קויפן.

For warranty claims, technical support, or any questions regarding the product, please contact the seller or manufacturer directly through your purchase platform. Please have your order number and product model (DSPY25-08) ready when contacting support.
