ABIR VC205 Cordless Vacuum Cleaner User Manual

1. הקדמה

This manual provides essential instructions for the safe and efficient use of your ABIR VC205 Cordless Vacuum Cleaner. Please read this manual thoroughly before operating the appliance and retain it for future reference. Proper use and maintenance will ensure optimal performance and extend the lifespan of your vacuum cleaner.

2. פּראָדוקט איבערview

2.1 קאַמפּאָונאַנץ

The ABIR VC205 Cordless Vacuum Cleaner comes with the following components:

בילד: עקספּלאָדירט view of the ABIR VC205 Cordless Vacuum Cleaner showing its main body, extension wand, floor brush, and various accessories.

1. הויפּט וואַקוום אַפּאַראַט (מיט מיסטקאַסטן און מאָטאָר)
2. LED Floor Brush
3. געשפּרייט שטעקל
4. Mite Removal Brush
5. קרעוויסע נעזל
6. 2-in-1 Soft Brush
7. טשאַרדזשינג אַדאַפּטער
8. באַניצער מאַנואַל (דעם דאָקומענט)

2.2 שליסל פֿעיִקייטן

• Precision Cleaning: Infra-red dust sensing technology automatically adjusts motor speed based on dust detection.
• Intelligent Efficiency: Built-in processor optimizes power usage for extended service life.
• שטאַרק סאַקשאַן: Provides a maximum of 27,000Pa suction power.
• סמאַרט ריר קאָנטראָל: Ultra-large touch screen for mode switching, speed monitoring, and battery level display.
• Visual Cleaning Feedback: LED display ring light transitions from red (dust detected) to blue (clean).
• באַטערי פאַרוואַלטונג: Digital battery energy display assists in effective charging management.
• אַוואַנסירטע פֿילטראַציע: Cyclonic technology and multi-stage E13-grade HEPA filter capture 99.97% of tiny dust particles. The HEPA filter is washable.
• Versatile and Lightweight: Weighs 1.1 kg, with a detachable wind tube for portable cleaning of car seats and sofas.
• ימפּרוווד וויזאַביליטי: LED floor brush illuminates dark areas to reveal hidden dirt.
• ערגאָנאָמיק פּלאַן: Slim handle and balanced weight distribution for comfortable handling.
• נידעריק ראַש אָפּעראַציע: New cyclone design minimizes windflow noise to below 70dB.

3. סעטאַפּ

3.1 פֿאַרזאַמלונג

1. באַפעסטיקט די פֿאַרלענגערונג שטעקן: שטעקט אריין די פארלענגערונג שטעקל אין די הויפט וואקיום איינהייט ביז עס קליקט זיכער אין פלאץ.
2. באַפעסטיקט די שטאָק באַרשט: Connect the LED floor brush to the other end of the extension wand, ensuring it locks firmly.
3. ינסטאַלירן אַקסעסעריז: For specific cleaning tasks, detach the extension wand and directly attach the mite removal brush, crevice nozzle, or 2-in-1 soft brush to the main vacuum unit.

3.2 ערשט טשאַרדזשינג

Before first use, fully charge the vacuum cleaner. Connect the charging adapter to the charging port on the main vacuum unit and plug it into a power outlet. The digital display will indicate the charging status. A full charge typically takes approximately 4-5 hours.

4. אַפּערייטינג ינסטרוקטיאָנס

4.1 פּאַוערינג אויף / אַוועק

דריק דעם מאַכט קנעפּל אויף דעם הענטל צו דרייען דעם וואַקוום קלינער אָן אָדער אויס.

4.2 Smart Touch Screen Control

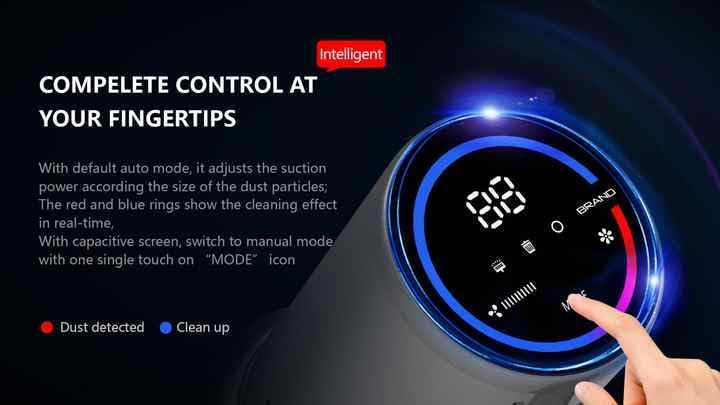

Image: The vacuum's digital touch screen displaying battery level, suction mode, and dust detection feedback.

The ultra-large smart touch screen allows you to:

• באַשטימען מאָדעס: Tap the 'MODE' icon to cycle through different suction modes (e.g., Auto, Manual).
• מאָניטאָר באַטערי מדרגה: The digital display shows the remaining battery percentage.
• View סאַקשאַן גיכקייַט: Observe the current suction power setting.
• Visual Cleaning Feedback: The LED ring light around the screen indicates cleaning progress. A red light signifies dust detection, while a blue light indicates the area is clean.

4.3 Dust Sensing Technology

Image: Illustration of the vacuum's real-time dust sensing capability, adjusting suction based on dust volume.

In Auto mode, the vacuum cleaner utilizes infra-red dust sensing technology to detect dust particles. It automatically boosts motor speed when higher dust concentrations are detected, ensuring thorough cleaning and optimizing power consumption.

4.4 Using the LED Floor Brush

Image: The LED floor brush lights up the area in front of the vacuum, making dirt visible in dark spaces.

The integrated LED lights on the floor brush illuminate dark areas under furniture or in dimly lit rooms, making hidden dirt and debris visible for comprehensive cleaning.

4.5 ניצן אַטאַטשמענץ

Image: Demonstrates the versatility of the vacuum with different attachments for whole-house cleaning.

• Mite Removal Brush: Ideal for cleaning mattresses, upholstery, and pet beds to remove dust mites and allergens.
• שפּאַלטן נעזל: Perfect for reaching narrow gaps, corners, and tight spaces in your home or car.
• 2-in-1 Soft Brush: Suitable for delicate surfaces, curtains, keyboards, and other areas requiring gentle cleaning.
• פּאָרטאַטיוו נוצן: Detach the extension wand to use the main unit with attachments for handheld cleaning.

5. וישאַלט

5.1 אויסליידיקן דעם מיסטקאסטן

Regularly empty the 0.8-liter dustbin to maintain optimal suction power. Press the dustbin release button and empty the contents into a waste bin. Close the dustbin securely after emptying.

5.2 רייניקונג פילטערס

The ABIR VC205 features a multi-stage filtration system with an E13-grade HEPA filter. For best performance, clean the filters regularly:

1. Remove the dustbin and locate the filters.
2. Separate the HEPA filter and other filter components.
3. Tap off loose dirt from the filters.
4. Rinse the HEPA filter and other washable components under cold running water until the water runs clear.
5. Allow all filter components to air dry completely for at least 24 hours before reassembling. Do not use a dryer or direct heat.
6. Reassemble the filters and dustbin into the main unit.

5.3 רייניקן די באַרשט ראָל

The LED floor brush features an anti-hair wrap design, but occasional cleaning of the brush roll may be necessary, especially after vacuuming pet hair.

1. Turn off the vacuum cleaner and disconnect it from any power source.
2. Detach the floor brush from the extension wand.
3. Locate the brush roll access cover (refer to the product diagram if needed).
4. Remove any tangled hair or debris from the brush roll using scissors or a cleaning tool.
5. Reinstall the brush roll and secure the access cover.

6. טראָובלעשאָאָטינג

If you encounter issues with your ABIR VC205, please refer to the following common problems and solutions:

7. ספּעסאַפאַקיישאַנז

8. וואָראַנטי און שטיצן

Your ABIR VC205 Cordless Vacuum Cleaner is covered by a manufacturer's warranty. For specific warranty details, please refer to the warranty card included in your product packaging or contact ABIR customer support. If you require assistance with troubleshooting, parts, or general inquiries, please reach out to our customer service team through the contact information provided on the official ABIR webוועבזייטל אדער אייער קויפן דאקומענטאציע.
