Greenvelly 72" Metal Storage Cabinet Instruction Manual

1. הקדמה

Thank you for choosing the Greenvelly Metal Storage Cabinet. This manual provides essential information for the safe and efficient assembly, operation, and maintenance of your new storage unit. Designed with cold-rolled steel technology and 0.8mm steel plates, this cabinet offers durability, excellent storage capacity, and enhanced security for various environments such as garages, home offices, and schools.

The cabinet features adjustable shelves, a 3-point locking system, and is built to withstand frequent use while resisting deformation and dents.

Image 1.1: The Greenvelly Metal Storage Cabinet in a garage environment, showcasing its storage capabilities for tools and other items.

2. זיכערקייַט אינפֿאָרמאַציע

• לייענען אינסטרוקציעס: Read and understand all instructions before assembly and use.
• צוויי-מענטשן פֿאַרזאַמלונג: Assembly is recommended with two people to ensure safety and ease.
• סטאַביל ייבערפלאַך: Always place the cabinet on a flat, stable, and level surface.
• וואָג פאַרשפּרייטונג: Distribute weight evenly on shelves. Do not exceed the maximum bearing capacity of 180 pounds per shelf. The total cabinet capacity is 900 pounds.
• אַנטי-טיפּינג: Utilize the provided anti-tipping hardware to secure the cabinet to a wall, especially in households with children or pets, to prevent accidental tipping.
• פּינטש ווייזט: Be aware of pinch points during assembly and when opening/closing doors.
• Sharp Edges: Handle metal components with care to avoid cuts from sharp edges. Wearing gloves is recommended.
• לאַקינג מעקאַניזאַם: Ensure the 3-point locking system is engaged when storing valuable or hazardous items. Keep keys in a safe place.

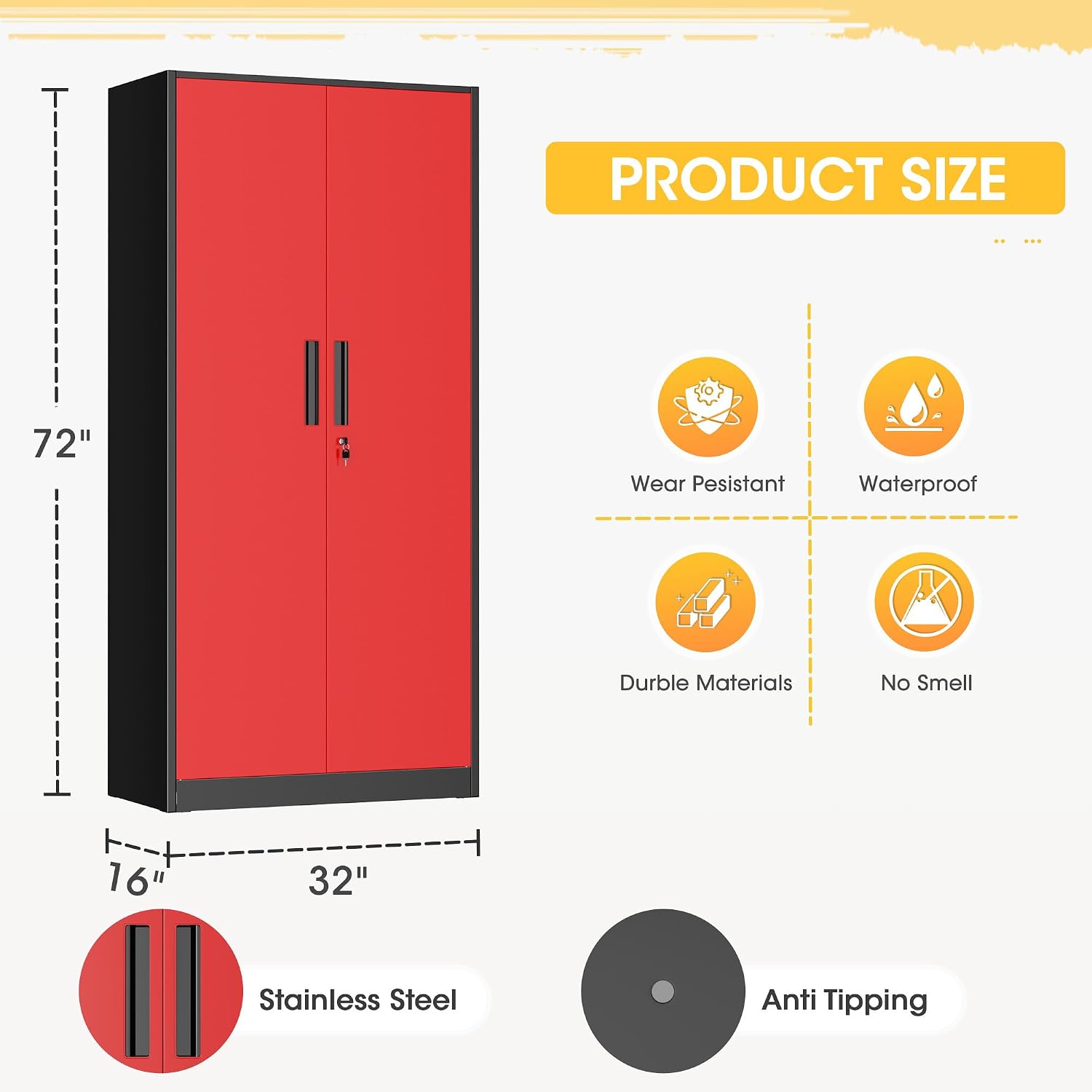

Image 2.1: Product dimensions and key safety features, including anti-tipping hardware.

3. פּעקל אינהאַלט

איידער איר הייבט אן צוזאמענשטעלן, זיכערט זיך אז אלע טיילן זענען דא און נישט באשעדיגט. אויב עפעס טיילן פעלן אדער זענען באשעדיגט, ביטע קאנטאקטירט קאסטומער סופארט.

4. ספּעסאַפאַקיישאַנז

• סאָרט: גרינוועללי
• מאָדעל נומער: 749346713891
• מאַטעריאַל: Cold-rolled Steel (0.8mm thickness)
• קאָליר: שוואַרץ רויט
• Overall Dimensions (D x W x H): 16" x 32" x 72"
• נומער פון שעלוועס: 4 (אַדזשאַסטאַבאַל)
• נומער פון טירן: 2
• לאַק טיפּ: 3-point key lock system
• פּאָליצע וואָג קאַפּאַציטעט: 180 לבס פּער פּאָליצע
• גאַנץ וואָג קאַפּאַציטעט: 900 לבס
• מאַונטינג טיפּ: Freestanding (with optional wall mount for anti-tipping)
• פֿעיִקייטן: Wear-resistant, waterproof, durable, no smell, stainless steel handles, anti-tipping.

Image 4.1: Maximum bearing capacity and recommended item types for storage.

5. סעטאַפּ און אַסעמבלי

Assembly of the Greenvelly Metal Storage Cabinet is designed to be straightforward. We recommend two people for assembly to ensure stability and safety. Please follow the steps below carefully.

5.1 מכשירים פארלאנגט

• Phillips Head Screwdriver (a small one may be included, but a larger one is recommended)
• Gloves (recommended for handling metal panels)
• Level (for ensuring proper alignment)

5.2 אַסעמבלי סטעפּס

1. אָפּלייגן קאַמפּאָונאַנץ: פּאַקט פֿאָרזיכטיק אויס אַלע קאָמפּאָנענטן און לייגט זיי אויס אויף אַ ריינער, ווייכער ייבערפֿלאַך צו פֿאַרמייַדן קראַצן. קאָנטראָלירט אַלע טיילן קעגן דער פּאַקעט אינהאַלט ליסטע.
2. אַסעמבאַל באַזע: Attach the bottom panel to the side panels using the provided screws. Ensure all connections are secure.
3. צוטשעפּען הינטערשטע פּאַנעל: באַפֿעסטיקן דעם הינטערשטן פּאַנעל צו די פֿאַרזאַמלטע זייטן און דנאָ.
4. אינסטאַלירן אויבערשטע פּאַנעל: Attach the top panel, ensuring it aligns correctly with the side and back panels.
5. ינסטאַלירן טירן: Attach the doors to the cabinet frame using the hinges. Adjust as necessary for smooth opening and closing.
6. Insert Shelf Clips: Place the shelf clips into the desired slots on the interior side panels. Ensure clips are at the same height on both sides for a level shelf.
7. שטעל די שעלוועס: Carefully place the adjustable shelves onto the installed clips.
8. אינסטאַלירן שלאָס מעקאַניזם: Follow the specific instructions for installing the 3-point locking system. Test the lock with the provided keys.
9. זיכערע אַנטי-טיפּינג האַרדווער: For safety, especially in homes with children, secure the cabinet to a wall using the anti-tipping hardware. Mark the desired location, drill pilot holes if necessary, and fasten the bracket to the wall and cabinet.

פֿאַר אַ וויזועלע גייד, ביטע זעט דעם אָפֿיציעלן אינסטאַלאַציע ווידעאָ אונטן:

Image 5.2: Illustration of the adjustable shelves feature, allowing customization of storage space.

6. אָפּעראַציע

6.1 צופּאַסן פּאָליצעס

The cabinet features four adjustable shelves, allowing you to customize the storage space to fit items of various sizes. To adjust a shelf:

1. ליידיקן דעם פּאָליצע פֿון אַלע אינהאַלטן.
2. Carefully lift the shelf and remove the four shelf clips from their current slots.
3. Reinsert the shelf clips into the desired slots on the vertical support rails, ensuring they are level on both sides.
4. Place the shelf back onto the clips, ensuring it is securely seated.

6.2 לאַקינג און אַנלאַקינג

The cabinet is equipped with a 3-point locking system for enhanced security. To lock the cabinet, ensure both doors are fully closed, insert the key into the lock, and turn it until the locking mechanism engages. To unlock, insert the key and turn it in the opposite direction, then pull the handles to open the doors.

Always keep the spare key in a secure location separate from the cabinet.

Image 6.1: Details of the 3-point lock system and adjustable shelf features.

7. וישאַלט

Regular maintenance will ensure the longevity and optimal performance of your Greenvelly Metal Storage Cabinet.

• רייניקונג: ווישט די קאַבינעט ייבערפלאַכן מיט אַדamp cloth. For stubborn dirt, a mild soap solution can be used, followed by wiping with a clean, dry cloth. Avoid abrasive cleaners or harsh chemicals that could damage the finish.
• דורכקוק: קאָנטראָלירט פּעריִאָדיש אַלע שרויפן און פֿאַרבינדונגען צו זיכער מאַכן אַז זיי בלייבן פֿעסט. פֿעסטשטײַערט ווידער אויב נייטיק.
• שמירן: If hinges or the locking mechanism become stiff, apply a small amount of silicone-based lubricant.
• פאַרהיטונג פון זשאַווער: While the cabinet is designed to be corrosion-resistant, avoid prolonged exposure to excessive moisture or corrosive substances. Promptly clean any spills.

8. טראָובלעשאָאָטינג

If you encounter any issues with your Greenvelly Metal Storage Cabinet, refer to the following common troubleshooting tips:

• טירן שליסן זיך נישט ריכטיג:
  • Check if the cabinet is on a level surface. Adjust the feet or shim as needed.
  • קאָנטראָלירט די כאַרנירן פֿאַר ריכטיקער אַליינמאַנט און פעסטקייט.
  • זייט זיכער אז קיין זאכן אינעווייניק אין שאינע שטערן נישט די טירן.
• Locking mechanism is stiff or not engaging:
  • Apply a small amount of lubricant to the lock cylinder and moving parts of the mechanism.
  • Ensure the doors are fully closed and aligned before attempting to lock.
• Shelves are wobbly:
  • Verify that all four shelf clips are securely inserted into the corresponding slots and are at the same height.
  • Ensure the shelf is properly seated on all clips.
• קאַבינעט פילט זיך נישט סטאַביל:
  • Confirm all assembly screws are tightened.
  • זיכער מאַכן אַז דער קאַבינעט איז אויף אַ גלייכער ייבערפלאַך.
  • Install the anti-tipping hardware if not already done.

If these steps do not resolve the issue, please contact Greenvelly customer support for further assistance.

9. וואָראַנטי און שטיצן

Greenvelly is committed to providing high-quality products. For information regarding warranty coverage, returns, or technical support, please refer to the contact information provided at the point of purchase or visit the official Greenvelly webפּלאַץ.

ווען איר קאָנטאַקטירט שטיצע, ביטע האַלט אייער מאָדעל נומער (749346713891) און קויף דאַטע גרייט.
