VEVOR 12V Linear Actuator User Manual

1. הקדמה

This manual provides essential information for the safe and efficient operation of your VEVOR 12V Linear Actuator. Please read these instructions carefully before installation and use. This linear actuator is designed for various indoor automation tasks, offering a stable force of 1000 N and a travel speed of 15 mm/s.

Figure 1: VEVOR 12V Linear Actuator

2. זיכערקייַט אינסטרוקציעס

• שטענדיק אָפּשטעקן די מאַכט איידער ינסטאַלירונג, וישאַלט אָדער טראָובלעשווטינג.
• זיכער מאַכן אַז אַלע עלעקטרישע פֿאַרבינדונגען זענען זיכער און אין לויט מיט די לאָקאַלע עלעקטרישע קאָודן.
• האַלט הענט און קליידער ווײַט פֿון באַוועגלעכע טיילן בעת ​​אָפּעראַציע.
• Do not exceed the maximum load capacity of 1000 N (225 lbs).
• This actuator is rated IP54 for indoor use. Avoid outdoor exposure and water infiltration into the motor to ensure longevity and prevent damage.
• Use only with a compatible 12V DC power supply and controller (sold separately).

3. פּעקל אינהאַלט

באַשטעטיקן אַז אַלע זאכן זענען פאַראַן אין פּעקל:

• 1 x VEVOR 12V Linear Actuator
• 2 רענטגענ מאָונטינג בראַקאַץ
• 2 רענטגענ סקרוז
• 2 x R-Type Pins

Figure 2: Included accessories with the linear actuator

4. ספּעסאַפאַקיישאַנז

פיגור 3: פּראָדוקט דימענסיעס

Figure 4: Stroke Options and Specifications Overview

5. סעטאַפּ און ייַנמאָנטירונג

The linear actuator requires a 12V DC power supply and a compatible controller for optimal operation. These components are sold separately.

5.1 מאַונטינג

1. Identify the desired mounting locations for the actuator and its brackets. Ensure the surface is stable and can support the actuator's weight and operational force.
2. Attach the mounting brackets to your application using appropriate fasteners (screws provided).
3. Secure the linear actuator to the installed mounting brackets using the R-type pins. Ensure the pins are fully inserted and secured.

5.2 וויירינג קאַנעקשאַן

Connect the actuator to a 12V DC power source and a controller as shown in the diagram below. Note that the power supply and controller are not included with the actuator and must be purchased separately.

Figure 5: Simple Wiring Connection Diagram

באַמערקונג: When two motors are controlled simultaneously, their operating speeds may differ and cannot be perfectly synchronized.

6. אַפּערייטינג ינסטרוקטיאָנס

Once properly installed and wired, the linear actuator can be operated via its connected controller. The actuator provides powerful and smooth linear motion for various applications.

6.1 יקערדיק אָפּעראַציע

Use the controls on your external controller to extend or retract the actuator rod. The actuator is designed for frequent height adjustments and automated tasks.

Figure 6: Demonstrating Powerful Linear Force in Vertical and Horizontal Applications

6.2 אַפּפּליקאַטיאָנס

The VEVOR 12V Linear Actuator is suitable for a wide range of indoor applications, including but not limited to:

• Massage sofas and recliners
• TV lifts
• Lifting tables
• עלעקטרישע ראָלשטולן
• Electric window openers
• Automatic door systems

Figure 7: Diverse Applications of the Linear Actuator

Figure 8: Actuator used for window opening

6.3 שטילע אָפּעראַציע

The actuator operates with a low noise level (below 50 dB at no load), making it suitable for environments where quietness is important, such as bedrooms, offices, and hospitals.

פיגור 9: נידעריק-גערויש אָפּעראַציע

7. וישאַלט

Regular maintenance ensures the longevity and optimal performance of your linear actuator.

• רייניקונג: Keep the actuator clean and free from dust and debris. Use a soft, dry cloth for cleaning.
• שמירן: The internal components are pre-lubricated. Do not attempt to lubricate the internal mechanism unless specifically instructed by VEVOR support.
• דורכקוק: Periodically check all mounting points and connections for tightness and wear.
• ענוויראָנמענטאַל שוץ: The IP54 rating provides protection against dust and splashing water. However, for consistent performance and extended lifespan, avoid outdoor use and prevent any water infiltration into the motor.

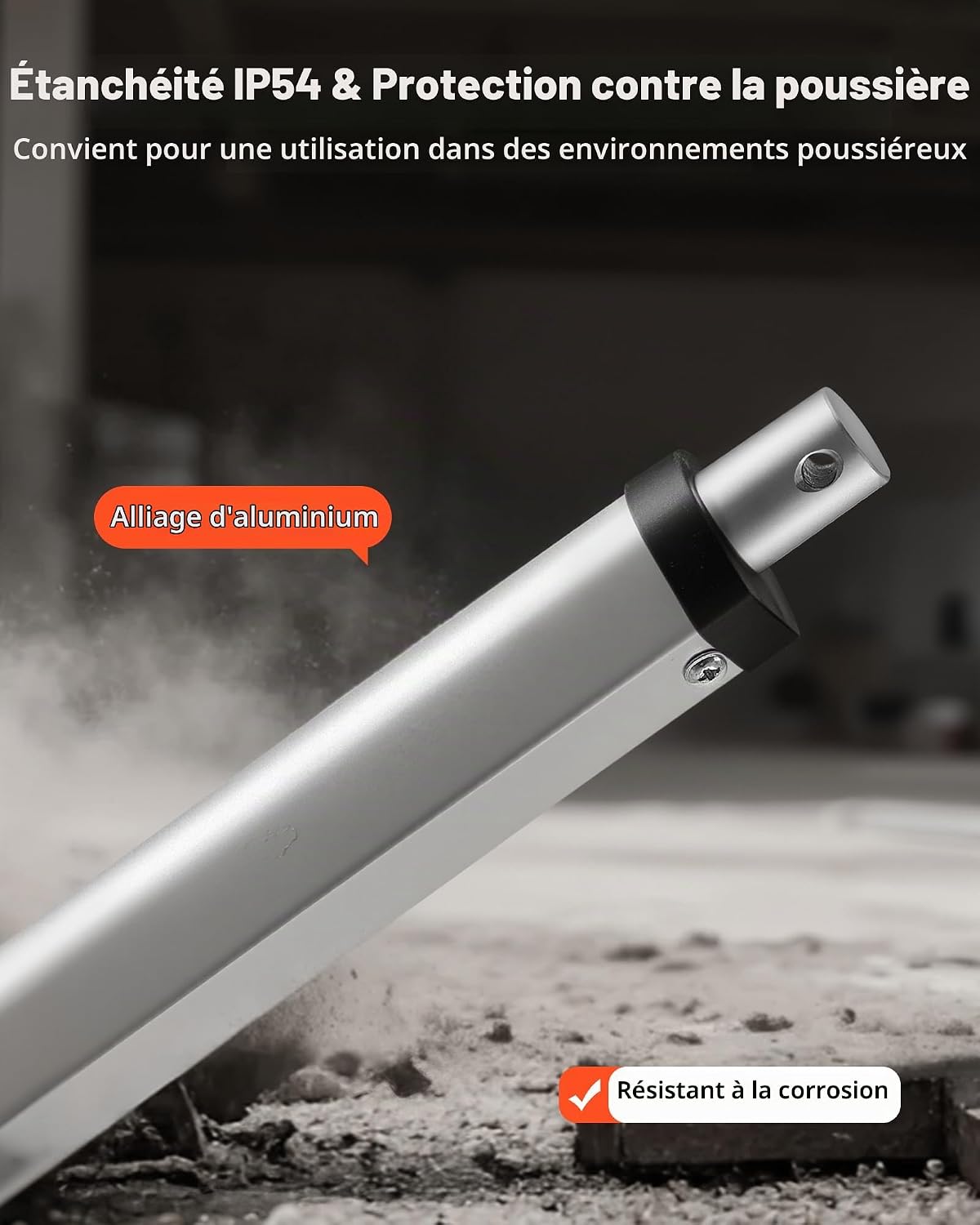

Figure 10: IP54 Protection and Aluminum Alloy Construction

Figure 11: Precision Craftsmanship for Durability

8. טראָובלעשאָאָטינג

If you encounter issues with your linear actuator, refer to the following common problems and solutions:

• Actuator does not move:
  • Check all power connections to ensure they are secure and receiving 12V DC.
  • Verify that the controller is functioning correctly.
  • Ensure the actuator is not overloaded beyond its 1000 N capacity.
• Actuator moves slowly or inconsistently:
  • Check for obstructions or excessive friction in the application.
  • Ensure the power supply can deliver sufficient current (5A recommended).
  • The actuator may be operating near its maximum load.
• אומגעוויינטלעכע גערוישן בעתן אפעראציע:
  • Inspect for loose mounting hardware.
  • Check for any foreign objects interfering with the actuator's movement.
  • If the noise persists and is abnormal, discontinue use and contact support.

פֿאַר פּראָבלעמען וואָס ווערן נישט דאָ באַדעקט, ביטע קאָנטאַקטירט VEVOR קונה שטיצע.

9. וואָראַנטי און שטיצן

פֿאַר וואָראַנטי אינפֿאָרמאַציע און קונה שטיצע, ביטע זען די דאָקומענטאַציע וואָס איז צוגעשטעלט געוואָרן מיט אייער קויפן אָדער באַזוכט די אָפֿיציעלע VEVOR webפּלאַץ. איר קענט אויך באַזוכן די יו VEVOR קראָם אויף עמעזאָן for more product details and contact options.
