Wothfav PMB07 Wattmeter Power Meter Plug User Manual

הקדמה

This manual provides comprehensive instructions for the safe and efficient use of your Wothfav PMB07 Wattmeter Power Meter Plug. This device is designed to accurately measure and monitor the electricity consumption of connected appliances, helping you understand and manage your energy usage.

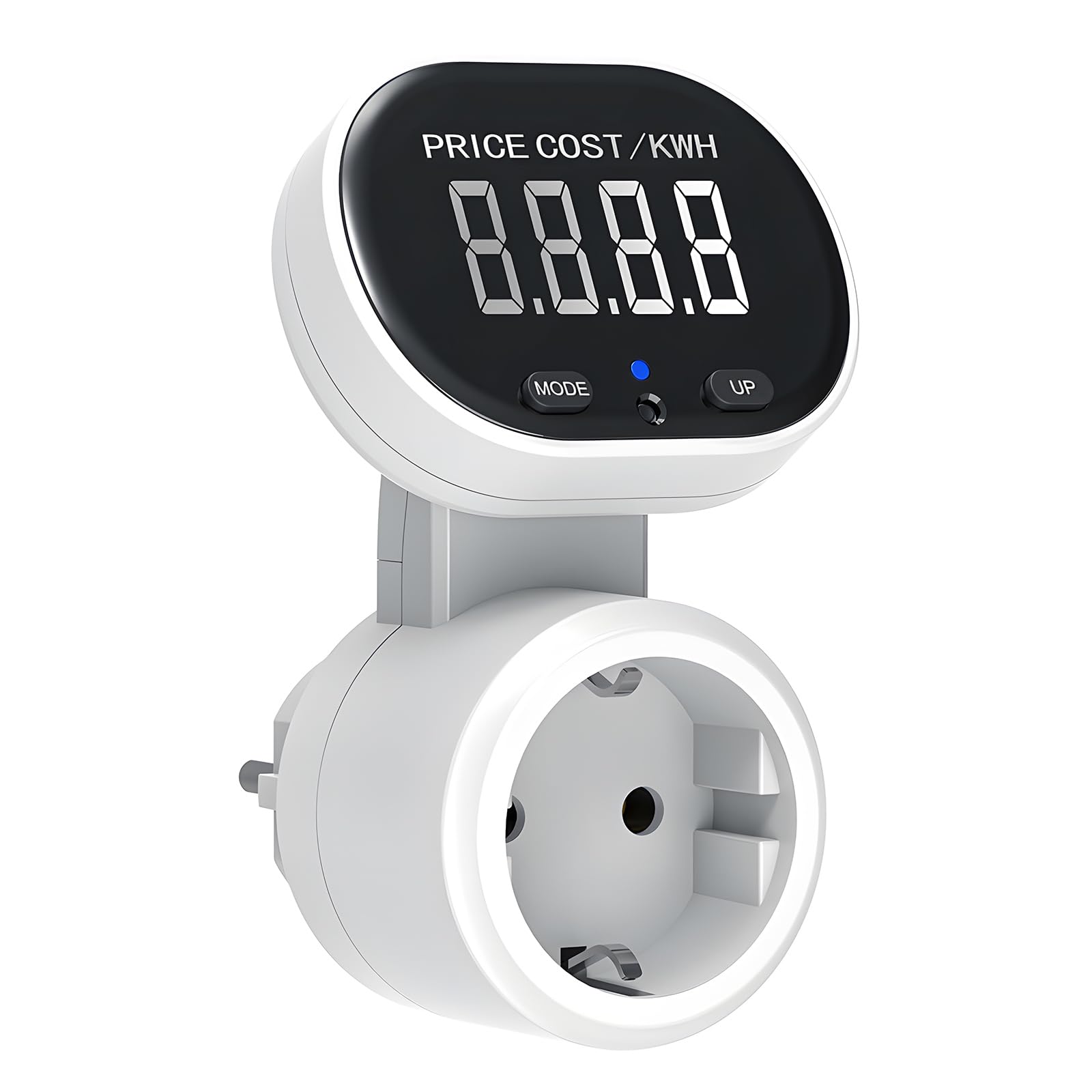

פיגורע 1: Wothfav PMB07 Wattmeter Power Meter Plug. This image shows the overall design of the power meter, highlighting its large backlit LCD screen, the 45-degree rotating display feature, and the simple two-button operation (MODE and UP).

ספּעסאַפאַקיישאַנז

פיגורע 2: Product Dimensions. This image illustrates the physical dimensions of the Wothfav PMB07 Wattmeter, showing its length, width, and height for reference.

סעטאַפּ

1. אויספּאַקן: Carefully remove the wattmeter from its packaging.
2. ערשט קשר: Plug the wattmeter directly into a standard wall outlet.
3. Appliance Connection: Plug the appliance you wish to monitor into the socket on the front of the wattmeter. Ensure the appliance's plug is fully inserted.
4. מאַכט אויף: Once connected, the wattmeter will automatically power on and display the current power consumption (W).

אַפּערייטינג ינסטראַקשאַנז

ווייַזנדיק דאַטן

The wattmeter cycles through various data displays by pressing the מאָדע button. The display sequence is as follows: W (Current Power) → קווה (Cumulative Energy) → PRICE (Total Energy Cost) → COST/KWH (Cost per Kilowatt-hour).

1. Current Power (W): Plug in the device. The meter will display the real-time power consumption in Watts.
2. Cumulative Energy (KWh): דרוק און מעלדונג די מאָדע button. The meter will display the total accumulated energy in Kilowatt-hours.
3. Total Energy Cost (PRICE): דרוק און מעלדונג די מאָדע button again. The meter will display the total cost of the consumed energy.
4. Cost per Kilowatt-hour (COST/KWH): דרוק און מעלדונג די מאָדע button once more. The meter will display the set cost per KWh.

פיגורע 3: One-Click Parameter View. This image demonstrates the different measurement parameters displayed by the wattmeter, including Current Power (W), Total Power Quantity (KWh), Total Power Charge Of Price (PRICE), and Cost per Unit of Electricity (COST/KWH).

Setting the Cost per KWH (COST/KWH)

To accurately calculate energy costs, you need to set your local electricity rate (COST/KWH) on the device.

1. While the display shows COST/KWH, press and hold both the מאָדע און UP buttons simultaneously. The first digit of the COST/KWH value will begin to flash.
2. דרוק די UP button to adjust the flashing digit to the desired value.
3. דרוק און מעלדונג די מאָדע button to move to the next digit. This digit will then flash.
4. Repeat step 2 and 3 for all subsequent digits of the COST/KWH value.
5. After setting all digits, press the מאָדע button to confirm and save all settings.

Automatic Data Storage and Backlight

• The wattmeter automatically saves accumulated data (KWh, PRICE, COST/KWH) in case of power failure. Instantaneous data like voltage will not be saved.
• After plugging in the device, press any button to activate the backlight for 10 seconds, improving readability in low light conditions.

פיגורע 4: Automatic Data Storage. This image highlights the wattmeter's ability to automatically save the last data and settings, even if the device is unplugged from the socket.

זיכערקייַט פּריקאָשאַנז און וואָרנינגז

• דו זאלסט נישט connect two or more wattmeters together in series.
• דו זאלסט נישט connect an appliance whose load exceeds 16 Amperes or 3680 Watts. Exceeding these limits can damage the device and pose a safety risk.
• Always ensure that the plug of any appliance is completely and securely inserted into the wattmeter's socket.
• די דעווייס איז בלויז געמיינט פֿאַר נוצן אינעווייניק. פֿאַרמייַדן אויסשטעלונג צו פֿײַכטקייט אָדער עקסטרעמע טעמפּעראַטורן.
• נעמט נישט אויס אדער פרובירט נישט צו פאררעכטן דאס אפאראט אליין. קאנטאקטירט קוואליפיצירטע פערסאנעל פאר סערוויס.

וישאַלט

• If cleaning of the wattmeter is necessary, first unplug it from the main power supply.
• Wipe the device with a dry, soft cloth. Do not use liquid cleaners or abrasive materials.
• האַלט דעם אַפּאַראַט אין אַ קיל, טרוקן אָרט ווען נישט אין באַנוץ פֿאַר לענגערע פּעריאָדן.

טראָובלעשאָאָטינג

If you encounter issues with your Wothfav PMB07 Wattmeter, please refer to the following common solutions:

• קיין עקראַן/אַפּאַראַט טוט זיך נישט אָן:
  • Ensure the wattmeter is securely plugged into a live wall outlet.
  • קאָנטראָלירט צי די וואַנט אַוטלעט אַרבעט ריכטיק דורך אַרײַנשטעקן אַן אַנדער דעוויס.
• פאַלש רידינגז:
  • Verify that the appliance is fully plugged into the wattmeter.
  • Ensure the appliance's load does not exceed the maximum capacity (16A, 3680W).
  • If the COST/KWH reading is incorrect, re-enter your local electricity rate as described in the "Setting the Cost per KWH" section.
• Display Not Rotating:
  • The display is designed to rotate manually up to 45 degrees for optimal viewing angle. Gently adjust it to your preferred position.
• Clearing Data:
  • To clear accumulated KWh, PRICE, and COST/KWH data, press and hold the מאָדע קנעפּל פֿאַר 5 סעקונדעס.

פיגורע 5: Real-time Monitoring. This image illustrates the wattmeter in use, monitoring an appliance's power consumption in real-time, helping users to lower power consumption and save money.

קאָנטאַקט און שטיצן

For further assistance or inquiries regarding your Wothfav PMB07 Wattmeter, please contact Wothfav customer support through your retailer or the official Wothfav webפּלאַץ.

Please have your model number (PMB07) and purchase information ready when contacting support.
