HONEY JOY 4-in-1 Portable Baby Playard with Canopy and Changing Table

1. הקדמה

Thank you for choosing the HONEY JOY 4-in-1 Portable Baby Playard. This versatile product is designed to provide a safe and comfortable environment for your child, adapting to their needs from newborn to toddler. Please read this manual thoroughly before assembly and use to ensure proper operation and safety.

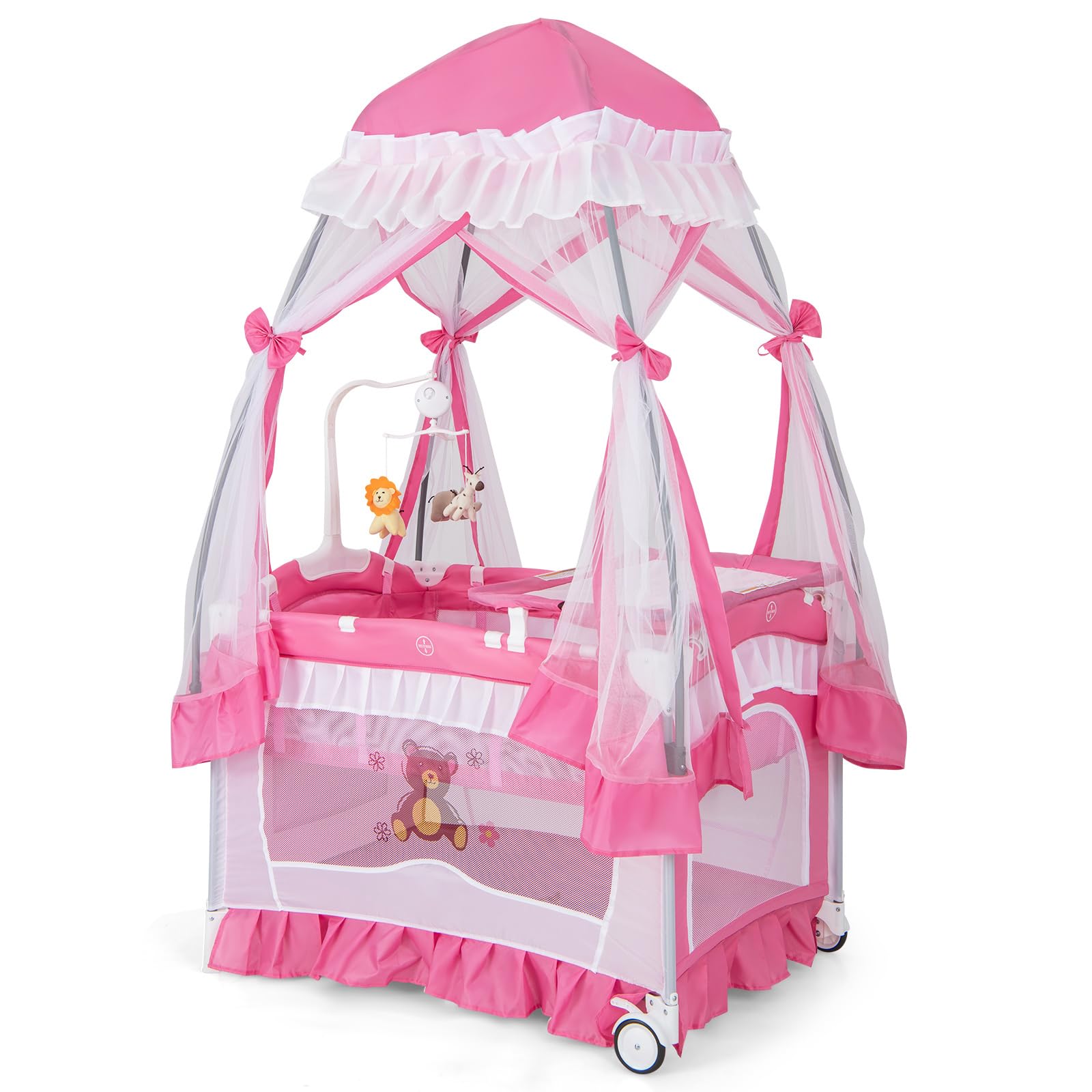

Image: The HONEY JOY 4-in-1 Portable Baby Playard in Hot Pink, fully assembled with canopy, changing table, and mobile.

2. זיכערקייַט וואָרנינגז

• שטענדיק האַלטן דיין קינד אין view when in the playard.
• קיינמאָל לאָזן דיין קינד אַנאַטענדיד.
• טאָן ניט use the playard if any parts are broken, torn, or missing.
• טאָן ניט use accessories or replacement parts other than those approved by the manufacturer.
• פאַרזיכערן the playard is fully erected and all locking mechanisms are engaged before placing a child inside.
• ויסמיידן placing the playard near windows where cords from blinds or drapes could strangle a child.
• טאָן ניט place more than one child in the playard at a time.
• מאַקסימום וואָג קאַפּאַסיטי: Diaper Changing Table: 25 lbs, Baby Bassinet: 20 lbs, Activity Center: 33 lbs.
• APPLICABLE AGE: 0-3 Years Old.

3. פּעקל אינהאַלט

באַשטעטיקן אַז אַלע קאָמפּאָנענטן זענען פאַראַן איידער איר אַסעמבלט:

• 1 x Main Playard Frame
• 1 x Mattress Pad
• 1 x Detachable Mesh Canopy
• 1 x Diaper Changing Table
• 1 x Infant Bassinet Insert
• 1 x Toy Mobile with Music
• 1 x סטאָרידזש באַג
• 1 x ינסטרוקטיאָן מאַנואַל

4. סעטאַפּ און אַסעמבלי

4.1 Unfolding the Playard

1. Remove the playard from the carry bag.
2. Stand the playard upright and separate the legs slightly.
3. Pull up on the center of the short side rails until they lock into place. Repeat for the long side rails. Ensure all four rails are rigid and locked.
4. Push down on the center of the playard floor until it lies flat.
5. Place the mattress pad inside the playard.

4.2 Installing the Infant Bassinet

1. Assemble the support bars for the bassinet insert by connecting the metal poles.
2. Slide the assembled support bars into the fabric sleeves on the underside of the bassinet insert.
3. Secure the bassinet insert to the top rails of the playard using the attached clips or straps. Ensure it is firmly attached at all points.
4. Place the mattress pad into the bassinet insert.

4.3 Attaching the Diaper Changing Table

1. Assemble the changing table frame if necessary, following the specific instructions for its components.
2. Attach the changing table securely to the top rails of the playard using the designated clips or hooks. Ensure it is stable and level.
3. Always use the safety belt when your child is on the changing table.

4.4 Attaching the Canopy and Toy Mobile

1. Insert the canopy support poles into the designated slots on the playard rails.
2. Drape the mesh canopy over the poles and secure it as instructed, often with ties or elastic loops.
3. Attach the toy mobile arm to the side rail. Hang the cute toys and ensure the music box is functional (no battery required for clockwork music box).

Image: Close-up of the playard showing the detachable mesh canopy, cute animal pattern, and fun hanging toys with music.

Image: Visual guide on how to tie up, pull down, and remove the practical detachable bed canopy.

5. אַפּערייטינג ינסטרוקטיאָנס

5.1 4-אין-1 פונקציאָנאַליטעט

This versatile playard transforms to meet various needs:

• Baby Bassinet: For newborns and infants, providing a raised sleeping area.
• Diaper Changing Table: A convenient station for diaper changes.
• Baby Crib: A secure sleeping space for older infants.
• Baby Playpen/Activity Center: A safe and spacious area for play and exploration.

Image: Graphic illustrating the 5-in-1 multifunctional uses: Diaper Changing Table, Canopy Bed, Baby Crib, and Baby Playpen.

5.2 Using the Wheels and Brakes

The playard is equipped with easy-moving wheels for portability. To move the playard, simply unlock the brakes on the wheels. To secure the playard in a stationary position, engage the brakes by pressing down on the locking levers on each wheel.

Image: A woman demonstrating the easy-moving wheels with lockable, mute, and smooth features on the playard.

5.3 צוזאמענפאלן פאר סטאָרידזש און טראַנספּאָרט

To fold the playard for storage or transport:

1. Remove the bassinet insert, changing table, canopy, and toy mobile.
2. Lift the mattress pad.
3. Pull up on the strap in the center of the playard floor.
4. Locate the release buttons on the middle joints of each side rail. Press these buttons and gently push the rails downwards until they unlock and fold.
5. Bring the four corners of the playard together to collapse the frame.
6. Secure the folded playard with the attached straps and place it in the provided carry bag.

Image: Step-by-step visual guide on folding the playard for easy storage and transport, including the carry bag.

6. וישאַלט און קער

• רייניקונג: The fabric components can be spot cleaned with a damp cloth and mild soap. Allow to air dry completely. Do not use harsh detergents or bleach.
• ראַם: ווישט אָפּ דעם מעטאַל ראַם מיט אַדamp שטאָף. ענשור אַז אַלע טיילן זענען טרוקן איידער סטאָרידזש.
• סטאָרידזש: Store the playard in its carry bag in a cool, dry place away from direct sunlight.
• דורכקוק: Regularly check all parts for wear, damage, or loose fasteners. Replace any damaged parts immediately.

7. טראָובלעשאָאָטינג

• Playard will not lock: Ensure the center of the playard floor is not pushed down before locking the side rails. Lift the center slightly, lock the rails, then push the center down.
• Playard will not fold: Ensure the center of the playard floor is pulled up completely before attempting to unlock the side rails. All rails must be unlocked before the playard can be fully folded.
• Toy mobile not working: The toy mobile features a clockwork music box and does not require batteries. Ensure it is wound correctly.

8. ספּעסאַפאַקיישאַנז

Image: Detailed diagram showing the product dimensions for the playard with and without the canopy, and the portable bag size.

9. וואָראַנטי און שטיצן

For warranty information, product support, or to order replacement parts, please contact HONEY JOY customer service through the retailer where the product was purchased or visit the official HONEY JOY website. Please have your model number (B0CSG3WJS8) and purchase date available.
