kleankin Wall Mounted Bathroom Mirror Cabinet Instruction Manual

1. הקדמה

This manual provides detailed instructions for the assembly, installation, operation, and maintenance of your new kleankin Wall Mounted Bathroom Mirror Cabinet. Please read these instructions carefully before beginning assembly and retain them for future reference. This cabinet is designed to store bathroom essentials, featuring mirrored doors, an adjustable internal shelf, and a soft-close mechanism for quiet operation.

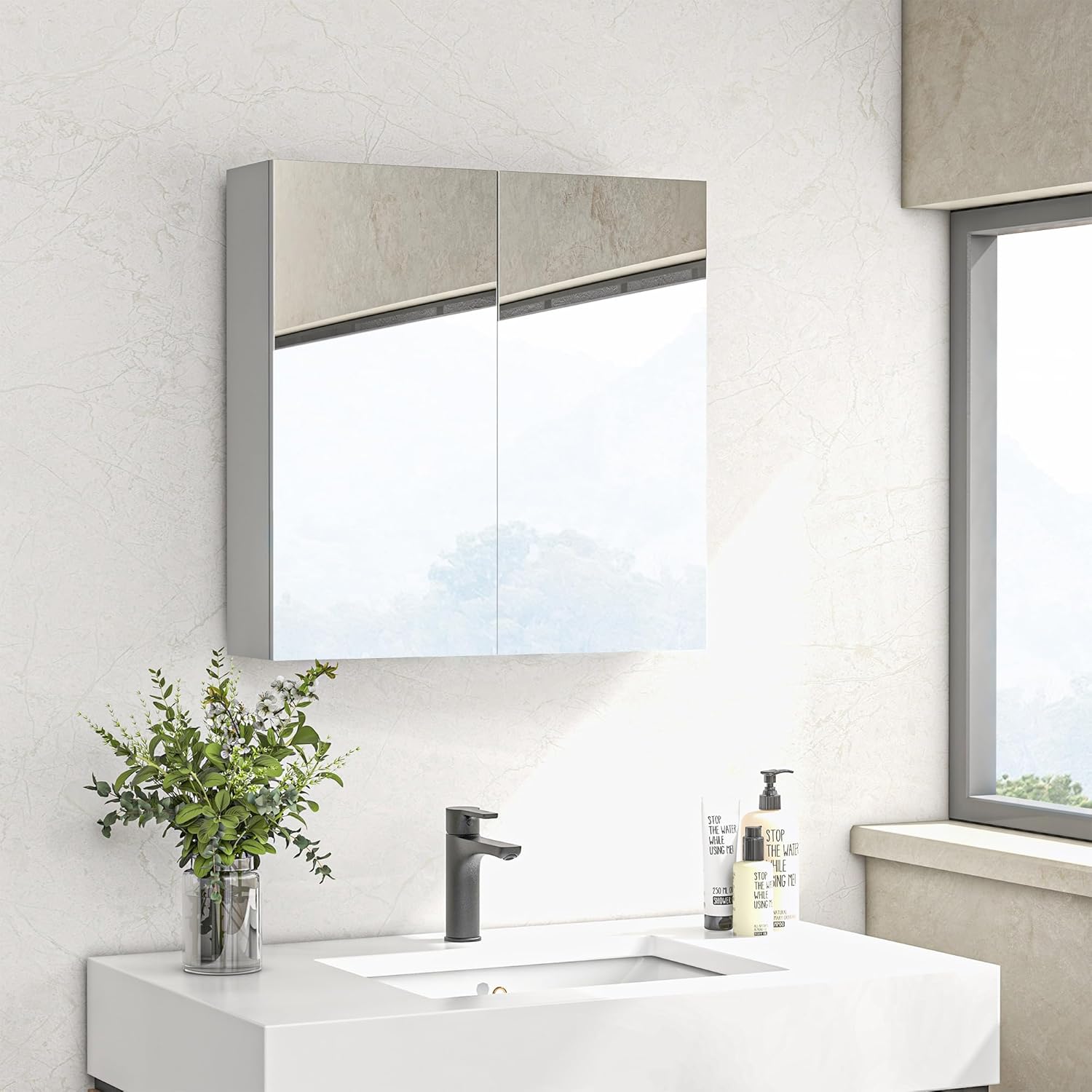

Figure 1.1: kleankin Wall Mounted Bathroom Mirror Cabinet in a bathroom setting.

2. זיכערקייַט אינפֿאָרמאַציע

• Always ensure the cabinet is securely mounted to a solid wall structure to prevent tipping. Use appropriate wall anchors for your wall type.
• Do not overload the cabinet. The total weight capacity is 33 lbs (15 kg), with each shelf supporting up to 11 lbs (5 kg).
• האַלט קליינע טיילן און האַרדווער אַוועק פון קינדער בעת ​​​​די פֿאַרזאַמלונג צו פאַרמייַדן דערשטיקונג געפֿאַרן.
• Exercise caution when handling glass components (mirrors) to avoid breakage and injury.
• Regularly check all fasteners to ensure they remain tight and secure.

3. פּעקל אינהאַלט

ביטע באַשטעטיקן אַז אַלע קאָמפּאָנענטן וואָס זענען ליסטעד אונטן זענען פאַראַן איידער איר הייבט אָן די פֿאַרזאַמלונג.

• Mirror Cabinet Components (MDF panels, mirrored doors)
• Adjustable Shelf(ves)
• ווייך-קלאָוזינג שאַרנירלעך
• Assembly Hardware (screws, dowels, wall anchors, etc.)
• ינסטראַקשאַנז מאַנואַל

4. ספּעסאַפאַקיישאַנז

Figure 4.1: Product dimensions for the kleankin medicine cabinet.

5. אַסעמבלי אינסטרוקציעס

Follow these steps to assemble your medicine cabinet. It is recommended to have two people for assembly and installation.

1. אויספּאַקן און אידענטיפיצירן טיילן: Carefully unpack all components and hardware. Refer to the parts list (not provided in JSON, but implied) to ensure all pieces are present and undamaged.
2. צוזאַמענשטעלן דעם קאַבינעט ראַם: Connect the side panels, top, and bottom panels using the provided screws and dowels. Ensure all connections are secure.
3. אינסטאַלירן פּאָליצע שטיצעס: Insert the shelf support pins into the desired holes on the cabinet side panels. The upper shelf is adjustable, allowing for customization of height.
4. צוטשעפּען די שאַרנירן צו די טירן: Secure the soft-close hinges to the mirrored doors using the designated screws.
5. צוטשעפּען טירן צום קאַבינעט: Mount the doors to the cabinet frame by attaching the hinges to the pre-drilled holes on the cabinet. Adjust the hinges as needed to ensure proper door alignment and smooth operation.
6. אַרײַנשטעלן פּאָליצעס: Place the adjustable shelf onto the installed shelf supports.

Figure 5.1: Interior storage space of the cabinet, demonstrating capacity for various items.

Figure 5.2: Detail of the soft-closing hinges for smooth door operation.

6. ינסטאַלירונג

This cabinet is designed for wall mounting. Proper installation is crucial for safety and stability.

1. קלייַבן אָרט: Select a suitable wall location, ensuring there is sufficient space (recommended 27.6" W x 27.6" H) and no hidden electrical wires or plumbing.
2. מאַרקירן דרילינג פונקטן: Hold the cabinet against the wall at the desired height and use a pencil to mark the drilling points for the mounting hardware. Use a level to ensure the marks are straight.
3. בויער פּילאָט האָלעס: Drill pilot holes at the marked points. The size of the drill bit should match the recommended size for your wall anchors.
4. אַרייַנלייגן וואנט אַנגקערז: Insert the appropriate wall anchors into the pilot holes. For drywall, use toggle bolts or self-drilling anchors. For solid wood studs, pilot holes may be sufficient for screws.
5. מאָנטירן דעם קאַבינעט: Carefully lift the cabinet and align the mounting holes with the installed wall anchors. Secure the cabinet to the wall using the provided screws. Ensure the cabinet is firmly attached and does not wobble.

Figure 6.1: The wall-mounted design effectively utilizes vertical space in the bathroom.

7. אַפּערייטינג ינסטרוקטיאָנס

• Using the Mirrored Doors: The cabinet features double mirrored doors. Gently pull the door handle to open. The soft-close hinges will ensure the doors close smoothly and quietly when pushed shut.
• אַדזשאַסטינג די פּאָליצע: The upper shelf is adjustable. To change its height, carefully remove the items from the shelf, lift the shelf, and reposition the shelf support pins into the desired set of holes. Then, place the shelf back onto the pins.

Figure 7.1: Adjustable shelf mechanism, allowing for flexible storage configurations.

Figure 7.2: The front mirrors are ideal for daily grooming activities.

8. וישאַלט און קער

• רייניקונג די קאַבינעט: ווישט די קאַבינעט ייבערפלאַכן מיט אַ ווייכן, דamp cloth. Avoid abrasive cleaners or harsh chemicals that could damage the high-gloss finish.
• Cleaning the Mirrors: Use a standard glass cleaner and a lint-free cloth to clean the mirrored surfaces. Spray cleaner onto the cloth, not directly onto the mirror, to prevent liquid from seeping into edges.
• מויסטשער שוץ: The cabinet has a coated surface for water protection. However, wipe away any standing water or excessive moisture promptly to maintain its appearance and longevity.
• ייַזנוואַרג טשעק: קאָנטראָלירט פּעריִאָדיש אַלע שרויפן און פֿאַרשטאַרקער צו זיכער מאַכן אַז זיי זענען פֿעסט. פֿעסטשטײַערט ווידער אויב נייטיק.

9. טראָובלעשאָאָטינג

10. פּראָדוקט ווידעאָ

זעט דעם אפיציעלן פּראָדוקט ווידעאָ פֿאַר אַ וויזועלן איבערבליקview of the kleankin Medicine Cabinet's features and functionality.

11. וואָראַנטי און שטיצן

For warranty information, technical support, or to report missing/damaged parts, please contact kleankin customer service or the retailer from whom you purchased the product. Please have your model number (834-629V80WT) and purchase details ready.
