Generic Y02 Wireless Arcade Stick Instruction Manual

1. הקדמה

This manual provides detailed instructions for the setup, operation, maintenance, and troubleshooting of your Generic Y02 Wireless Arcade Stick. Please read this manual thoroughly before using the product to ensure proper functionality and to maximize your gaming experience. Keep this manual for future reference.

2. פּראָדוקט איבערview

The Y02 Wireless Arcade Stick is a versatile gaming controller designed for a wide range of platforms, including PS4, PS3, Nintendo Switch, PC, TV, Android, and iOS devices. It features a classic arcade layout with a joystick and multiple action buttons, along with special functions like Turbo and Macro programming.

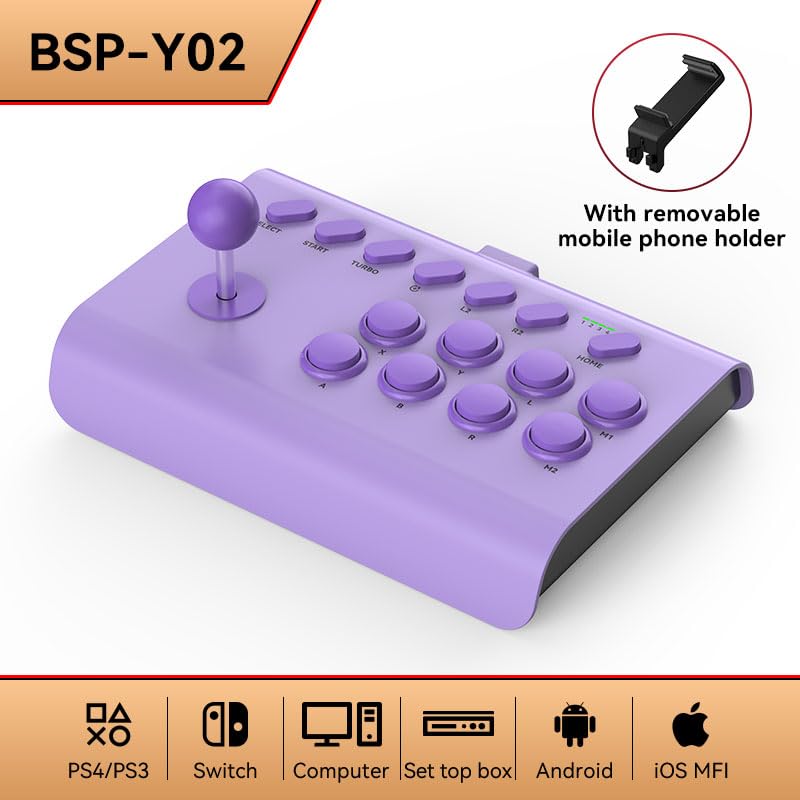

Generic Y02 Wireless Arcade Stick in purple with a removable mobile phone holder.

Image: The Y02 Wireless Arcade Stick, shown in purple, featuring a classic joystick and button layout. A removable mobile phone holder accessory is also depicted, indicating its compatibility with mobile devices.

2.1 שליסל פֿעיִקייטן

3. סעטאַפּ

3.1 פּלאַטפאָרמע קאָמפּאַטאַביליטי

The Y02 Arcade Stick is compatible with a wide range of gaming platforms:

Diagram showing multi-platform compatibility for the Y02 Arcade Stick, including PS4/PS3, Switch, Computer, Set-top box, Android, and iOS MFI.

Image: Visual representation of the Y02 Arcade Stick's compatibility across various platforms: PlayStation 4/3, Nintendo Switch, personal computers, set-top boxes, Android devices, and iOS MFI certified devices.

3.2 קאַנעקשאַן מאָדעס

The Y02 Arcade Stick offers three primary connection methods:

Diagram illustrating three connection modes for the Y02 Arcade Stick: Wired (USB), Bluetooth Wireless, and 2.4G Wireless.

בילד: אן איבערקאפ view of the arcade stick with icons below representing the three connection modes: a USB icon for wired connection, a Bluetooth symbol for Bluetooth wireless, and a Wi-Fi-like symbol for 2.4G wireless connection.

  1. דראָט פֿאַרבינדונג (USB):

    Connect the arcade stick directly to your device (PC, console, TV box) using a USB cable. This mode typically offers the lowest latency and requires no battery power from the stick.

  2. בלועטאָאָטה ווירעלעסס קאַנעקשאַן:

    For devices that support Bluetooth (e.g., Android, iOS, some PCs, Switch).

    • Turn on the arcade stick.
    • Activate Bluetooth pairing mode on the arcade stick (refer to specific button combinations in the "Operating Instructions" section).
    • On your device, search for Bluetooth devices and select "Y02 Arcade Stick" to pair.

  3. 2.4G ווירעלעסס קאַנעקשאַן:

    For devices that require a 2.4G USB receiver (usually included with the product, if applicable).

    • Plug the 2.4G USB receiver into an available USB port on your device (PC, console).
    • Turn on the arcade stick. It should automatically connect to the receiver.

4. אַפּערייטינג ינסטרוקטיאָנס

4.1 יקערדיק קאָנטראָלס

The Y02 Arcade Stick features a standard arcade layout. Familiarize yourself with the button functions:

4.2 ספּעציעלע פאַנגקשאַנז

4.2.1 טורבאָ פונקציע

The Turbo function allows a button to register multiple presses with a single hold, useful for rapid-fire actions.

Image showing the 'TURBO' function with adjustable burst speeds: Low gear (8 times per second), Mid range (15 times per second), and High gear (25 times per second).

Image: The arcade stick highlighting the 'TURBO' button and illustrating the three adjustable burst speed settings: 8, 15, and 25 times per second, for continuous attack functionality.

  1. אַקטאַווייטינג טורבאָ: דריקן און האַלטן די TURBO button, then press the desired action button (e.g., A, B, X, Y, L1, R1) you wish to apply Turbo to. The button will now continuously register presses when held.
  2. אַדזשאַסטינג טורבאָ ספּיד: בשעת האלטן די TURBO קנעפּל, באַוועגן דעם דזשויסטיק UP or אַראָפּ to cycle through the burst speeds:
    • Low Gear: Approximately 8 times per second.
    • Mid Range: Approximately 15 times per second.
    • High Gear: Approximately 25 times per second.
  3. דעאַקטיווירן טורבאָ: דריקן און האַלטן די TURBO button, then press the action button again that has Turbo enabled.

4.2.2 מאַקראָ פּראָגראַמירן

The Macro function allows you to record a sequence of button presses and assign it to a single macro button (M1 or M2) for easy execution of complex combos.

  1. Entering Macro Recording Mode: דריקן און האַלטן די M1 or M2 button for 3 seconds until an indicator light (if present) flashes, signifying recording mode.
  2. Recording Sequence: Perform the desired button presses and joystick movements. The system will record the sequence.
  3. Saving Macro: דרוק די M1 or M2 button again to save the recorded macro. The indicator light will stop flashing.
  4. Executing Macro: פשוט דריקן די M1 or M2 button to execute the recorded sequence.
  5. Clearing Macro: To clear a macro, press and hold the M1 or M2 button for 5 seconds until the indicator light turns off, or refer to the factory reset instructions.

5. וישאַלט

6. טראָובלעשאָאָטינג

פּראָבלעם מעגלעך סיבה לייזונג
דער אַרקאַדע סטיק גייט נישט אָן. Low battery (wireless) or no power source. Charge the arcade stick. Ensure it is properly connected via USB for wired mode.
קען נישט פאַרבינדן זיך וויירלעס. אומרעכטע פּאָרינג מאָדע, אַרויס פון קייט, אָדער ינטערפיראַנס. Ensure the stick is in the correct pairing mode (Bluetooth/2.4G). Move closer to the device. Check for other wireless devices causing interference. Re-pair the device.
קנעפּלעך אדער דזשויסטיק רעאגירן נישט. Connection issue, software glitch, or physical damage. Reconnect the stick. Restart the game/device. Try on another device to isolate the problem. If physical damage is suspected, contact support.
Turbo/Macro function not working. Incorrect activation/deactivation steps. Review Section 4.2 for correct Turbo and Macro programming procedures.

7. ספּעסאַפאַקיישאַנז

8. וואָראַנטי און שטיצן

This product comes with a standard manufacturer's warranty. For specific warranty terms and conditions, please refer to the documentation included with your purchase or contact the retailer. For technical support or further assistance, please reach out to the customer service provided by your point of purchase.

ביטע האַלטן דיין דערווייַז פון קויפן פֿאַר וואָראַנטי קליימז.
