Leadleds Programmable Bluetooth LED Display

הקדמה

This manual provides instructions for the Leadleds Programmable Bluetooth LED Display, model LLD-B1272RGB-1. This versatile LED sign allows for custom messages, animations, and graphics to be displayed via a smartphone application, making it suitable for various applications such as vehicles, retail stores, and events. Please read this manual thoroughly before use to ensure proper operation and longevity of your device.

פּעקל אינהאַלט

ביטע קאָנטראָלירט דעם אינהאַלט פֿון דער פּאַקעט בײַם עפֿענען, כּדי צו זיכער מאַכן אַז אַלע זאַכן זענען דאָרט:

• 1 x Leadleds Programmable Bluetooth LED Display
• 2 רענטגענ סאַקשאַן קאַפּס
• 1 x USB Power Cable (10-foot)
• 1 x באַניצער מאַנואַל

ספּעסאַפאַקיישאַנז

סעטאַפּ

1. Mounting the LED Display

Attach the two provided suction cups to the back of the LED display. Ensure they are securely fastened. Mount the display onto a clean, smooth surface such as a car window or glass. The suction cups feature buckles that allow for 180-degree rotation to achieve the desired viewינג ווינקל.

Image: The LED display showing its industrial-grade ABS frame and two suction cups for mounting.

2. מאַכט קאַנעקשאַן

Connect the provided USB power cable to the LED display. The display requires a DC 5V power source. You can use a power bank, an AC/DC adapter (recommended output DC 5V=1000mA), or a car cigarette lighter charger. Note: Power adapters and car chargers are not included.

Image: Diagram illustrating the dimensions of the LED display and various compatible 5V 2A power supply options, including power bank, adapter, and car cigarette lighter supply.

3. אַפּ ינסטאַללאַטיאָן

Download the dedicated control application on your smartphone. The app is compatible with both Android and iOS devices. זוכן פֿאַר the app name (usually indicated in the included user manual or on the product packaging) in your device's app store.

Image: The LED display showing a "WELCOME" message, with icons indicating compatibility with Android and iOS devices via Bluetooth.

4. בלועטאָאָטה קאַנעקשאַן

Once the app is installed, open it and follow the in-app instructions to connect to your LED display via Bluetooth. Important: Do not attempt to connect the LED display directly through your smartphone's Bluetooth settings. Always connect via the dedicated application to ensure proper functionality and message transmission. Maintain a distance of within 16 feet (approximately 5 meters) between your smartphone and the LED display for a stable connection.

אַפּערייטינג ינסטראַקשאַנז

1. Creating and Editing Messages

Open the control app. You can input custom text messages in multiple languages, including English, Chinese, Russian, French, Spanish, Portuguese, German, Japanese, Korean, and Italian. The app allows you to customize text color, font, size, and display effects.

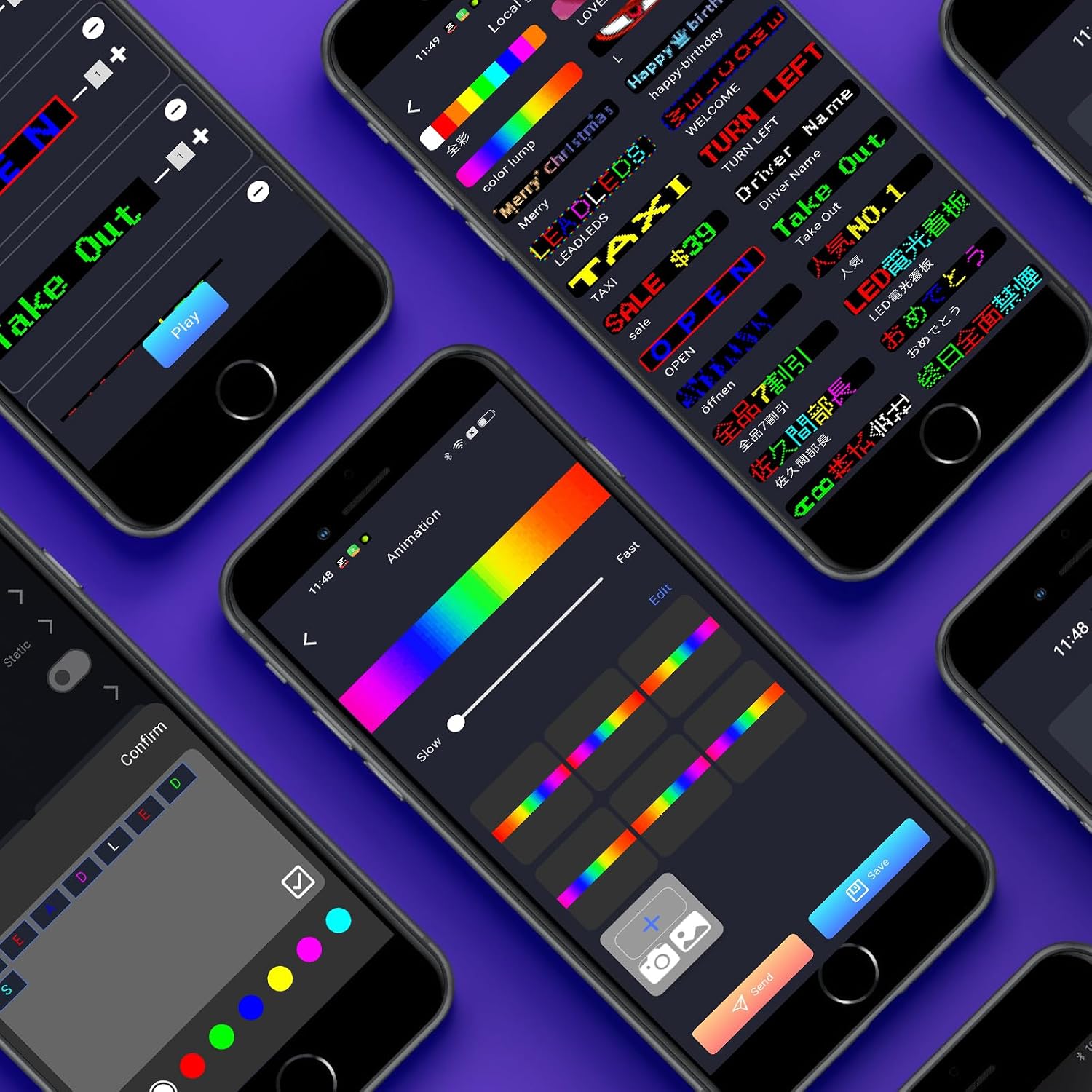

Image: A smartphone screen displaying the app interface, showing options for editing text, selecting colors, and adjusting animation speed for the LED display.

2. Selecting Display Modes and Effects

The display supports 8 different modes:

• רעכט: Text scrolls from right to left.
• לינקס: Text scrolls from left to right.
• שניי-פלאַקל: Text appears with a snowflake effect.
• בילד: Displays pre-set or custom graphics.
• לייזער: Text appears with a laser-like effect.
• סטאַטיק: Text remains stationary.
• אַרויף: Text scrolls upwards.
• אַראָפּ: Text scrolls downwards.

You can also program animations, custom graffiti, and utilize a music equalizer display. The app provides options for adjusting brightness, screen on/off, mirror effect, and 180-degree rotation of the display content.

Image: Multiple LED displays showing different content, including a music equalizer, a "WELCOME" message, animated graphics, and a "THANKS" message, demonstrating the variety of display options.

Image: A smartphone screen showing the app's settings menu, with options for brightness adjustment, screen switch, mirror switch, and rotation (0°, 180°, and their mirror effects).

3. Sending Content to the Display

After creating and customizing your message or animation, use the "Send" or "Confirm" button within the app to transmit the content to the LED display. The display will update instantly.

וישאַלט

1. רייניקונג

To clean the LED display, gently wipe the surface with a soft, dry cloth. Avoid using abrasive cleaners or solvents that could damage the screen or frame.

2. אַפּערייטינג סוויווע

The recommended operating temperature for the LED display is between -17.8°C and 90°C (0°F to 194°F). Do not use the device above this temperature range. If exposed to strong direct sunlight, it is advisable to place the unit indoors or in a shaded area to prevent overheating and potential damage.

3. Rest Periods

To ensure optimal performance and extend the lifespan of the LED display, it is recommended to allow the device to rest for a period after 2-3 hours of continuous operation.

טראָובלעשאָאָטינג

זיכערקייַט אינפֿאָרמאַציע

• Always use a DC 5V/2A power source for the LED display. Using an incompatible power supply may damage the device or pose a safety risk.
• Do not expose the device to temperatures outside the recommended operating range of -17.8°C to 90°C (0°F to 194°F).
• Avoid prolonged exposure to strong direct sunlight, especially in high temperatures, as this can lead to overheating.
• Allow the device to rest after 2-3 hours of continuous use to prevent overheating and ensure longevity.
• האַלטן די מיטל אַוועק פון וואַסער און אנדערע ליקווידס.
• דו זאלסט נישט פּרווון צו דיסאַסעמבאַל אָדער פאַרריכטן די מיטל זיך. קאָנטאַקט קונה שטיצן פֿאַר הילף.

וואָראַנטי און שטיצן

For any inquiries, technical support, or assistance with your Leadleds Programmable Bluetooth LED Display, please contact our customer service. We aim to respond to all queries within 24 hours.

כאָטש ספּעציפֿישע וואָראַנטי דעטאַלן ווערן נישט צוגעשטעלט אין דעם מאַנואַל, ביטע האַלטן אייער קויפן באַווייַז פֿאַר קיין וואָראַנטי קליימז.
