HIWONDER HTS-35H High Voltage Bus Servo Instruction Manual

1. הקדמה

The HIWONDER HTS-35H is a high-performance serial bus servo designed for various robotic and control applications. It features a robust 35kg.cm torque, 240-degree rotation, and provides real-time feedback on position, temperature, and voltage. This manual provides essential information for the proper setup, operation, and maintenance of your HTS-35H servo.

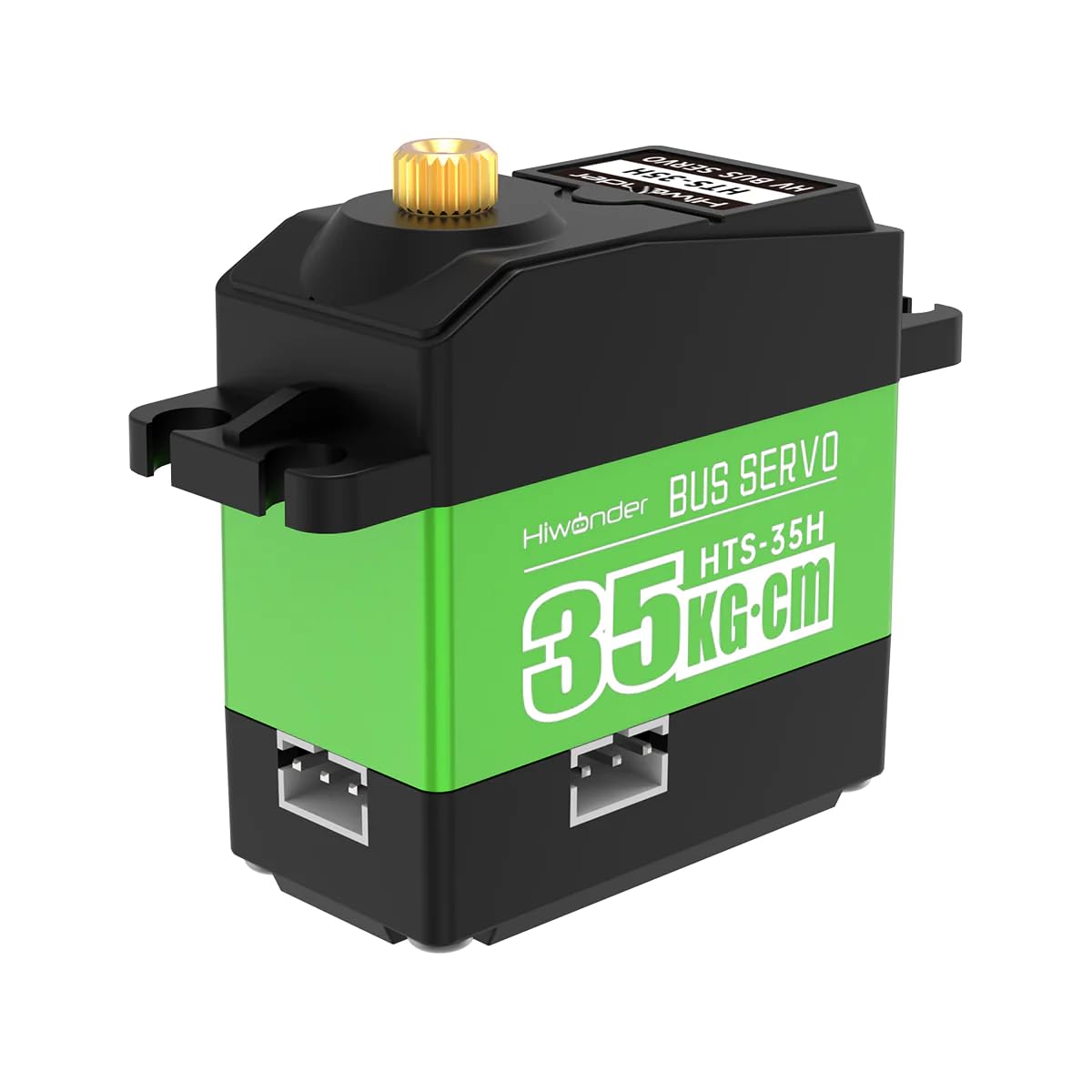

Image 1.1: The HIWONDER HTS-35H High Voltage Bus Servo, showcasinג זײַן קאָמפּאַקטן דיזײַן און בראַנדינג.

2. פּראָדוקט פֿעיִקייטן

• הויך טאָרק רעזולטאַט: Delivers up to 35kg.cm of torque at 7.4V, suitable for demanding applications.
• Wide Rotation Angle: Offers a 240-degree operational rotation range. Supports 360-degree rotation when power is off, ideal for robot joints.
• Variable ID: The default servo ID is 1, which can be modified for multi-servo systems.
• סימפּליפיעד וויירינג: Features three channels on the top, left, and right sides for easy and clean wiring integration.
• Comprehensive Feedback: Provides real-time position, temperature, and voltage feedback to protect the servo from damage due to overheating or over-current.
• קאָמפּאַקט דימענשאַנז: Measures 54.38 x 20.14 x 45.5mm (2.14 x 0.79 x 1.79 inches) and weighs only 64g (2.22oz).

בילד 2.1: איבערview of the HTS-35H servo highlighting its key features including temperature, position, and voltage feedback, 35KG strong torque, servo mode, and gear motor mode.

3. פּעקל אינהאַלט

באַשטעטיקן אַז אַלע קאָמפּאָנענטן זענען פאַראַן אין דיין פּעקל:

• HIWONDER HTS-35H High Voltage Bus Servo
• Servo Horns (various types)
• Mounting Screws and Bushings
• קאַנעקשאַן קאַבלע

Image 3.1: Contents of the HTS-35H servo package, including the servo unit, various servo horns, mounting hardware, and a connection cable.

4. ספּעסאַפאַקיישאַנז

Image 4.1: Detailed dimensional drawing of the HTS-35H servo in millimeters.

5. סעטאַפּ

5.1 פיזיש קאַנעקשאַן

Connect the HTS-35H servo to your control board or power supply using the provided cable. Ensure correct polarity for power connections (V+, GND) and proper serial communication lines (TX, RX).

5.2 Wiring for Development Boards

The HTS-35H servo is compatible with various development boards such as Raspberry Pi, Jetson Nano, and Arduino. The three-channel design (top, left, right) facilitates flexible wiring configurations. Refer to the specific wiring diagrams for your chosen development board.

Image 5.1: Wiring diagrams illustrating connections for Raspberry Pi, Jetson Nano, and Arduino development boards with the HTS-35H servo. Note the TX to RX, RX to TX, 5V to 5V, and GND to GND connections.

5.3 Setting Servo ID

Each HTS-35H servo has a unique ID, with a default value of 1. For applications requiring multiple servos on a single bus, you must assign a unique ID (0-253) to each servo using the provided debugging software. This prevents communication conflicts.

6. אַפּערייטינג ינסטרוקטיאָנס

6.1 Control via Serial Communication

The HTS-35H servo is controlled using UART serial commands. You will need to implement the communication protocol in your microcontroller code to send commands for position, speed, and other parameters.

6.2 Using Visual Debugging Software

HIWONDER provides visual debugging software to simplify testing and parameter configuration. This software allows you to:

• Control servo rotation and position.
• Monitor real-time data such as position, voltagE, און טעמפּעראַטור.
• Set various parameters including servo ID, working mode, rotation speed, position deviation, LED light status, temperature alarm, and stalling alarm.

Image 6.1: A HIWONDER HTS-35H servo connected to a computer via a TTL/USB debugging board, demonstrating the setup for using the visual debugging software.

Image 6.2: Screenshots of the visual debugging software, showing interfaces for operating the servo and adjusting its parameters, including real-time feedback displays for voltagE און טעמפּעראַטור.

6.3 ווידעא דעמאַנסטראַציע

Watch this official video for a visual guide on the HTS-35H Serial Bus Servo's features and operation.

7. וישאַלט

• האַלטן ריין: Regularly clean the servo's exterior to prevent dust and debris from entering the internal mechanisms.
• ויסמיידן אָווערלאָאַד: Do not exceed the specified torque limits to prevent damage to the gears and motor. The servo provides feedback to help monitor this.
• געהעריק סטאָרידזש: Store the servo in a dry, cool environment away from direct sunlight and extreme temperatures.
• טשעק קאַנעקשאַנז: Periodically inspect all wiring and connections for wear or looseness to ensure reliable operation.

Image 7.1: An illustration showing the internal gear structure of a servo, emphasizing the importance of proper maintenance for these components.

8. טראָובלעשאָאָטינג

• Servo Not Responding:
  • קוק מאַכט צושטעלן וואָלtage and current. Ensure it meets the 9-12.6V requirement.
  • Verify all wiring connections (power, TX, RX) are secure and correctly oriented.
  • Confirm the servo ID is correctly set and unique if multiple servos are on the bus.
  • Test with the visual debugging software to isolate if the issue is hardware or software related.
• Erratic Movement or Jitter:
  • זיכער מאַכן אַז די מאַכט צושטעל איז סטאַביל און גיט גענוג קראַנט.
  • Check for electrical noise in the system; separate power and signal lines if possible.
  • Verify the communication baud rate matches between the servo and the controller.
• איבערהייצונג:
  • Reduce the load on the servo.
  • Check for any mechanical binding that might be causing excessive strain.
  • Monitor temperature feedback via software to prevent damage.

9. וואָראַנטי און שטיצן

HIWONDER products are designed for reliability and performance. For warranty information, technical support, or service inquiries, please refer to the official HIWONDER webזייטל אדער קאָנטאַקט אייער אויטאָריזירטן הענדלער. האַלט אייער קויף קוויטל ווי אַ באַווייַז פון קויפן פֿאַר קיין וואָראַנטי קליימז.
