Makita PM001GZ01 40V Max XGT Cordless Backpack Sprayer Instruction Manual

הקדמה

Thank you for choosing the Makita PM001GZ01 40V Max XGT Cordless Backpack Sprayer. This manual provides important information regarding the safe use, operation, and maintenance of your sprayer. Please read it thoroughly before first use and keep it for future reference.

אַלגעמיינע זיכערקייַט אינסטרוקציעס

Always observe the following safety precautions to reduce the risk of personal injury or damage to the tool.

• לייענען אַלע ינסטראַקשאַנז: מאַכט זיך באַקאַנט מיט די קאָנטראָלס און ריכטיקן באַניץ פון דעם שפּריצער.
• טראָגט פּאַסיקע פּערזענלעכע שוץ-עקוויפּמענט (PPE): This includes eye protection, gloves, and respiratory protection, especially when handling chemicals.
• Chemical handling: Always follow the instructions and safety warnings provided by the chemical manufacturer. Do not spray flammable liquids.
• באַטערי זיכערקייַט: Use only Makita XGT 40V Max batteries and chargers. Do not expose batteries to water, heat, or direct sunlight.
• האַלט קינדער און פֿאַרבייגייער אַוועק: Do not allow children or untrained persons to operate the sprayer.
• Maintain a firm footing: Ensure stable balance when operating the backpack sprayer.
• קאָנטראָלירן איידער נוצן: Check for damaged parts, loose connections, or leaks before each operation.
• אָפּשטעקן די באַטאַרייע: Always remove the battery pack before making adjustments, changing accessories, or storing the sprayer.

פּראָדוקט איבערview

The Makita PM001GZ01 is a powerful 40V Max XGT cordless backpack sprayer designed for efficient application of liquids. Key components are illustrated below.

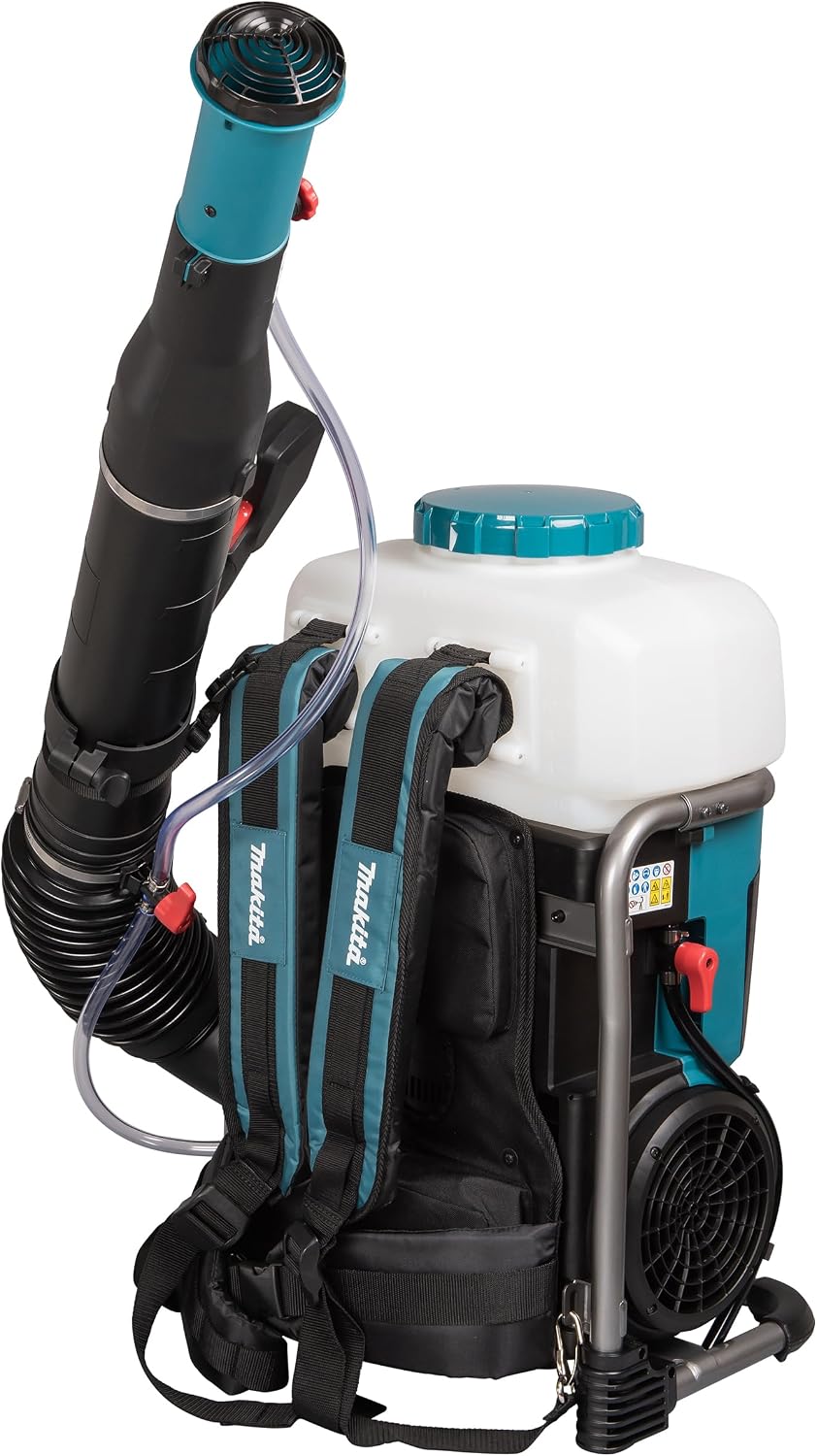

פיגורע 1: קוילעלדיק view of the Makita PM001GZ01 backpack sprayer, showing the main unit, tank, and spray wand assembly.

פיגורע 2: דערציען view of the sprayer, highlighting the comfortable backpack straps and padded back support for extended use.

פיגורע 3: זייַט פּראָfile of the sprayer, illustrating the robust frame and the connection point for the spray hose.

פיגורע 4: דעטאַילעד view of the main power unit, featuring the XGT battery system compartment and fan housing.

סעטאַפּ

1. באַטאַרייע ייַנמאָנטירונג

Ensure the sprayer is turned off before installing or removing the battery.

1. עפענען די באַטאַרייע אָפּטייל דעקן.
2. Align the battery pack with the battery slot and slide it in until it clicks into place.
3. פאַרמאַכן די באַטאַרייע אָפּטייל דעקן סיקיורלי.

פיגורע 5: Correct method for inserting the 40V Max XGT battery into the designated compartment.

פיגורע 6: The battery compartment is designed to hold two XGT batteries for extended operation.

2. Hose and Nozzle Assembly

Connect the spray hose and nozzle securely before filling the tank.

• Attach the flexible hose to the main unit's outlet and the spray wand's inlet. Ensure all connections are tight to prevent leaks.
• Secure the spray nozzle to the end of the spray wand.

פיגורע 7: Detail of the hose connection to the main unit, showing the secure clamp.

פיגורע 8: The clear hose connecting to the spray wand, with an inline control valve for liquid flow.

3. פילונג די טאַנק

Always fill the tank with the sprayer on a stable, level surface and the battery removed.

1. ונסקרעוו די טאַנק היטל.
2. Carefully pour the desired liquid into the tank, observing maximum fill lines.
3. זיכער צוריקשטעלן דעם טאנק דעקל.

אָפּעראַציע

1. פּאַוערינג אויף און אויסגעלאשן

The sprayer is controlled via the handle assembly.

• To power on, press the main power button on the control handle.
• To begin spraying, depress the trigger on the handle. Release the trigger to stop spraying.
• To power off, press and hold the main power button until the indicator lights turn off.

פיגורע 9: The ergonomic control handle features a trigger for spray activation and a power button with LED indicators.

2. Adjusting Spray Settings

The sprayer offers adjustable settings for optimal application.

• פלאָו קורס אַדזשאַסטמאַנט: Use the red rotary knob on the spray wand to adjust the liquid flow rate. Settings typically range from 1 (low) to 4 (high).
• Nozzle Pattern Adjustment: Rotate the nozzle head to change the spray pattern from a fine mist to a more concentrated stream.

פיגורע 10: The red knob on the spray wand allows for precise adjustment of the liquid output volume.

פיגורע 11: The nozzle can be rotated to select different spray patterns, from a wide mist to a narrow stream.

3. באַטערי לעוועל ינדיקאַטאָר

The control handle features LED indicators to show the remaining battery charge.

פיגורע 12: Pressing the power button illuminates the LED indicators, showing the current battery charge level.

פיגורע 13: Three green lights indicate a full or near-full battery charge.

וישאַלט

רעגולערע אויפהאלטונג גאראנטירט די לאנגעוויטי און אפטימאלע פאָרשטעלונג פון אייער שפּריצער.

• רייניקונג דעם טאַנק: After each use, especially when using chemicals, thoroughly rinse the tank with clean water. Operate the sprayer with clean water to flush the hose and nozzle.
• נעזל רייניקונג: If the nozzle becomes clogged, remove it and clean any debris. Use a soft brush or needle if necessary.
• באַטערי זאָרגן: האַלט באַטעריעס אין אַ קיל, טרוקן אָרט אַוועק פון דירעקט זונשייַן. האַלט נישט גאָר אויסגעלאָדעטע באַטעריעס פֿאַר לענגערע פּעריאָדן.
• אַלגעמיינע דורכקוק: Periodically check all hoses, connections, and the main unit for signs of wear, damage, or leaks. Replace any damaged parts immediately.
• סטאָרידזש: Store the sprayer in a dry, secure location, out of reach of children. Ensure the tank is empty and clean before storage.

טראָובלעשאָאָטינג

זעט דעם אָפּטייל פֿאַר געוויינטלעכע פּראָבלעמען און זייערע לייזונגען.

1. Sprayer Does Not Turn On

• קאָנטראָלירן די באַטאַרייע: Ensure the battery is fully charged and correctly inserted into the compartment.
• באַטערי קשר: באַשטעטיקן אַז די דעקן פון די באַטאַרייע אָפּטייל איז סיקיורלי פֿאַרמאַכט.
• מאַכט קנעפּל: Ensure the power button on the control handle is pressed firmly.

2. No Spray or Weak Spray

• Check Tank Level: Ensure there is sufficient liquid in the tank.
• נעזל קלאָג: Inspect the nozzle for any blockages and clean if necessary.
• Hose Kinks/Blockages: Check the spray hose for kinks or internal blockages.
• Flow Rate Setting: Ensure the flow rate adjustment knob is not set to minimum or off.
• באַטאַרייע אָפּצאָל: A low battery can result in reduced spray pressure. Recharge or replace the battery.

3. ליקס

• פֿאַרבינדונגען: Tighten all hose and nozzle connections.
• טאַנק קאַפּ: Ensure the tank cap is securely fastened.
• דאַמידזשד קאַמפּאָונאַנץ: Inspect hoses, seals, and the tank for cracks or damage. Replace any compromised parts.

ספּעסאַפאַקיישאַנז

וואָראַנטי און שטיצן

For warranty information, technical support, or service inquiries, please refer to the official Makita website or contact your local Makita authorized service center. Keep your purchase receipt as proof of purchase for warranty claims.

אָנליין רעסורסן: www.makita.com
