HCK 48L Mini Fridge Instruction Manual

וויכטיק סאַפעטי אינפֿאָרמאַציע

ביטע ליינט אלע אינסטרוקציעס קערפול איידער איר ניצט דעם אפאראט. האלט דעם מאנואל פאר שפעטערדיגע רעפערענץ.

• אָרט: Ensure the appliance is placed on a stable, level surface. Allow adequate ventilation around the unit.
• ערשט באנוץ: After receiving the product, place it upright for a minimum of 24 hours before plugging it in. This allows the refrigerant to settle.
• מאַכט צושטעלן: פאַרבינדן צו אַ געערדטער עלעקטרישער אַוטלעט מיטן ריכטיקן וואָלומעןtagE (220 וואלטס).
• טיר עפן: Due to the integrated LED lighting in the door, the opening direction of the door cannot be changed.
• רייניקונג: שטענדיק אָפּשטויסן די אַפּפּליאַנסע איידער רייניקונג. ניצן אַ ווייך, דamp שטאָף און מילד וואַשפּולווער. ויסמיידן אַברייסיוו קלינערז.
• קינדער: האַלט קינדער אַוועק פֿון דעם אַפּאַראַט, ספּעציעל ווען די טיר איז אָפֿן.

סעטאַפּ און ינסטאַלירונג

Follow these steps for proper setup of your HCK Mini Fridge.

1. אויספּאַקן: Carefully remove the refrigerator from its packaging. Inspect for any damage during transit.
2. אָרט: Choose a location with sufficient space for air circulation around the back and sides of the fridge. Avoid direct sunlight or heat sources. Ensure the surface is level using the adjustable feet at the bottom of the unit.
3. ערשטע שטאַנדביי: As per safety guidelines, allow the fridge to stand upright for 24 hours before plugging it into a power outlet.
4. מאַכט קשר: Plug the power cord into a dedicated 220V grounded electrical outlet.

פיגורע 1: פראָנט view of the HCK 48L Mini Fridge, showcasing its cyberpunk design and illuminated interior.

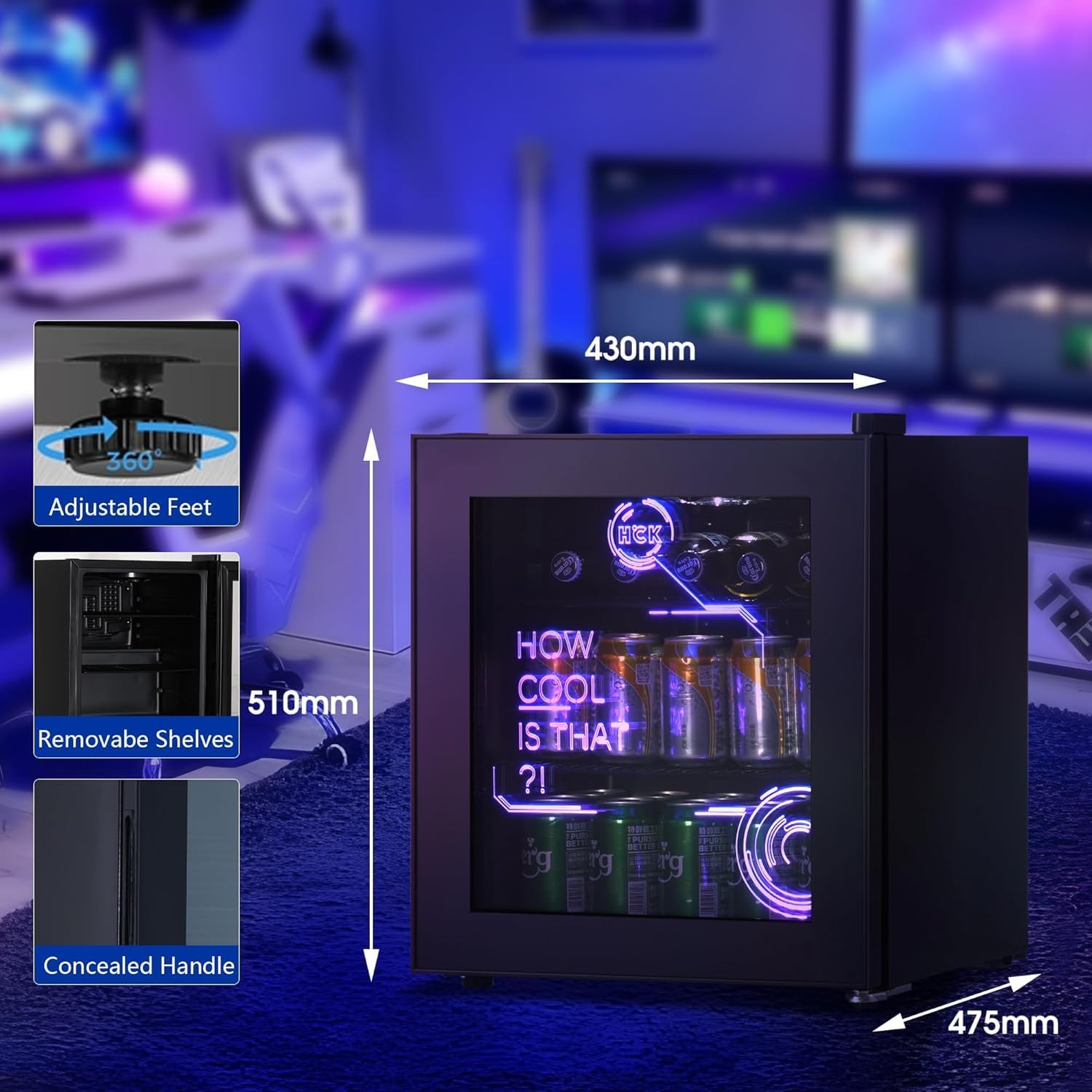

Figure 2: Dimensions of the HCK 48L Mini Fridge (475mm depth, 430mm width, 510mm height) and key features like adjustable feet, removable shelves, and concealed handle.

אַפּערייטינג ינסטראַקשאַנז

Learn how to operate your mini fridge for optimal performance.

טעמפּעראַטור קאָנטראָל

The fridge features an adjustable temperature control with a range of 0-15°C (32-59°F). The control dial is typically located inside the unit. Adjust the dial to your desired cooling level. A higher number usually indicates a colder setting.

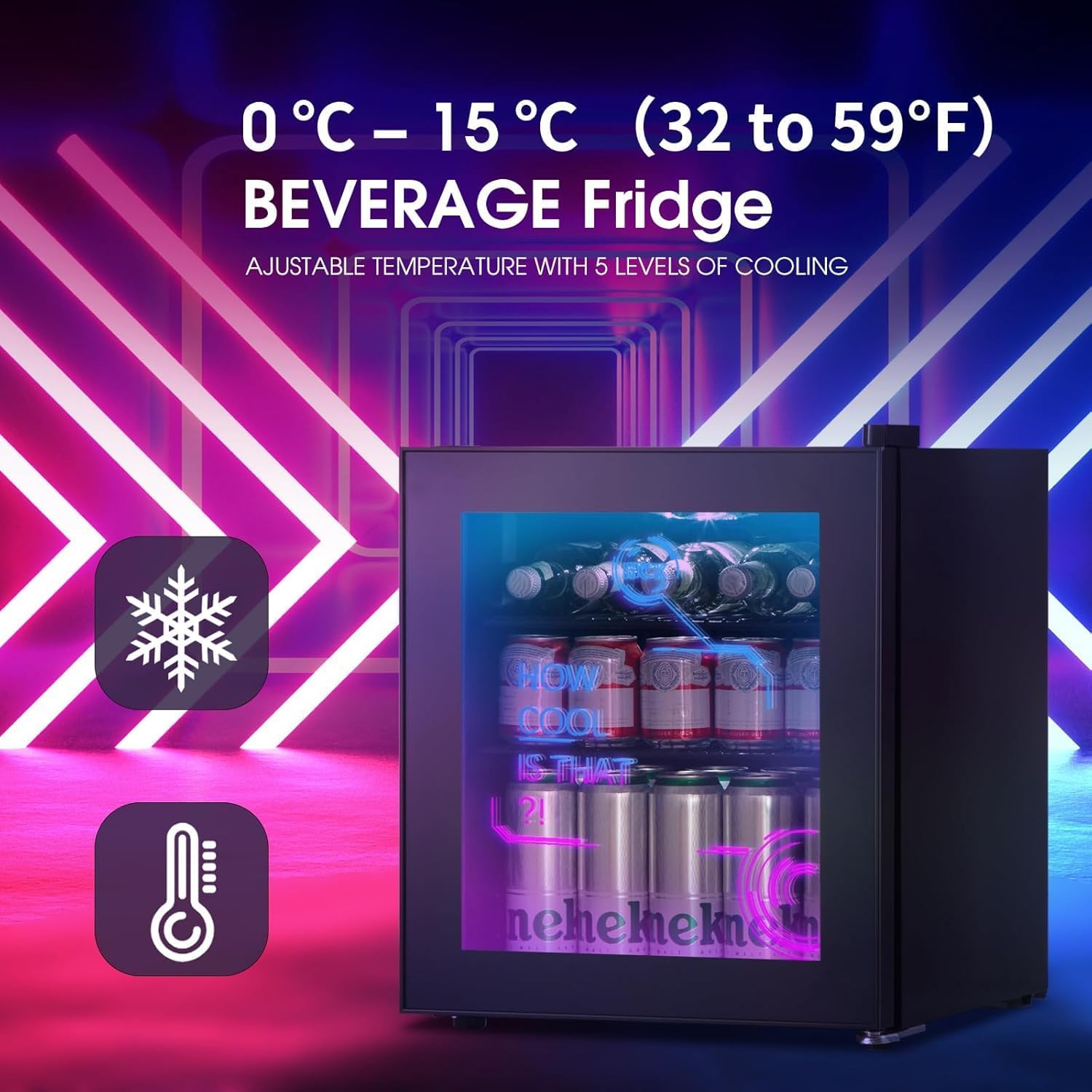

Figure 3: Illustration of the 0-15°C temperature range for the beverage fridge, indicating adjustable cooling levels.

געפירט ליגהטינג

The fridge is equipped with modern LED lighting. Refer to the control panel or internal switch for options to turn the lighting on/off or adjust its settings, if applicable. This allows for customization of the aesthetic without affecting cooling.

אַדזשאַסטאַבאַל שעלוועס

The HCK 48L Mini Fridge comes with 4 removable shelves, offering 5 slot options for versatile storage. To adjust, carefully lift and slide the shelves out of their current slots and reposition them to accommodate different sizes of beverages or snacks.

פיגורע 4: ינלענדיש view of the 48-liter mini fridge, demonstrating the spacious design and removable shelves for organizing various items.

וישאַלט און זאָרג

Regular maintenance ensures the longevity and efficiency of your mini fridge.

רייניקונג די ינלענדיש

To clean the interior, unplug the fridge and remove all contents and shelves. Wipe down surfaces with a soft cloth dampened with a solution of mild detergent and warm water. Rinse with a clean, damp cloth and dry thoroughly before plugging the unit back in.

רייניקונג די יקסטיריער

Wipe the exterior surfaces, including the glass door, with a soft, damp cloth. For stubborn marks, use a mild glass cleaner on the glass door. Avoid spraying cleaners directly onto the fridge; apply to the cloth first.

דעפראָסטינג

This model features an Electric Defrost system. While it minimizes frost buildup, occasional manual defrosting may be necessary if excessive ice accumulates. To manually defrost, unplug the unit and leave the door open until ice melts. Place towels to catch water. Do not use sharp objects to remove ice.

טראָובלעשאָאָטינג גייד

איידער איר קאָנטאַקטירט קונה סערוויס, ביטע באַציט זיך צו די פאלגענדע געוויינטלעכע פּראָבלעמען און לייזונגען.

ספּעסאַפאַקיישאַנז

Detailed technical specifications for your HCK Mini Fridge.

For detailed energy information, please refer to the official EU EPREL database: EPREL פּראָדוקט בלאַט

Figure 5: UK Energy Label for HCK Mini Fridge Model SC-46CTA, showing Energy Class E and 77 kWh/annum consumption.

וואָראַנטי און שטיצן

Your HCK Mini Fridge comes with a manufacturer's guarantee and support resources.

Manufacturer's Guarantee

The minimum duration of the guarantee offered by the manufacturer is 12 months from the date of purchase. Please retain your proof of purchase for warranty claims.

קונה שטיצן

If you have any questions about the product, require technical assistance, or need to make a warranty claim, please contact HCK customer service. You can find additional information and support on the supplier's official webפּלאַץ: www.hck-cool.com
