דזשאָמיסע G814 4K שפּיגל דאַש קאַם ינסטרוקציע מאַנואַל

1. פּראָדוקט איבערview

The JOMISE G814 is an 11-inch 4K Rear View Mirror Camera designed as a pure evidence recorder. It operates without Wi-Fi or Bluetooth, ensuring no wireless interference and a straightforward user experience without the need for additional applications. This dash cam provides crystal-clear 4K front recording and 2.5K rear recording, capturing every detail for reliable video evidence. Its responsive touchscreen and intuitive controls make operation simple for any driver.

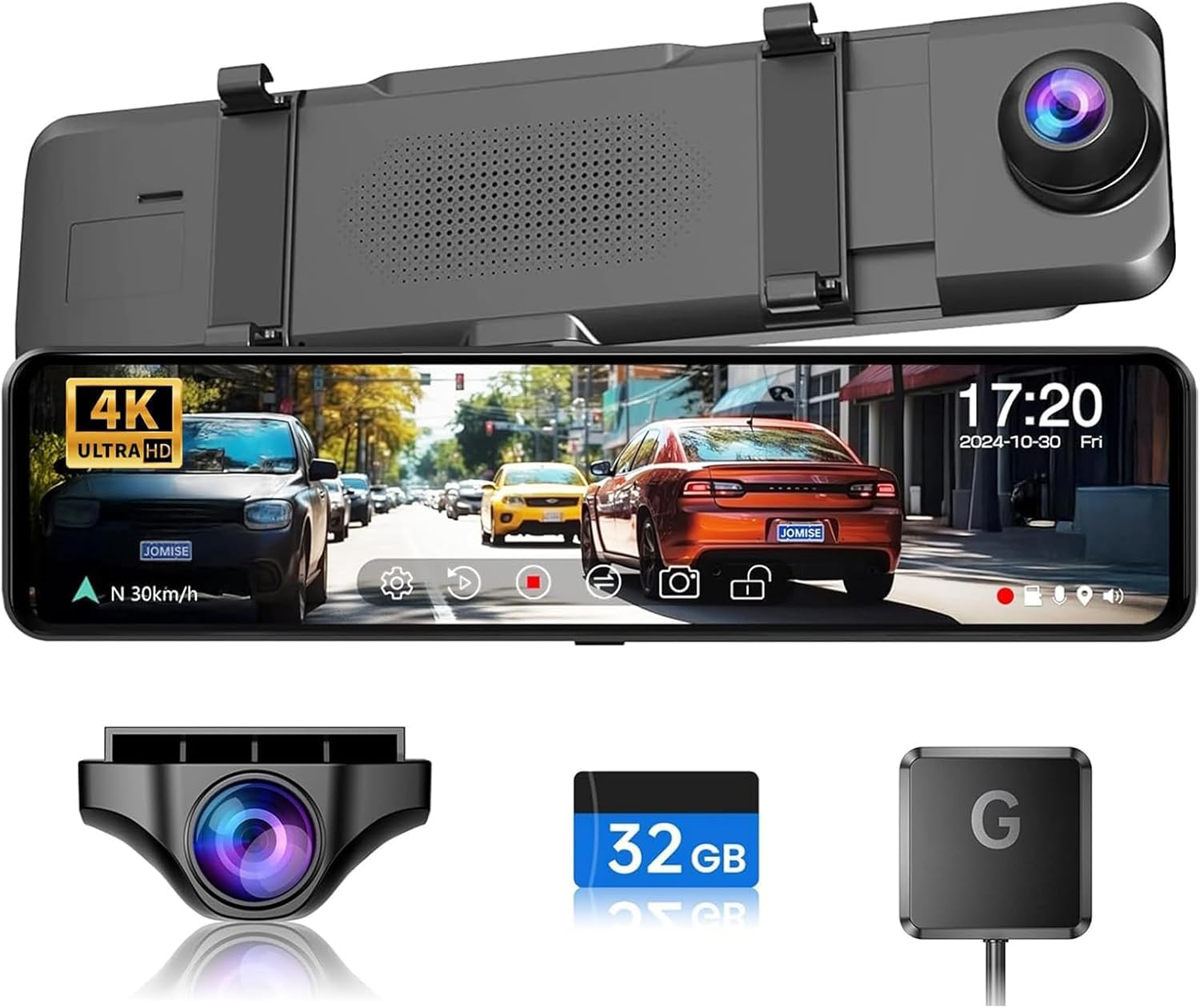

Image: JOMISE G814 4K Mirror Dash Cam with included components.

2. וואָס איז אין דער קעסטל

ביטע באַשטעטיקן אַז אַלע די פאלגענדע קאָמפּאָנענטן זענען אַרייַנגערעכנט אין דיין פּעקל:

• 1 x 4K Mirror Camera & Car Charger
• 1 x 1080P Backup Camera & GPS Module
• 1 x Rear Camera Cable & Straps
• 1 x User Manual & 32GB Card
• 1 x בארג בראַקעט

Image: All components included in the JOMISE G814 package.

3. סעטאַפּ און ייַנמאָנטירונג

The JOMISE G814 is designed for quick and easy strap-on installation, fitting most vehicles. Follow these steps for proper setup:

1. מאָנטירן די שפּיגל דאַש קאַם: Securely attach the 4K Mirror Camera over your existing rearview mirror using the provided straps. Ensure it is centered and stable.
2. פאַרבינדן די דערציען אַפּאַראַט: Route the rear camera cable from the main unit to the back of your vehicle. Connect the rear camera to the cable and mount it in a suitable position, typically above the license plate or inside the rear window.
3. Connect the GPS Module: Plug the GPS module into the designated GPS interface on the main unit. Position the module on your dashboard or windshield where it has a clear view פון הימל פֿאַר אָפּטימאַל סיגנאַל אָפּנאַם.
4. פאַרבינדן מאַכט: Plug the car charger into your vehicle's 12V power outlet (cigarette lighter) and connect the other end to the Type-C port on the dash cam.
5. אַרייַנלייגן SD קאָרט: Insert the provided 32GB SD card (or a compatible card up to 128GB) into the memory card slot. Ensure it is inserted correctly until it clicks into place.

Image: Illustrates the strap-on installation of the mirror dash cam.

בילד: דעטאַלירט view of the Type-C port, GPS interface, and rear camera connector.

4. אַפּערייטינג ינסטרוקטיאָנס

4.1 טאָוטשסקרעען אָפּעראַציע

The 11-inch IPS touchscreen offers responsive and intuitive controls. Simply tap or swipe to navigate menus and adjust settings. The device supports three display modes for ease of use.

Image: Demonstrates the simple touchscreen operation of the dash cam.

Image: Shows the dash cam display with both front and rear camera views.

4.2 Recording Functionality

The dash cam records in a continuous loop, ensuring that your footage is always up-to-date. When the memory card is full, the oldest unlocked videos are automatically overwritten.

• פראָנט רעקאָרדינג: Captures video in 4K resolution.
• הינטערשטע רעקאָרדינג: Captures video in 2.5K resolution.

Image: Illustrates the dual recording capability of the dash cam.

Image: Visual representation of continuous loop recording.

4.3 G-Sensor (Emergency Lock)

The built-in G-Sensor automatically detects sudden impacts or collisions. When an event is detected, the current video segment is locked and protected from being overwritten by loop recording, ensuring critical evidence is saved.

Image: Depicts the G-Sensor automatically locking footagע בעת אן אימפּאַקט.

Image: A lock icon symbolizing the G-Sensor's function to protect video files.

4.4 פּאַרקינג מאָניטאָר

For 24-hour parking monitoring, an optional hardware kit (ASIN: B0B6TZSF9P) is required. When installed, the dash cam can monitor your vehicle even when parked, recording events like collisions or time-lapse footage.

Image: Visual representation of the 24-hour parking monitoring feature.

4.5 3X Zoom & Ultra-Wide View

The JOMISE G814 features an exclusive 3X rear zoom and an 11-inch ultra-wide view. This functionality assists in parking and driving, providing a wider and safer perspective, especially useful for tight spots, trailers, and blind zones.

Image: Compares the ultra-wide view of the JOMISE G814 with other dash cams.

Image: Shows parking assist lines on the dash cam display for easier maneuvering.

4.6 נאַכט זעאונג

Equipped with advanced F1.8 and F2.0 lenses, the G814 reduces glare and captures sharp images in low-light conditions, ensuring clear and safe driving day and night.

Image: Demonstrates the clear night vision performance of the dash cam.

4.7 ברייט דינאַמיש קייט (WDR)

The WDR function optimizes video quality by eliminating excessively bright spots and correcting color balance, resulting in a clear image even in challenging lighting environments.

Image: Illustrates how WDR balances exposure in varying light conditions.

4.8 דזשי-פי-עס פונקציאָנאַליטעט

The included GPS module allows the dash cam to record your driving route, speed, and location data. This information can be reviewed using compatible playback software on a computer, providing comprehensive evidence.

Image: Shows GPS data playback on a computer screen with map and driving information.

5. וישאַלט

• רייניקונג: Use the provided cleaning cloth or a soft, dry cloth to wipe the screen and lenses. Avoid using abrasive cleaners or solvents.
• סד קאָרט זאָרגן: Regularly format the SD card (at least once a month) within the dash cam's settings to ensure optimal performance and prevent data corruption. Use a high-quality, high-speed (Class 10 or U3) SD card.
• טעמפּעראַטור: פֿאַרמײַדט אויסשטעלן די דאַש קאַם צו עקסטרעמע טעמפּעראַטורן פֿאַר פֿאַרלענגערטע פּעריאָדן, ווײַל דאָס קען אַפֿעקטירן די באַטעריע לעבן און קאָמפּאָנענט אָרנטלעכקייט.
• Firmware דערהייַנטיקונגען: Check the official JOMISE website periodically for any available firmware updates to ensure your device has the latest features and bug fixes.

6. טראָובלעשאָאָטינג

• דאַש קאַם גייט נישט אָן:
  • Ensure the car charger is securely plugged into both the dash cam and the vehicle's 12V power outlet.
  • Check the vehicle's 12V power outlet for power (e.g., by plugging in another device).
  • באַשטעטיקן אַז דער קאַר טשאַרדזשער קאַבל איז נישט געשעדיגט.
• Recording Issues (e.g., freezing, skipping frames):
  • פֿאָרמאַטירט די SD קאַרטל רעגולער.
  • Ensure you are using a high-speed (Class 10 or U3) SD card from a reputable brand.
  • The SD card may be full; replace it or format the existing one.
• Date/Time is Incorrect:
  • זיכער מאַכן אַז דער GPS מאָדול איז ריכטיק פֿאַרבונדן און האָט אַ קלאָרע view of the sky. The GPS module automatically updates the date and time.
  • If the issue persists, manually set the date and time in the dash cam's settings.
• Image is Blurry or Unclear:
  • רייניקט די קאַמעראַ לענסעס מיט אַ ווייכן שטאָף.
  • זיכער מאַכן אַז די פּראַטעקטיוו פילם איז אַוועקגענומען געוואָרן פֿון די לענסעס.
  • Check if the camera is securely mounted and not vibrating.
• Sun Visor Interference:
  • Due to the 11-inch size of the mirror dash cam, some vehicle models, particularly those with larger or lower-set sun visors, may experience interference when the sun visor is lowered. This is a design consideration for larger screens and may not be resolvable by adjustment. Consider the dimensions of your vehicle's interior before purchase.

7. ספּעסאַפאַקיישאַנז

8. וואָראַנטי און שטיצן

JOMISE is committed to providing reliable products and excellent customer service. Your G814 dash cam comes with the following:

• 12 חדשים וואָראַנטי: Enjoy peace of mind with a one-year warranty covering manufacturing defects.
• 7 טעג צוריקקער פּאָליטיק: If you are not satisfied with your purchase, you may return it within 7 days of receipt.
• Return on Defects: Products with confirmed defects are eligible for return.

פֿאַר יעדע פֿראַגע אָדער שטיצע, ביטע קאָנטאַקט אונדז:

• בליצפּאָסט: jomise-us@jomise-cam.com
• טעלעפֿאָן: +1 866 788 8775

Images: JOMISE warranty and support information.
