Prestige PWG 07 Wet Grinder User Manual

1. וויכטיק סאַפעטי אינסטרוקציעס

Please read all instructions carefully before operating the Prestige PWG 07 Wet Grinder. Retain this manual for future reference. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Always ensure the appliance is placed on a stable, flat, and dry surface before operation.
• Do not immerse the motor base unit in water or any other liquid. Clean with a damp בלויז שטאָף.
• Keep hands and utensils away from moving parts during operation to prevent injury. Use the provided spatula or pusher if necessary.
• נעמט ארויס דעם עלעקטרישן אפאראט פון דער עלעקטרישער ווענטיל ווען עס איז נישט אין באנוץ, איידער איר צוזאמענשטעלט אדער צענעמט טיילן, און איידער איר רייניגט עס.
• Do not operate the appliance with a damaged cord or plug, or if the appliance malfunctions or has been damaged in any manner. Contact authorized service personnel.
• דער אַפּפּליאַנסע איז נישט בדעה פֿאַר נוצן דורך מענטשן (אַרייַנגערעכנט קינדער) מיט רידוסט פיזיש, סענסערי אָדער גייַסטיק קייפּאַבילאַטיז, אָדער פעלן פון דערפאַרונג און וויסן, סייַדן זיי האָבן באקומען השגחה אָדער לימעד וועגן די נוצן פון דעם אַפּפּליאַנסע דורך אַ מענטש פאַראַנטוואָרטלעך פֿאַר זייער זיכערקייַט. .
• Ensure the lid is properly secured before starting the grinder.
• Do not overload the grinder. Refer to the capacity guidelines.
• בלויז פֿאַר הויזגעזינד נוצן. דו זאלסט נישט נוצן ינ דרויסן.

2. פּראָדוקט איבערview

The Prestige PWG 07 Wet Grinder is designed for efficient grinding of various ingredients, dough kneading, and coconut scraping. Familiarize yourself with its components.

Figure 1: Prestige PWG 07 Wet Grinder with Coconut Scraper and Atta Kneader

קאַמפּאָונאַנץ:

• באַזע אַפּאַראַט: Contains the heavy-duty 200W motor and control switch.
• Stainless Steel Drum (2 Litre): The main container for grinding. Liftable for easy cleaning.
• מײַל־שטיינער: Two high-quality, heavy-duty stones for smooth batter consistency.
• טראַנספּעראַנט דעקל: Allows monitoring of the grinding process.
• Atta Kneader Attachment: For kneading dough for various flatbreads.
• Coconut Scraper Attachment: For fast and efficient coconut scraping.

Figure 2: Key design features including transparent lid, liftable drum, and heavy-duty motor.

3. סעטאַפּ

Follow these steps to set up your wet grinder before first use.

1. אַנפּאַק: נעמט פֿאָרזיכטיק אַרויס אַלע קאָמפּאָנענטן פֿון דער פּאַקעט. קאָנטראָלירט צי עס זענען פֿאַראַן קיין שאָדן.
2. ריין: Wash the stainless steel drum, grinding stones, lid, atta kneader, and coconut scraper with mild soap and water. Rinse thoroughly and dry. Do not wash the motor base unit.
3. אָרט: Place the base unit on a clean, dry, stable, and level surface, away from the edge of the counter. Ensure there is adequate ventilation around the unit.
4. Assemble Drum: Place the cleaned stainless steel drum onto the base unit. Ensure it is seated correctly.
5. Insert Grinding Stones: Carefully place the grinding stone assembly into the drum.
6. מאַכט קשר: Ensure the power switch is in the 'OFF' position before plugging the grinder into a suitable electrical outlet.

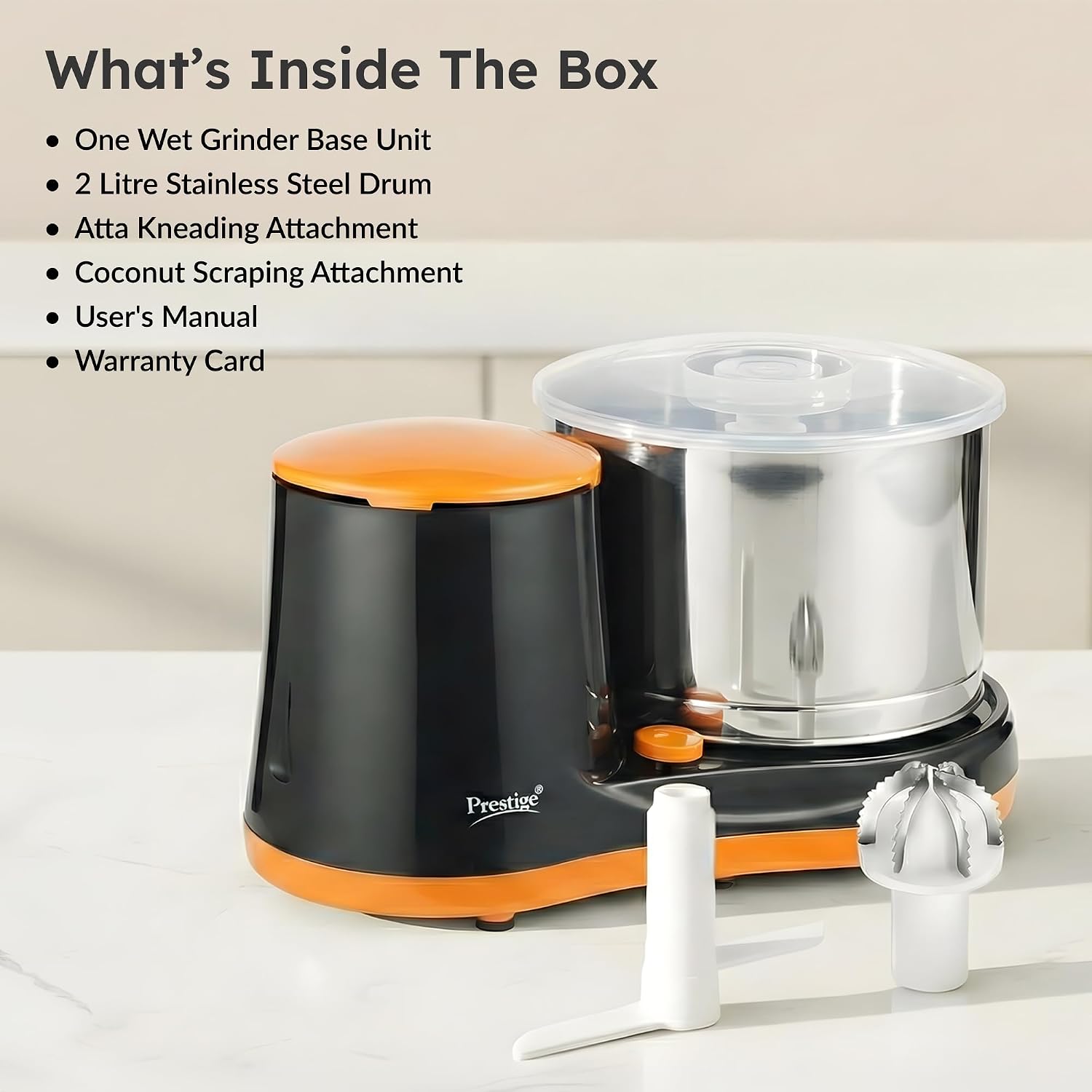

Figure 3: Items included in the box: Wet Grinder Base Unit, 2 Litre Stainless Steel Drum, Atta Kneading Attachment, Coconut Scraping Attachment, User's Manual, Warranty Card.

4. אַפּערייטינג ינסטרוקטיאָנס

4.1. General Grinding (e.g., for Idli/Dosa Batter)

1. Ensure the drum and grinding stones are clean and properly assembled on the base unit.
2. Add the pre-soaked and drained ingredients (e.g., rice, lentils) into the drum. Do not exceed the 2-litre capacity.
3. Pour a small amount of water into the drum. Start with less water and add gradually as needed during grinding.
4. Place the transparent lid securely on the drum.
5. Plug in the grinder and switch it ON. The grinding stones will begin to rotate.
6. Allow the ingredients to grind until the desired consistency is achieved. Use the transparent lid to monitor the process.
7. If the batter becomes too thick, add small amounts of water through the opening in the lid while the grinder is running.
8. Once grinding is complete, switch the grinder OFF and unplug it from the power outlet.
9. Carefully remove the lid, then lift out the grinding stone assembly. Scrape off any batter clinging to the stones.
10. Lift the stainless steel drum from the base unit and pour out the batter.

Figure 4: The wet grinder is suitable for various preparations including idli, dosa, vada, and chutneys.

4.2. Using the Atta Kneader Attachment

1. Ensure the drum is clean and placed on the base unit.
2. Remove the grinding stone assembly. Insert the atta kneader attachment onto the central shaft in the drum.
3. Add flour and a small amount of water to the drum.
4. Secure the transparent lid.
5. Plug in and switch ON the grinder. Allow the kneader to mix and knead the dough. Add water gradually through the lid opening if needed, until the desired dough consistency is reached.
6. Once kneading is complete, switch OFF and unplug the grinder.
7. Remove the lid and the atta kneader attachment. Carefully remove the dough.

Figure 5: Atta Kneading Attachment for preparing dough.

4.3. Using the Coconut Scraper Attachment

1. Ensure the drum is clean and placed on the base unit.
2. Remove the grinding stone assembly. Insert the coconut scraper attachment onto the central shaft in the drum.
3. Hold a half-coconut firmly and carefully bring it towards the rotating scraper blade.
4. Switch ON the grinder. Gently scrape the coconut flesh against the rotating blade.
5. Continue until all the desired coconut flesh is scraped.
6. Switch OFF and unplug the grinder.
7. Remove the lid and the coconut scraper attachment. Collect the scraped coconut.

Figure 6: Coconut Scraping Attachment for efficient coconut preparation.

5. רייניקונג און וישאַלט

Regular cleaning and proper maintenance will ensure the longevity and optimal performance of your wet grinder.

• שטענדיק צאַפּן די אַפּפּליאַנסע איידער רייניקונג אָדער דורכפירן קיין וישאַלט.
• Drum and Attachments: After each use, immediately wash the stainless steel drum, grinding stones, lid, atta kneader, and coconut scraper with warm soapy water. Use a brush to remove any residue from the grinding stones. Rinse thoroughly and dry completely before storing.
• באַזע אַפּאַראַט: Wipe the exterior of the motor base unit with a soft, damp טוך. ניצט נישט קיין שרײַבנדיקע רייניגער און טונקט נישט אײַן די באַזע־איינהייט אין וואַסער.
• סטאָרידזש: Store the grinder and its attachments in a clean, dry place, away from direct sunlight and moisture.
• מאָטאָר וישאַלט: The motor is designed for heavy-duty use and requires no special user maintenance. Do not attempt to open the motor housing.

6. טראָובלעשאָאָטינג

If you encounter any issues with your Prestige PWG 07 Wet Grinder, refer to the following table for common problems and solutions.

7. ספּעסאַפאַקיישאַנז

8. וואָראַנטי און שטיצן

Prestige stands by the quality of its products. Your Prestige PWG 07 Wet Grinder comes with the following warranty:

• פּראָדוקט וואָראַנטי: 1 יאָר פֿון דער טאָג פון קויפן.
• מאָטאָר וואָראַנטי: 5 יאר פון דעם דאטום פון קויפן.

Please retain your purchase receipt for warranty claims. The warranty covers manufacturing defects under normal household use. It does not cover damage due to misuse, neglect, unauthorized repairs, or normal wear and tear.

קונה שטיצן:

For service, spare parts, or any queries regarding your Prestige PWG 07 Wet Grinder, please contact Prestige customer service. Refer to the contact details provided on your warranty card or visit the official Prestige webפּלאַץ פֿאַר די מערסט דערהייַנטיקט אינפֿאָרמאַציע.

You can find more information and support on the official Prestige webפּלאַץ: www.prestigesmartkitchen.com
