Rancilio Classe 5 Commercial Espresso Machine

פּראָדוקט איבערview

The Rancilio Classe 5 USB1 Group is an entry-level to mid-range traditional espresso machine, combining modern style with contemporary design. Constructed from brushed stainless steel, ABS, and nylon panels, this machine is built for durability and performance in commercial settings.

Key features include soft touch keypads with programmable drink volumes, independent heat exchangers, a built-in volumetric pump, and a 4-liter boiler. It also features a USB port for easy management of machine parameters and an ergonomic C-Lever steam wand for efficient milk frothing.

פיגורע 1: פראָנט view of the Rancilio Classe 5 Commercial Espresso Machine, showcasinג זײַן גלאַטן דיזײַן און קאָנטראָל פּאַנעל.

סעטאַפּ און ינסטאַלירונג

Proper installation is crucial for the optimal performance and longevity of your Rancilio Classe 5 espresso machine. Please follow these guidelines carefully.

אָרט רעקווירעמענץ

Ensure adequate space for the machine, considering its dimensions and the need for ventilation and access for maintenance.

Figure 2: Dimensional diagram illustrating the space requirements for the Rancilio Classe 5 machine. Dimensions are approximately 16 inches wide x 22 inches deep x 21 inches high.

עלעקטריקאַל קאַנעקשאַנז

The machine requires a dedicated electrical circuit. Refer to the specifications for voltagE און ampעלטער באדערפענישן.

• VoltagE קייט: 110 - 120 V
• וואטס: 1600 וו
• Circuit Size: 15 amps
• Suggested Receptacle: 15a GFI or 5-15R

Figure 3: Electrical connection diagram showing recommended 15a GFI and 5-15R receptacles suitable for the espresso machine.

וואַסער קאַנעקשאַן

A dedicated cold water access line with a standard female 3/8" NPT fitting and a manual shut-off valve is required within 4 feet of the machine.

פליסן קאַנעקשאַן

An open gravity drain with a minimum 2" I.D. is required within 4 feet of the machine for proper drainage.

אַפּערייטינג ינסטראַקשאַנז

Familiarize yourself with the machine's controls and functions for optimal coffee preparation.

Control Panel and Programming

The Classe 5 USB1 features soft touch keypads with white LED backlights. These keypads allow for easy start and stop controls and offer 4 programmable drink volumes for quick and consistent espresso preparation.

Figure 4: A hand interacting with the soft touch control panel of the Rancilio Classe 5, demonstrating the ease of operation for programming drink volumes.

The USB port allows for easy management of machine parameters, enabling customization and updates.

עספּרעסאָ צוגרייטונג

The heat exchange system allows for simultaneous espresso extraction and milk steaming. Use the double spout portafilter for serving.

פיגורע 5: נאָענט-אַרויף view of espresso being dispensed from the Rancilio Classe 5 into two cups, highlighting the machine's brewing capability.

סטימינג מילך

The manual steam wand features a C-Lever ergonomically designed handle with two positions: pulse steam (down) or steam fully on (up). This allows for precise control when frothing and steaming milk.

הייס וואַסער דיספּענסינג

The machine is equipped with a hot water outlet controlled by a manual valve knob.

וישאַלט און רייניקונג

Regular maintenance ensures the longevity and consistent performance of your espresso machine.

טעגלעך רייניקונג

The intelligent management of the brewing button provides fully automatic group cleaning. An LED light on the control panel indicates when routine maintenance is needed. This function helps maintain extraordinary brew quality and reduces daily cleaning times.

Drain Insert Cleaning

The scratch-proof polymer drain insert is removable and dishwasher safe, making it easy to clean.

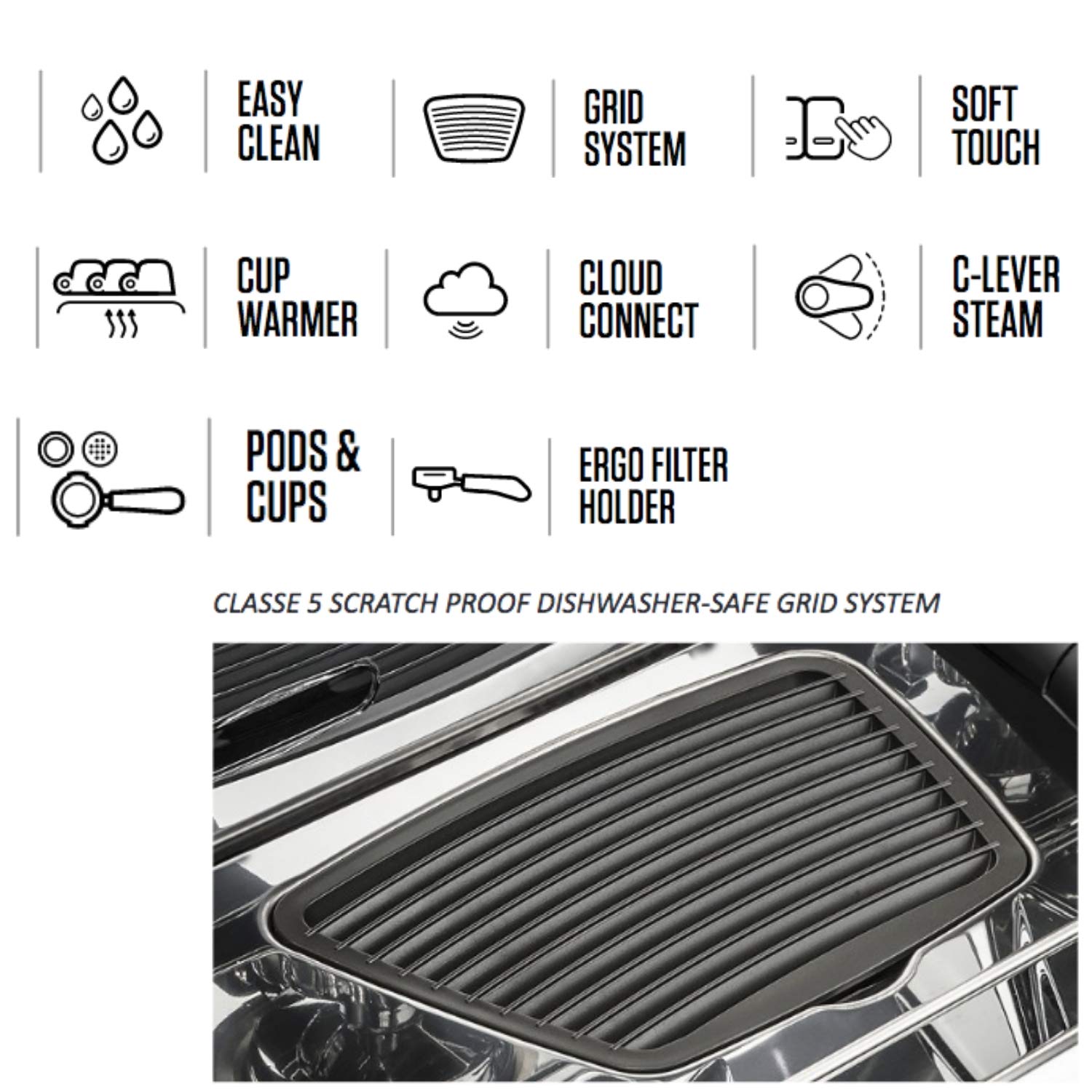

Figure 6: A close-up of the Classe 5 scratch-proof dishwasher-safe grid system (drain insert), alongside icons representing key features like Easy Clean, Grid System, Soft Touch, Cup Warmer, Cloud Connect, C-Lever Steam, Pods & Cups, and Ergo Filter Holder.

אַלגעמיינע קער

ווישן אַראָפּ די יקסטיריער מיט אַדamp cloth. Do not use abrasive cleaners. Periodically check and clean the steam wand and hot water spout to prevent blockages.

טראָובלעשאָאָטינג

This section provides solutions to common issues you might encounter with your Rancilio Classe 5 espresso machine.

• קיין מאַכט: Ensure the machine is properly plugged into a functioning 15a GFI or 5-15R outlet and the circuit breaker has not tripped.
• קיין וואַסער לויפן: Check the water supply line connection and ensure the manual shut-off valve is open. Verify that the water reservoir (if applicable to your model variant) is filled.
• שלעכטע עספּרעסאָ עקסטראַקציע: This can be due to incorrect grind size, improper tamping, or a dirty group head. Adjust grind, ensure consistent tamping pressure, and perform a group cleaning cycle.
• Steam Wand Issues: If the steam wand is not producing adequate steam, check for blockages in the nozzle and ensure the boiler has reached optimal temperature.
• טעות ינדיקאַטאָרס: If an LED light on the control panel indicates a maintenance need, follow the recommended cleaning or service procedures.

For issues not covered here, or if problems persist, please contact authorized service personnel.

טעכניש ספּעסאַפאַקיישאַנז

וואָראַנטי און שטיצן

וואָראַנטי אינפֿאָרמאַציע

This Rancilio Classe 5 Commercial Espresso Machine comes with a 1 יאָר וואָראַנטי פֿון דעם קויף־דאַטום. ביטע באַהאַלטן אייער קויף־באַווייַז פֿאַר גאַראַנטיע־קליימז.

קונה שטיצן

For technical assistance, troubleshooting, or warranty service, please contact your authorized Rancilio dealer or the manufacturer's customer support. Refer to your purchase documentation for specific contact details.
